Klipsch PSM-450-T - Black, Each
Product Details
The Klipsch PSM-450-T is a compact commercial surface-mount loudspeaker with a 4.5" woofer and 1" titanium compression driver on a K-1500M horn/tweeter bridge. It is built for distributed background and foreground music in restaurants, retail and hospitality.
Transformer taps run 70V at 15W, 7.5W, 3.8W and 1.9W and 100V at 15W, 7.5W and 3.8W, with an 8-ohm bypass. That fine-grained tap selection is what lets a designer balance level speaker by speaker across a room rather than accepting whatever one setting gives.
The all-weather ABS cabinet is paintable and IPX6 rated — a step above the IPX5 of the residential range, for washdown areas and exposed exterior positions. Black finish.
Features
- 4.5" woofer with 1" titanium compression driver on a K-1500M horn/tweeter bridge
- 70V taps: 15W, 7.5W, 3.8W, 1.9W
- 100V taps: 15W, 7.5W, 3.8W
- 8 ohm bypass position
- 60Hz – 20kHz +/- 4dB; 88dB sensitivity
- 50 watts continuous, 200 watts peak
- IPX6 rated — suitable for washdown and exposed areas
- All-weather paintable ABS cabinet
- Vented via three folded Tractrix ports
- 4-pin Euroblock input

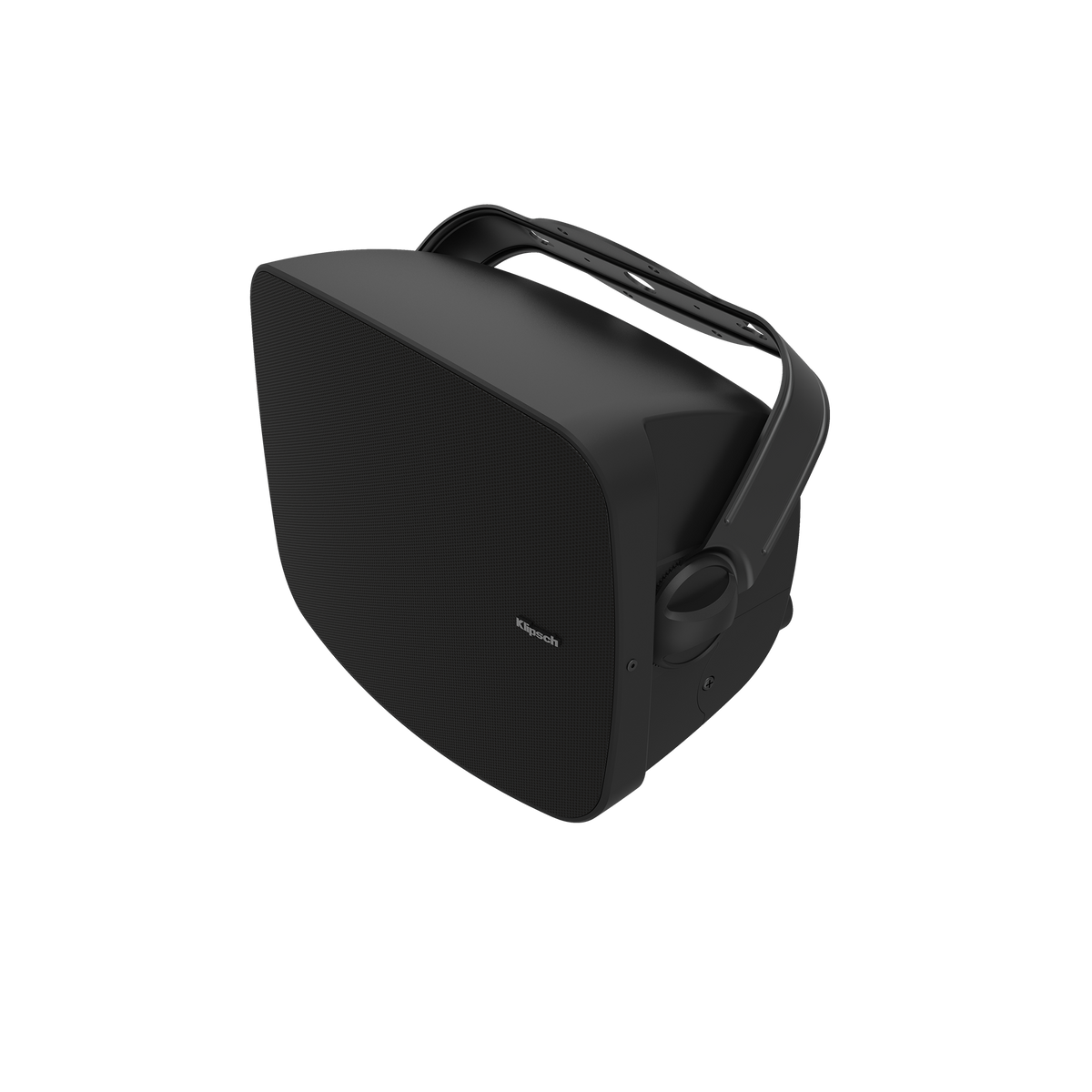

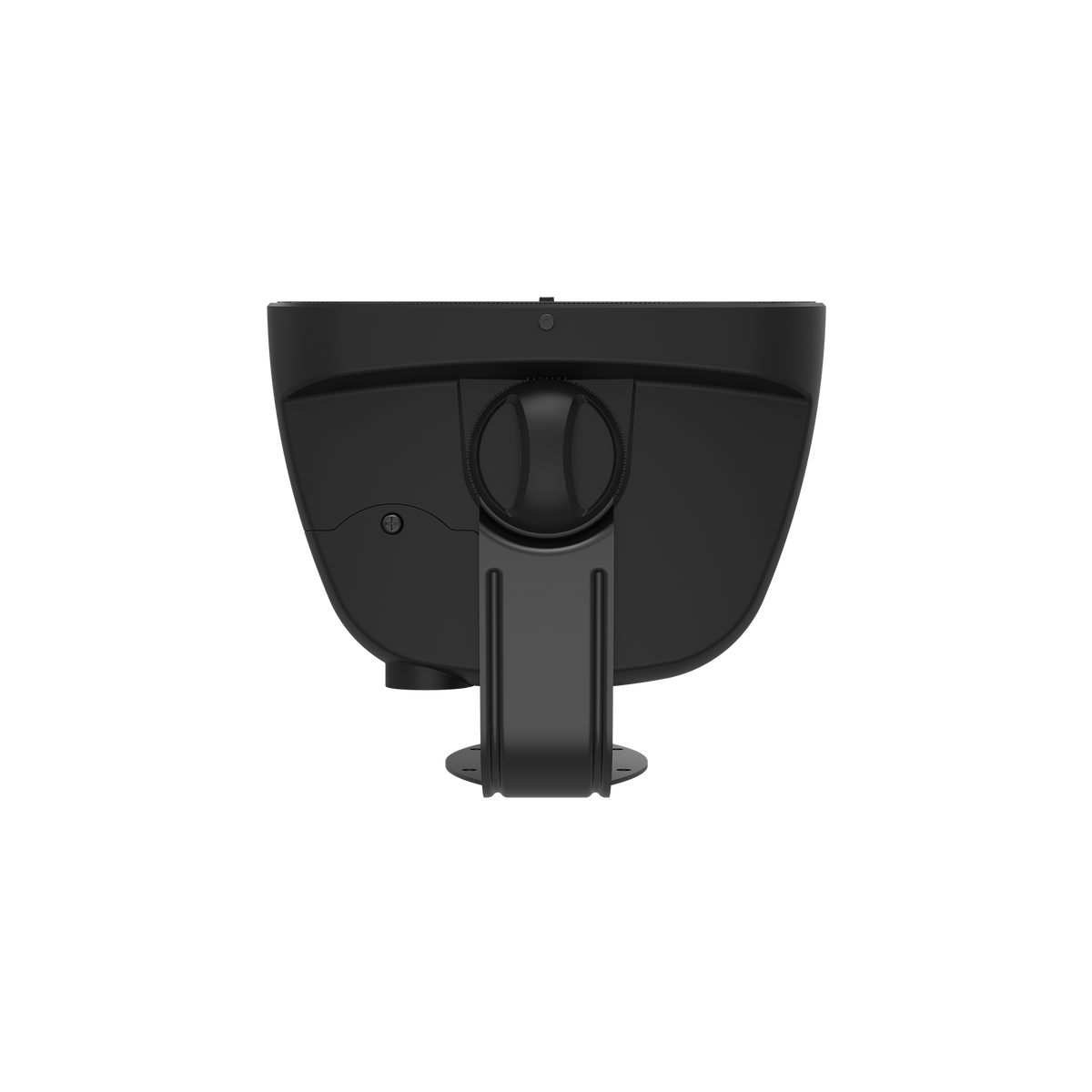

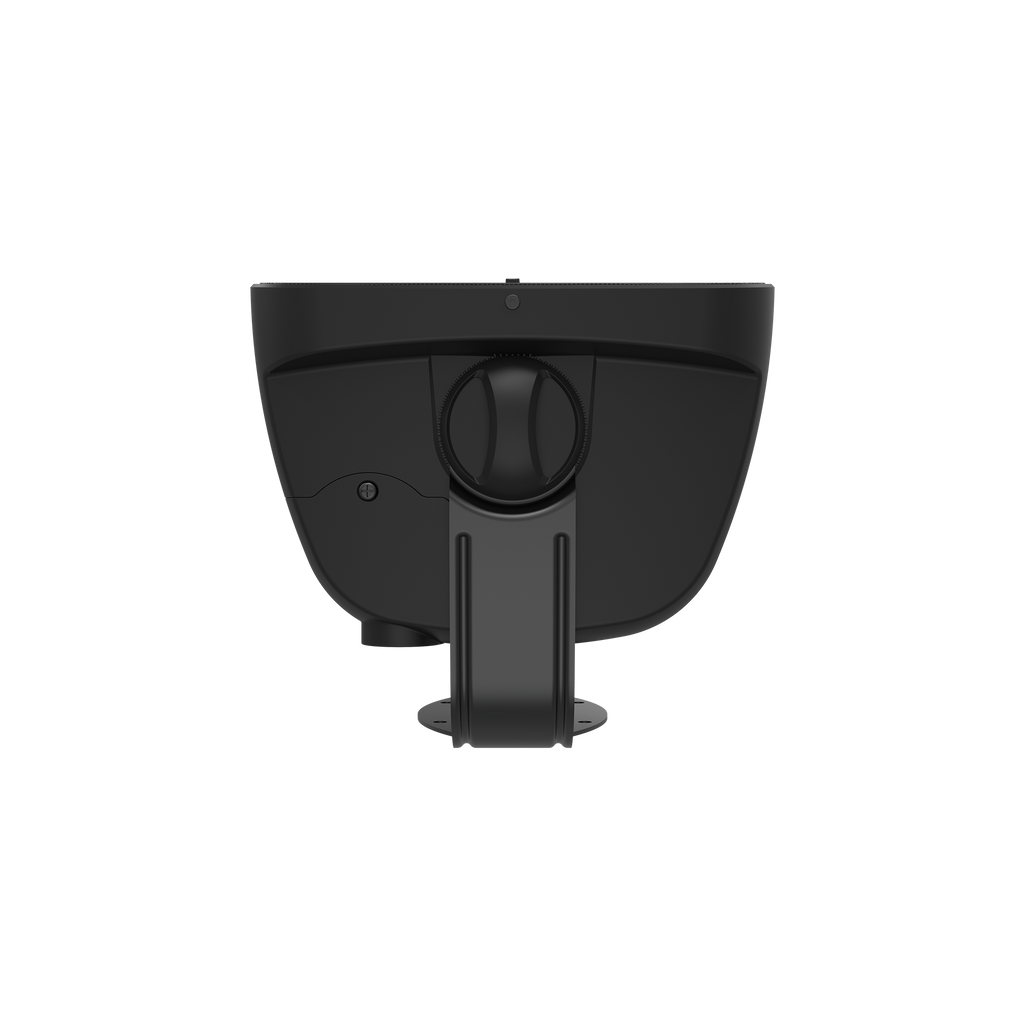

- Mounting bracket included
- Black finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 60Hz – 20kHz +/- 4dB; 50Hz at -10dB |
| Power Handling | 50 watts (14.6V) 58Hz – 10kHz; 200 watts peak |
| Calculated Max Continuous Output | 102dB |
| Sensitivity | 88dB |
| Coverage | 90° +/- 40° 1kHz – 20kHz |
| Directivity Index | 7dB +/- 3dB 800Hz – 20kHz |
| Nominal Impedance | 8 ohms (4.3 ohms at 185Hz minimum) |
| Acoustic Crossover | 2kHz |
| Transducers | 4.5" woofer; 1" titanium compression driver on a K-1500M horn/tweeter bridge |
| Enclosure Material | All Weather ABS Plastic, Paintable |
| IP Rating | IPX6 |
| Enclosure Tuning | Vented via 3 folded Tractrix ports |
| Input Connectors | 4-pin Euroblock |
| Transformer Taps | 70V: 15W, 7.5W, 3.8W, 1.9W; 100V: 15W, 7.5W, 3.8W; bypass: 8 ohms nominal |
| Physical | |
|---|---|
| Dimensions | 12.13" (309mm) x 9.5" (242mm) x 6.5" (166mm); with bracket 8.38" (213mm) |
| Weight | 7.25 lbs (3.29kg) |
| Finish | Black |
Specifications subject to change.
