Description
Klipsch PRO-500T-LS Brown, Each
Product Details

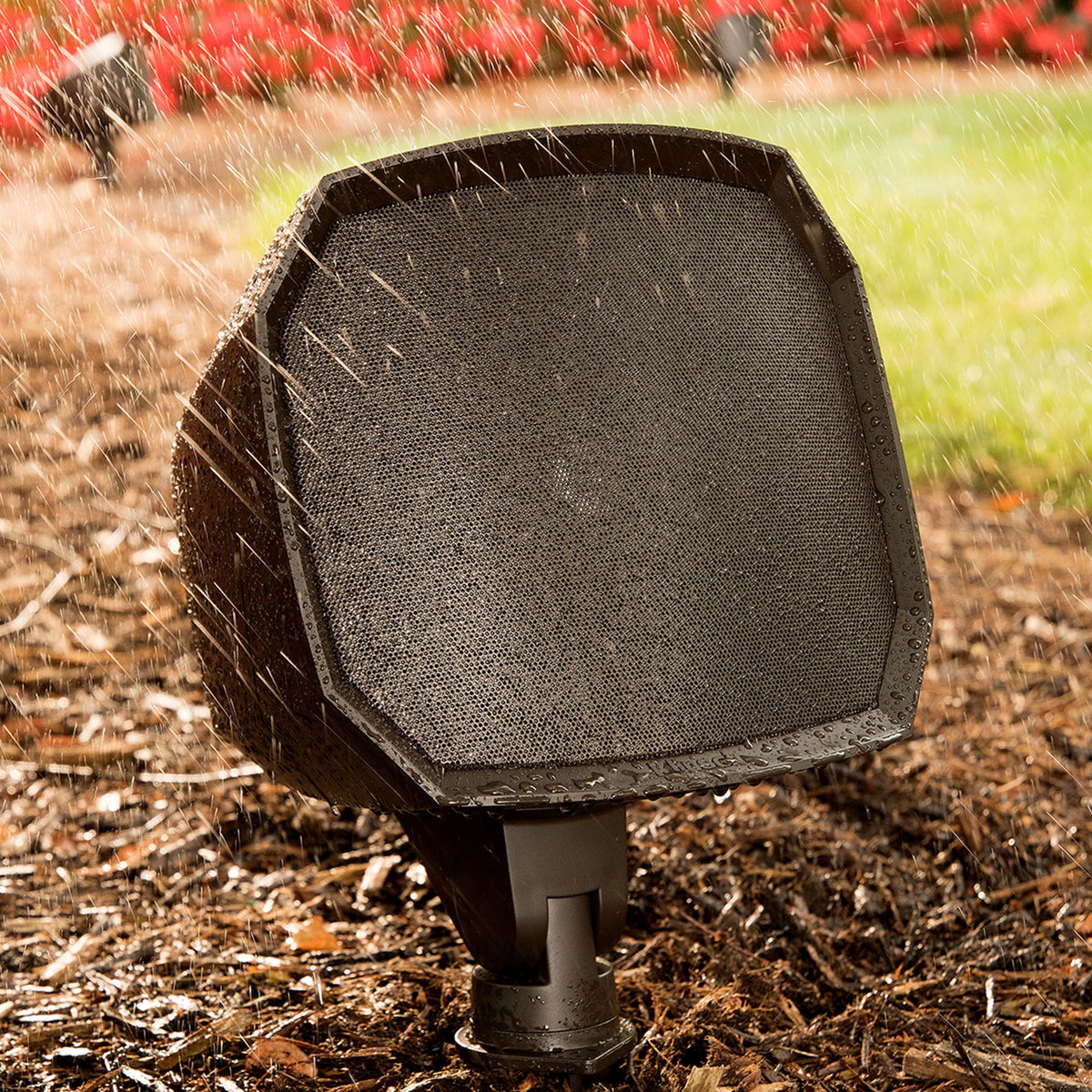

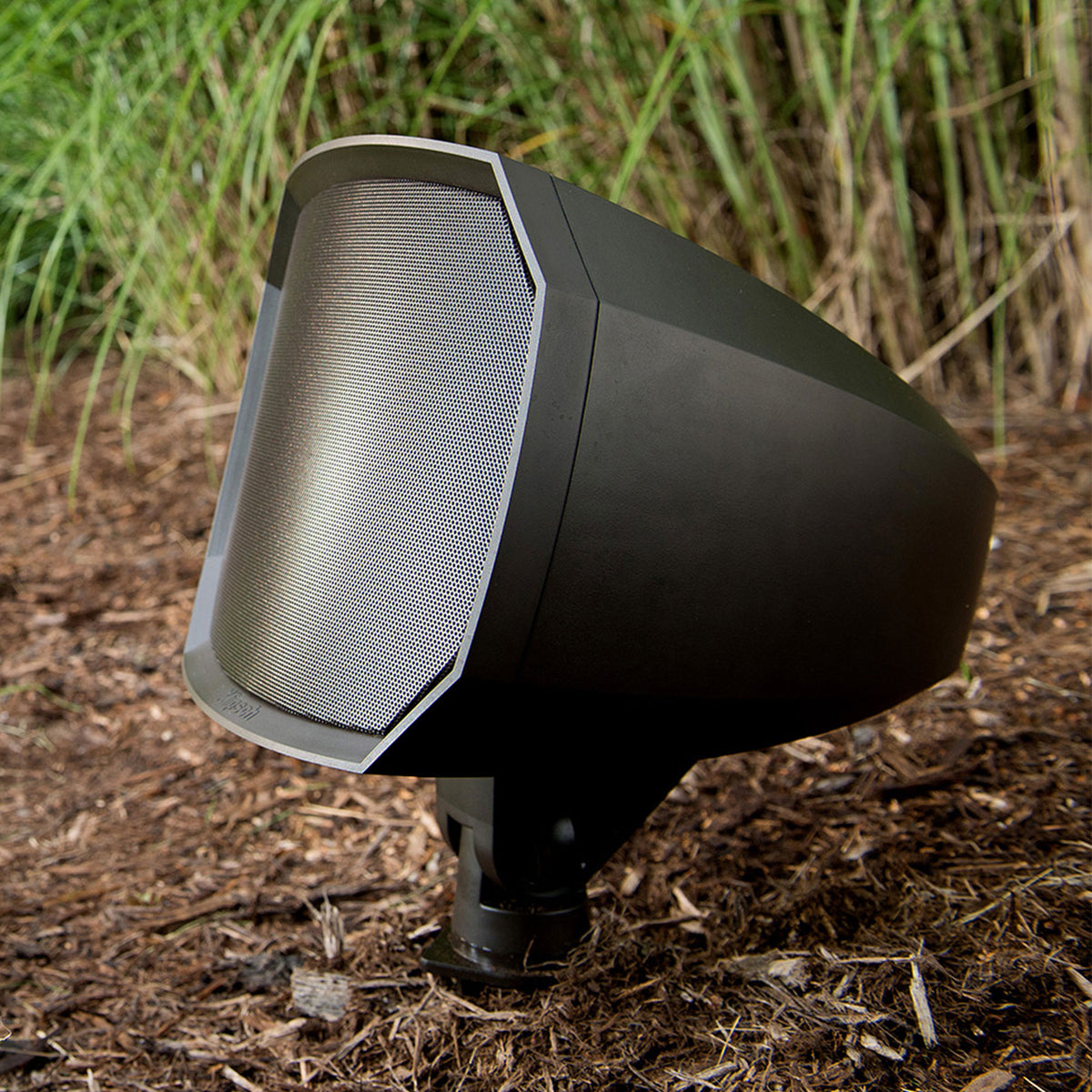

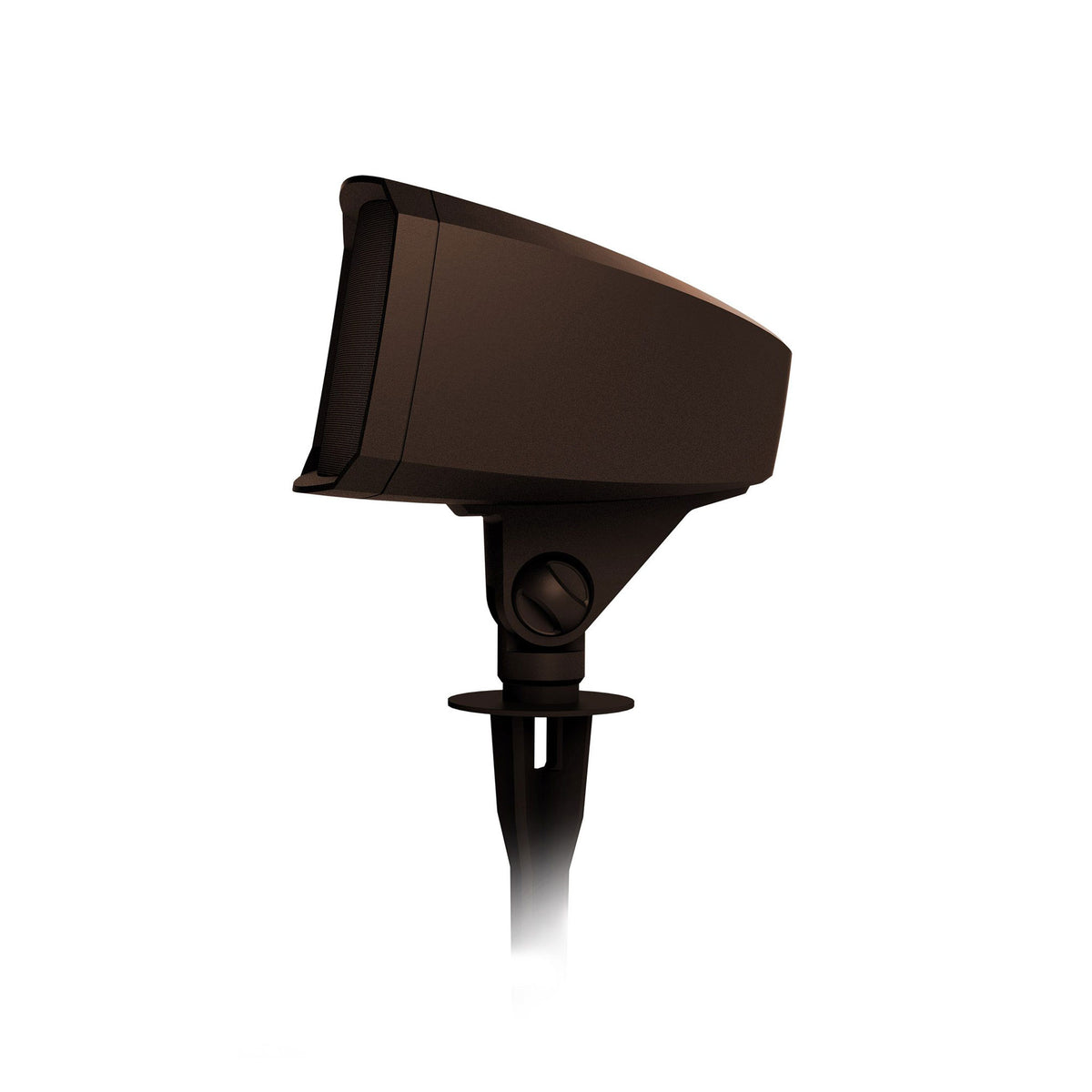

The Klipsch PRO-500T-LS is the compact landscape satellite in the Professional series: a 5" IMG woofer and 1" aluminum dome tweeter on a 105° custom Tractrix horn, in a UV-treated glass-filled ABS cabinet built to sit on a ground stake among planting.
The 105° coverage angle is deliberately wide, because outdoor listeners are spread across a garden rather than seated in one position. At 5 lbs and 6.3" wide it disappears into beds more readily than the larger PRO-650T-LS.
Selectable 70V and 100V transformer taps allow output to be balanced across a run of speakers, with an 8-ohm bypass for low-impedance installs. The PRO-10-GS 10" ground stake (part 1063447) is the matching mount, sold separately.
Features
- 5" IMG woofer with 1" aluminum dome tweeter
- 105° custom Tractrix horn for wide outdoor dispersion
- 130Hz – 30kHz +/- 3dB; 88dB sensitivity; 60W peak
- 70V taps: 3.75W, 7.5W, 15W, 30W
- 100V taps: 7.5W, 15W, 30W
- 8 ohm bypass for low-impedance systems
- UV-treated, glass-filled ABS cabinet
- Brown matte finish, paintable
- Compatible with PRO-10-GS 10" ground stake (sold separately)
Specifications
| Technical | |
|---|---|
| Frequency Range | 130Hz – 30kHz +/- 3dB; 113Hz – 32kHz +/- 6dB; 93Hz – 36kHz +/- 10dB |
| High Frequency Driver | 1" (2.54cm) aluminum dome tweeter on a 105° custom Tractrix® horn |
| Low Frequency Driver | 5" (12.7cm) IMG Woofer |
| Sensitivity | 88 dB |
| Coverage Angle | 105° |
| Power Handling | 60W Peak |
| 70V / 100V Tap Settings | 70V: 3.75W, 7.5W, 15W, 30W; 100V: 7.5W, 15W, 30W; 8 Ohm Bypass |
| Physical | |
|---|---|
| Dimensions | 6.3" x 6.85" x 8.5" (160mm x 174mm x 216mm) |
| Weight | 5 lbs (2.27 kg) |
| Enclosure Material | UV Treated, Glass-Filled ABS Cabinet |
| Finish | Brown Matte, paintable |
| Accessories | PRO-10-GS 10" Ground Stake (part 1063447), sold separately |
Specifications subject to change.
