Klipsch PRO-25-RW-LCR White, Each
Product Details
The PRO-25RW LCR is a Klipsch Professional in-wall loudspeaker for custom installation — the working end of a distributed audio or home theatre system, sized to vanish into the structure.
The acoustic package is dual 5.25" (13.34cm) IMG woofers with a 1" (2.54cm) aluminum dome tweeter mated to a 90°x90° Tractrix® horn. Klipsch put the tweeter on a Tractrix horn for the same reason they do it on the floorstanders: controlled directivity, high efficiency and low distortion.
This is the LCR configuration — three drivers in a horizontal baffle behind a single grille, covering left, center and right from one enclosure.

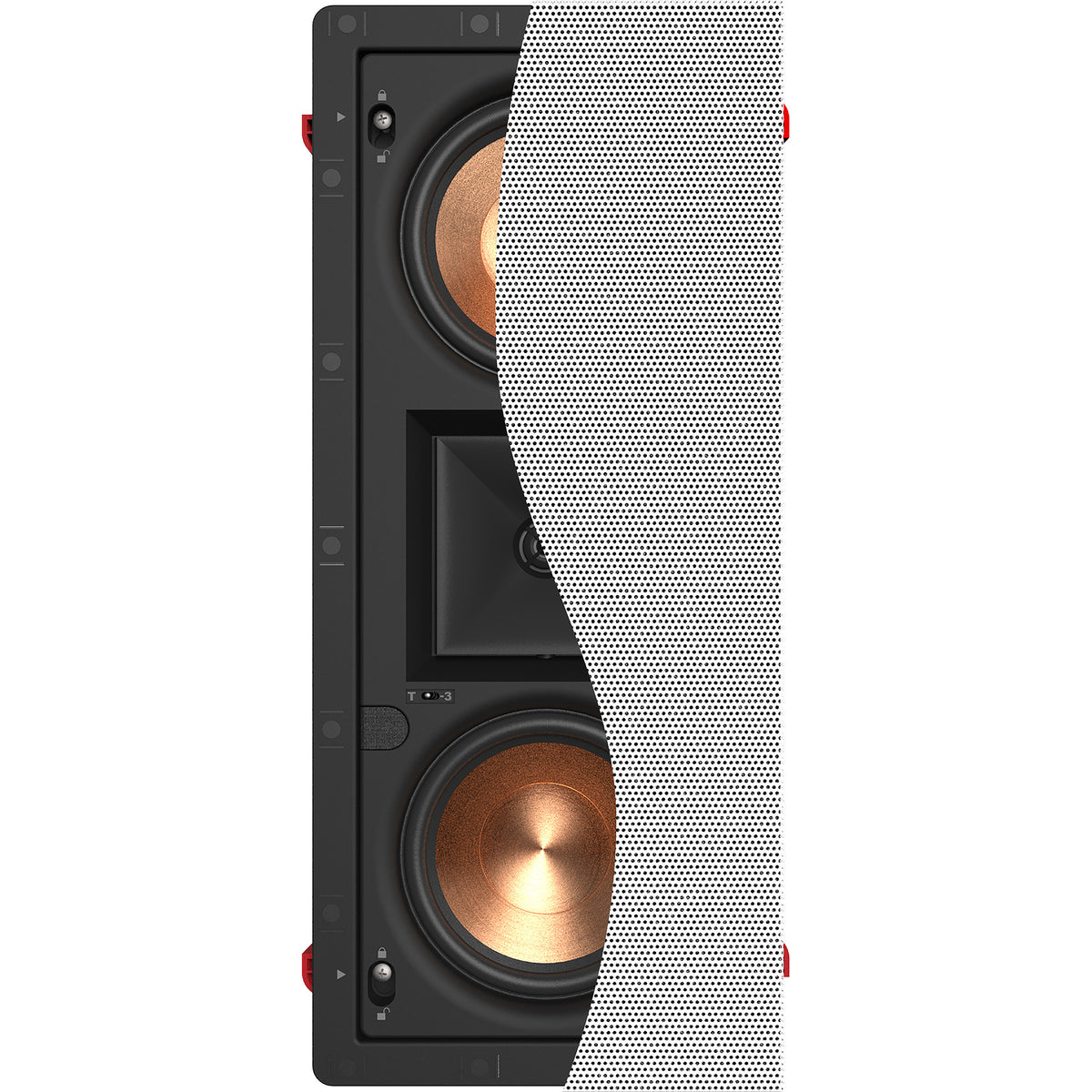

A paintable magnetic grille finishes it flush to the surface; round and square grilles are supplied where the spec table lists them, so the same speaker suits either a traditional or a square-trim interior.
Features
- 1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn
- Dual 5.25" (13.34cm) IMG Woofers
- 56Hz - 23kHz +/- 3dB frequency response
- 93 dB @ 2.83V / 1m sensitivity
- 75W RMS / 300W Peak power handling
- Tractrix® horn-loaded tweeter for controlled directivity

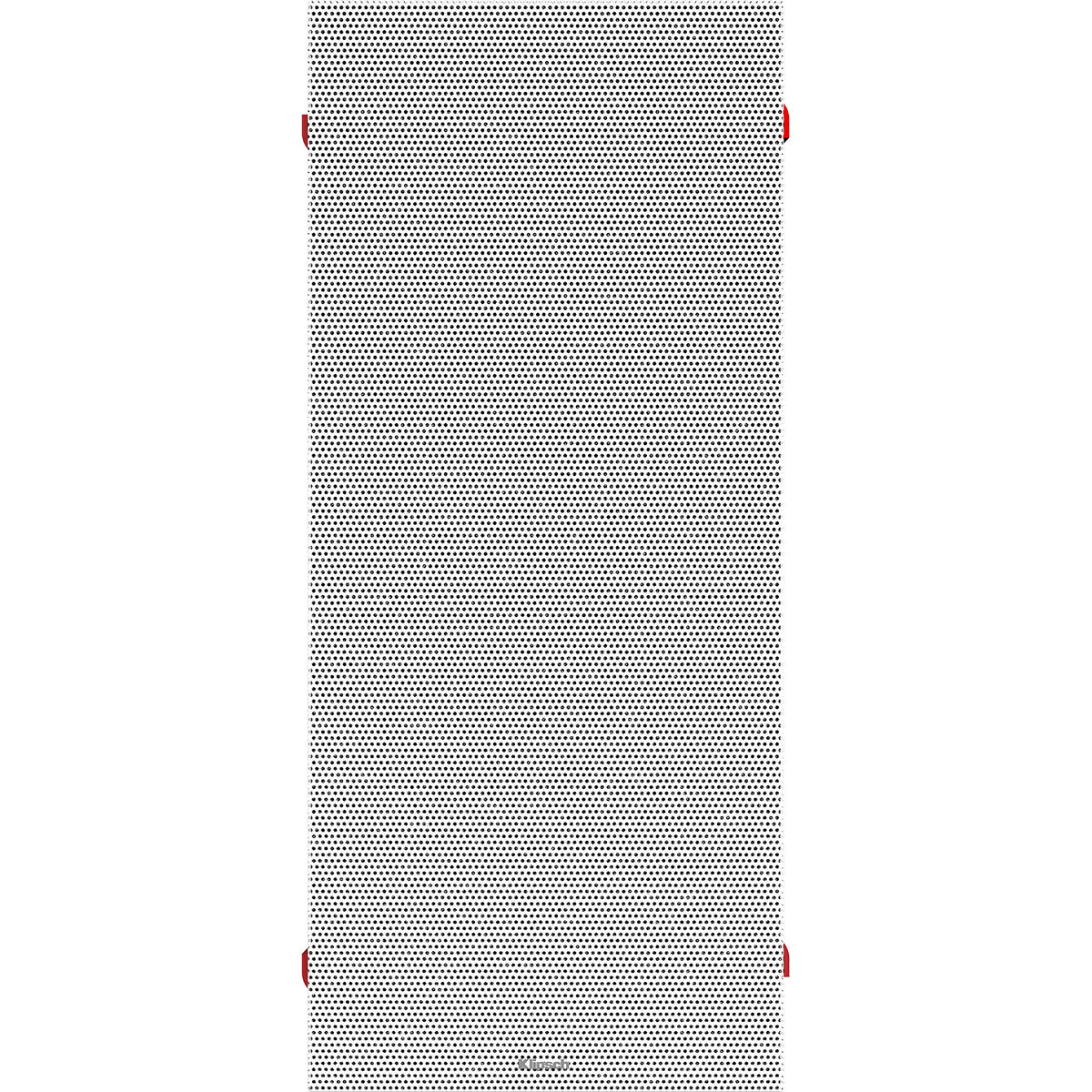

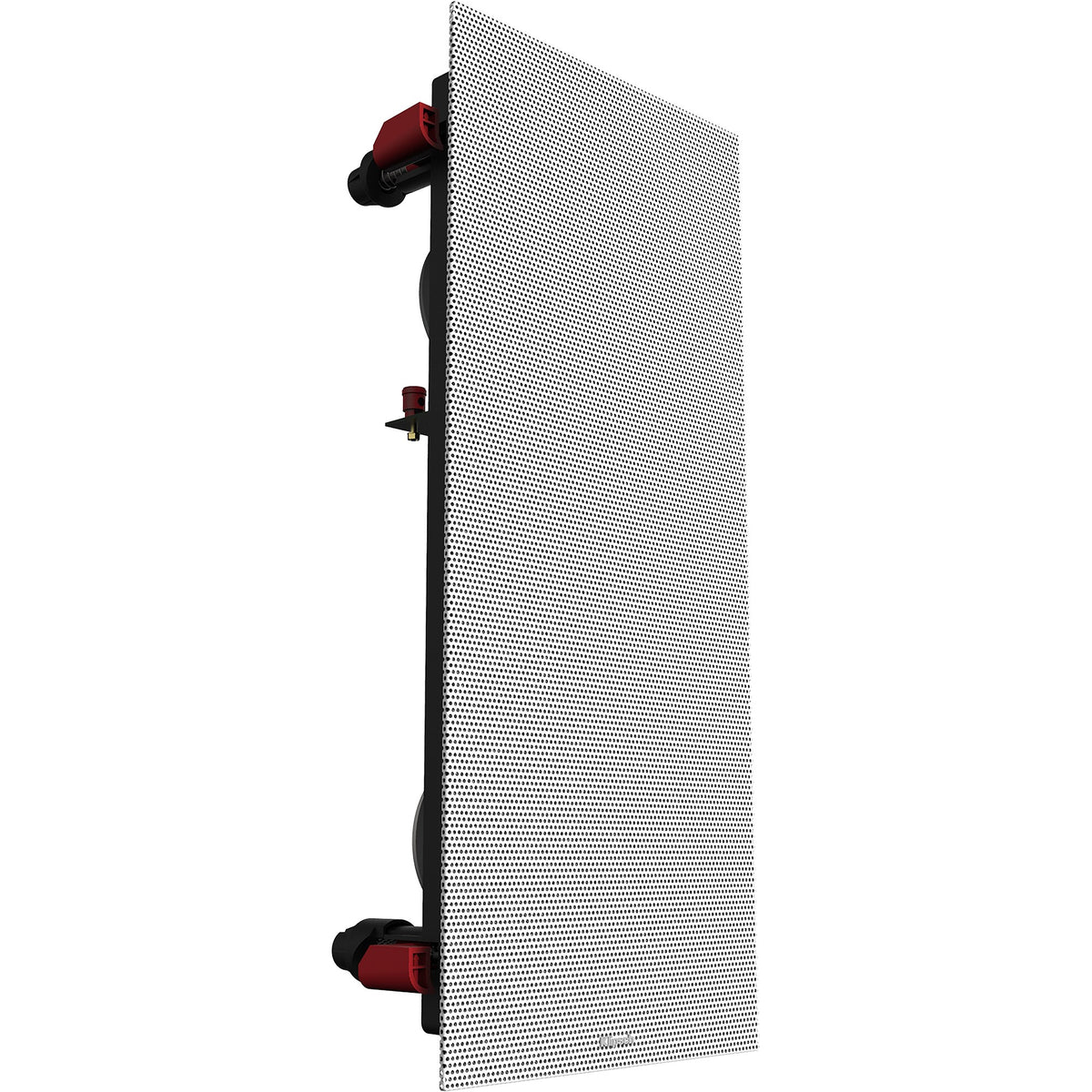

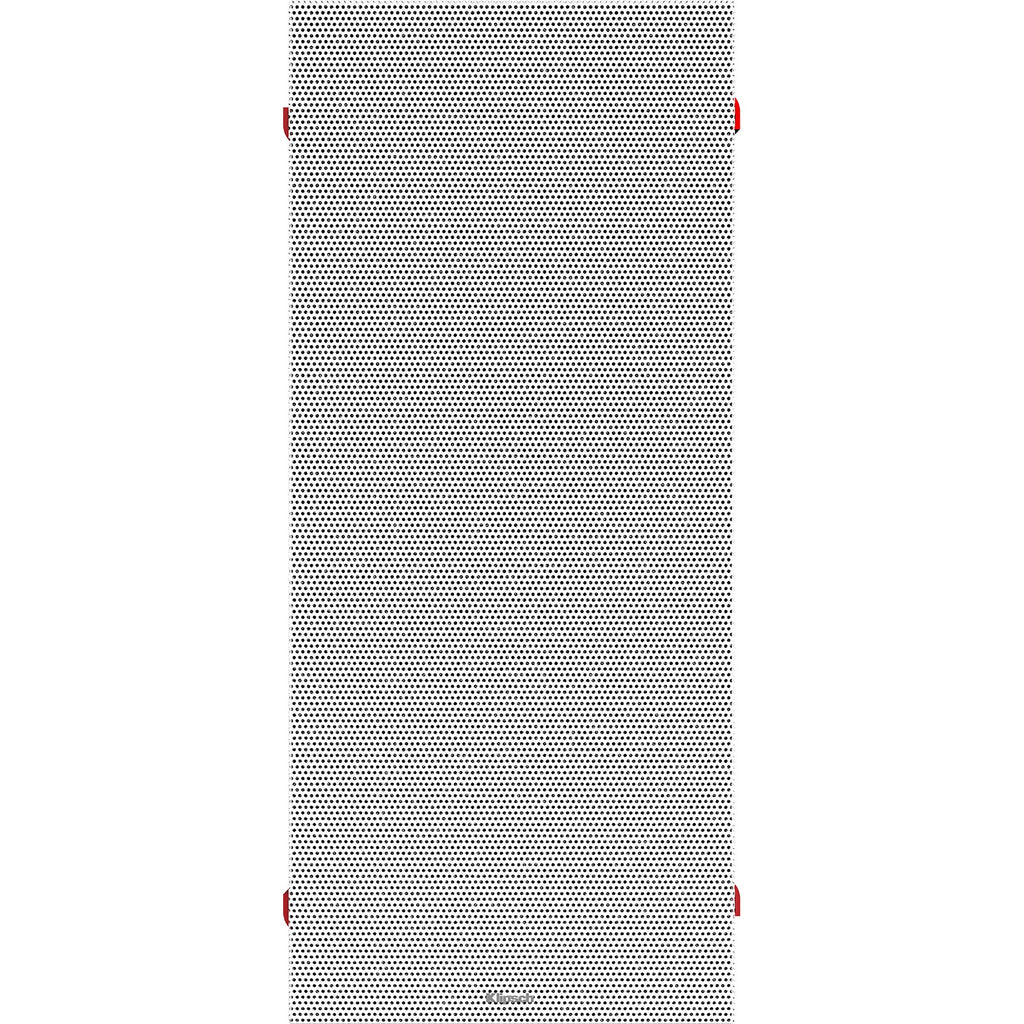

- Paintable magnetic grille
- Klipsch Professional custom-installation series
- In-wall mounting
Specifications
| Technical | |
|---|---|
| Frequency Range | 56Hz - 23kHz +/- 3dB |
| High Frequency Driver | 1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn |
| Low Frequency Driver | Dual 5.25" (13.34cm) IMG Woofers |
| Sensitivity | 93 dB @ 2.83V / 1m |
| Coverage Angle | 90° x 90° |
| Power Handling | 75W RMS / 300W Peak |
| Impedance | 8 Ohm Compatible |
| Enclosure Material/Type | ABS/Infinite Baffle |
| Controlled Dispersion Technology&Trade; | CDT technology allows for the tweeter and the woofer to be aimed up to 15° in any direction, helping to ensure on-axis frequency response at almost any listening position. |
| Physical | |
|---|---|
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 7.5" W x 17.4" H x 3.8" D (19.1cm H x 44.2cm W x 9.6cm D) |
| Mounting Depth | 3.78" (9.35cm) |
| Cutout Dimensions | 16.5" H X 6.5" W (41.9cm H X 16.5cm W) |
| Product Weight | 6.5lbs (2.95kg) |
| Included In Box | Grille, Paint Shield |
| Install Kit | IK-502-W II or IK-502-W (Sold Separately) |
| Built From | 2017 Dual |
Specifications subject to change.
