Description
Klipsch PRO-24RW LCR SkyHook Cinch White, Each
Product Details
The PRO-24RW LCR is part of the Klipsch Professional architectural range: in-wall speakers built for custom-install work where the speaker has to disappear and the sound has to not.

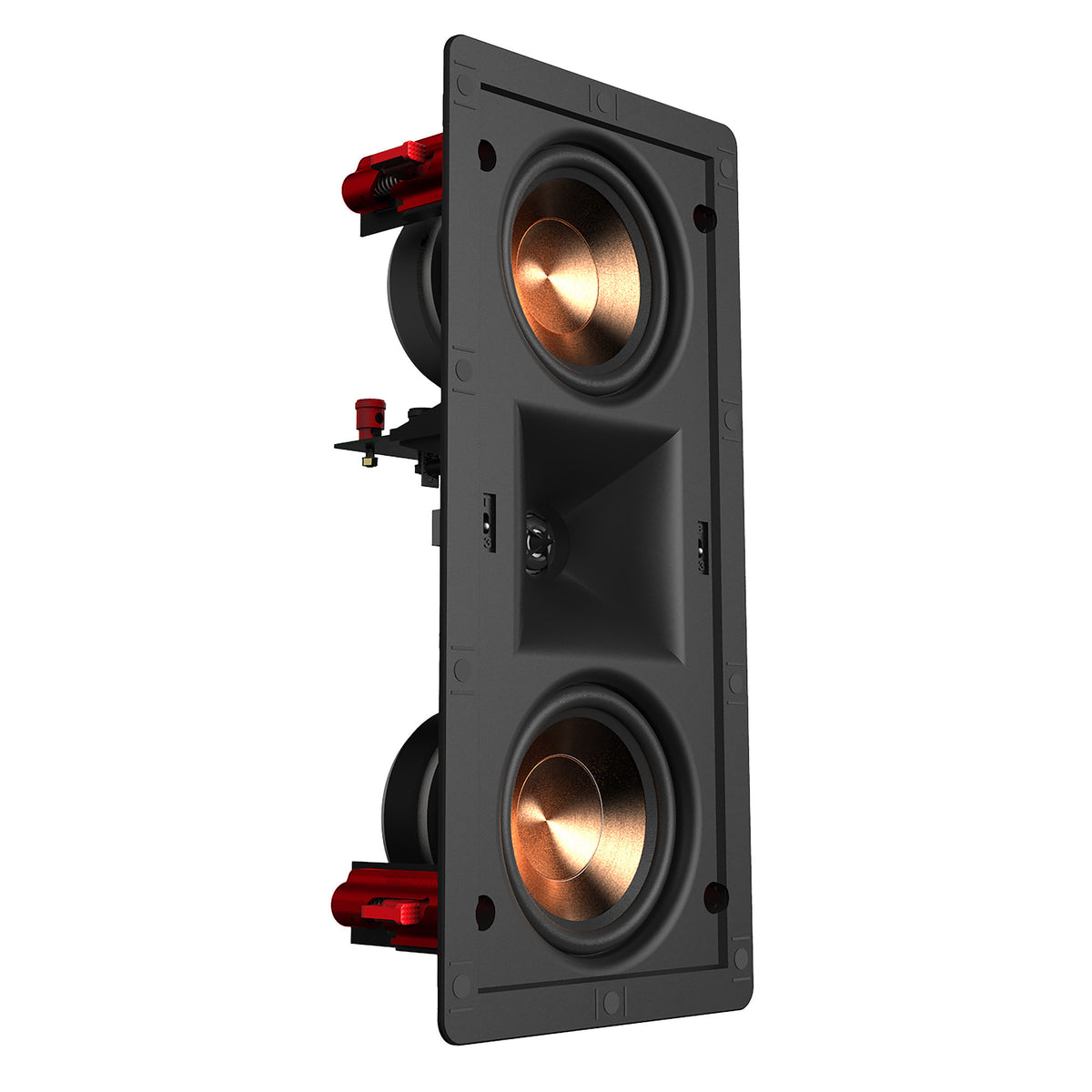

It combines dual 4" (10.16cm) IMG woofers with a 1" (2.54cm) aluminum dome tweeter — the horn controlling dispersion so output is directed into the room rather than scattered.
Installation uses the patented Sky Hook® Cinch system: the dog legs engage automatically at a preset clamping force when the speaker goes into the cut-out, removing any risk of over-torquing, with a quarter-turn adjustment per leg for an uneven opening.
This is the LCR variant — a horizontal three-driver arrangement behind one grille, for left, center and right above or below a screen.
Features
- 1" (2.54cm) Aluminum Dome Tweeter
- Dual 4" (10.16cm) IMG Woofers
- 90Hz - 23kHz +/- 3dB frequency response
- 89 dB @ 2.83V / 1m sensitivity
- 30W RMS / 120W Peak power handling
- Patented Sky Hook® Cinch tool-free installation
- Preset clamping force — no over-torquing
- Quarter-turn dog leg adjustment for uneven openings
- Tractrix® horn-loaded tweeter

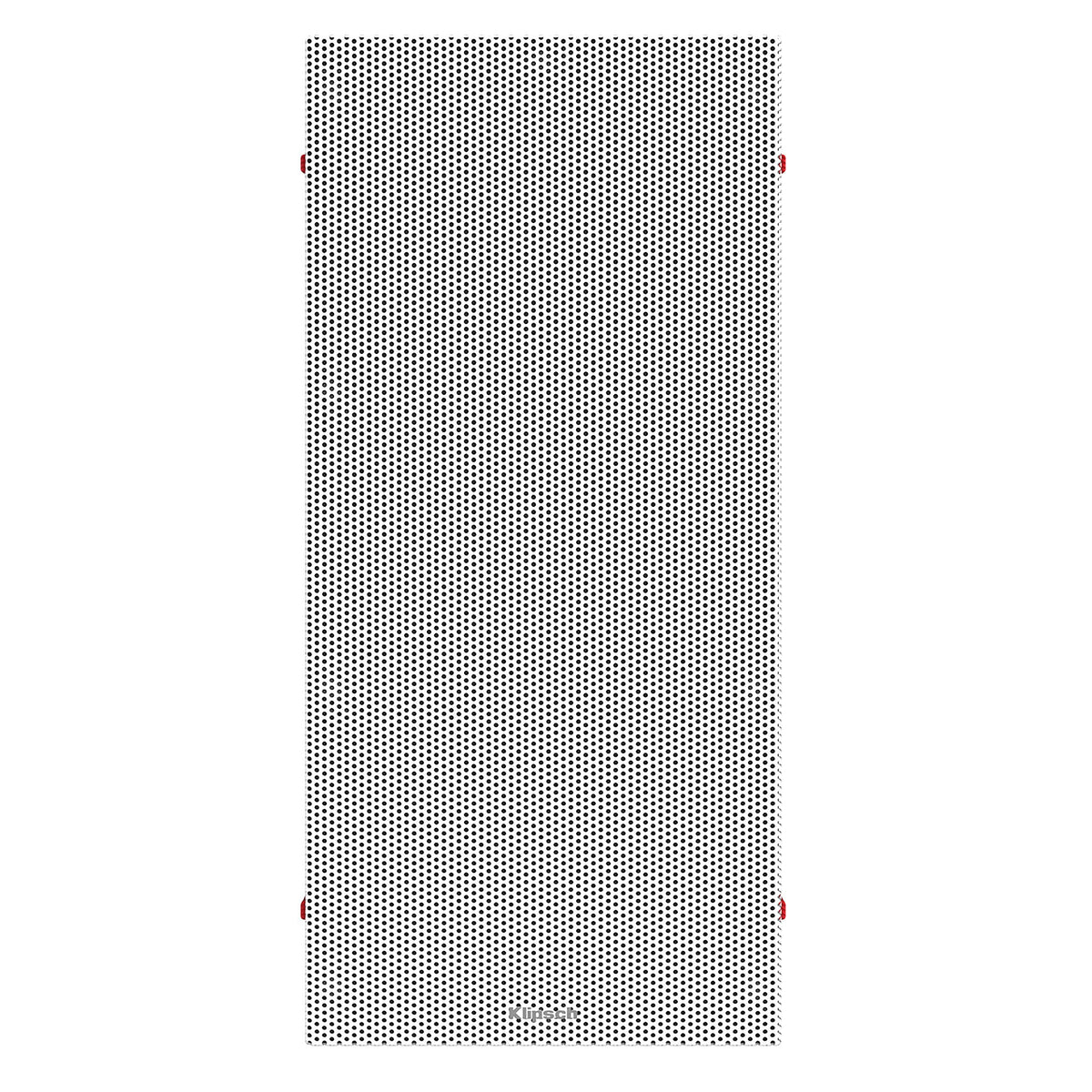

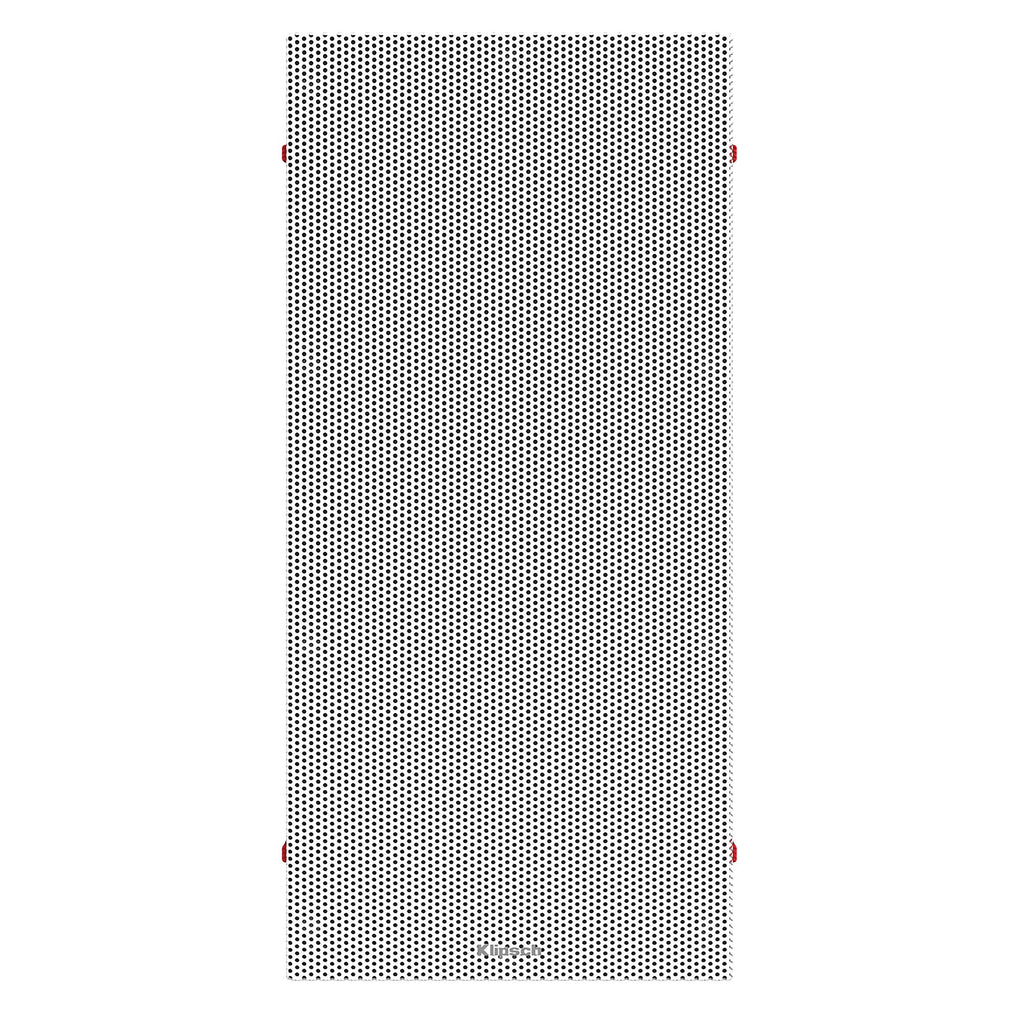

- Paintable magnetic grille
- In-wall mounting
Specifications
| Technical | |
|---|---|
| Frequency Range | 90Hz - 23kHz +/- 3dB |
| High Frequency Driver | 1" (2.54cm) Aluminum Dome Tweeter |
| Low Frequency Driver | Dual 4" (10.16cm) IMG Woofers |
| Sensitivity | 89 dB @ 2.83V / 1m |
| Coverage Angle | 90° x 90° |
| Power Handling | 30W RMS / 120W Peak |
| Impedance | 4 Ohm |
| Enclosure Material/Type | ABS/Infinite Baffle |
| Physical | |
|---|---|
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 6.2" W x 13.3" H x 3.4" D (15.75cm H x 31.8cm W x 8.6cm D) |
| Mounting Depth | 3.3" (8.3cm) |
| Cutout Dimensions | 12.5" H X 5.4" W (31.75cm H X 13.7cm W) |
| Product Weight | 4.5lbs (2.1kg) |
| Included In Box | Flat Magnetic Grille, Paint Shield |
| Install Kit | IK-402-W (Sold Separately) |
| Built From | 2017 Dual |
Specifications subject to change.
