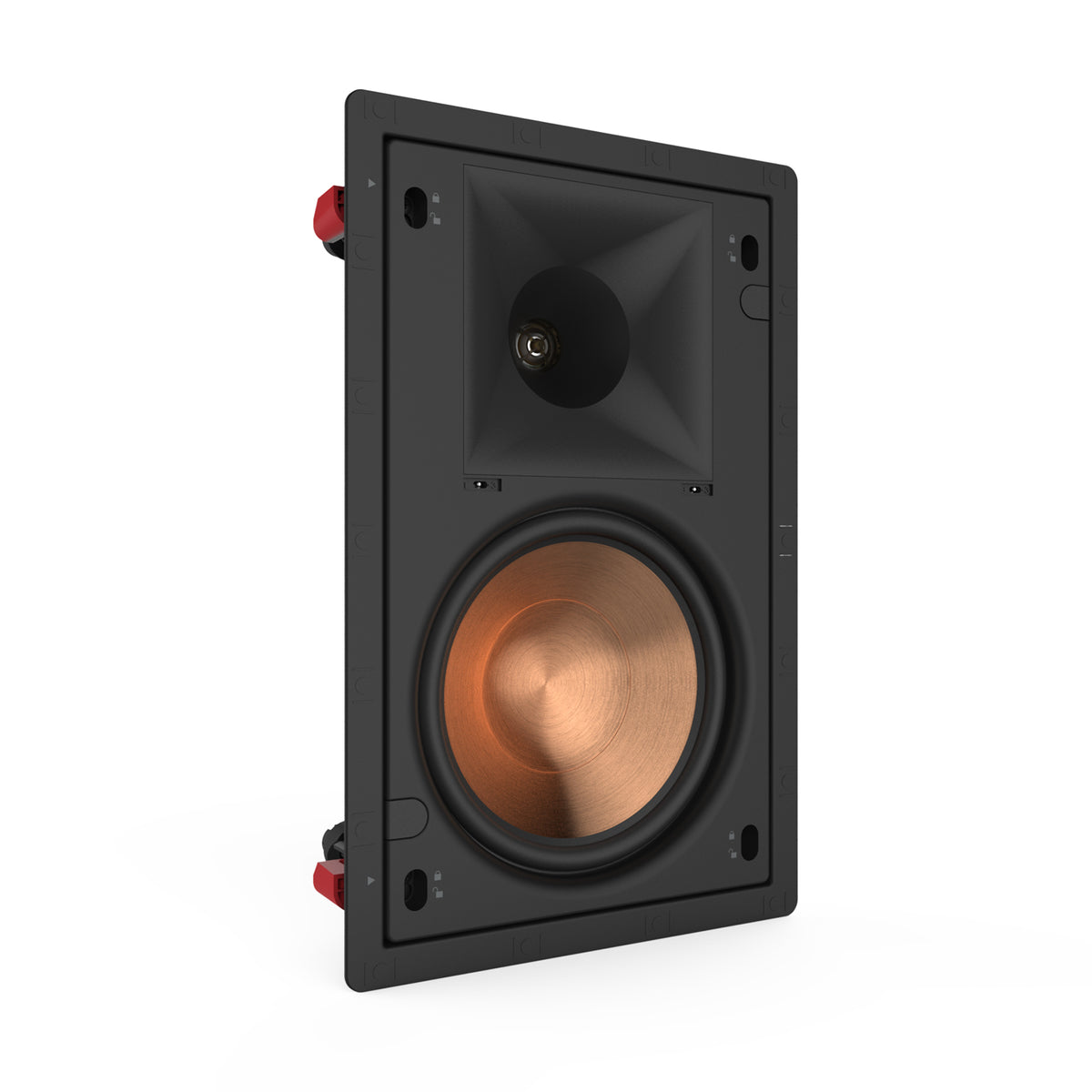

Klipsch PRO-180-RPW White, Each
Product Details
The PRO-180RPW belongs to the Klipsch Professional Reference Premiere architectural line — the step up from the standard PRO series, bringing Reference Premiere driver technology into an in-wall format.
It uses an 8" (16.51cm) Cerametallic woofer with a 1" (2.54cm) Titanium dome tweeter mated to a composite coated hybrid cross section Tractrix® horn. Cerametallic cones are the stiff, light material Klipsch use on the Reference Premiere box speakers for minimal cone break-up, and the Linear Travel Suspension tweeter is the same part that line uses.
The result is an architectural speaker that can carry the front stage of a serious home theatre, not just fill-in duty — while sitting flush behind a paintable magnetic grille.
Features
- 1" (2.54cm) Titanium Dome Tweeter mated to a composite coated Hybrid Cross Section Tractrix® Horn
- 8" (16.51cm) Cerametallic Woofer
- 52Hz - 23kHz +/- 3dB frequency response
- 96 dB @ 2.83V / 1m sensitivity
- 50W RMS / 200W Peak power handling
- Reference Premiere driver technology in an architectural format
- Tractrix® horn-loaded tweeter
- Paintable magnetic grille
- Klipsch Professional custom-installation series
- In-wall mounting
Specifications
| Technical | |
|---|---|
| Frequency Range | 52Hz - 23kHz +/- 3dB |
| High Frequency Driver | 1" (2.54cm) Titanium Dome Tweeter mated to a composite coated Hybrid Cross Section Tractrix® Horn |
| Low Frequency Driver | 8" (16.51cm) Cerametallic Woofer |
| Sensitivity | 96 dB @ 2.83V / 1m |
| Coverage Angle | 90° x 90° |
| Power Handling | 50W RMS / 200W Peak |
| Impedance | 8 Ohm Compatible |
| Enclosure Material/Type | ABS/Infinite Baffle |
| Physical | |
|---|---|
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 10.16" W x 15.75" H x 4.0" D (25.8cm H x 40.0cm W x 10.1cm D) |
| Mounting Depth | 3.9" (9.9cm) |
| Cutout Dimensions | 14.8" H X 9.25" W (37.5cm H X 23.5cm W) |
| Product Weight | 7.9lbs (3.6kg) |
| Included In Box | Grille, Paint Shield |
| Install Kit | IK-800-W (Sold Separately) |
| Built From | 2017 |
Specifications subject to change.
