Description
Klipsch PRO-180-RPC-LCR White, Each
Product Details

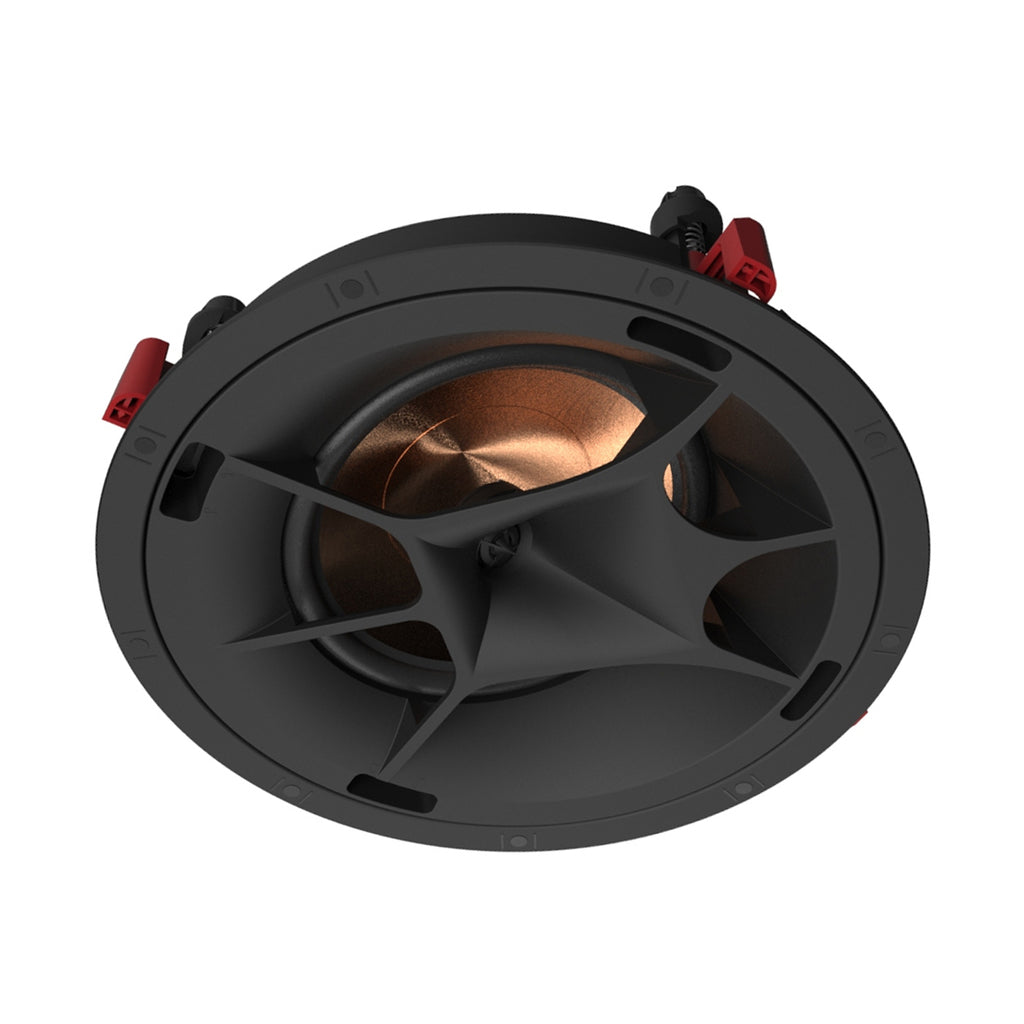

The PRO-180RPC-LCR belongs to the Klipsch Professional Reference Premiere architectural line — the step up from the standard PRO series, bringing Reference Premiere driver technology into an in-ceiling format.
It uses an 8" (16.51cm) Cerametallic woofer, angled 45° with a 1" (2.54cm) Titanium dome tweeter mated to a FEA optimized square Tractrix® horn, angled 45°. Cerametallic cones are the stiff, light material Klipsch use on the Reference Premiere box speakers for minimal cone break-up, and the Linear Travel Suspension tweeter is the same part that line uses.
This is the LCR version: left, center and right drivers in one horizontal enclosure behind a single grille.
The result is an architectural speaker that can carry the front stage of a serious home theatre, not just fill-in duty — while sitting flush behind a paintable magnetic grille.
Features
- 1" (2.54cm) Titanium Dome Tweeter mated to a FEA optimized square Tractrix® Horn, Angled 45°
- 8" (16.51cm) Cerametallic Woofer, Angled 45°
- 52Hz - 23kHz +/- 3dB frequency response
- 96 dB @ 2.83V / 1m sensitivity
- 50W RMS / 200W Peak power handling
- Reference Premiere driver technology in an architectural format
- Tractrix® horn-loaded tweeter
- Paintable magnetic grille
- Klipsch Professional custom-installation series
- In-ceiling mounting
Specifications
| Technical | |
|---|---|
| Frequency Range | 52Hz - 23kHz +/- 3dB |
| High Frequency Driver | 1" (2.54cm) Titanium Dome Tweeter mated to a FEA optimized square Tractrix® Horn, Angled 45° |
| Low Frequency Driver | 8" (16.51cm) Cerametallic Woofer, Angled 45° |
| Sensitivity | 96 dB @ 2.83V / 1m |
| Coverage Angle | 90° x 90° |
| Power Handling | 50W RMS / 200W Peak |
| Impedance | 8 Ohm Compatible |
| Enclosure Material/Type | ABS/Infinite Baffle |
| Physical | |
|---|---|
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 12.72" W x 12.72" H x 5.91" D (32.3cm H x 32.3cm W x 15cm D) |
| Mounting Depth | 5.68" (14.4cm) |
| Cutout Dimensions | 11.57" (29.4cm) |
| Product Weight | 8.4lbs (3.8kg) |

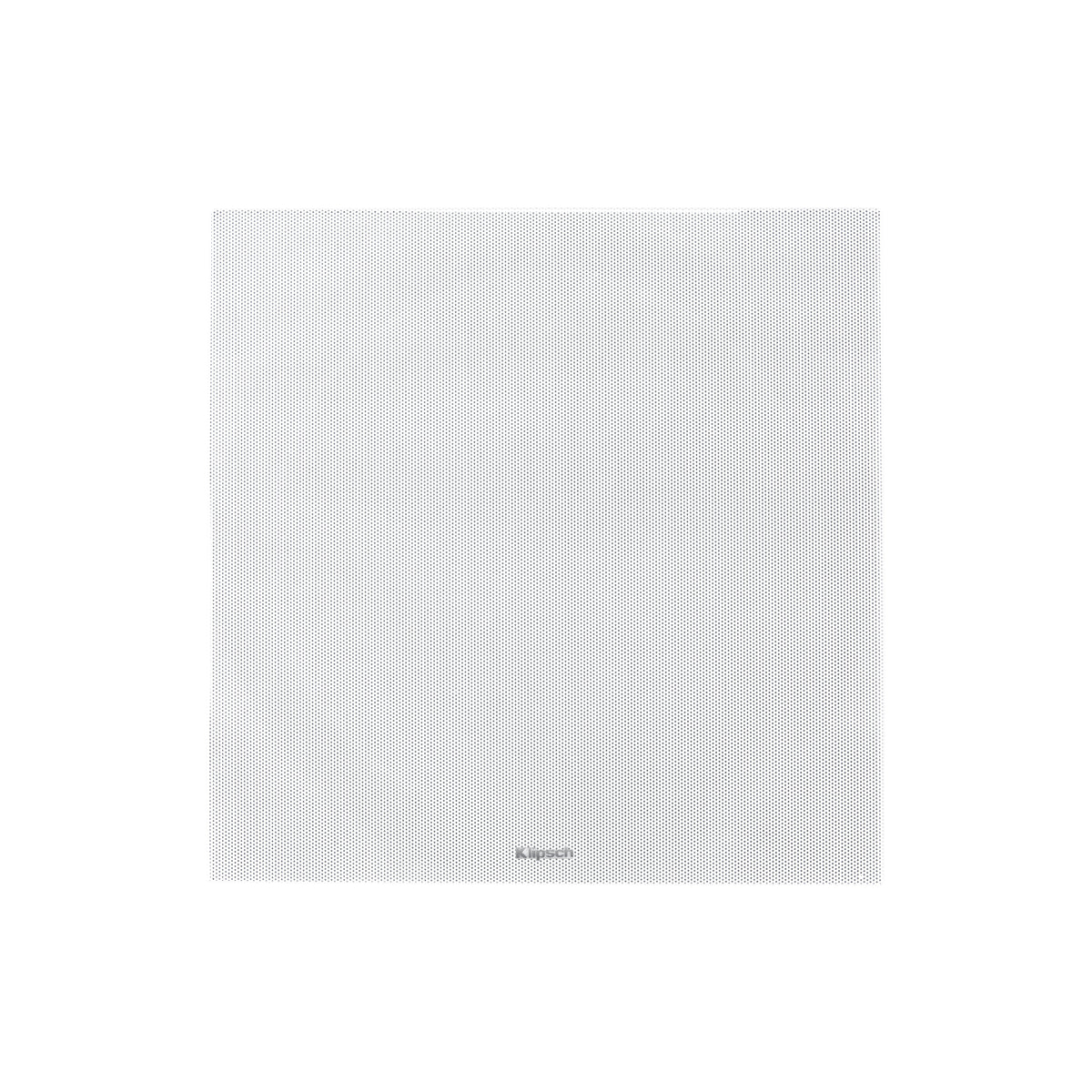

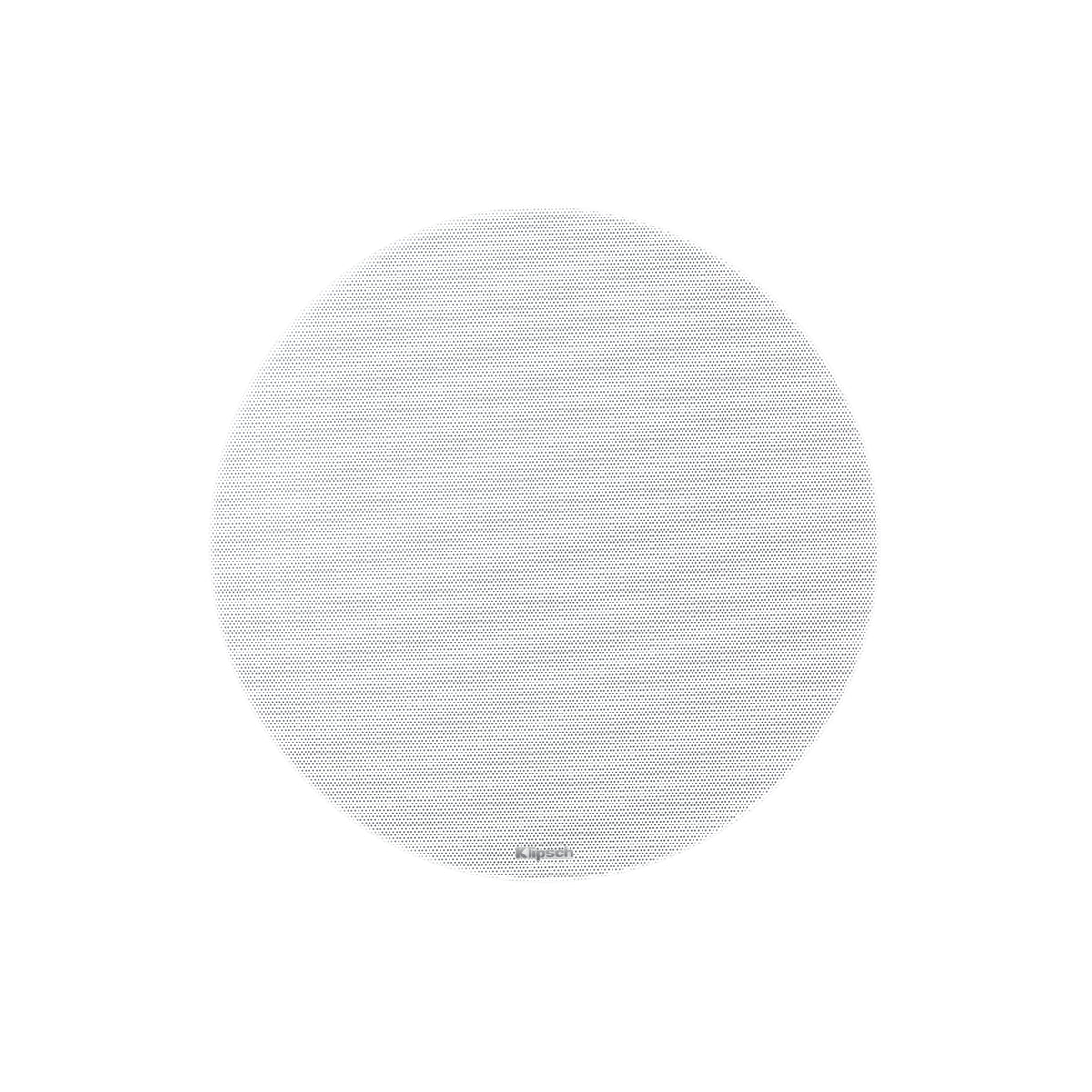

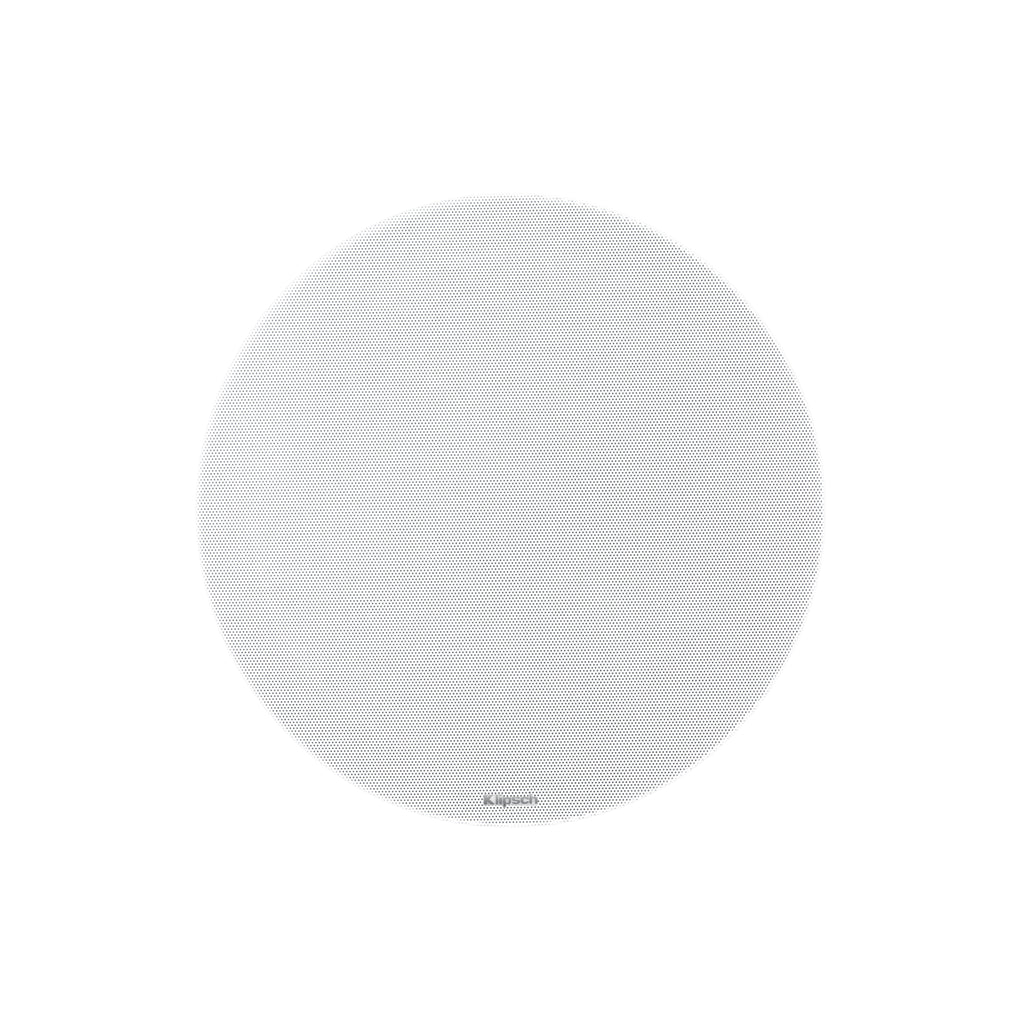

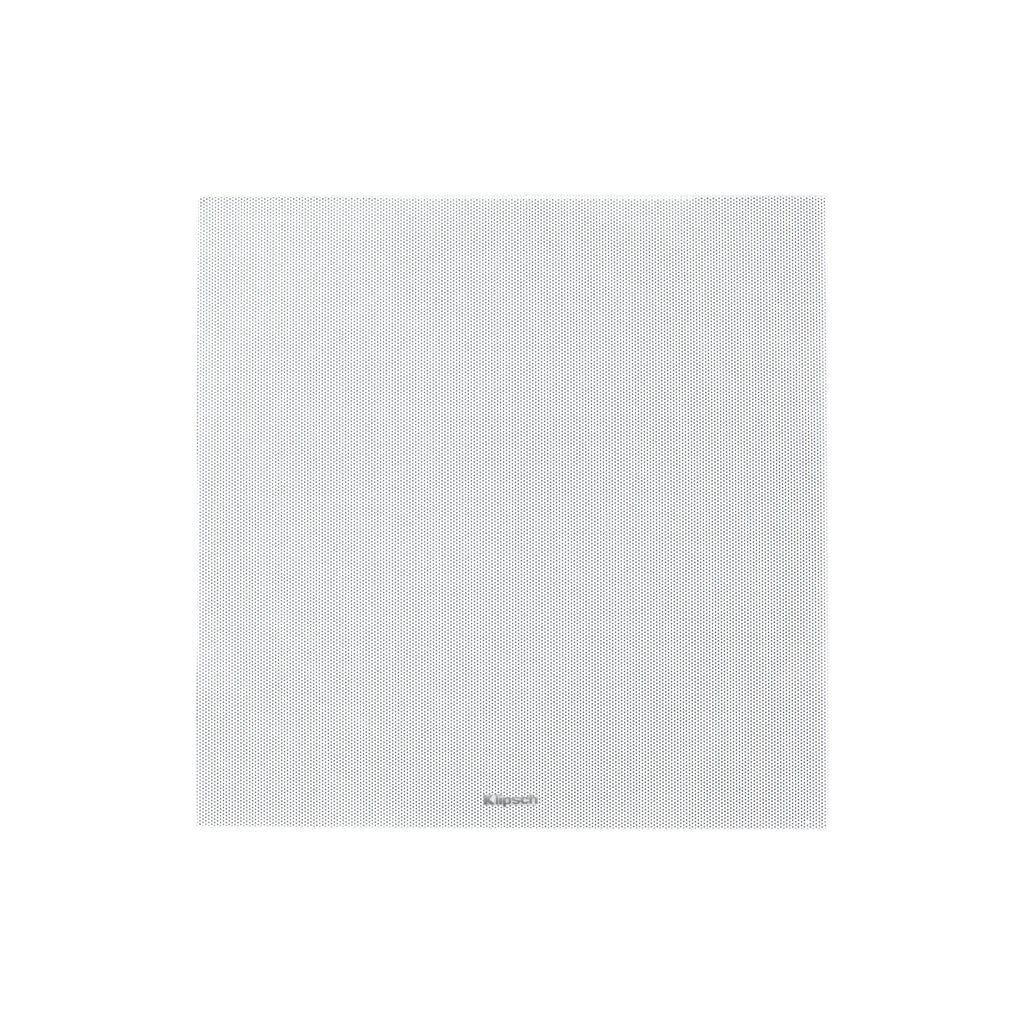

| Included In Box | Round Grille, Square Grille, Paint Shield |
| Install Kit | IK-810-C (Sold Separately) |
| Built From | 2017 |
Specifications subject to change.
