Klipsch PRO-18-RW White, Each
Product Details
The PRO-18RW is a Klipsch Professional in-wall loudspeaker for custom installation — the working end of a distributed audio or home theatre system, sized to vanish into the structure.

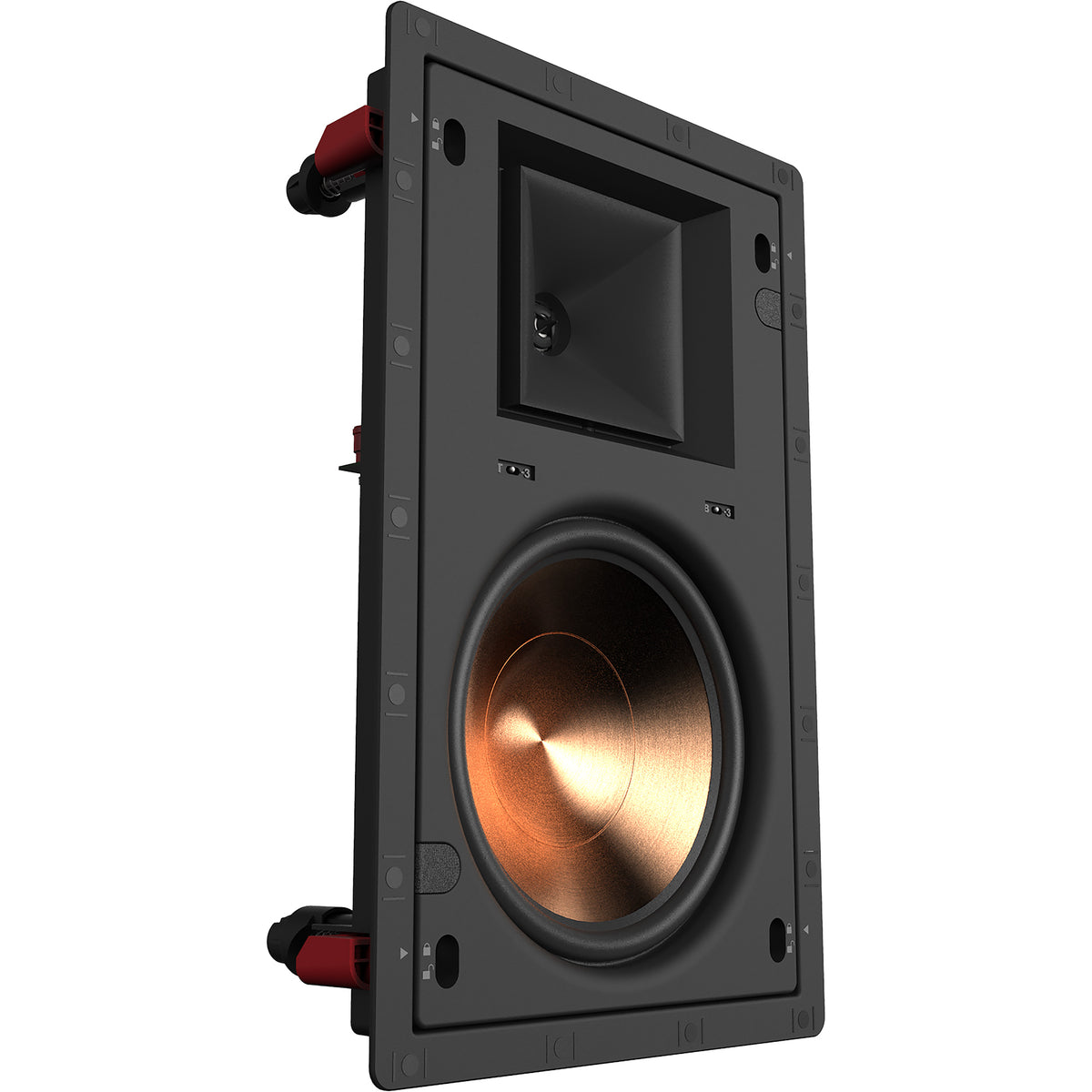

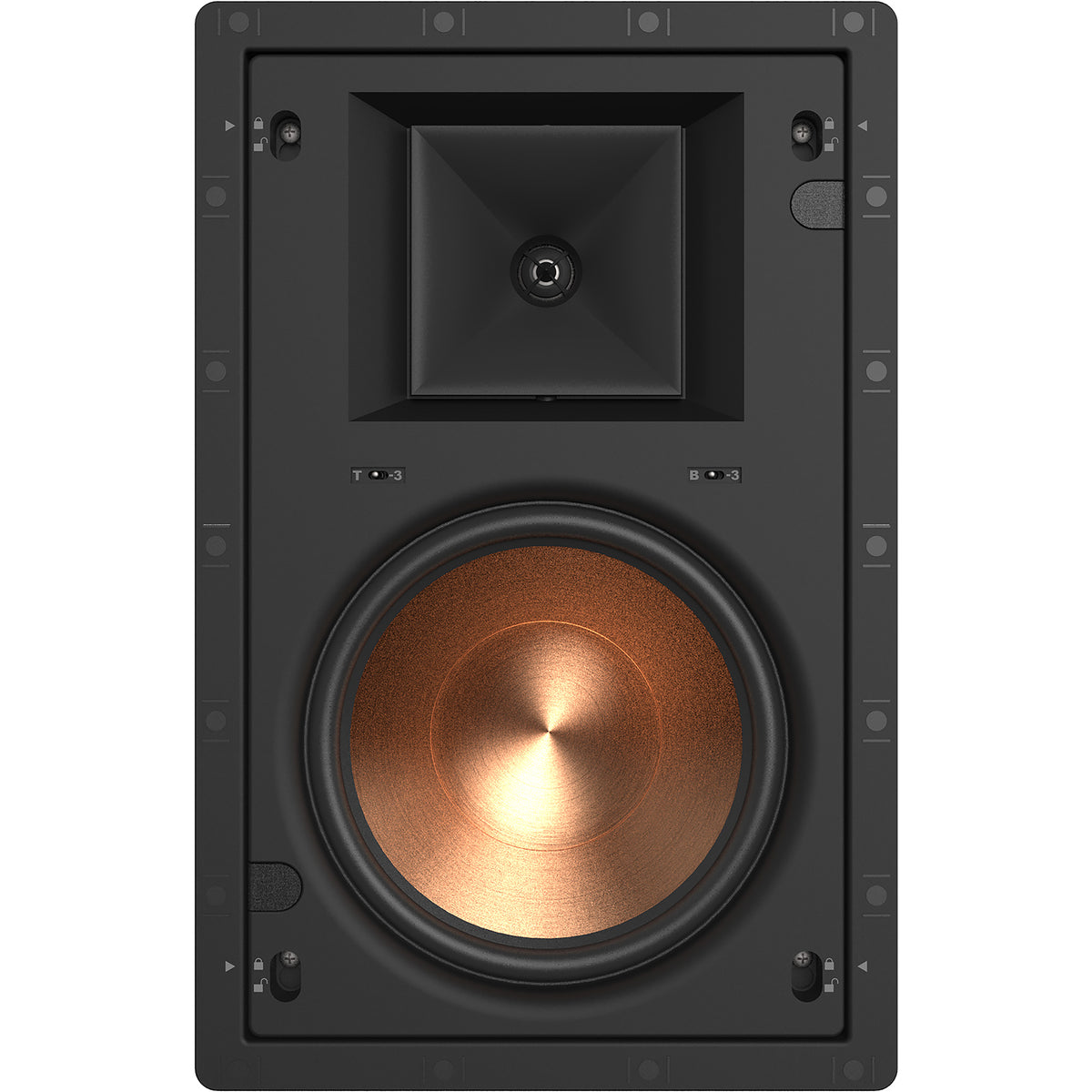

The acoustic package is an 8" (20.32cm) IMG woofer with a 1" (2.54cm) aluminum dome tweeter mated to a 90°x90° Tractrix® horn. Klipsch put the tweeter on a Tractrix horn for the same reason they do it on the floorstanders: controlled directivity, high efficiency and low distortion.

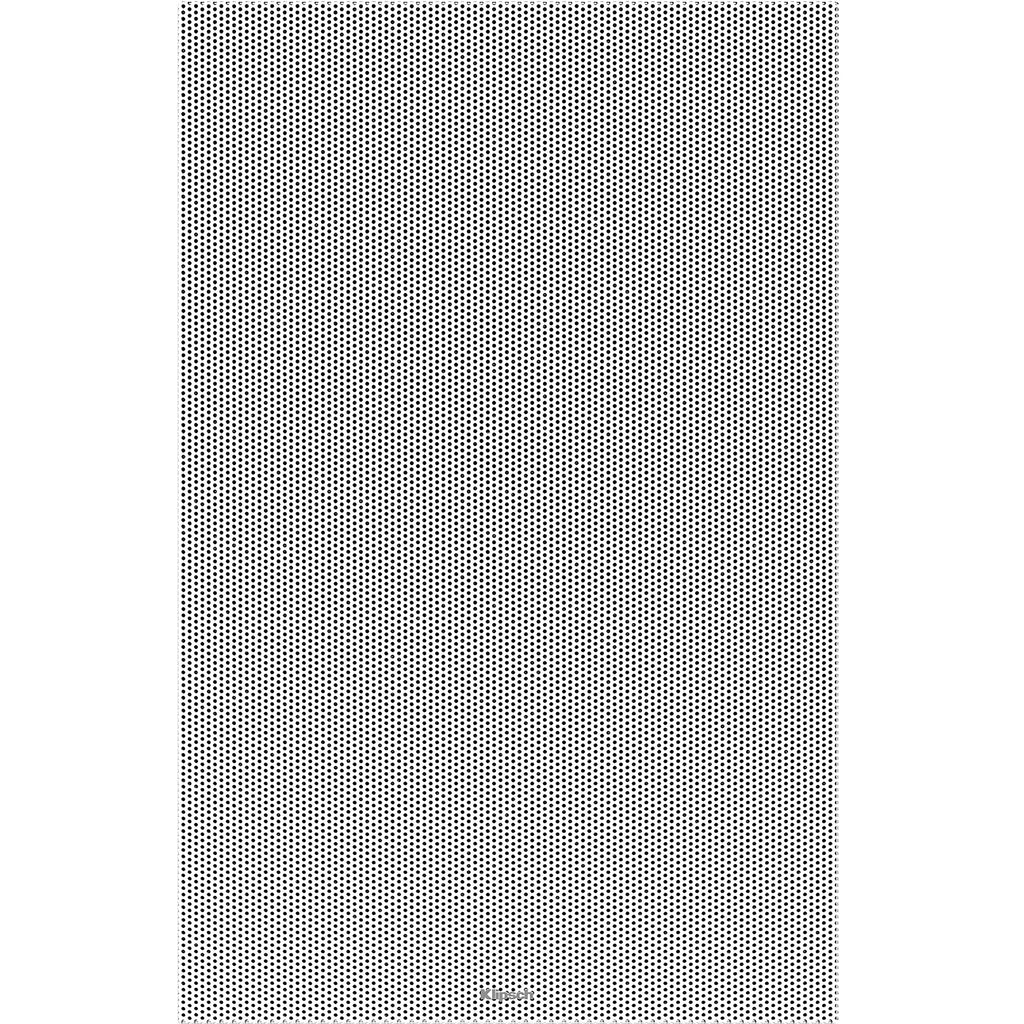

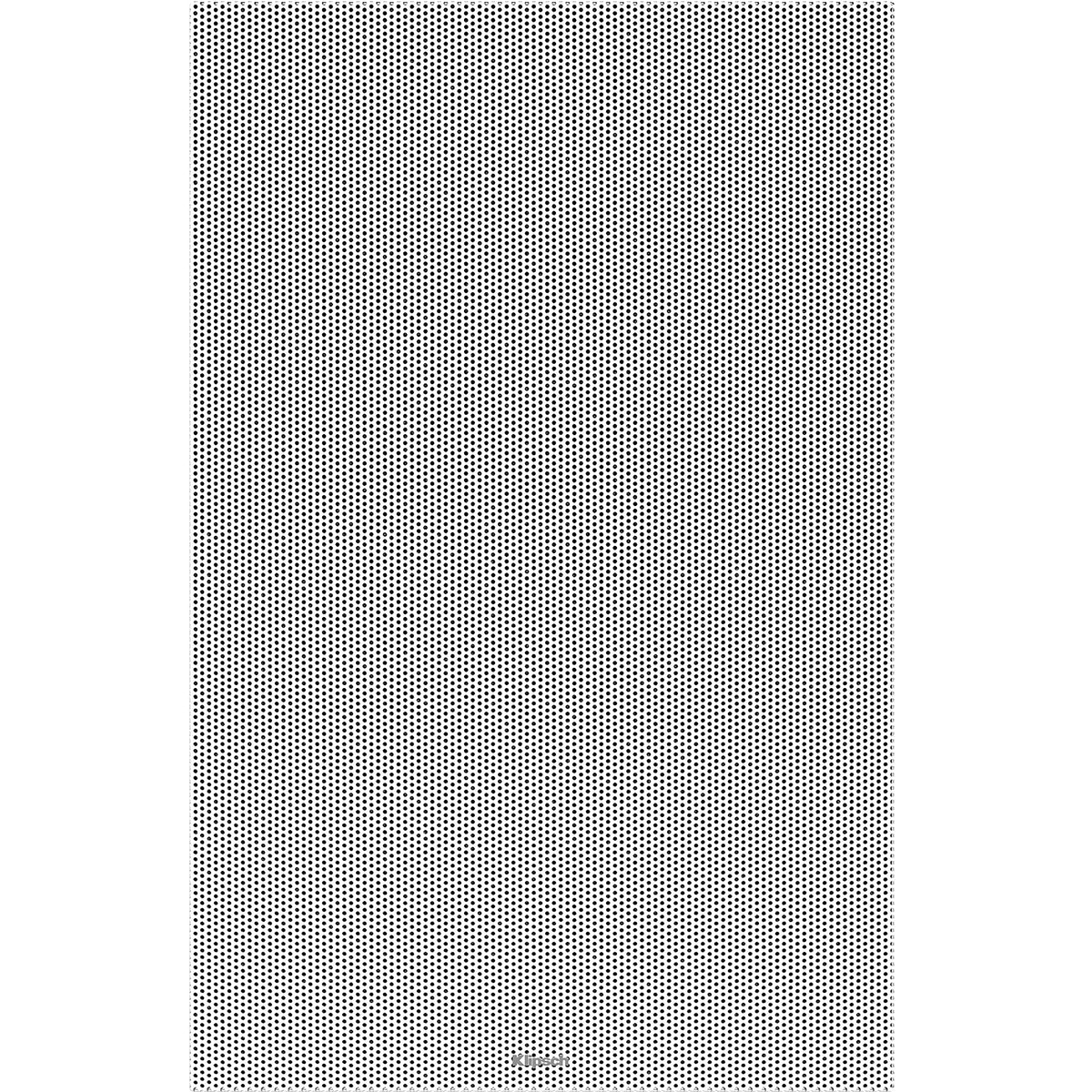

A paintable magnetic grille finishes it flush to the surface; round and square grilles are supplied where the spec table lists them, so the same speaker suits either a traditional or a square-trim interior.
Features
- 1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn
- 8" (20.32cm) IMG Woofer
- 56Hz - 23kHz +/- 3dB frequency response
- 95 dB @ 2.83V / 1m sensitivity
- 50W RMS / 200W Peak power handling
- Tractrix® horn-loaded tweeter for controlled directivity
- Paintable magnetic grille
- Klipsch Professional custom-installation series
- In-wall mounting
Specifications
| Technical | |
|---|---|
| Frequency Range | 56Hz - 23kHz +/- 3dB |
| High Frequency Driver | 1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn |
| Low Frequency Driver | 8" (20.32cm) IMG Woofer |
| Sensitivity | 95 dB @ 2.83V / 1m |
| Coverage Angle | 90° x 90° |
| Power Handling | 50W RMS / 200W Peak |
| Impedance | 8 Ohm Compatible |
| Enclosure Type | ABS/Infinite Baffle |
| Built From | 2017 |
| Physical | |
|---|---|
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 10.16" W x 15.75" H x 4.0" D (25.8cm H x 40.0cm W x 10.1cm D) |
| Mounting Depth | 3.9" (9.9cm) |
| Cutout Diameter | 14.8" H X 9.25" W (37.5cm H X 23.5cm W) |
| Product Weight | 7.9lbs (3.6kg) |
| Included | Grille, Paint Shield |
| Installation Kit | IK-800-W II or IK-800-W (Sold Separately) |
Specifications subject to change.
