Klipsch PRO-18-RC White, Each
Product Details

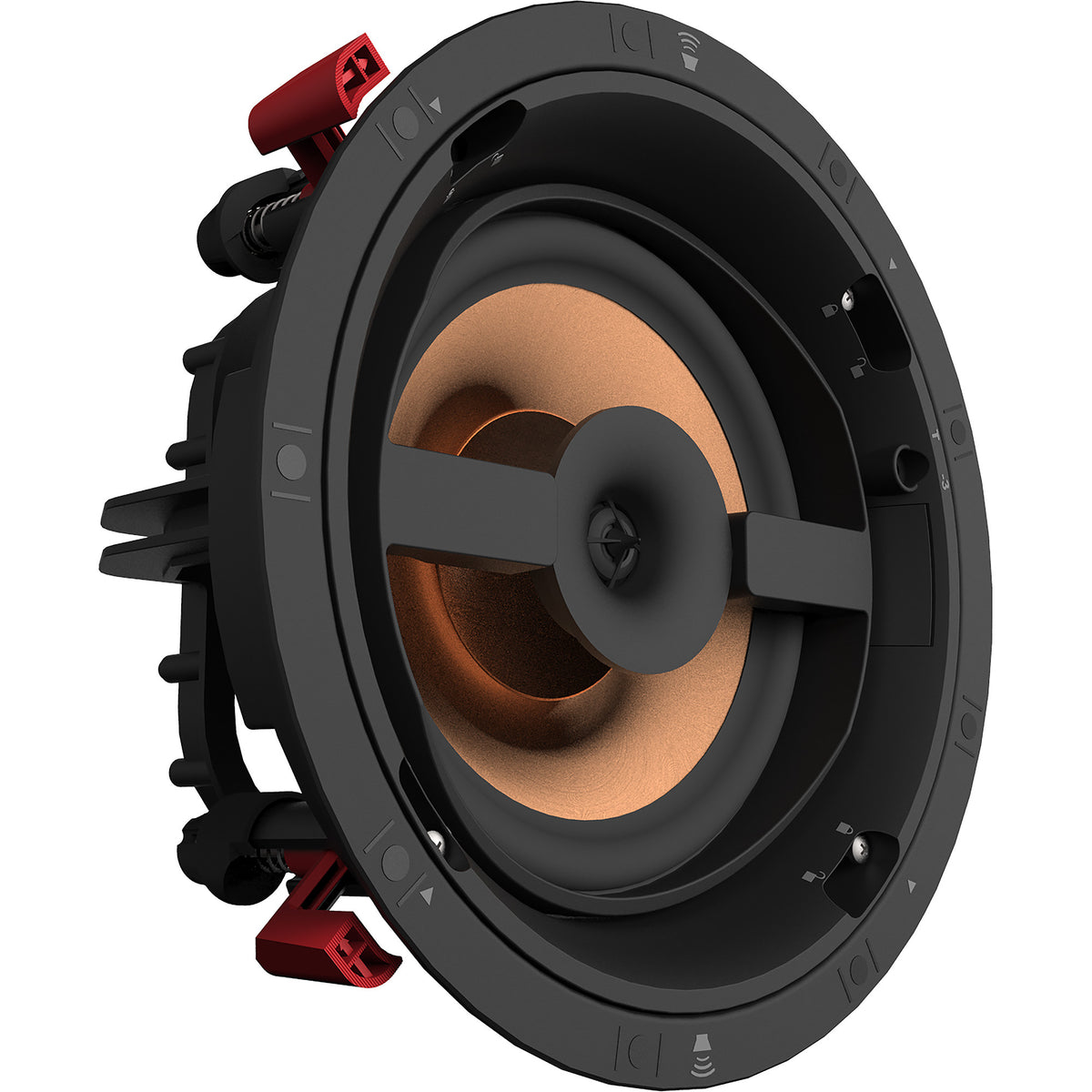

The PRO-18RC is a Klipsch Professional in-ceiling loudspeaker for custom installation — the working end of a distributed audio or home theatre system, sized to vanish into the structure.

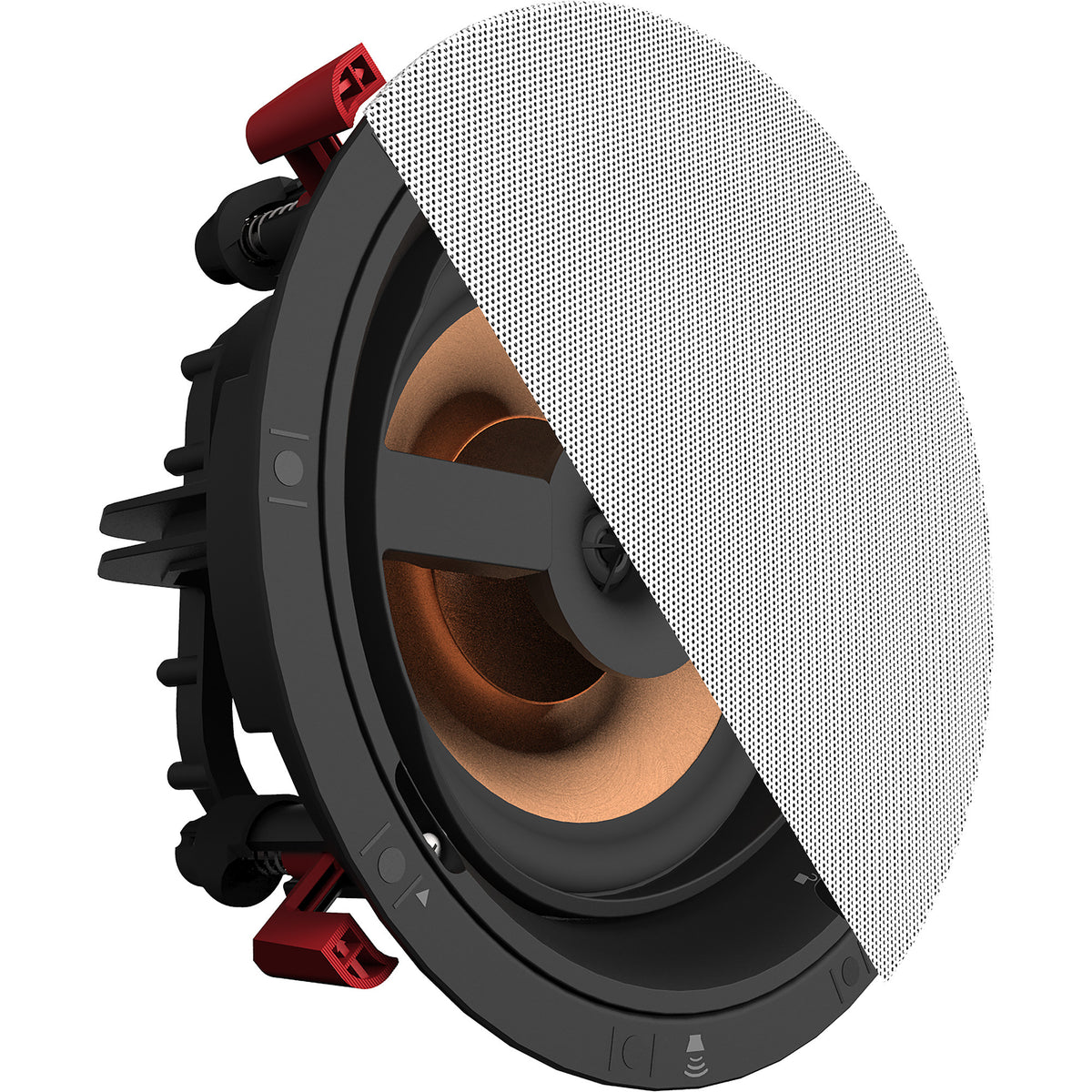

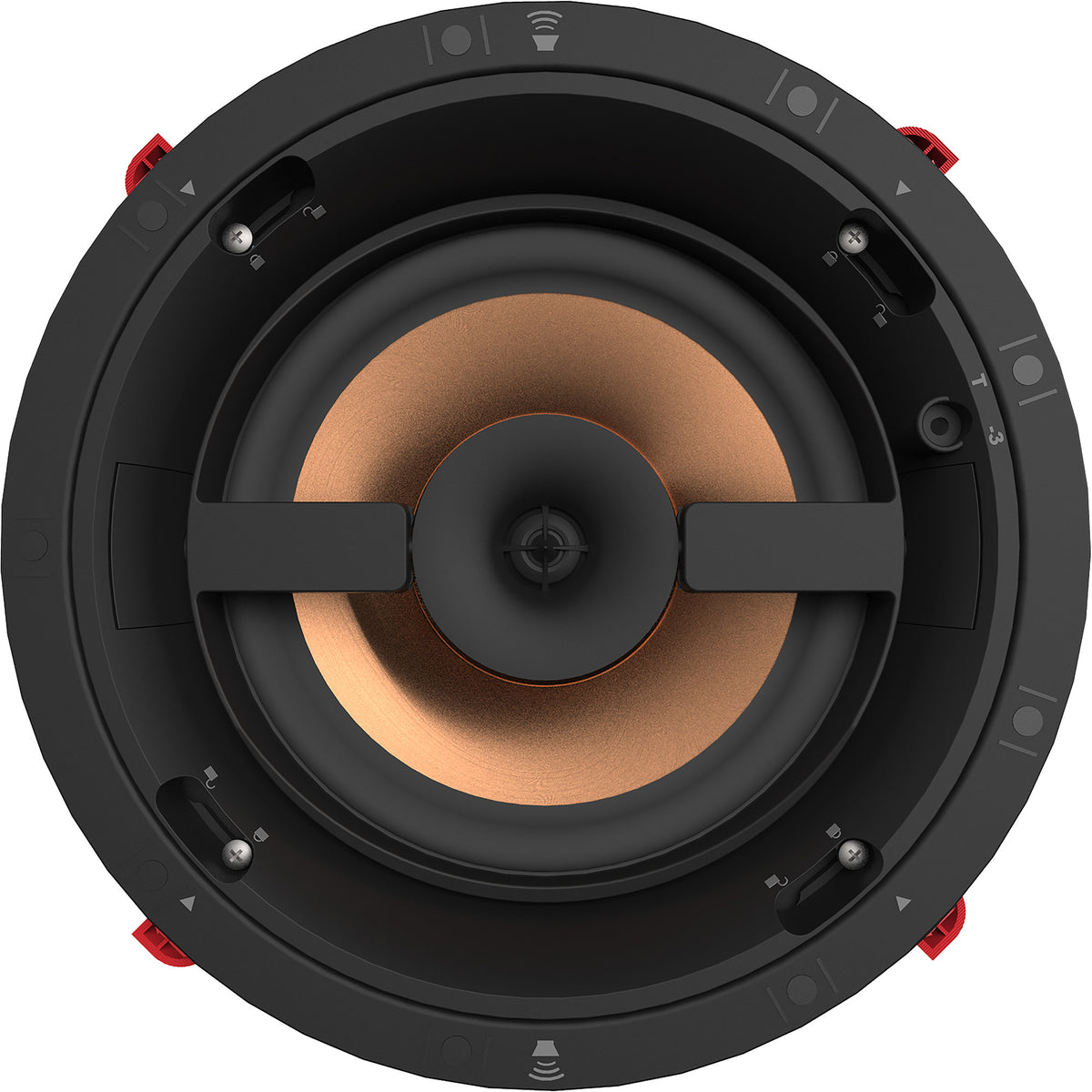

The acoustic package is an 8" (20.32cm) IMG woofer with a 1" (2.54cm) aluminum dome tweeter mated to a round Tractrix® horn. Klipsch put the tweeter on a Tractrix horn for the same reason they do it on the floorstanders: controlled directivity, high efficiency and low distortion.

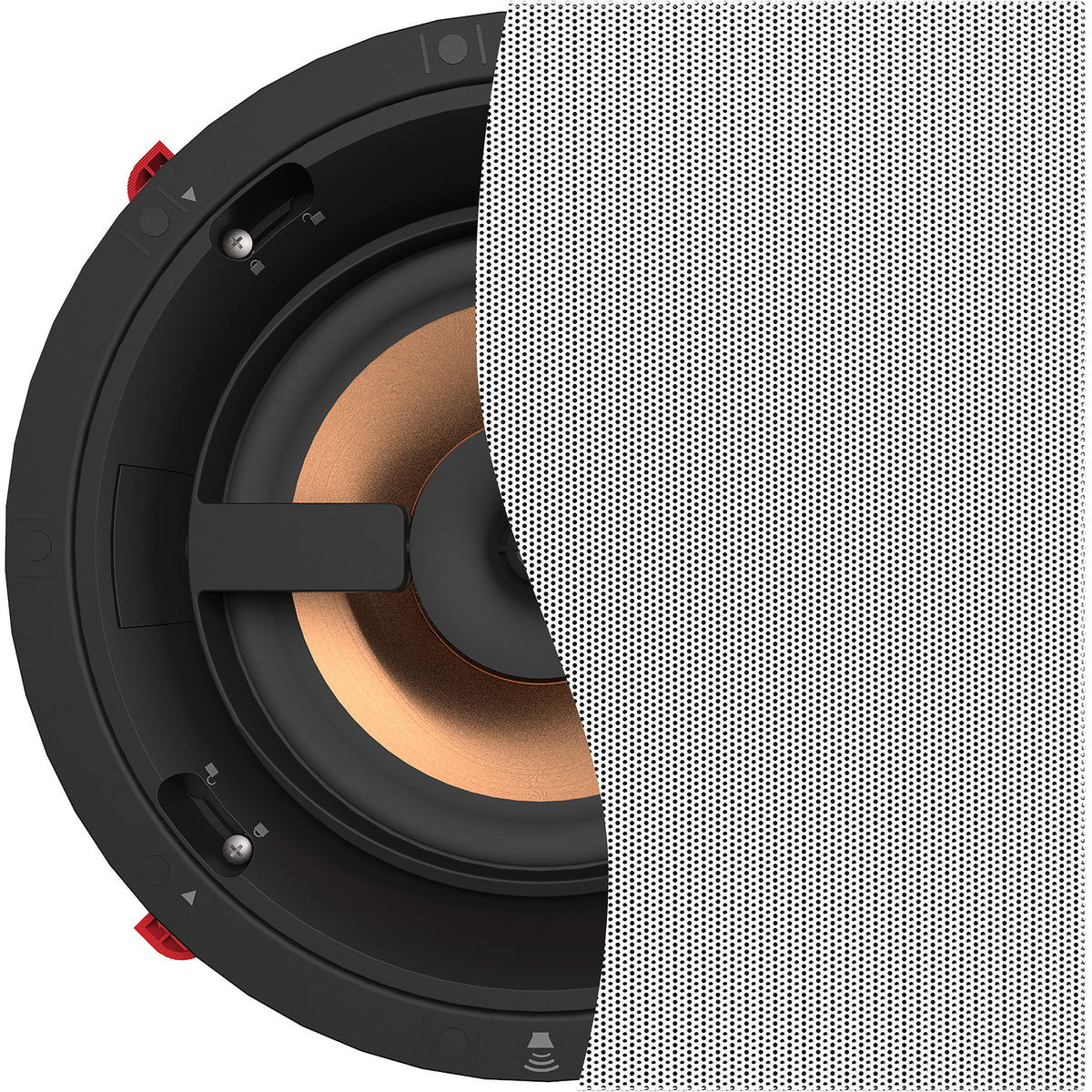

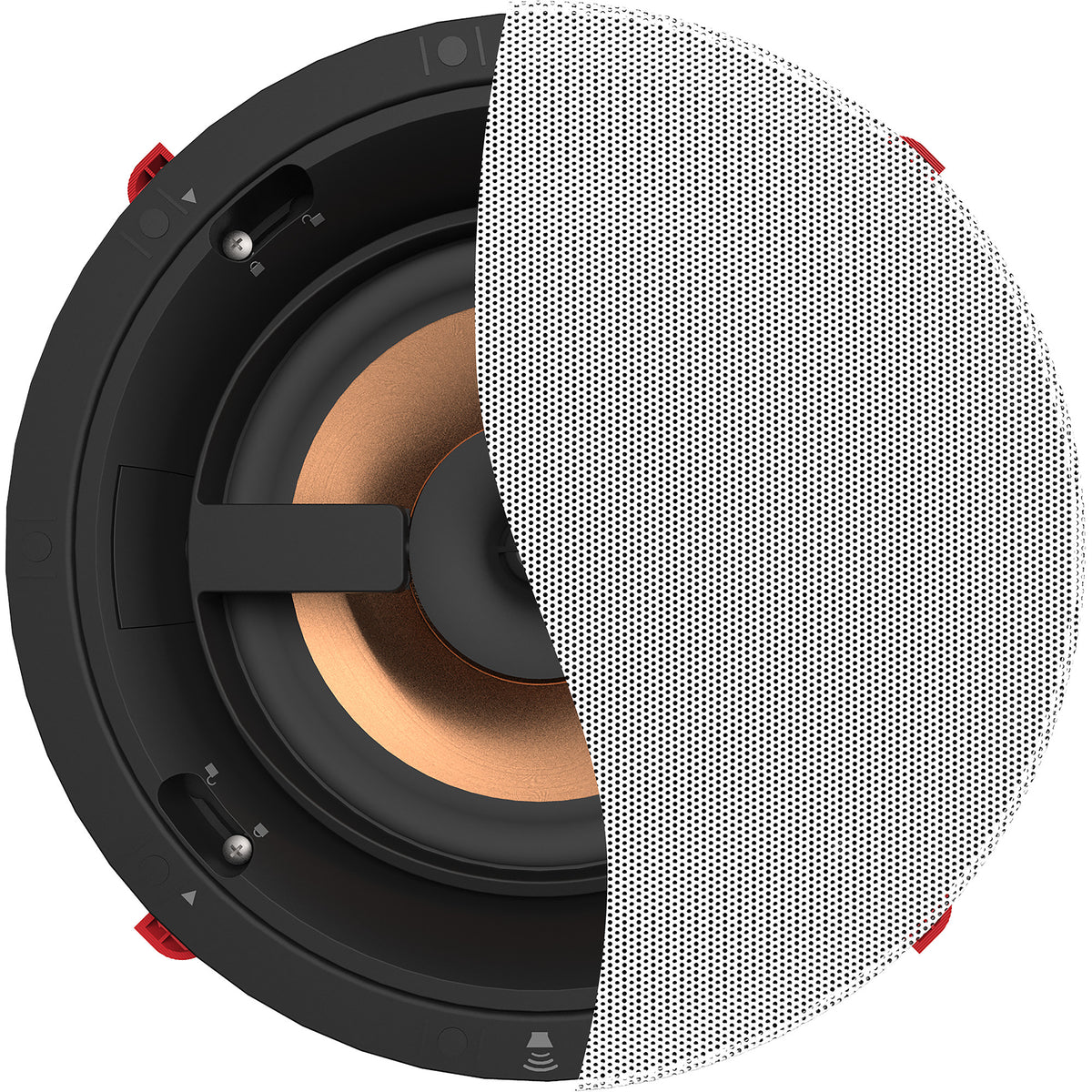

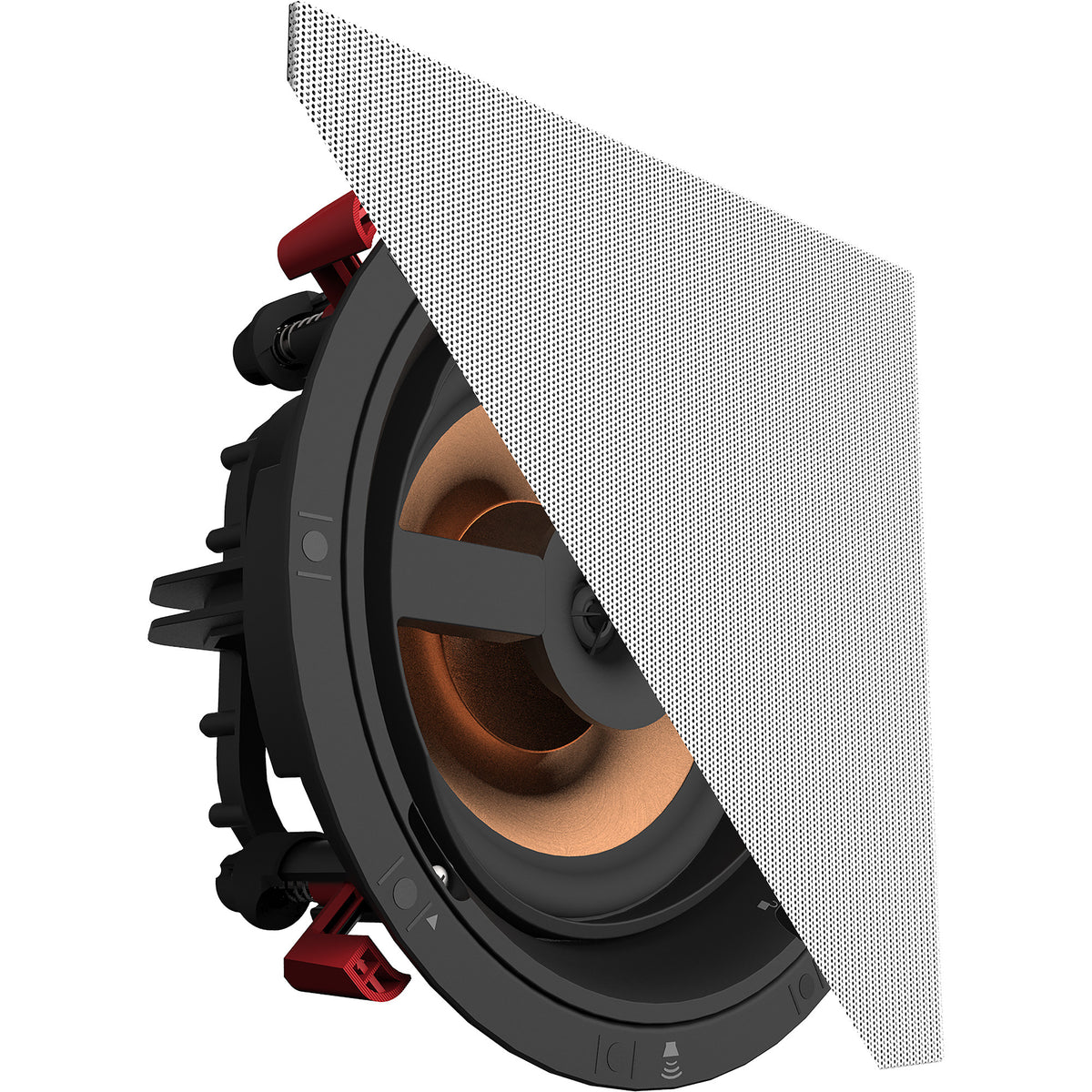

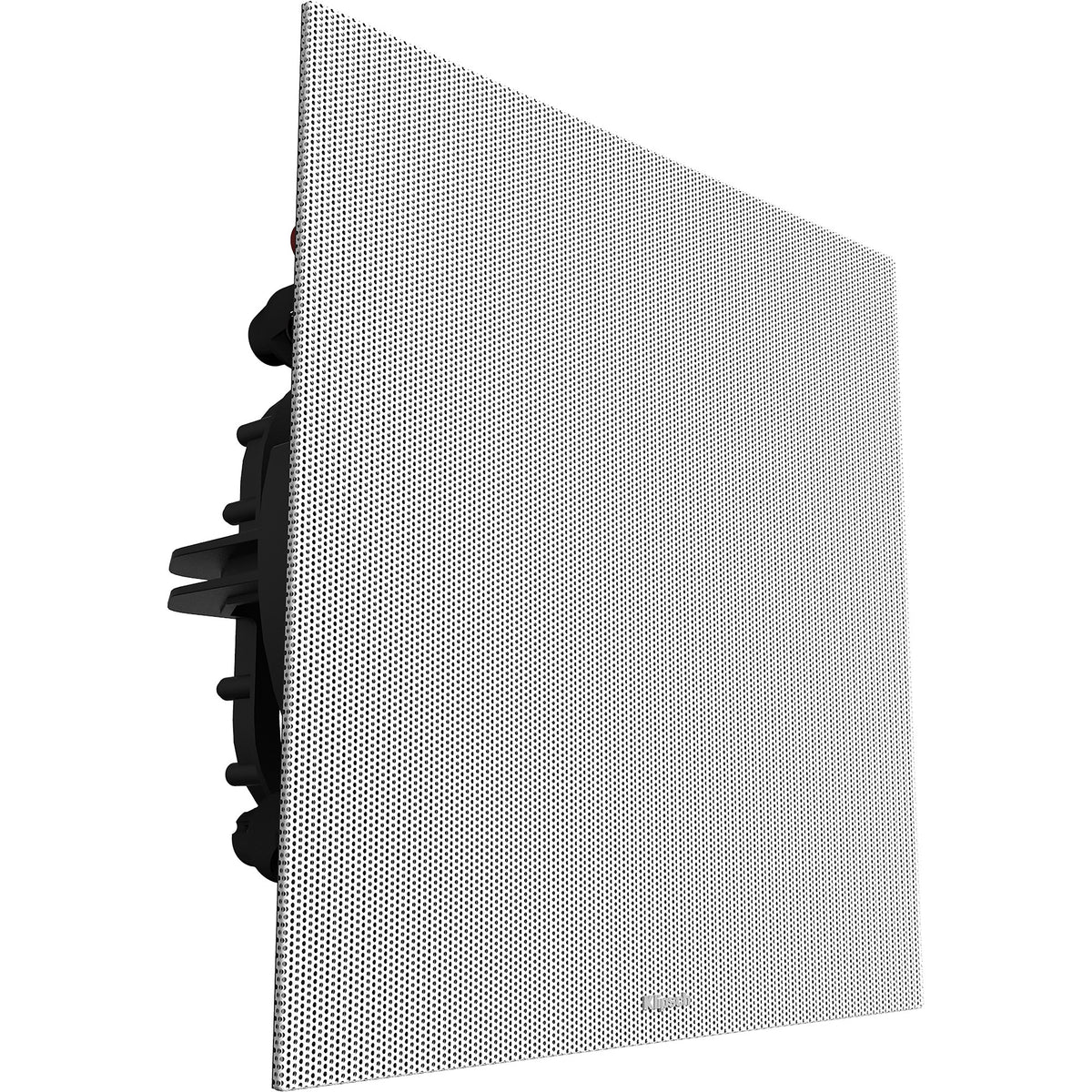

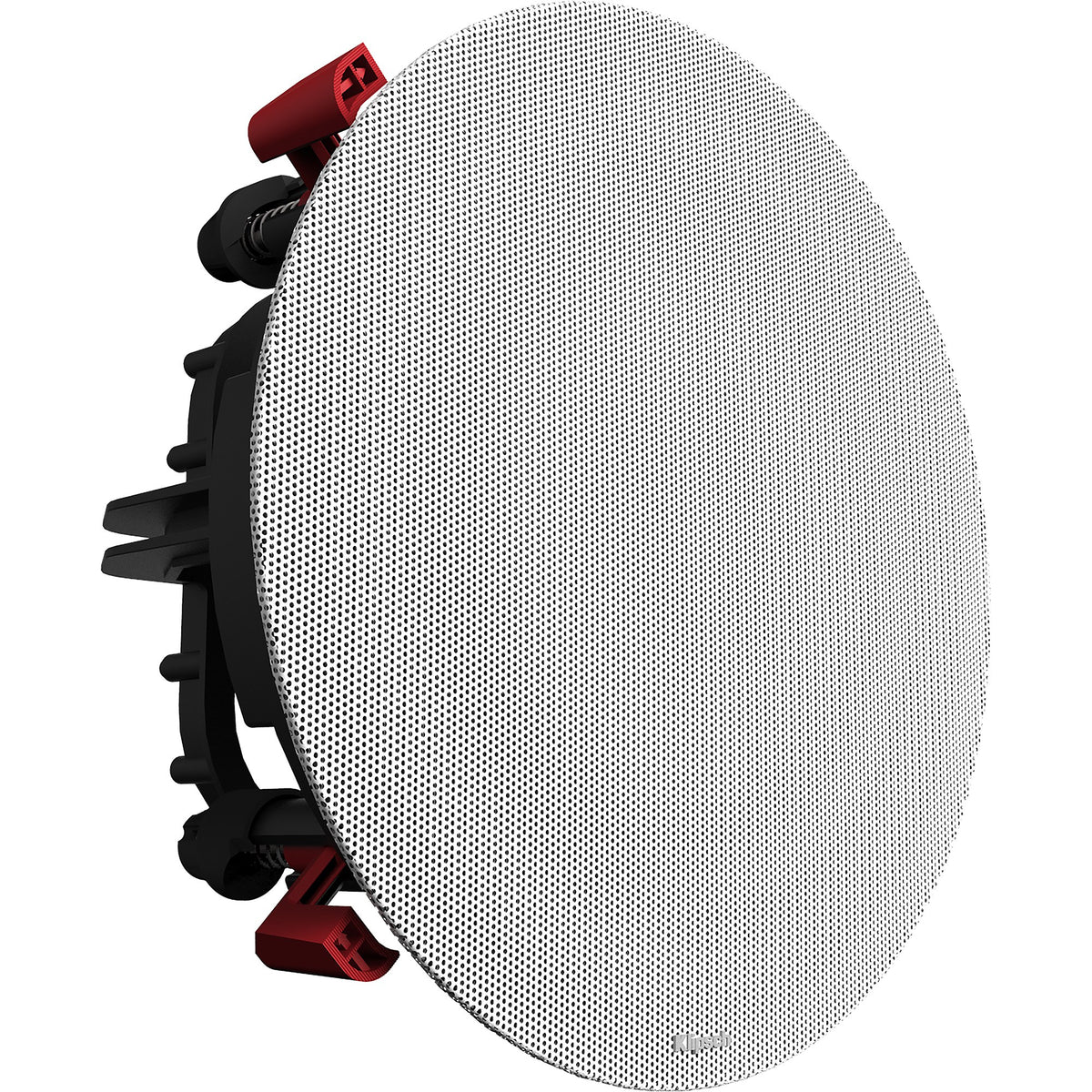

A paintable magnetic grille finishes it flush to the surface; round and square grilles are supplied where the spec table lists them, so the same speaker suits either a traditional or a square-trim interior.
Features
- 1" (2.54cm) Aluminum Dome Tweeter mated to a round Tractrix® Horn
- 8" (20.32cm) IMG Woofer
- 56Hz - 23kHz +/- 3dB frequency response
- 95 dB @ 2.83V / 1m sensitivity
- 50W RMS / 200W Peak power handling
- Tractrix® horn-loaded tweeter for controlled directivity

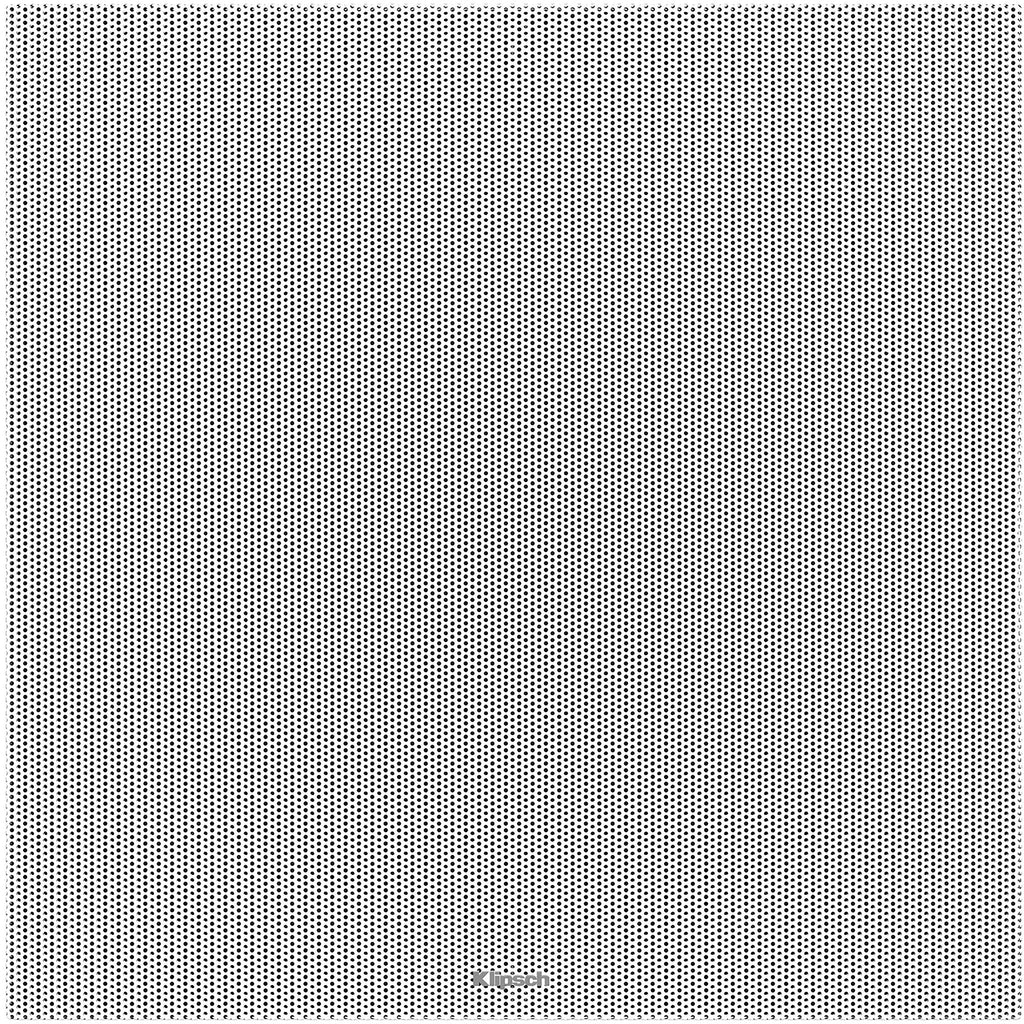

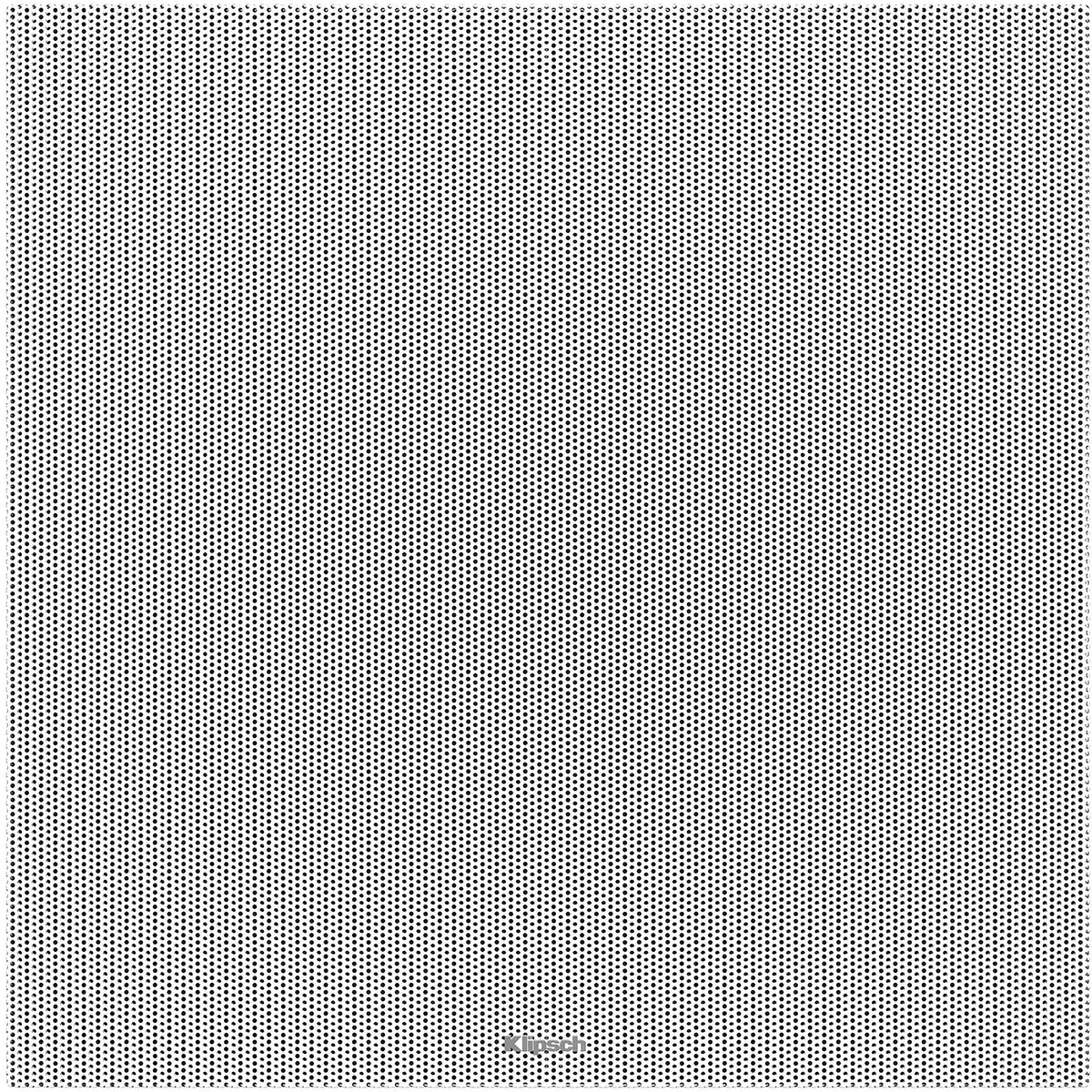

- Paintable magnetic grille
- Klipsch Professional custom-installation series
- In-ceiling mounting
Specifications
| Technical | |
|---|---|
| Frequency Range | 56Hz - 23kHz +/- 3dB |
| High Frequency Driver | 1" (2.54cm) Aluminum Dome Tweeter mated to a round Tractrix® Horn |
| Low Frequency Driver | 8" (20.32cm) IMG Woofer |
| Sensitivity | 95 dB @ 2.83V / 1m |
| Coverage Angle | 100° |
| Power Handling | 50W RMS / 200W Peak |
| Impedance | 8 Ohm Compatible |
| Enclosure Material/Type | ABS/Infinite Baffle |
| Physical | |
|---|---|
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 10.91" W x 10.91" H x 6.57" D (27.7cm H x 27.7cm W x 16.7cm D) |
| Mounting Depth | 6.34" (16.1cm) |
| Cutout Dimensions | 9.72" (24.7cm) |
| Product Weight | 9.63 lbs (4.37kg) |
| Included In Box | Round Grille, Square Grille, Paint Shield |
| Install Kit | IK-800-C II (Sold Separately) |
| Built From | 2017 |
Specifications subject to change.
