Description
Klipsch PRO-16-RW White, Each
Product Details

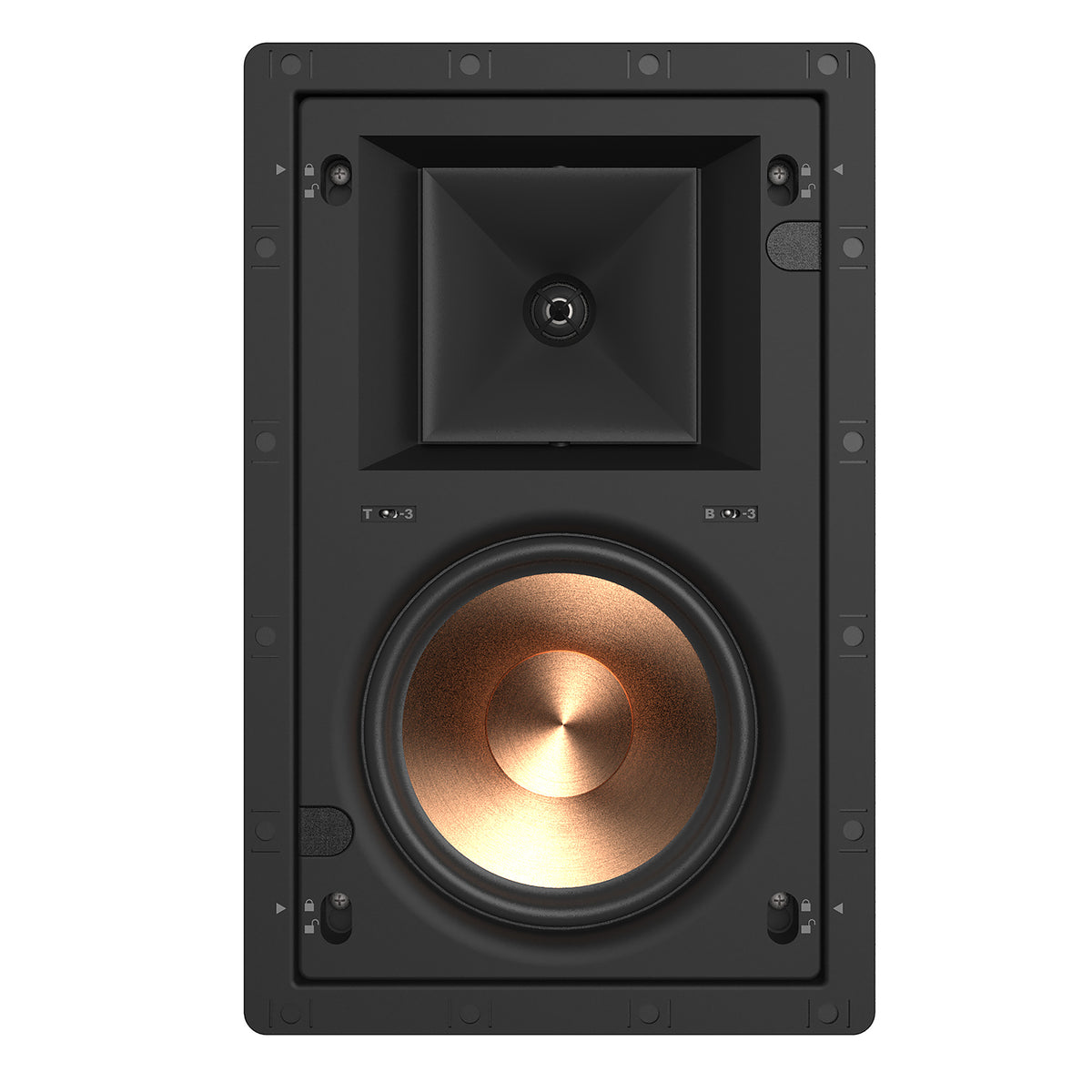

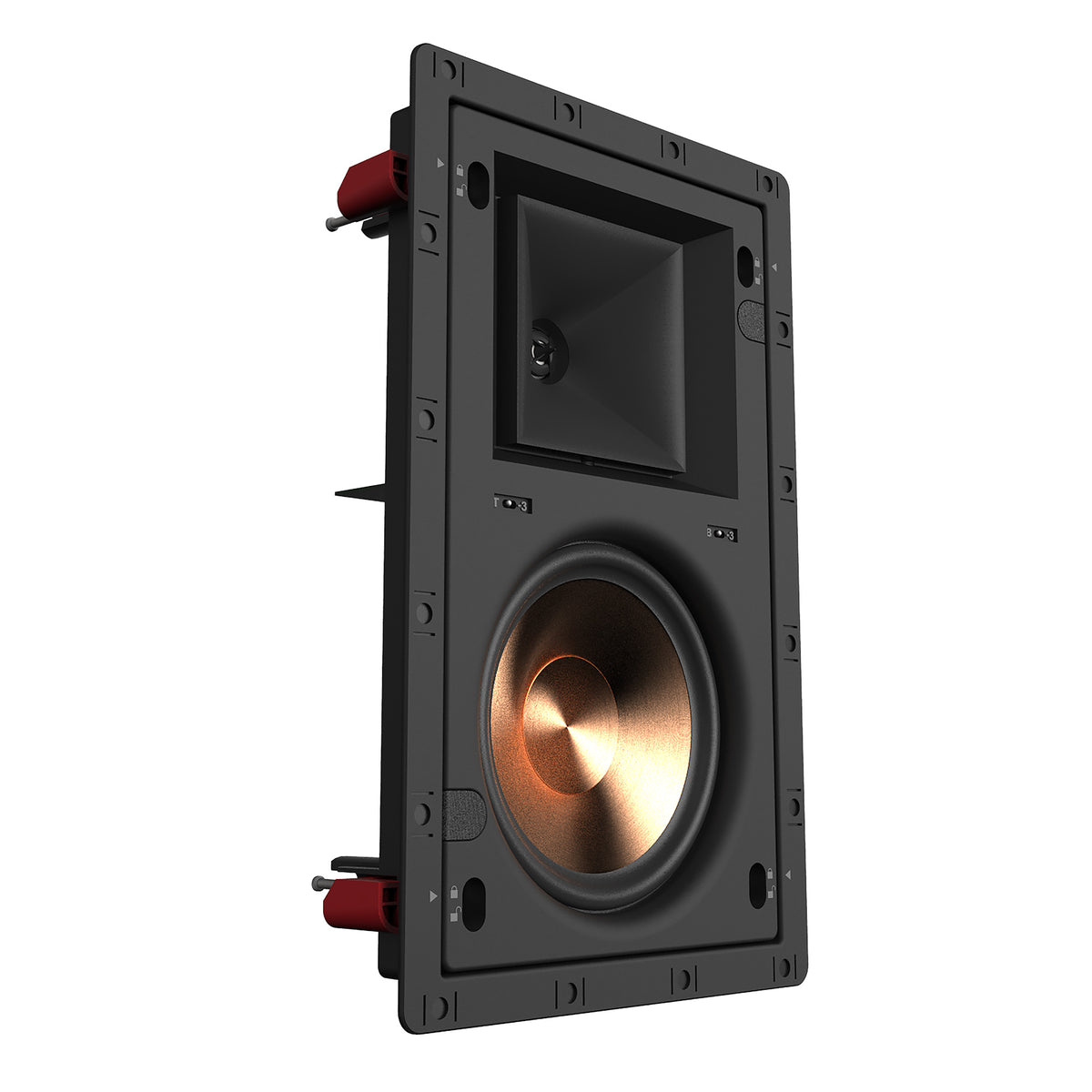

The PRO-16RW is a Klipsch Professional in-wall loudspeaker for custom installation — the working end of a distributed audio or home theatre system, sized to vanish into the structure.
The acoustic package is a 6.5" (16.51cm) IMG woofer with a 1" (2.54cm) aluminum dome tweeter mated to a 90°x90° Tractrix® horn. Klipsch put the tweeter on a Tractrix horn for the same reason they do it on the floorstanders: controlled directivity, high efficiency and low distortion.
A paintable magnetic grille finishes it flush to the surface; round and square grilles are supplied where the spec table lists them, so the same speaker suits either a traditional or a square-trim interior.
Features
- 1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn
- 6.5" (16.51cm) IMG Woofer
- 63Hz - 23kHz +/- 3dB frequency response
- 93 dB @ 2.83V / 1m sensitivity
- 50W RMS / 200W Peak power handling
- Tractrix® horn-loaded tweeter for controlled directivity
- Paintable magnetic grille
- Klipsch Professional custom-installation series
- In-wall mounting
Specifications
| Technical | |
|---|---|
| Frequency Range | 63Hz - 23kHz +/- 3dB |
| High Frequency Driver | 1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn |
| Low Frequency Driver | 6.5" (16.51cm) IMG Woofer |
| Sensitivity | 93 dB @ 2.83V / 1m |
| Coverage Angle | 90° x 90° |
| Power Handling | 50W RMS / 200W Peak |
| Impedance | 8 Ohm Compatible |
| Enclosure Type | ABS/Infinite Baffle |
| Fire Rated Enclosure | ME-650-W (Sold Separately) |
| Built From | 2017 |
| Physical | |
|---|---|
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 9.0" W x 14.1" H x 3.9" D (22.8cm W x 35.8cm H x 9.8cm D) |
| Mounting Depth | 3.78" (9.6cm) |
| Cutout Dimensions | 13" H X 8" W (33.0cm H X 20.3cm W) |
| Product Weight | 7.2lbs (3.25kg) |
| Included | Flat Magnetic Grille, Paint Shield |
| Installation Kit | IK-650-W II or IK-650-W (Sold Separately) |
Specifications subject to change.
