Description

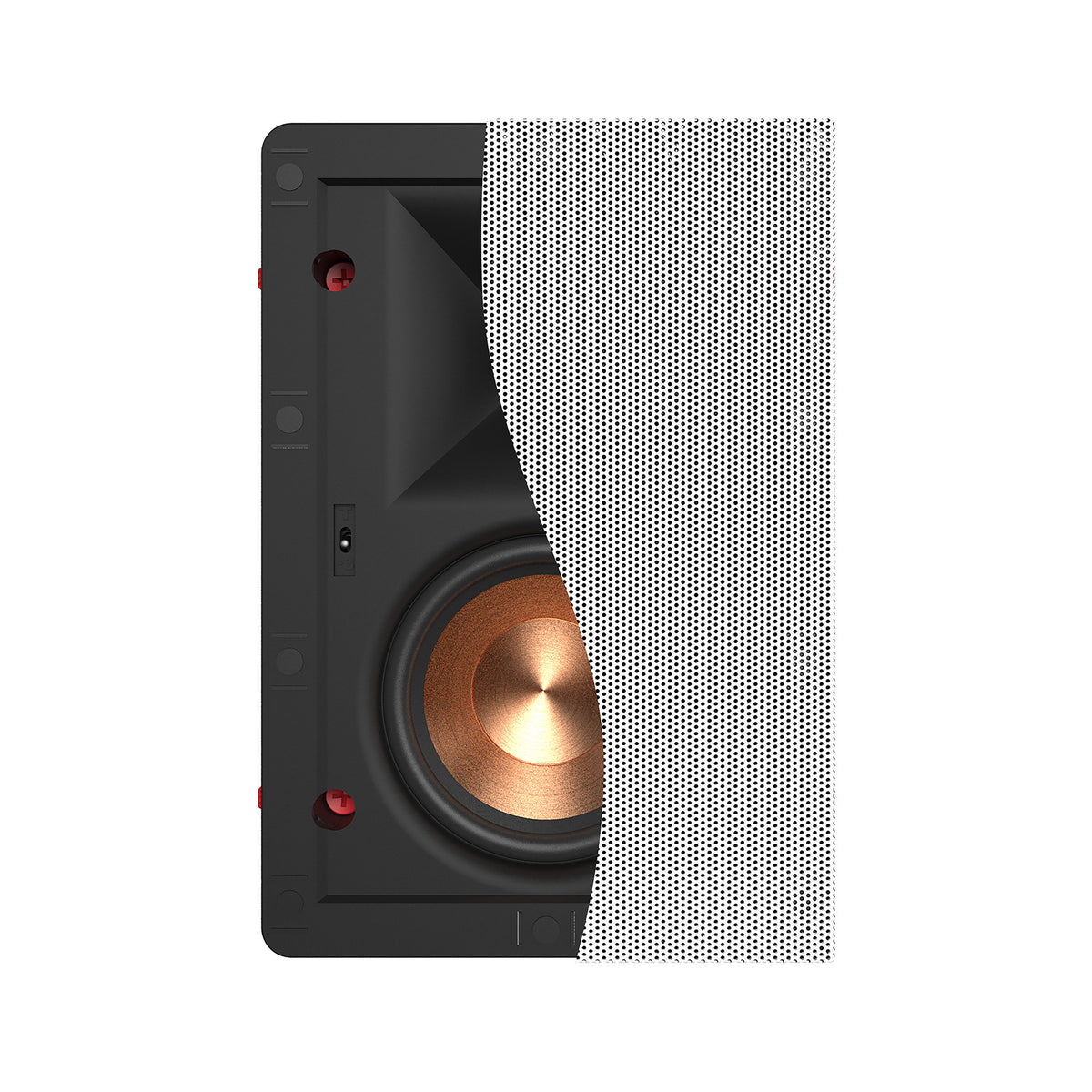

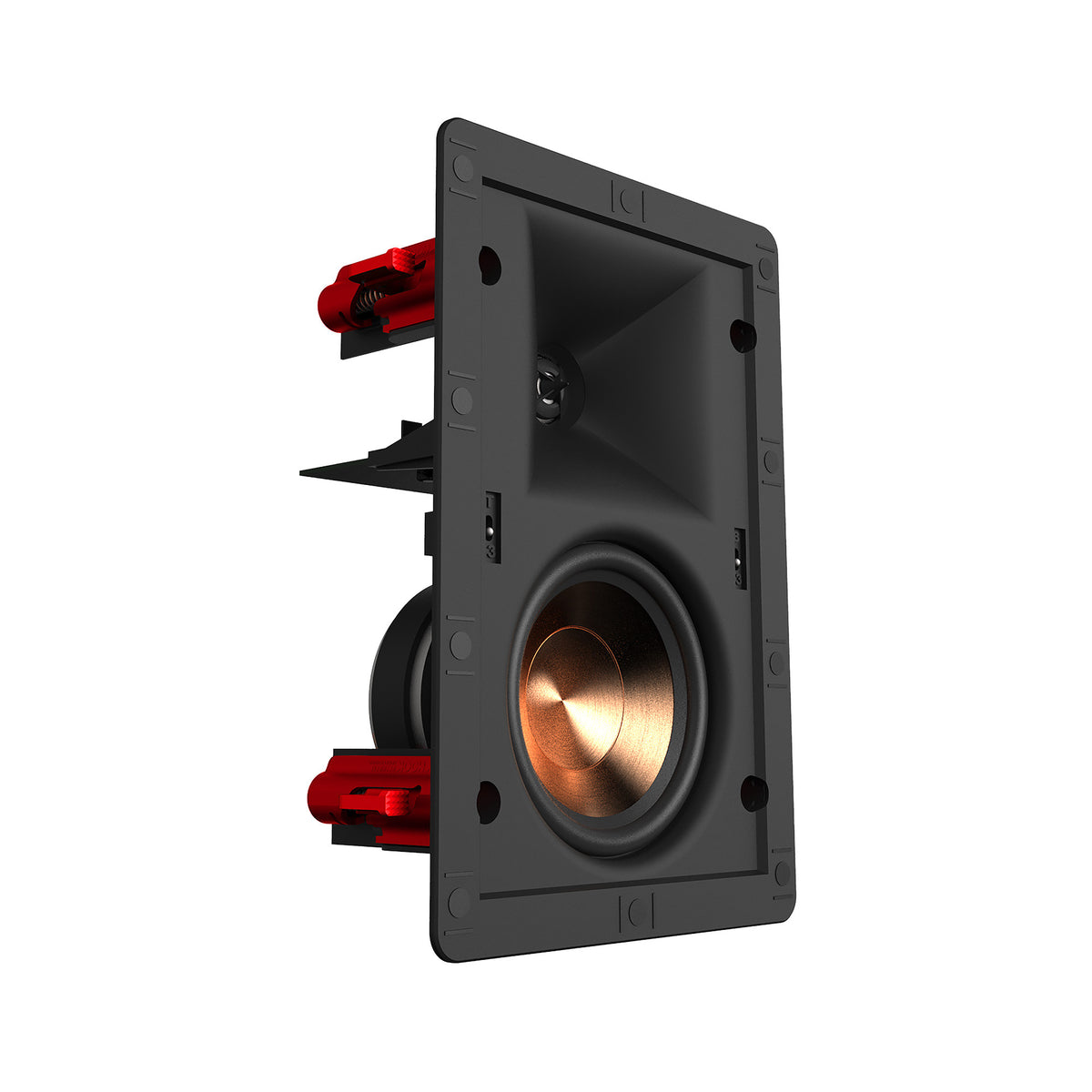

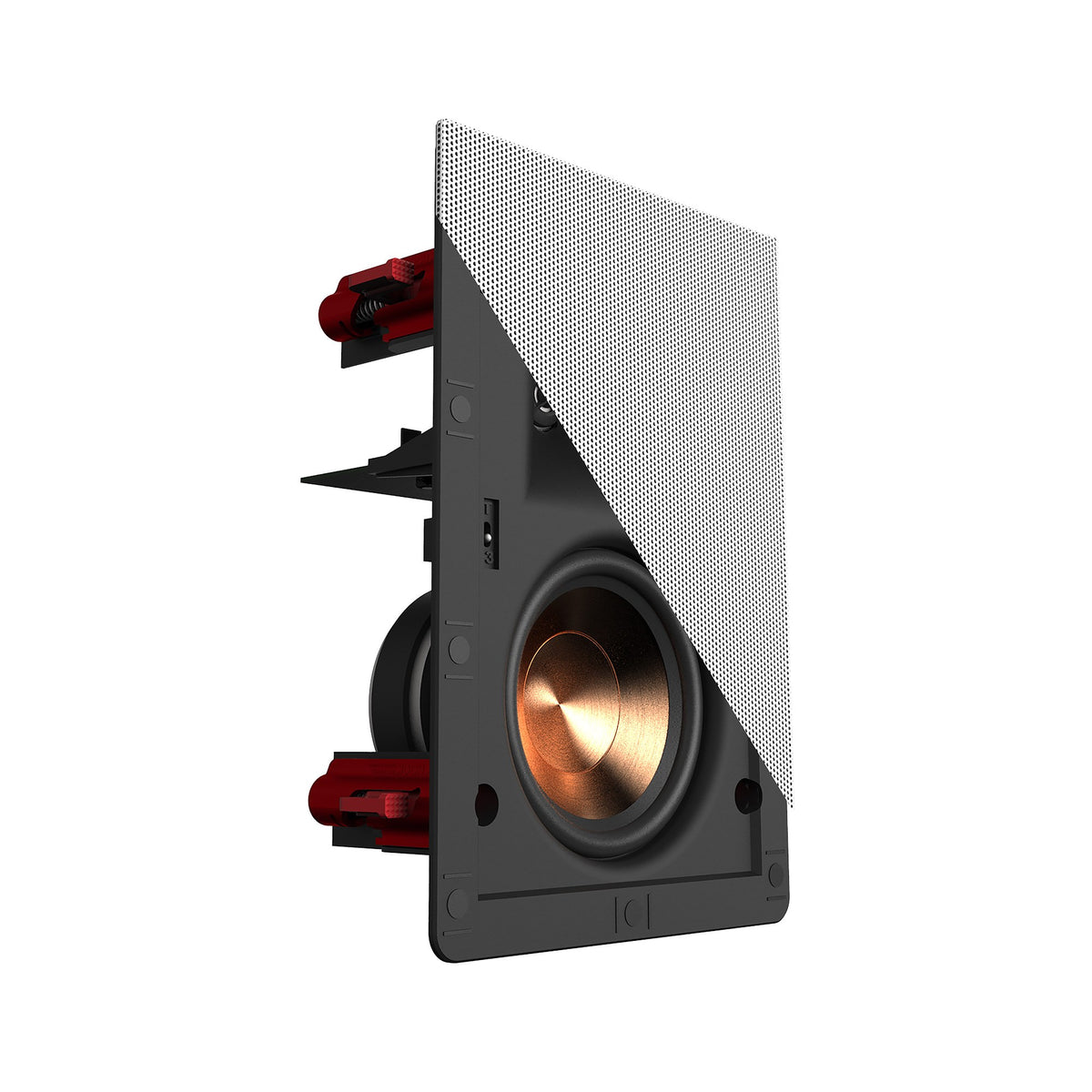

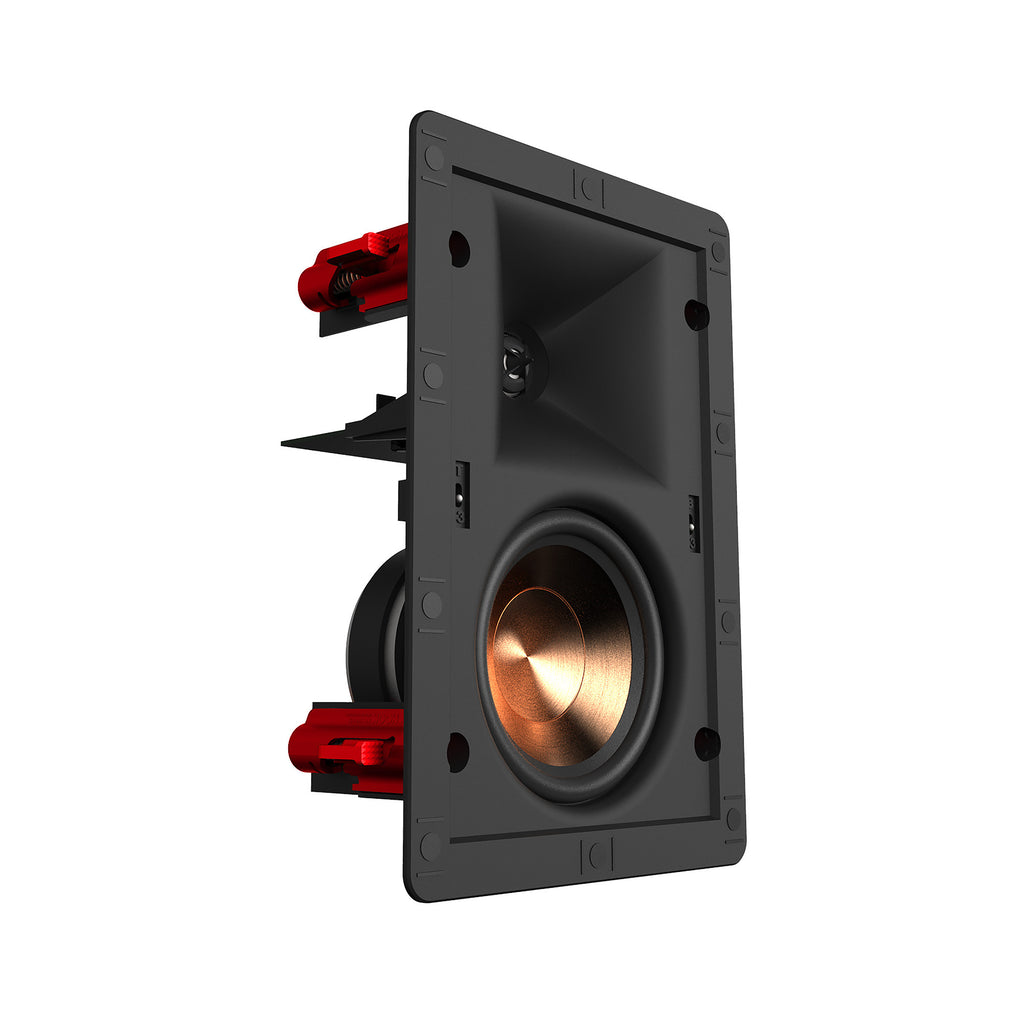

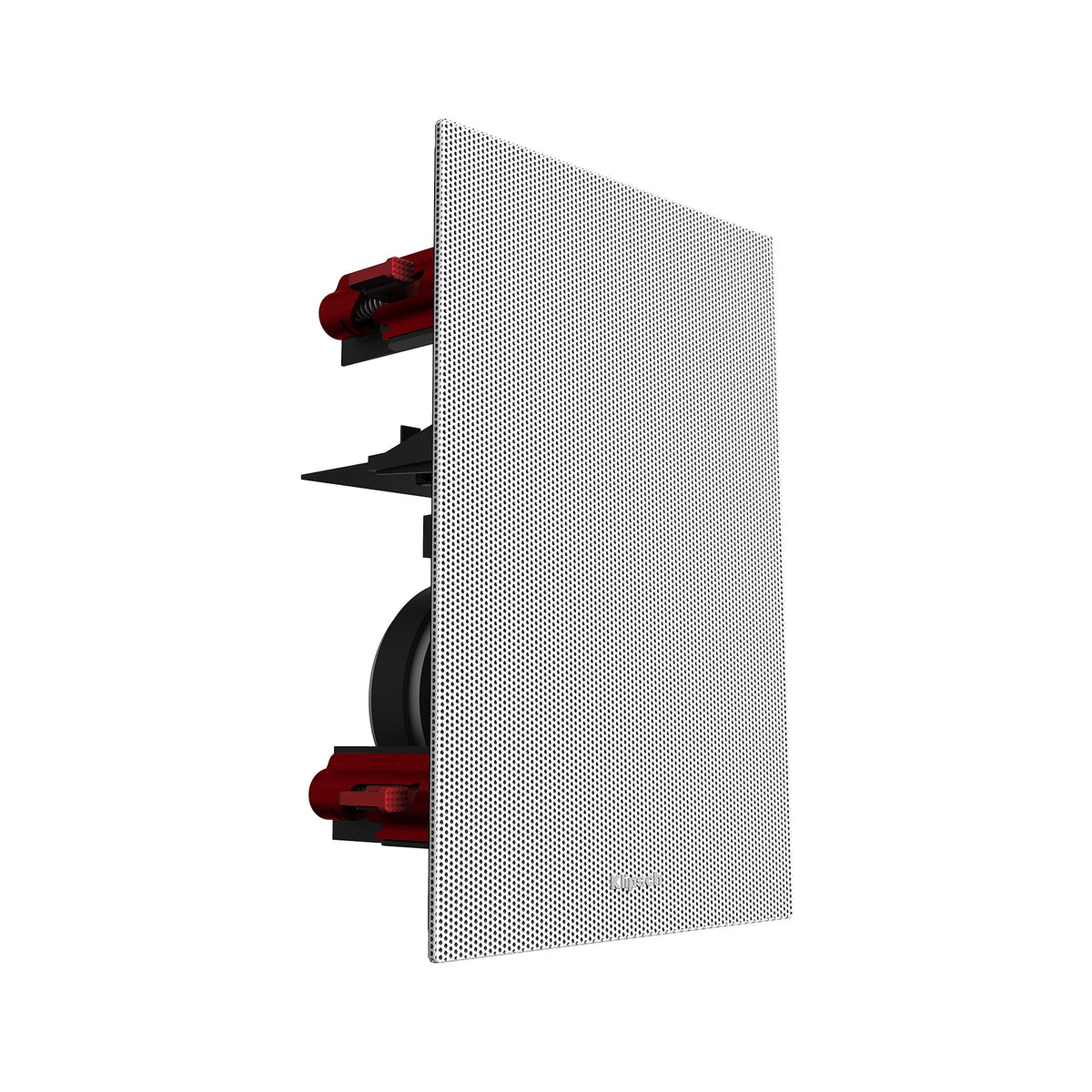

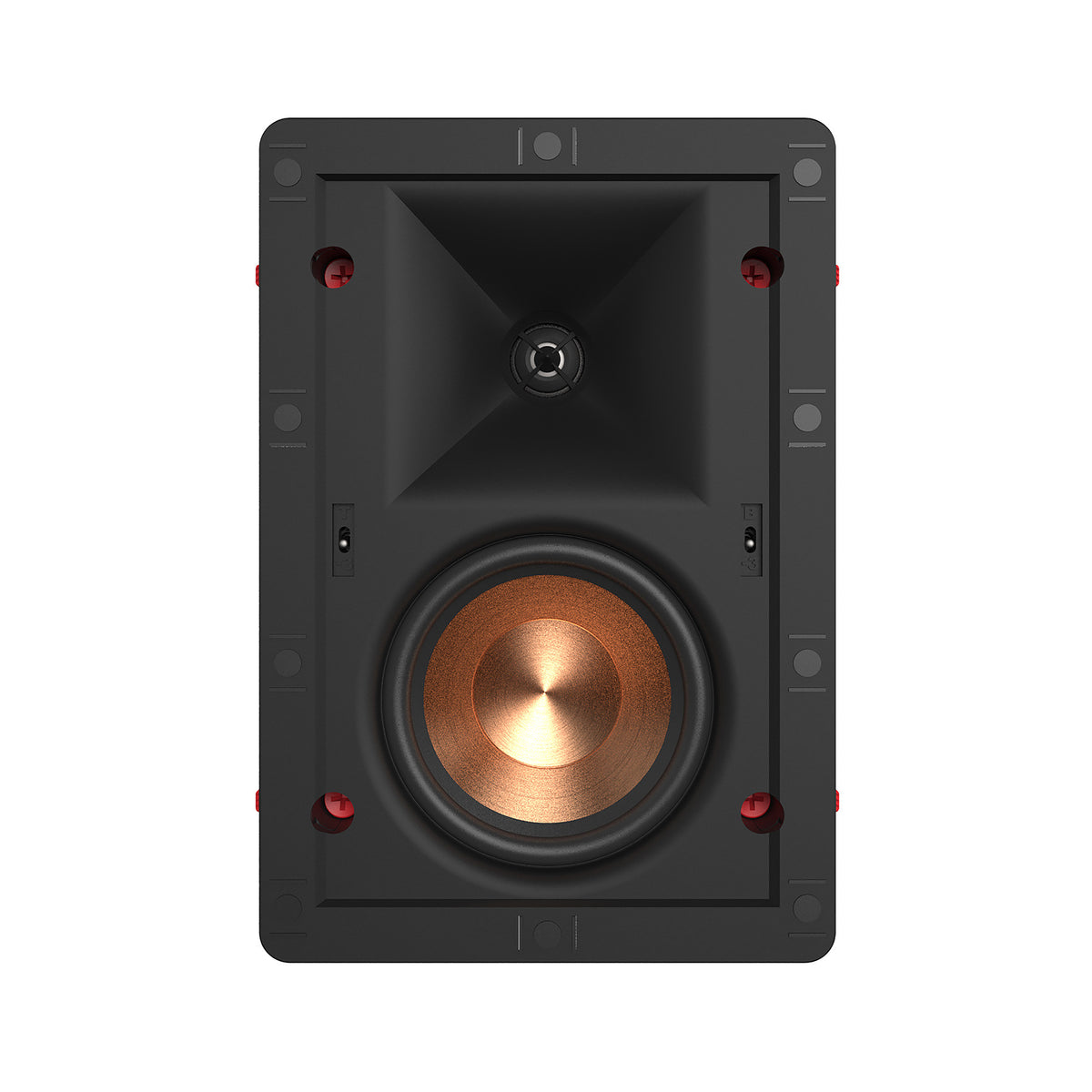

Klipsch PRO-14RW SkyHook Cinch White, Each
Product Details
The PRO-14RW is part of the Klipsch Professional architectural range: in-wall speakers built for custom-install work where the speaker has to disappear and the sound has to not.
It combines a 4" (10.16cm) IMG woofer with a 1" (2.54cm) aluminum dome tweeter — the horn controlling dispersion so output is directed into the room rather than scattered.
Installation uses the patented Sky Hook® Cinch system: the dog legs engage automatically at a preset clamping force when the speaker goes into the cut-out, removing any risk of over-torquing, with a quarter-turn adjustment per leg for an uneven opening.
Features
- 1" (2.54cm) Aluminum Dome Tweeter
- 4" (10.16cm) IMG Woofer
- 90Hz - 23kHz +/- 3dB frequency response
- 88 dB @ 2.83V / 1m sensitivity
- 30W RMS / 120W Peak power handling
- Patented Sky Hook® Cinch tool-free installation
- Preset clamping force — no over-torquing
- Quarter-turn dog leg adjustment for uneven openings
- Tractrix® horn-loaded tweeter

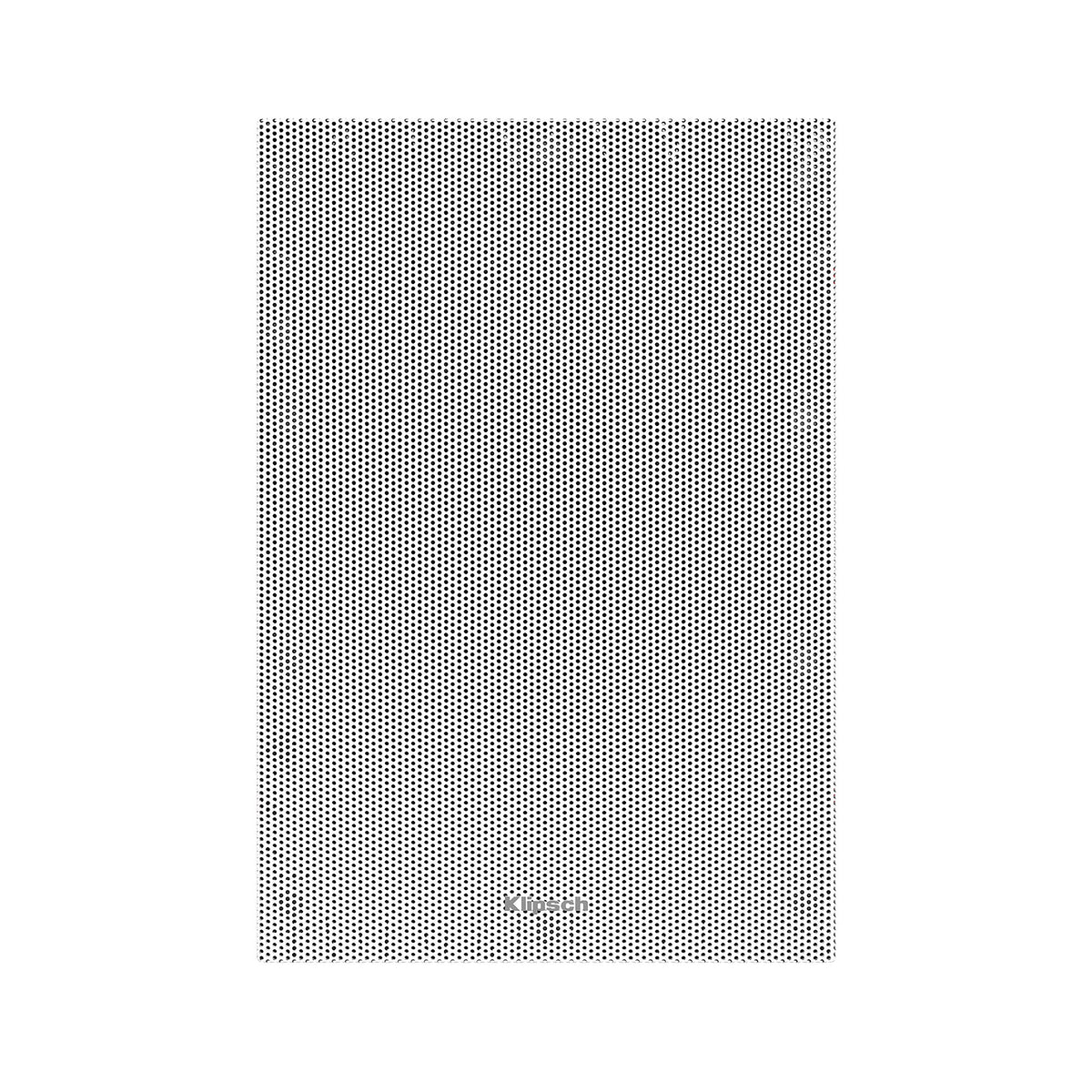

- Paintable magnetic grille
- In-wall mounting
Specifications
| Technical | |
|---|---|
| Frequency Range | 90Hz - 23kHz +/- 3dB |
| High Frequency Driver | 1" (2.54cm) Aluminum Dome Tweeter |
| Low Frequency Driver | 4" (10.16cm) IMG Woofer |
| Sensitivity | 88 dB @ 2.83V / 1m |
| Coverage Angle | 90° x 90° |
| Power Handling | 30W RMS / 120W Peak |
| Impedance | 8 Ohm Compatible |
| Enclosure Material/Type | ABS/Infinite Baffle |
| Physical | |
|---|---|
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 6.2" W x 9.08" H x 3.4" D (15.75cm H x 23.06cm W x 8.6cm D) |
| Mounting Depth | 3.3" (8.3cm) |
| Cutout Dimensions | 8.2" H X 5.2" W (20.8cm H X 13.2cm W) |
| Product Weight | 4lbs (1.8kg) |
| Included In Box | Flat Magnetic Grille, Paint Shield |
| Install Kit | IK-400-W (Sold Separately) |
| Built From | 2017 |
Specifications subject to change.
