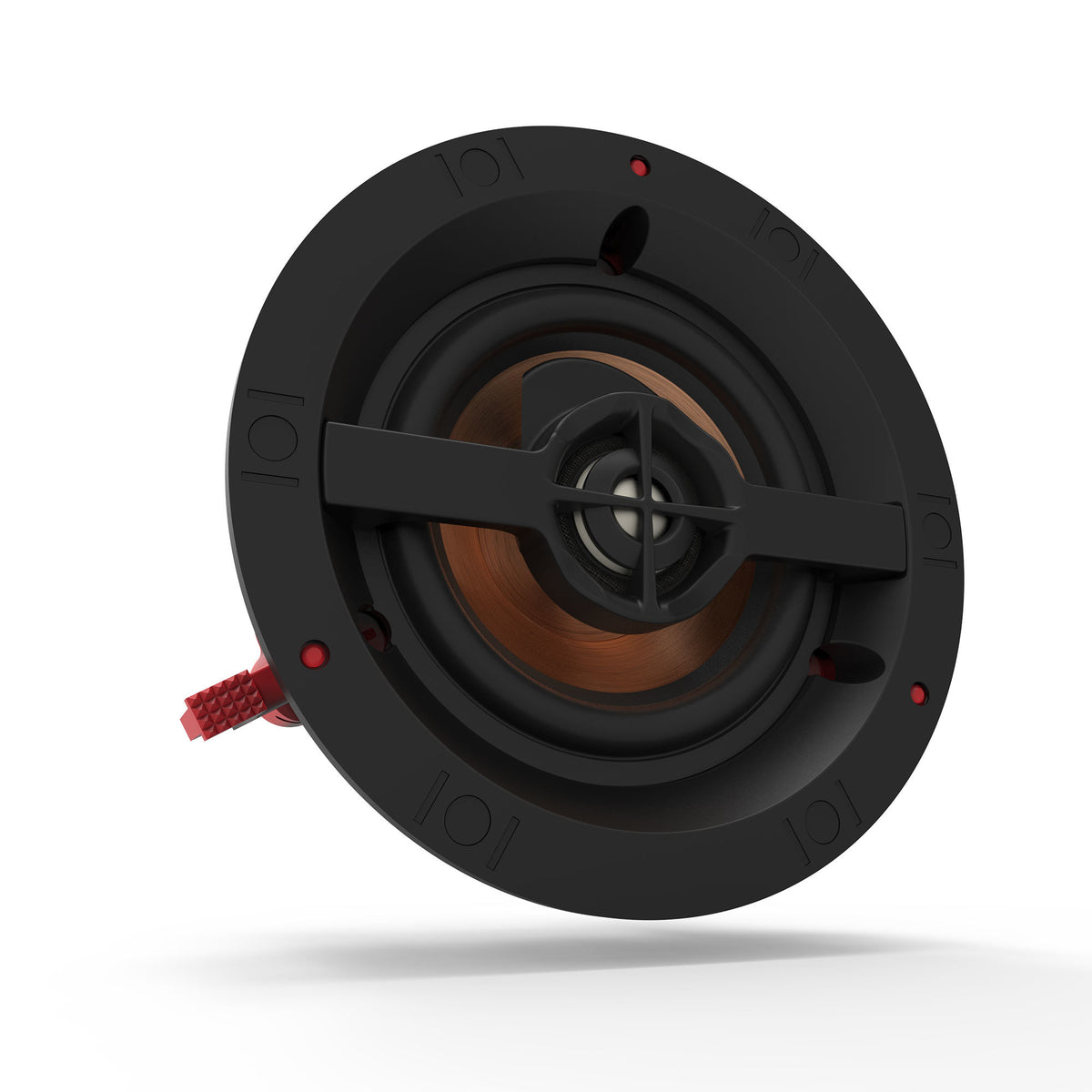

Klipsch PRO-14RC SkyHook Cinch White, Each
Product Details
The PRO-14RC is part of the Klipsch Professional architectural range: in-ceiling speakers built for custom-install work where the speaker has to disappear and the sound has to not.

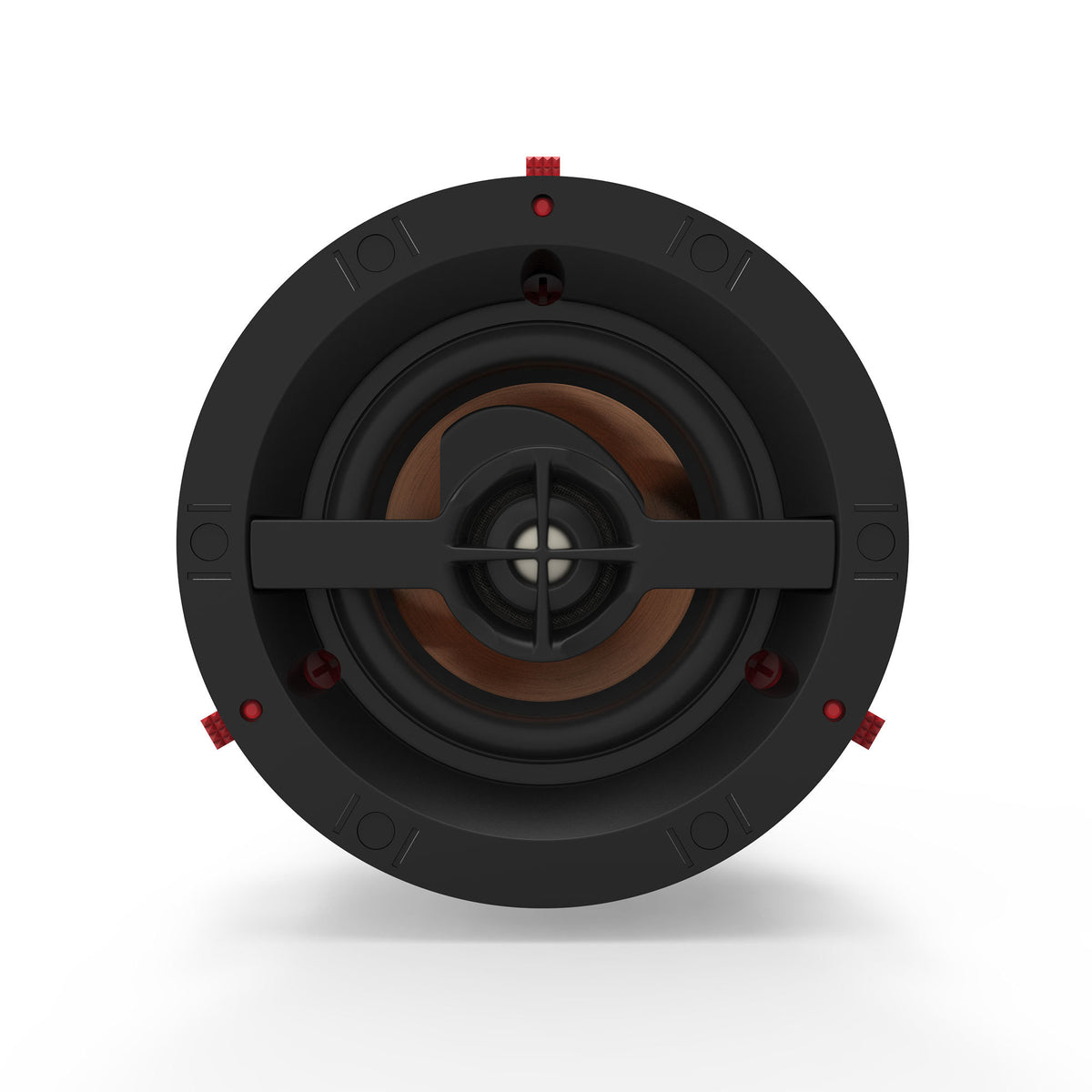

It combines a 3.5" (88.9mm) IMG woofer with a .75" (19mm) aluminum dome tweeter — the horn controlling dispersion so output is directed into the room rather than scattered.

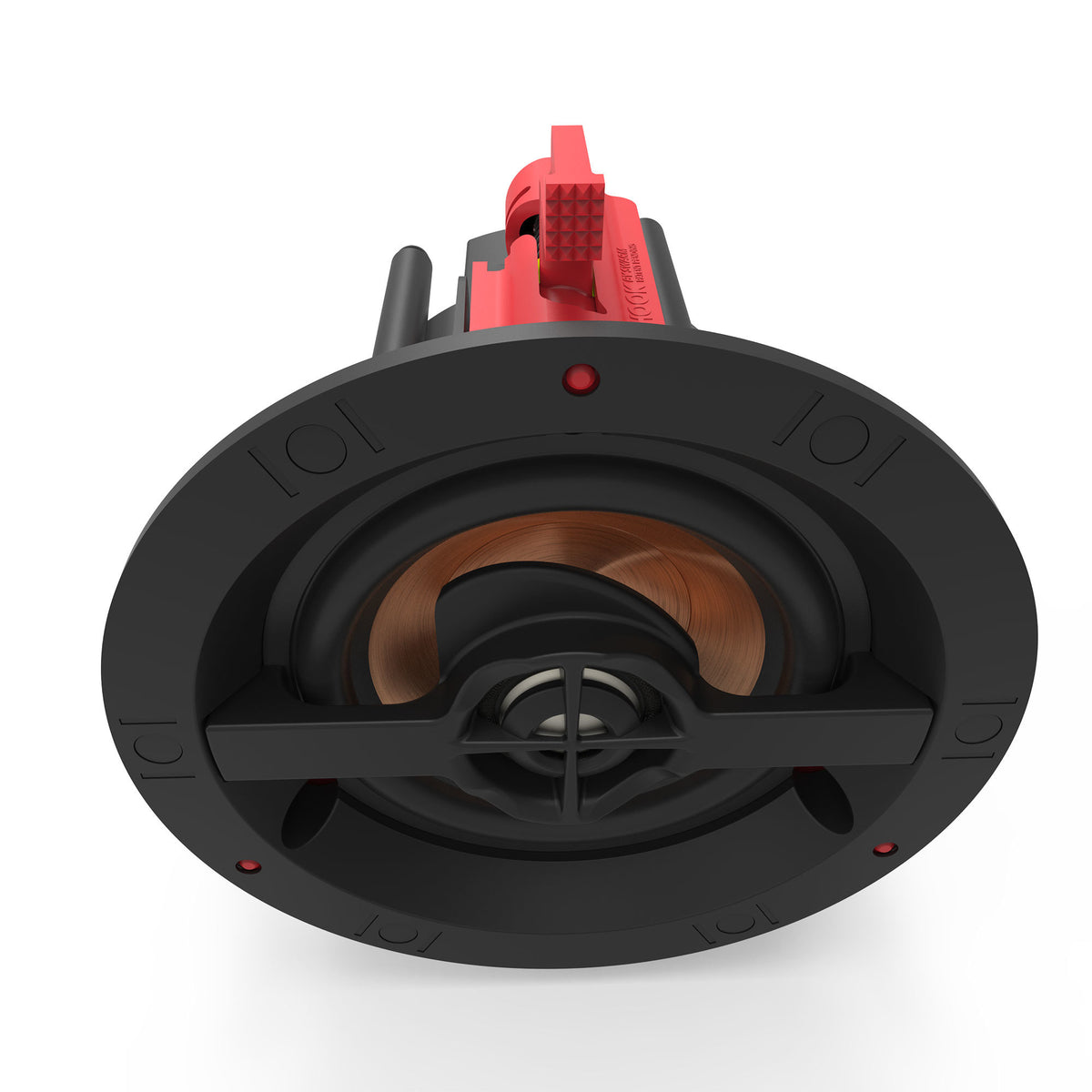

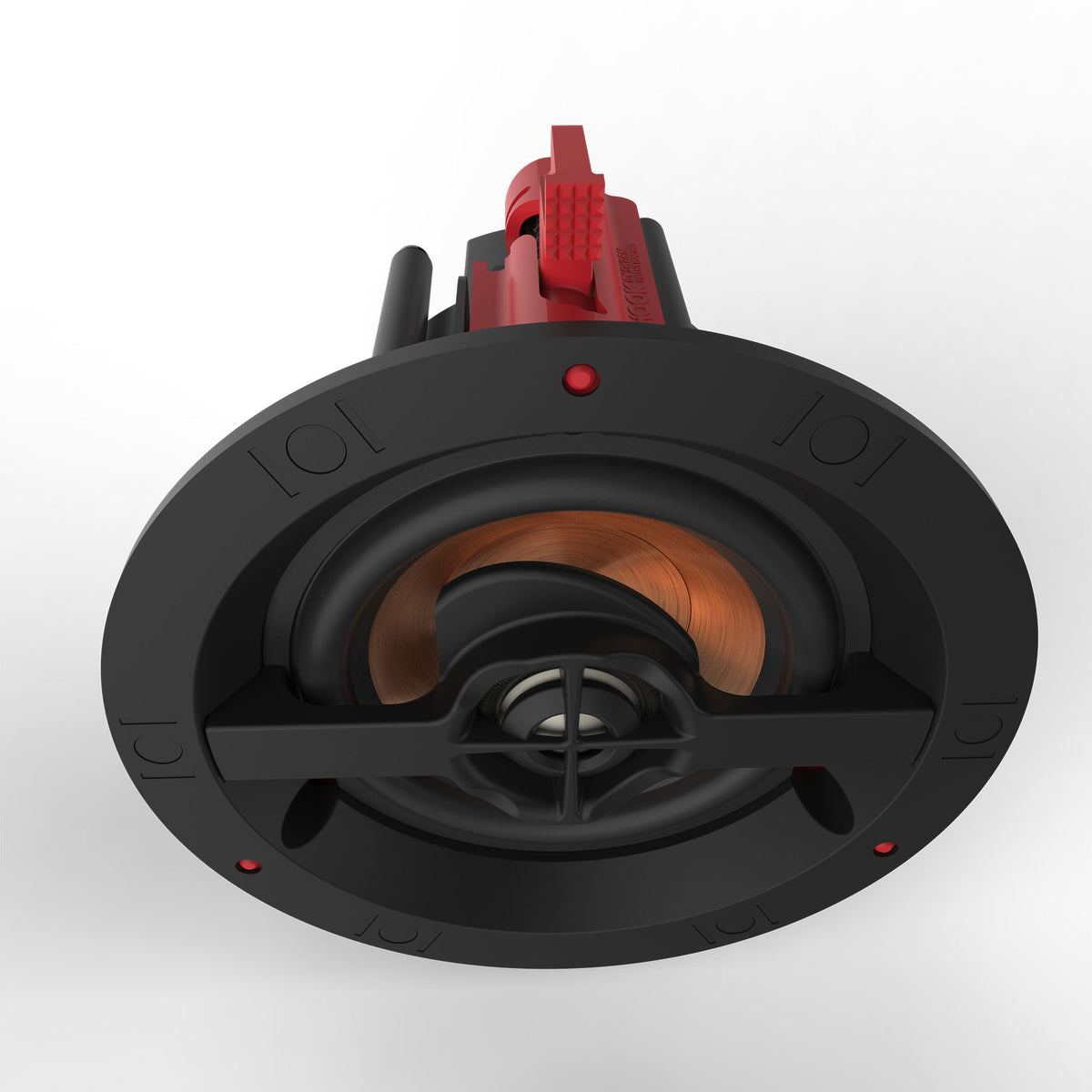

Installation uses the patented Sky Hook® Cinch system: the dog legs engage automatically at a preset clamping force when the speaker goes into the cut-out, removing any risk of over-torquing, with a quarter-turn adjustment per leg for an uneven opening.
Features
- .75" (19mm) Aluminum Dome Tweeter
- 3.5" (88.9mm) IMG Woofer
- 72Hz - 23kHz +/- 3dB frequency response
- 88 dB @ 2.83V / 1m sensitivity
- 30W RMS / 120W Peak power handling
- Patented Sky Hook® Cinch tool-free installation
- Preset clamping force — no over-torquing
- Quarter-turn dog leg adjustment for uneven openings
- Tractrix® horn-loaded tweeter

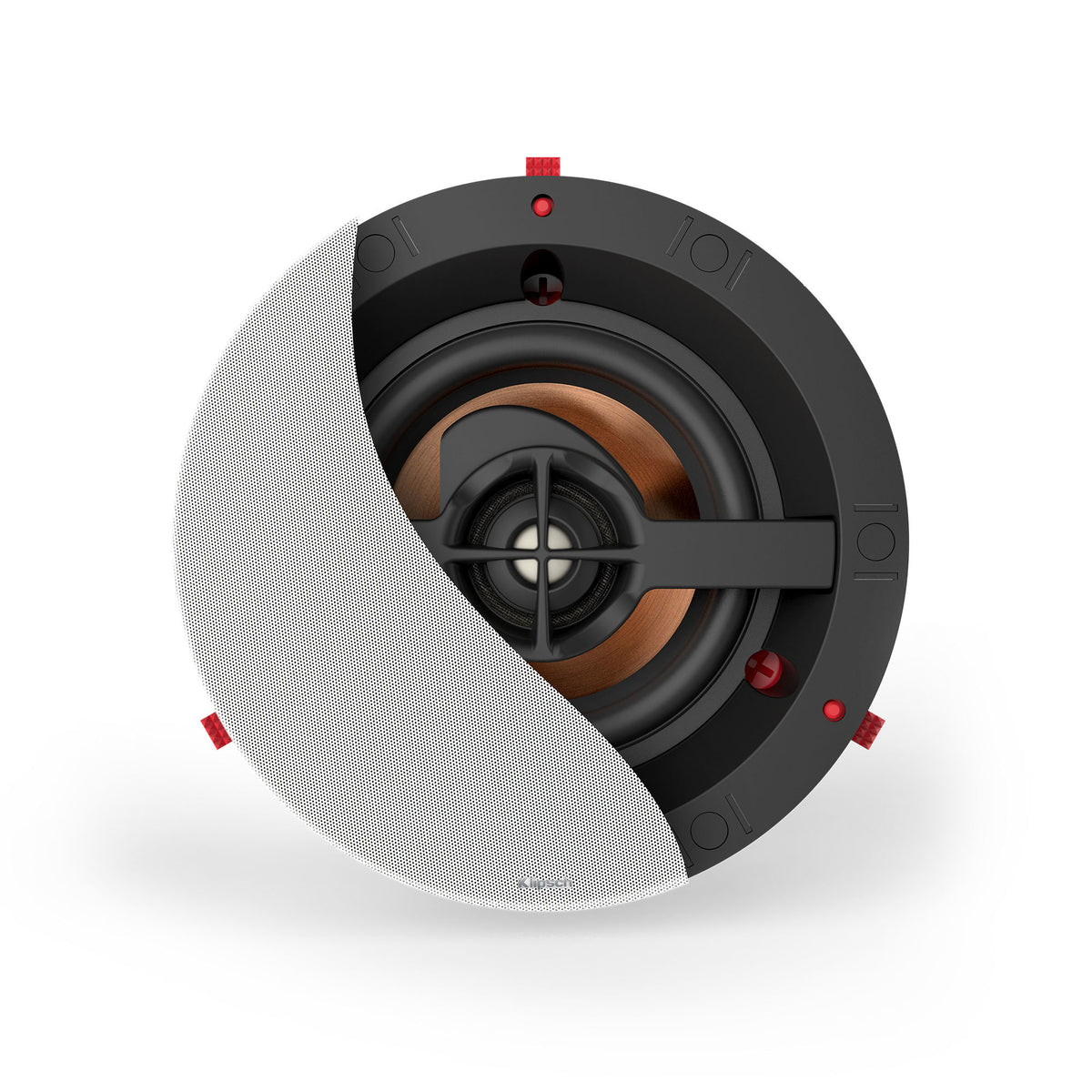

- Paintable magnetic grille
- In-ceiling mounting
Specifications
| Technical | |
|---|---|
| Frequency Range | 72Hz - 23kHz +/- 3dB |
| High Frequency Driver | .75" (19mm) Aluminum Dome Tweeter |
| Low Frequency Driver | 3.5" (88.9mm) IMG Woofer |
| Sensitivity | 88 dB @ 2.83V / 1m |
| Coverage Angle | 100° |
| Power Handling | 30W RMS / 120W Peak |
| Impedance | 4 Ohm |
| Enclosure Material/Type | ABS/Infinite Baffle |
| Physical | |
|---|---|
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 4.5" W x 4.5" H x 4.5" D (113mm H x 113mm W x 113mm D) |
| Mounting Depth | 4.34" (110.2mm) |
| Cutout Dimensions | 4.21" (107mm) |
| Product Weight | 4 lbs (1.8kg) |

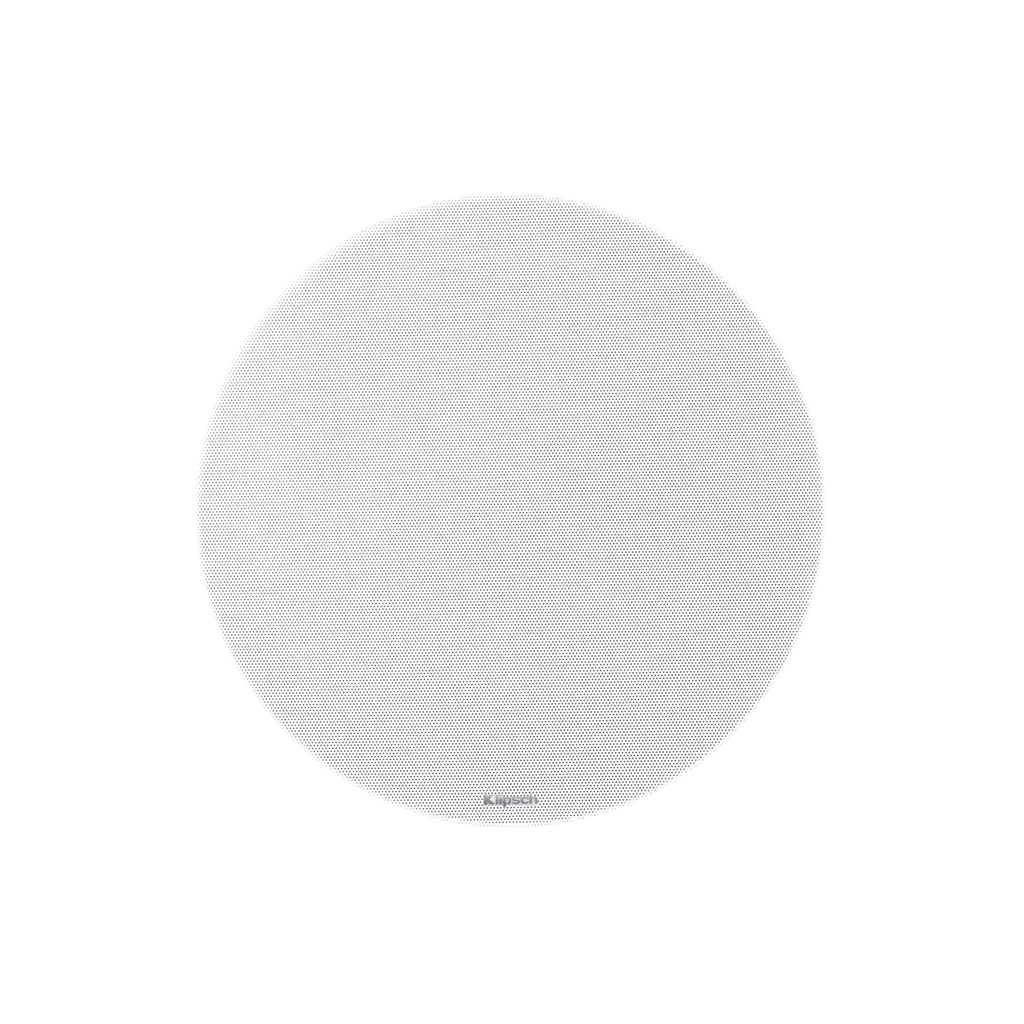

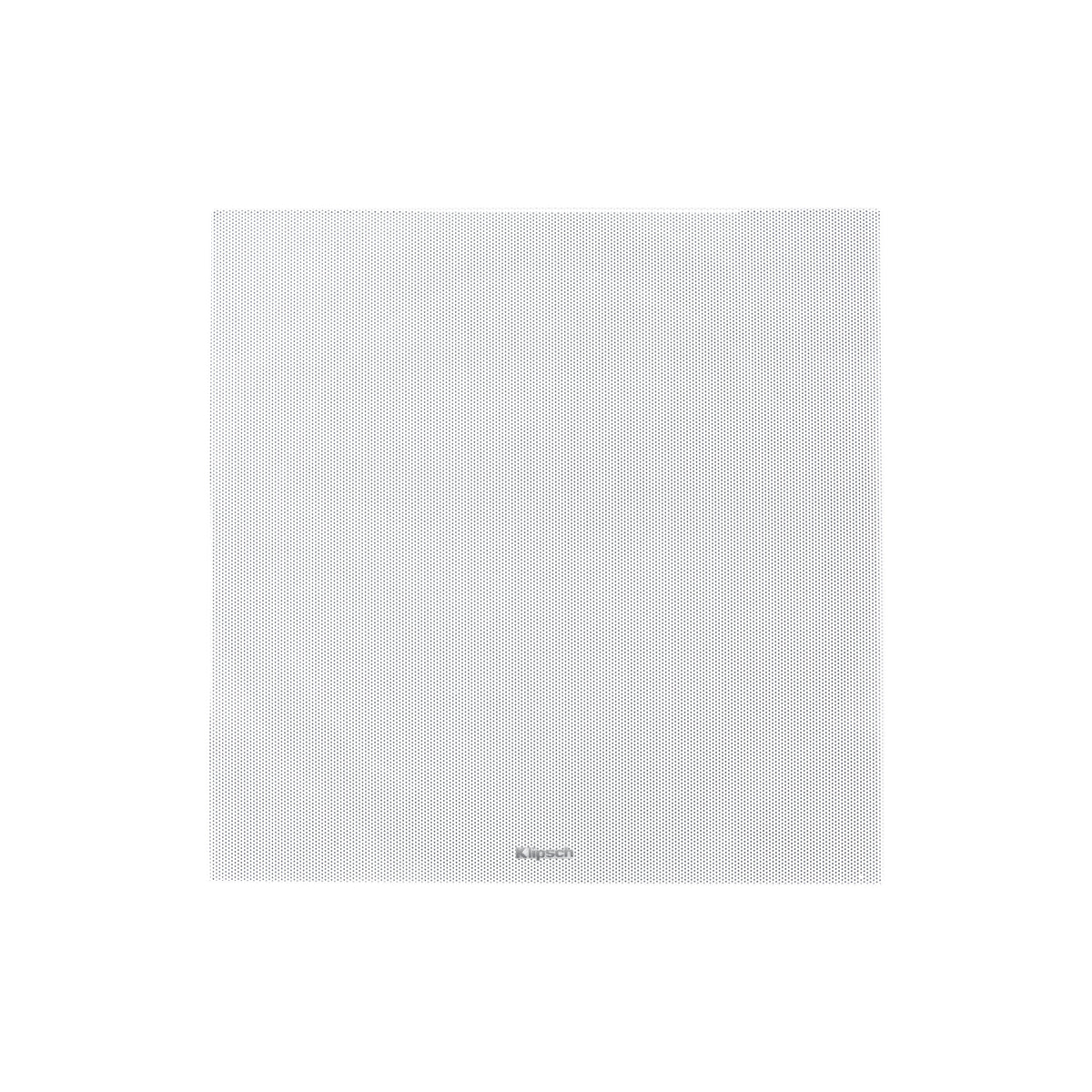

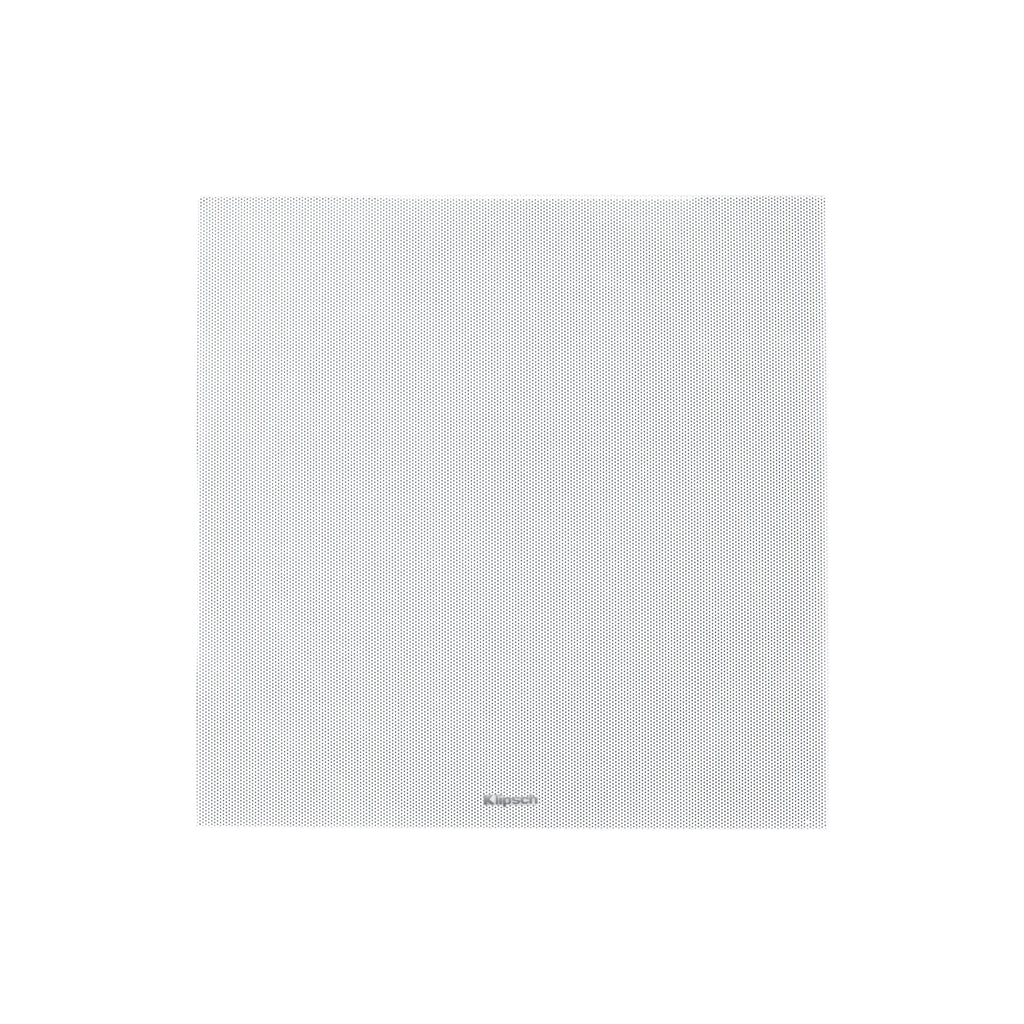

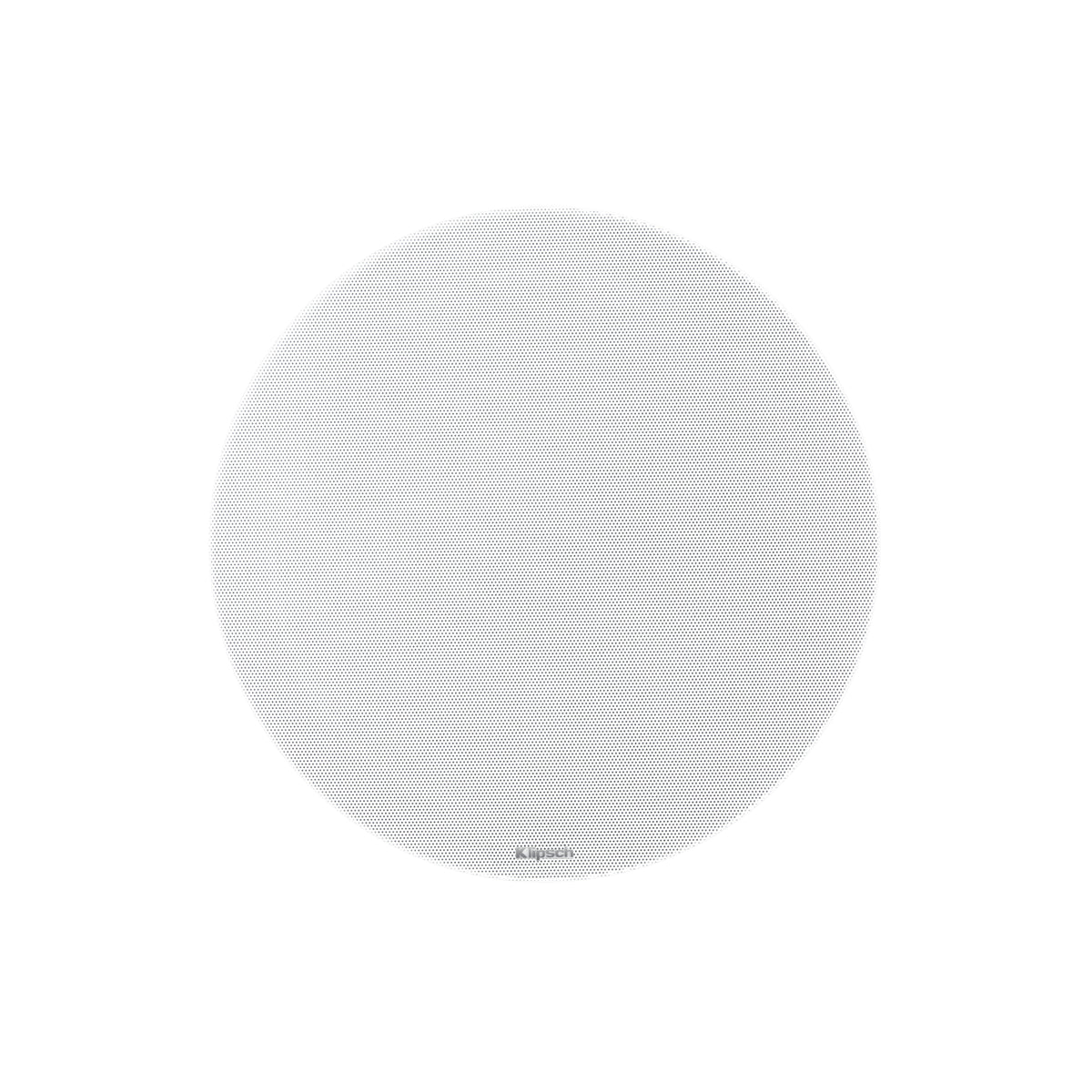

| Included In Box | Round Grille, Square Grille, Paint Shield |
| Install Kit | IK-400-C (Sold Separately) |
| Built From | 2017 |
Specifications subject to change.
