Description
Klipsch PRO-1000SW 10" In-Wall Sub White, Each
Product Details
The Klipsch PRO-1000SW is a 10" in-wall subwoofer that fits a standard 16" on-center stud bay, giving genuine subwoofer output with nothing visible but a flat, paintable grille. Installation is direct into the stud bay using the included wood screws, for retrofit or new construction.
A 10" long-throw Cerametallic woofer with reverse-rolled surround delivers 24Hz – 100Hz +/- 3dB and 109dB at 70Hz from a sealed MDF enclosure. The MDF box is what makes this a real subwoofer rather than an in-wall driver: it gives controlled, accurate output and isolates sound from the neighboring room instead of using the wall cavity as an uncontrolled enclosure.
This is a passive subwoofer and requires external amplification. Klipsch KDA series DSP amplifiers include presets designed specifically for the PRO-1000SW with optimized EQ and limiter settings.
Features
- 10" in-wall subwoofer for standard 16" OC stud bays
- 10" long-throw Cerametallic woofer with reverse-rolled surround
- 24Hz – 100Hz +/- 3dB; 109dB at 70Hz
- 200W RMS / 500W peak power handling; 8 ohm
- Sealed MDF enclosure — accurate output and room-to-room isolation

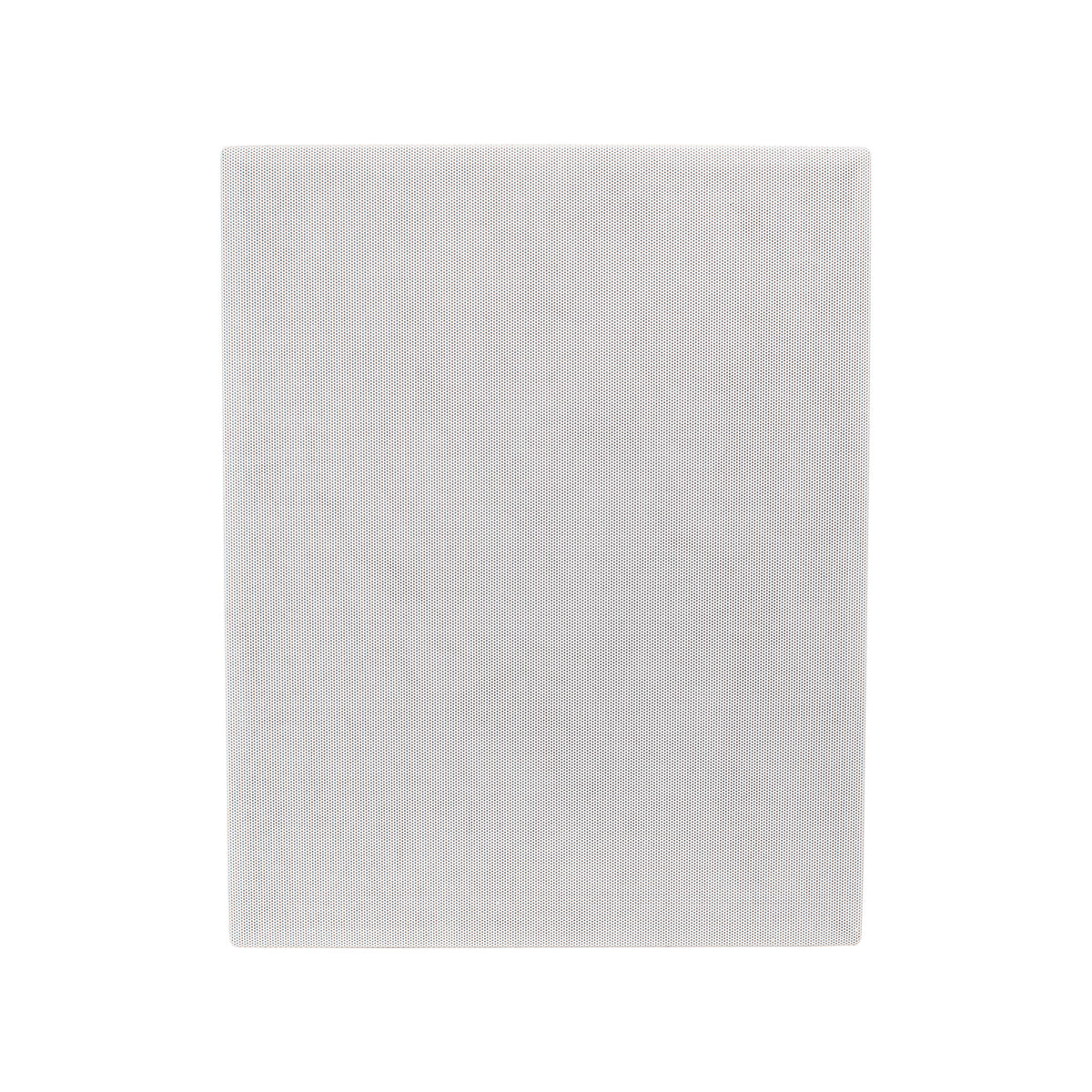

- Flat, bezel-free magnetic grille, white and paintable
- Only 3.4" mounting depth
- Wood screws included for retrofit or new construction
- Passive — requires external amplification (Klipsch KDA series DSP amplifiers include presets for it)
Specifications
| Technical | |
|---|---|
| Frequency Range | 24Hz – 100Hz +/- 3dB |
| System Type | Sealed Box |
| Woofer | 10" (25.4cm) Long-Throw Cerametallic™ |
| Maximum Output | 109dB @ 70Hz |
| Power Handling | 200W RMS / 500W Peak |
| Impedance | 8 Ohm |
| Enclosure Material | MDF |
| Physical | |
|---|---|
| Dimensions | 22.0" x 17.63" x 4.0" (559mm x 448mm x 102mm) |
| Cutout Dimensions | 20.25" x 14.5" (514mm x 368mm) |
| Mounting Depth | 3.4" (87mm) |
| Weight | 20.3 lbs (9.2 kg) |
| Finish | Black polymer veneer with white, paintable grille |
Specifications subject to change.
