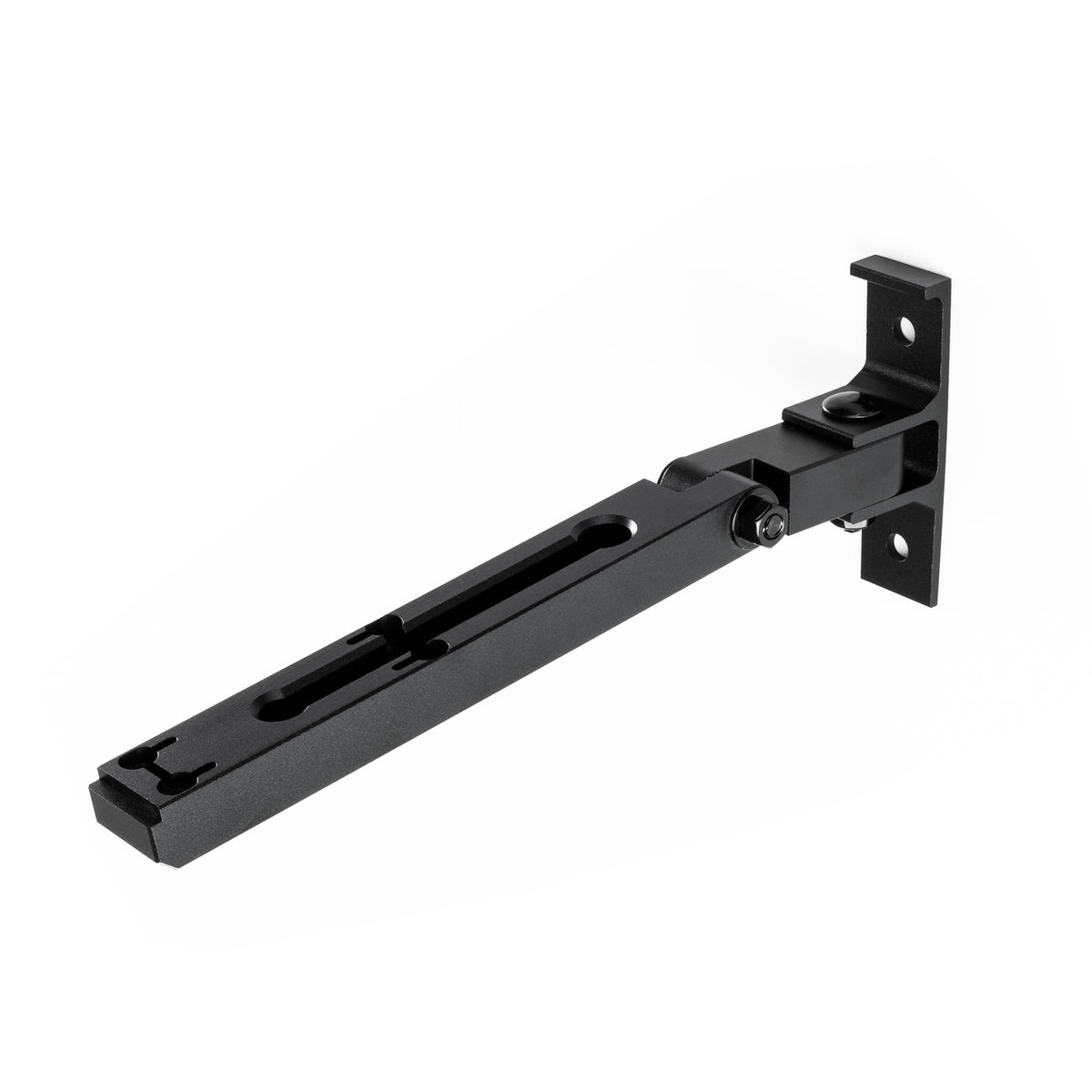

Klipsch PRO-1-SM - Surface mount bracket Matte black, Each
Product Details

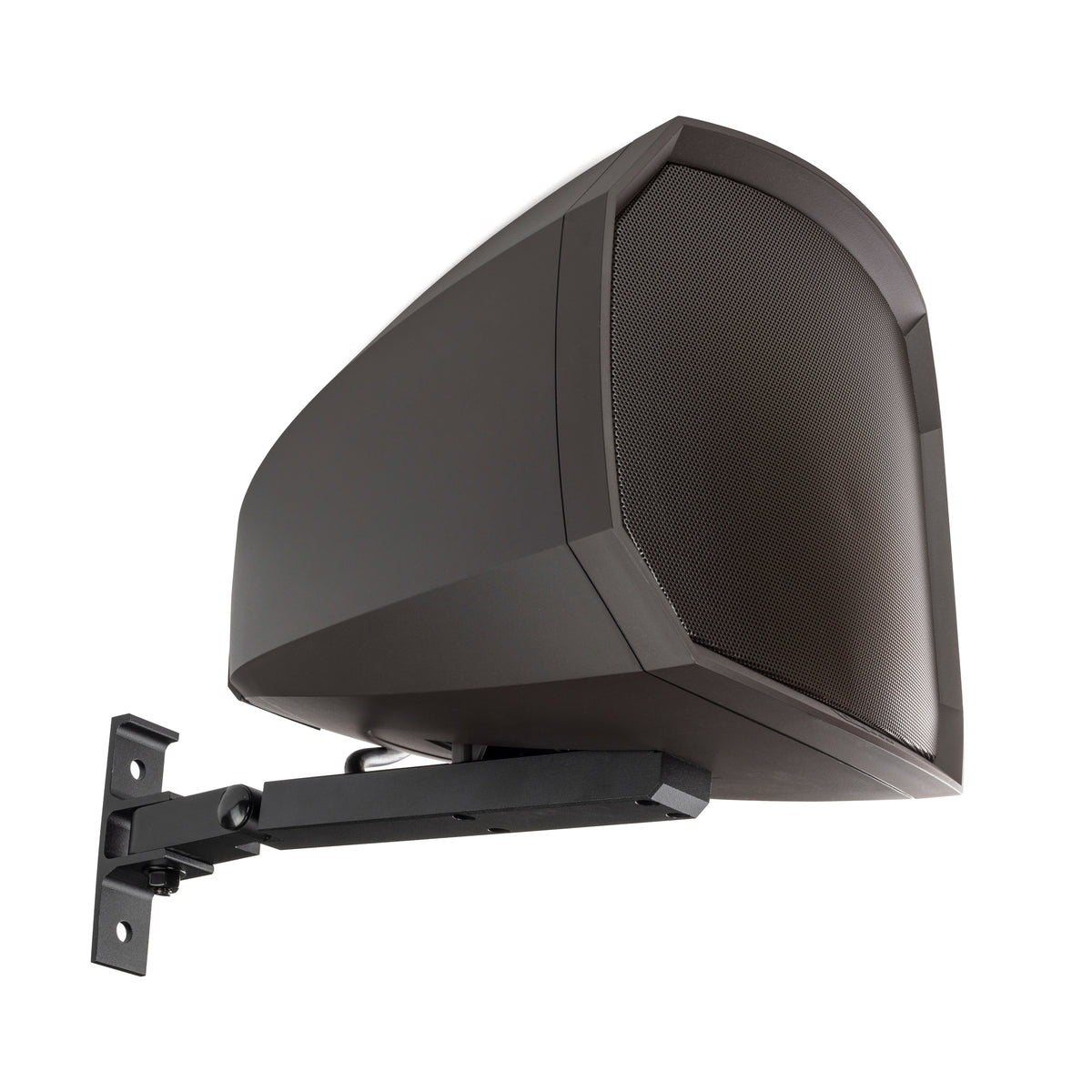

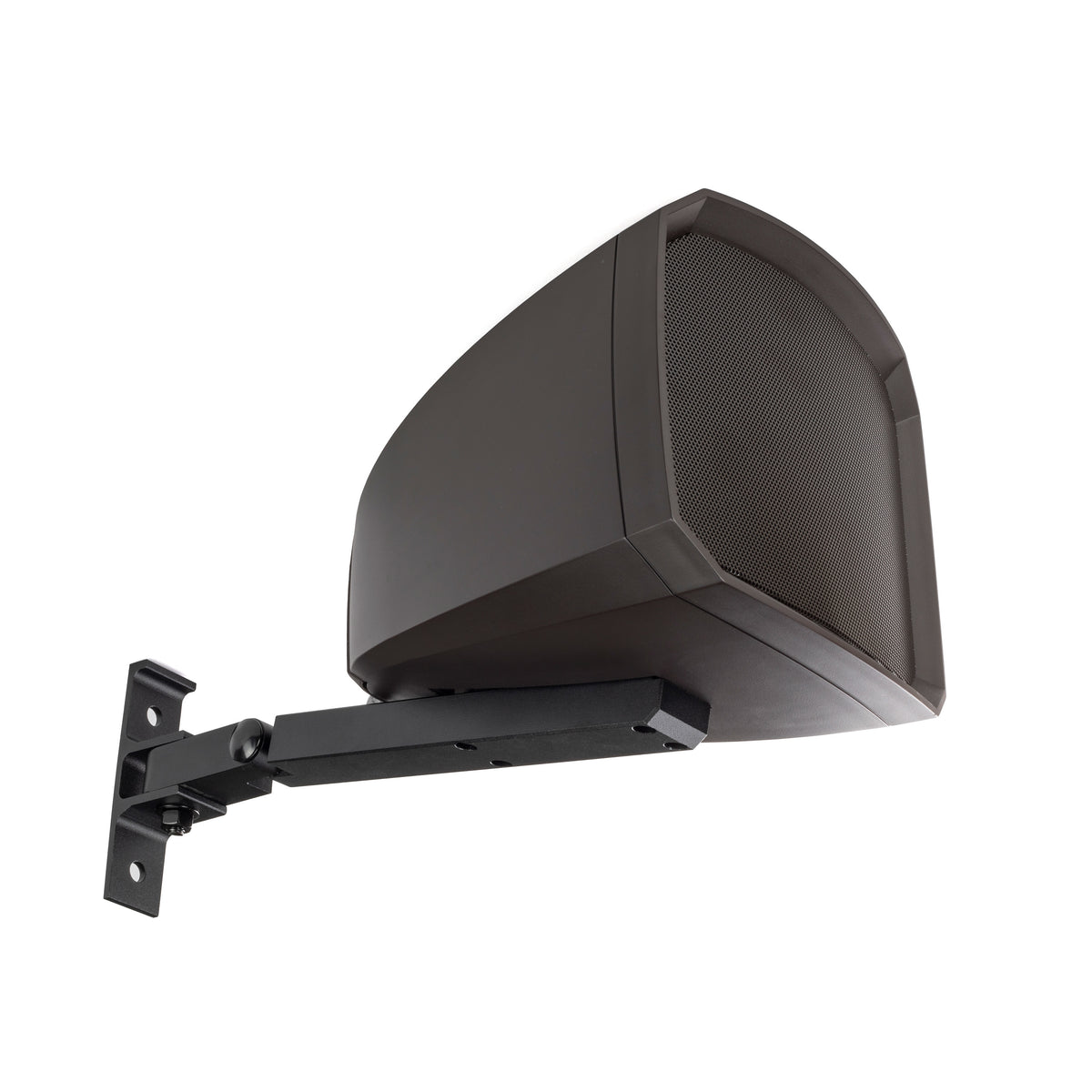

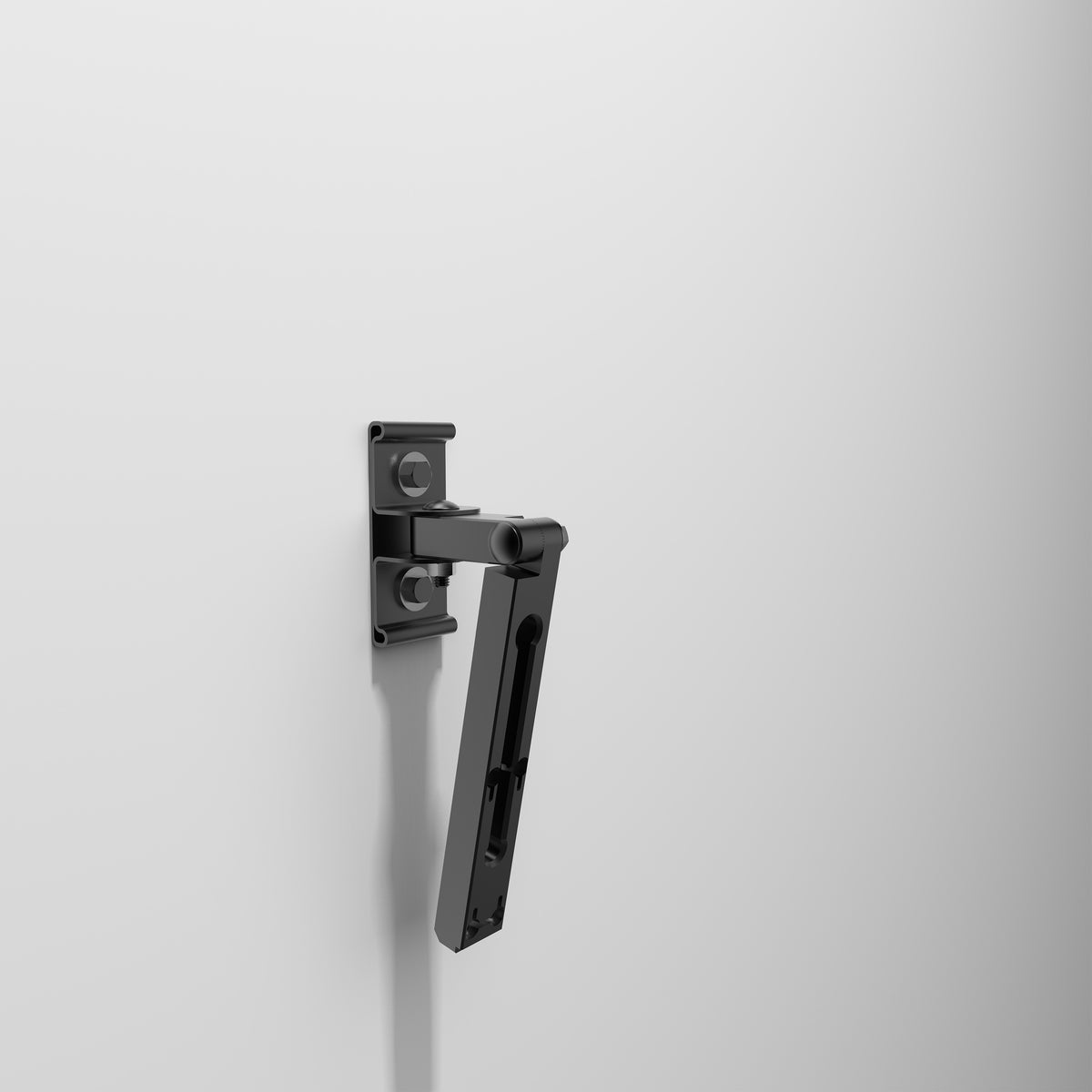

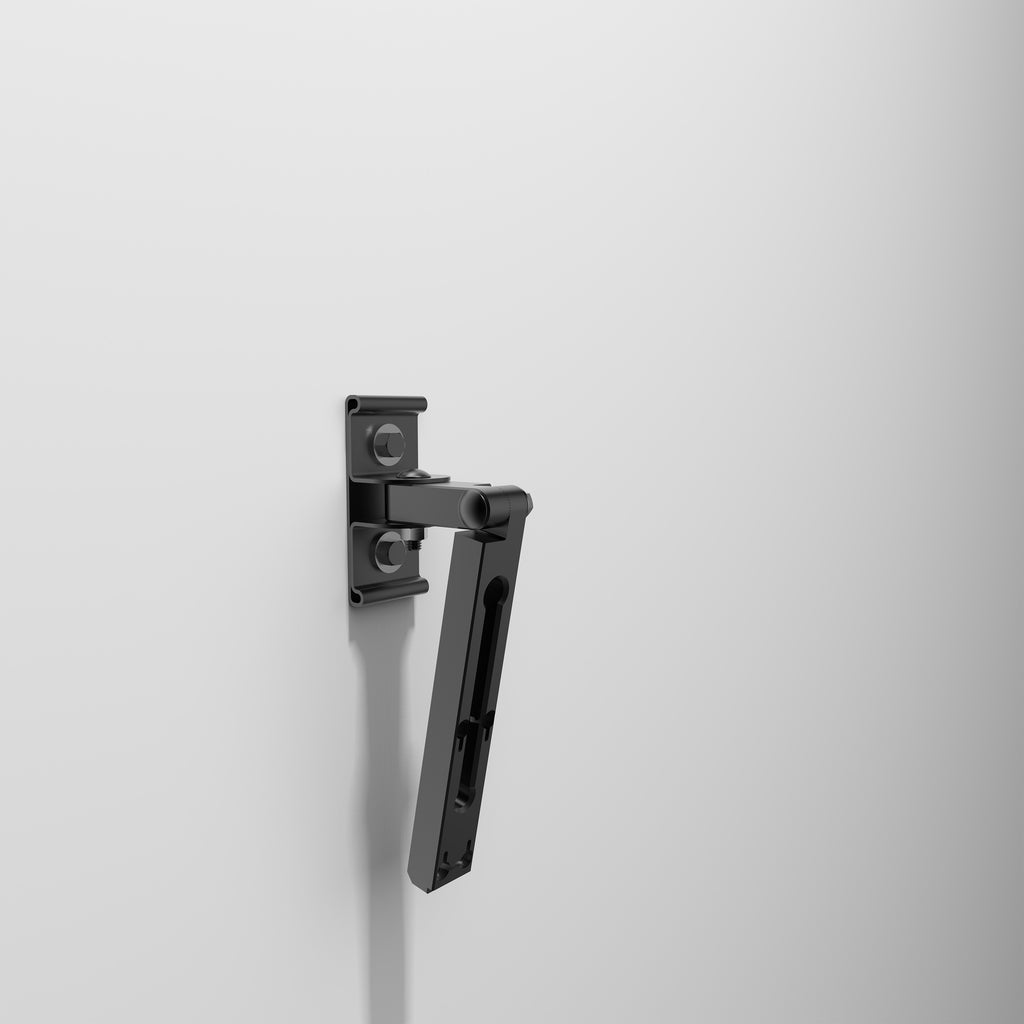

The Klipsch PRO-1-SM is a surface mount bracket for the Professional series landscape satellites, the PRO-500T-LS and PRO-650T-LS. It is the alternative to a ground stake: where a stake puts the speaker in soil, this puts it on a wall, soffit, tree or pole.
An integrated mounting plate handles direct surface mounting and is also compatible with third-party tree straps and U-bolt pole mounts (not included). Full pan and tilt adjustment — 45° up and 90° down in 15° increments, 100° of pan each way — means the speaker can be aimed at the listening area rather than wherever the surface happens to face.

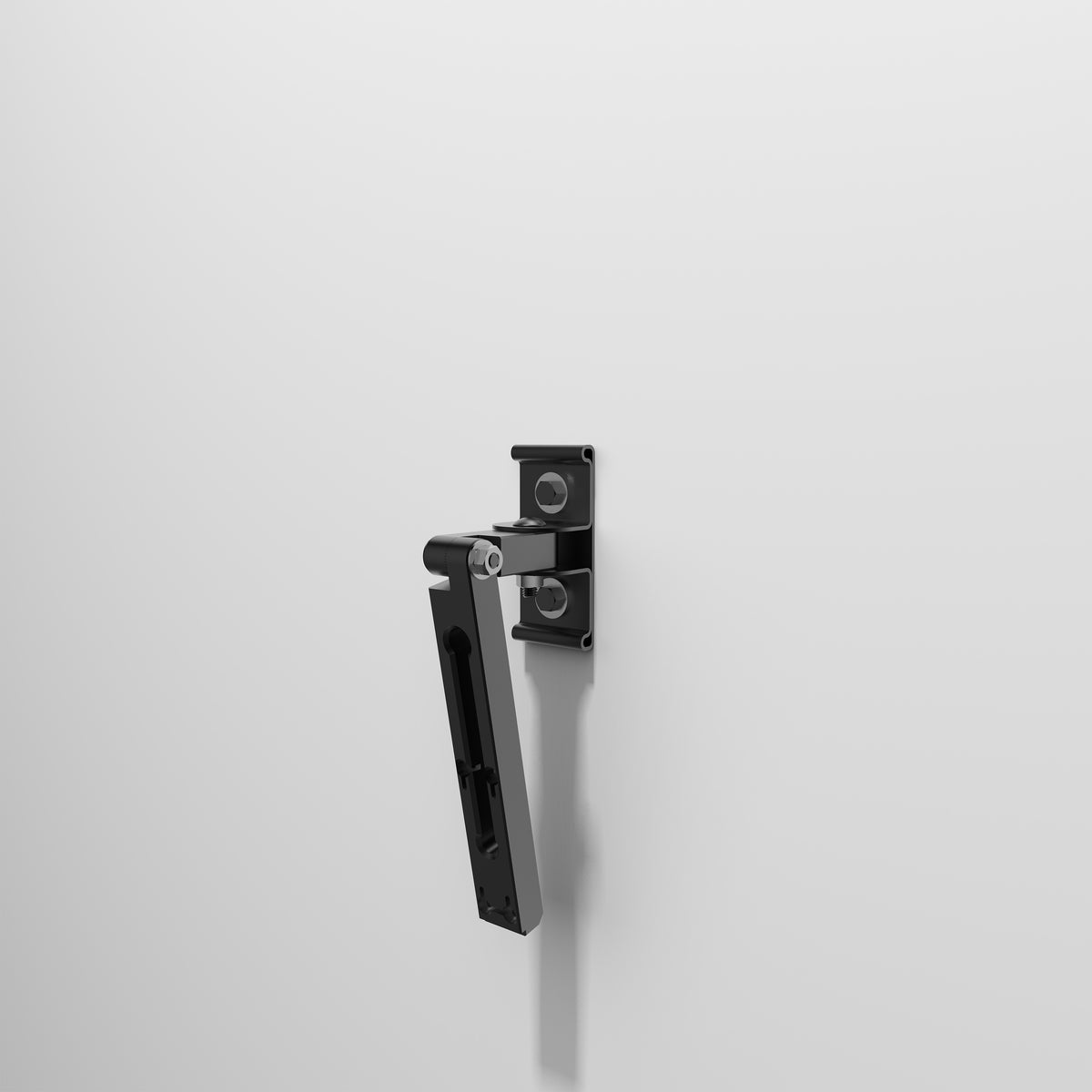

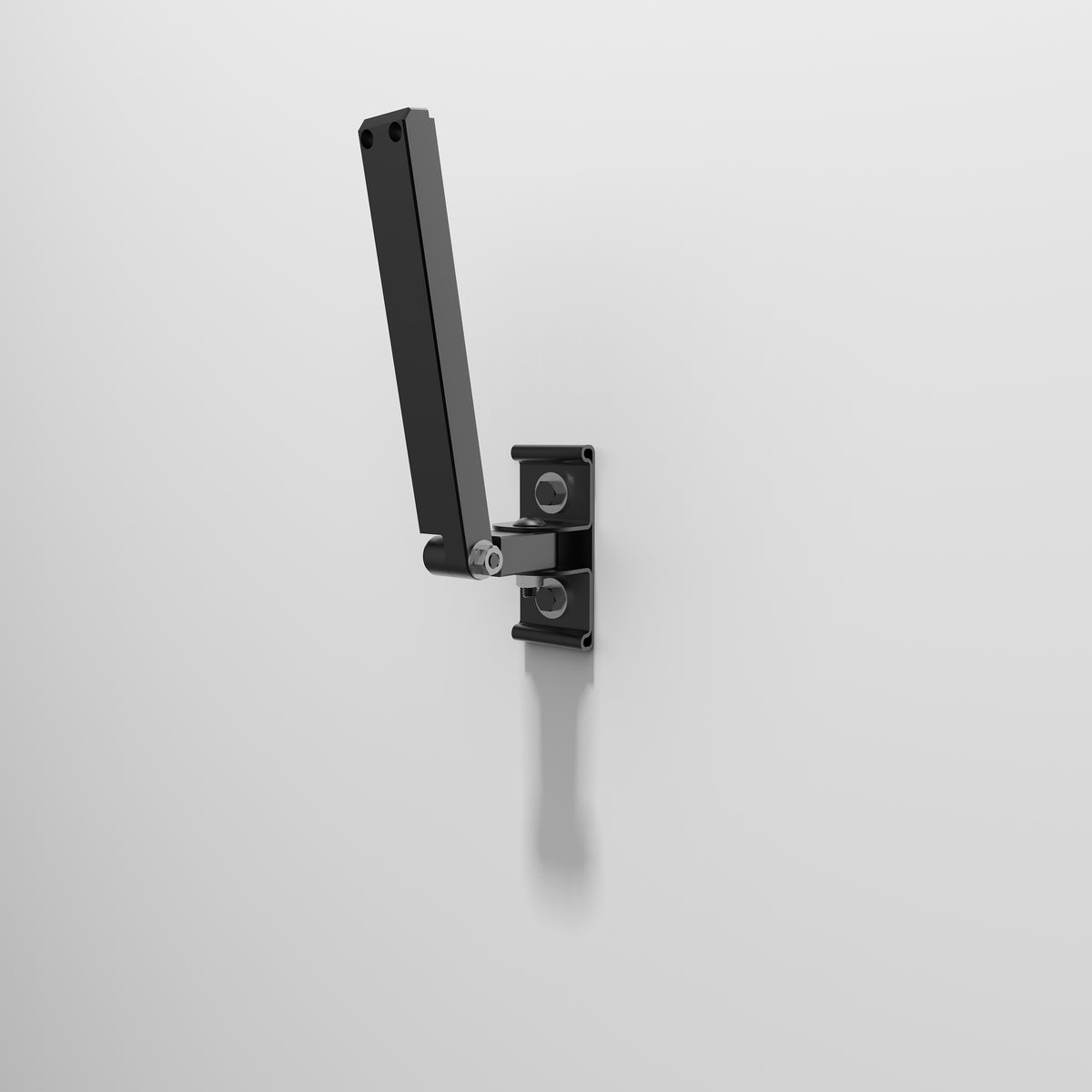

Machined locking teeth within the arm and an embedded locking nut hold the set angle. That is the difference that matters over time: an outdoor bracket that relies on friction alone droops within a season. Rustproof aluminum with stainless steel hardware.
Features
- Surface mount bracket for PRO-500T-LS and PRO-650T-LS landscape satellites
- Mounts to walls, soffits, trees or poles
- Compatible with third-party tree straps and U-bolt pole mounts

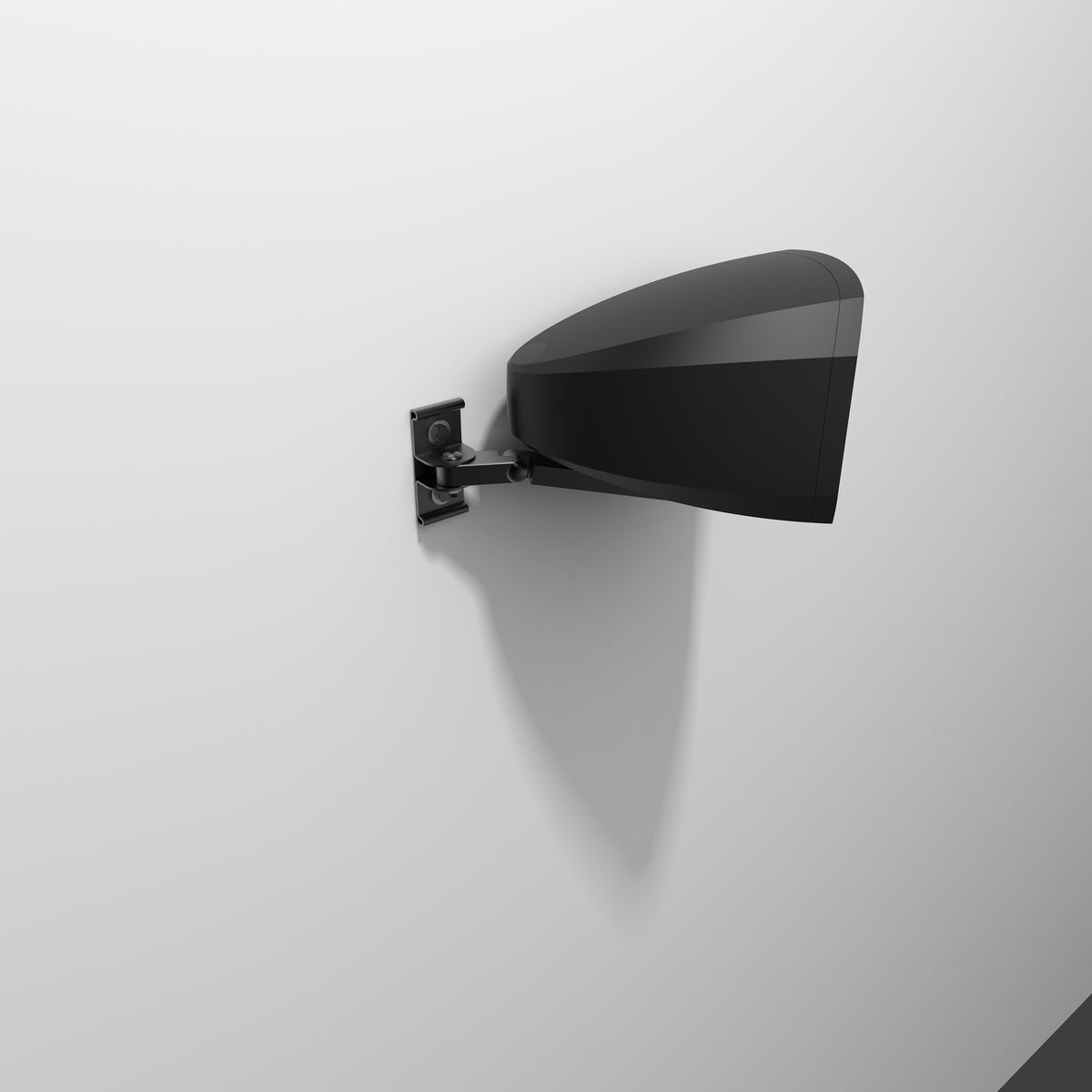

- Pan: 100° clockwise and counterclockwise

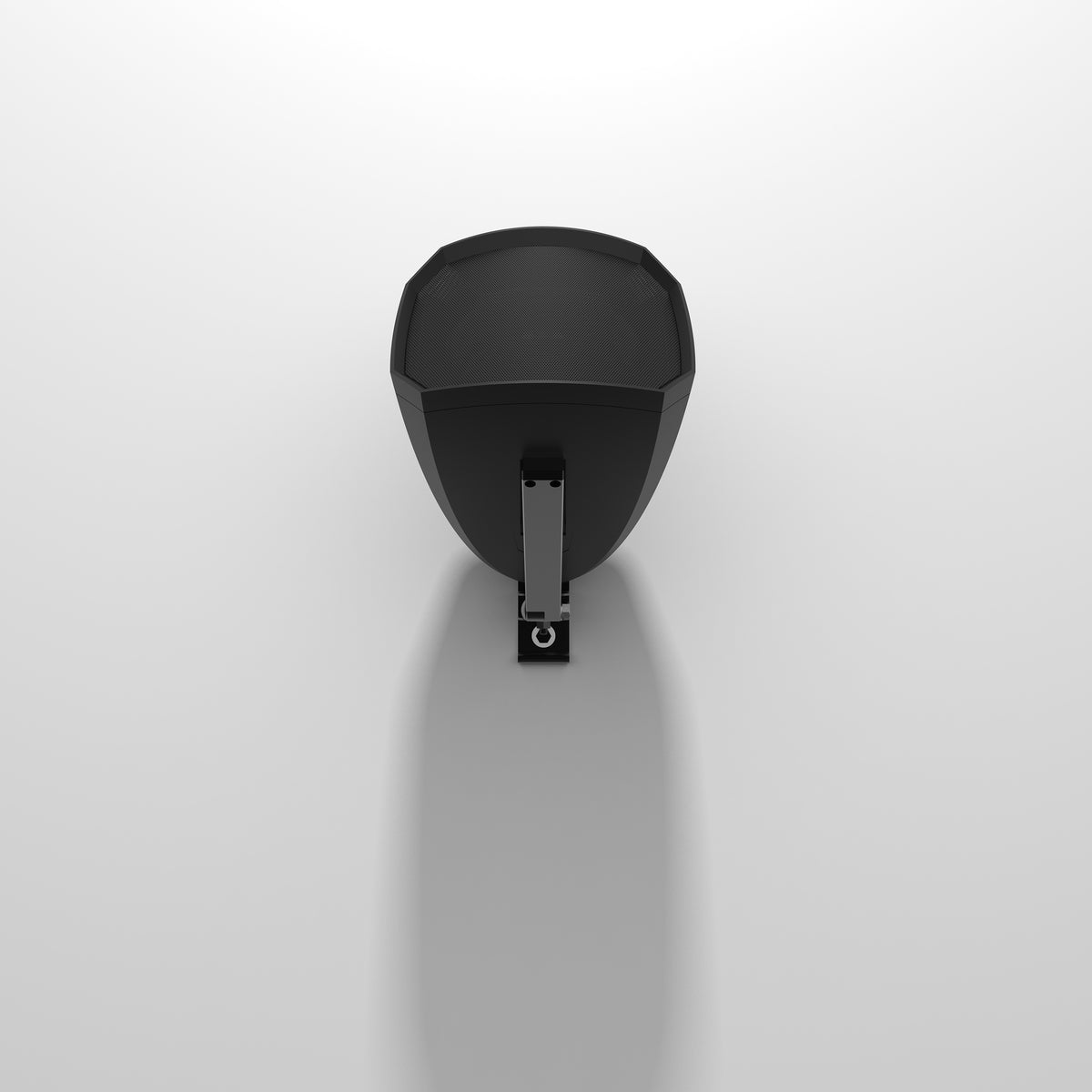

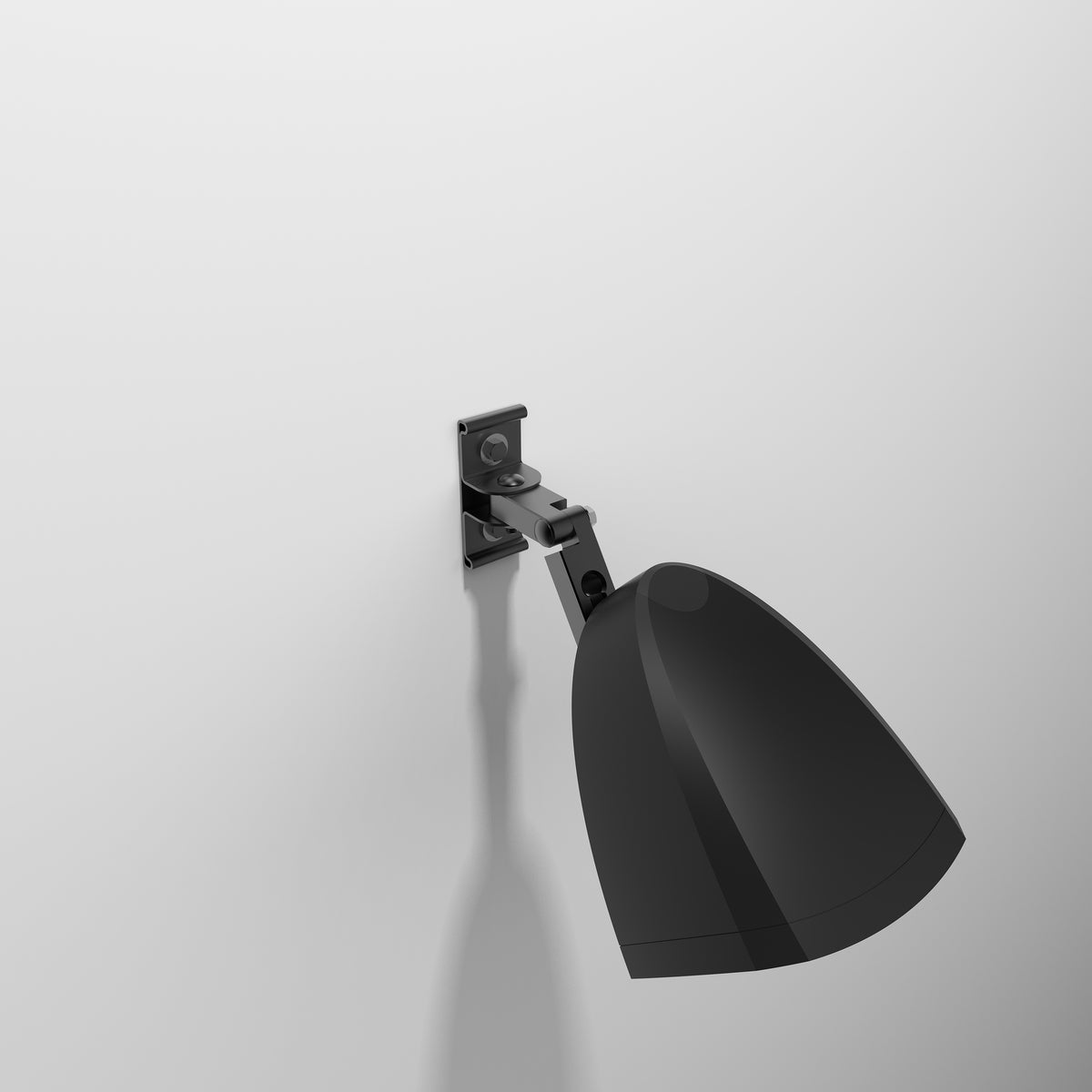

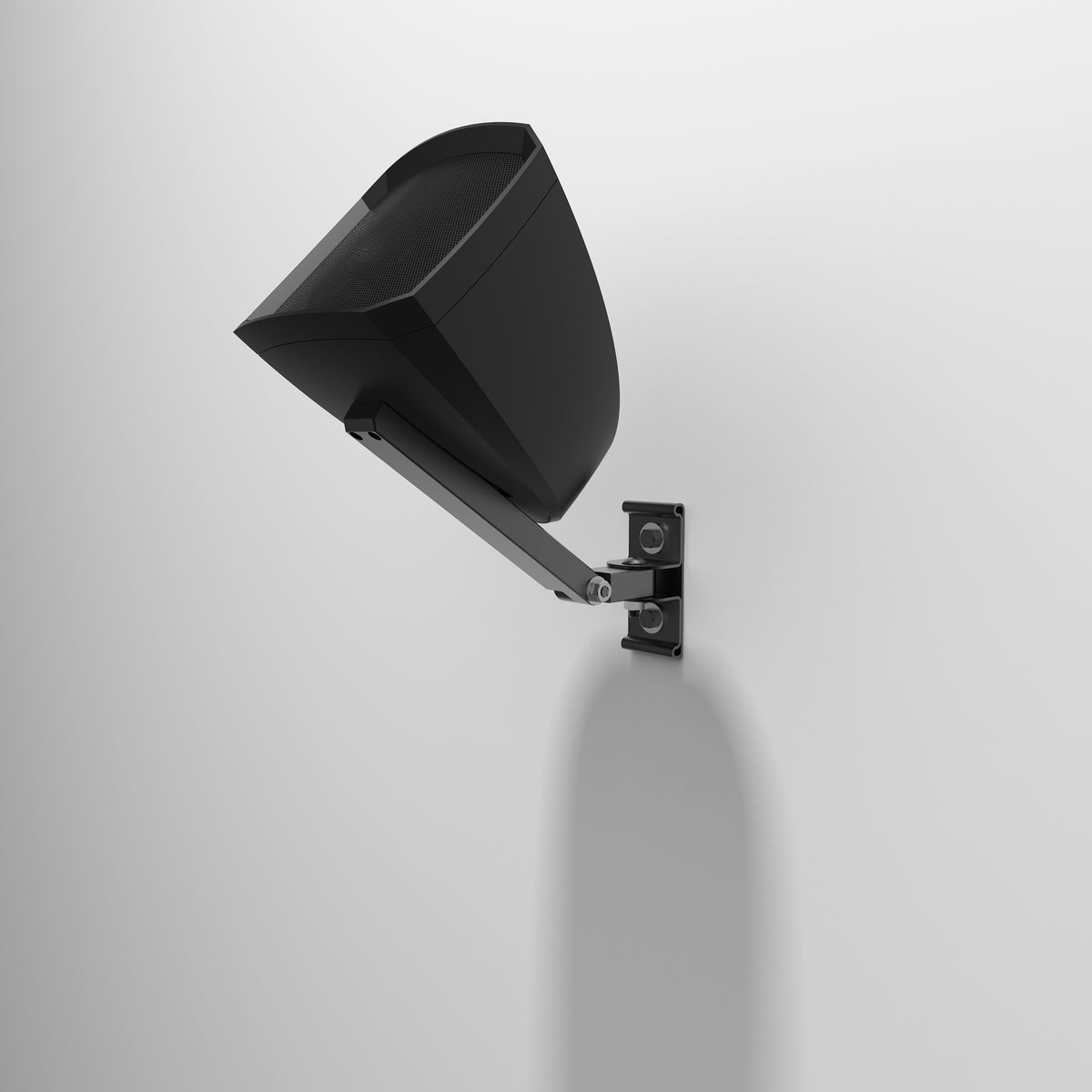

- Tilt: 45° up, 90° down in 15° increments
- Machined locking teeth and embedded locking nut — will not droop over time
- Rustproof aluminum with stainless steel hardware
- Satin black finish
- Mounting bolts, tree strap and U-bolt not included
Specifications
| Technical | |
|---|---|
| Type | Surface mount bracket |
| For Use With | PRO-500T-LS (1063137); PRO-650T-LS (1063139) |
| Construction | Rustproof aluminum parts with stainless steel hardware |
| Maximum Pitch | 45° up, 90° down |
| Pitch Increments | 15° |
| Maximum Pan | 100° clockwise, 100° counterclockwise |
| Physical | |
|---|---|
| Dimensions | 1.68" x 11.12" x 4.13" (4.3cm x 29.5cm x 10.5cm) |
| Weight | 1.2 lbs (0.54 kg) |
| Finish | Satin Black |
| Packed As | Each |
| Not Included | Mounting bolts/hardware and washers (5/16" recommended); tree strap (1" recommended); square U-bolt for pole mounting (1.25" minimum width) |
Specifications subject to change.
