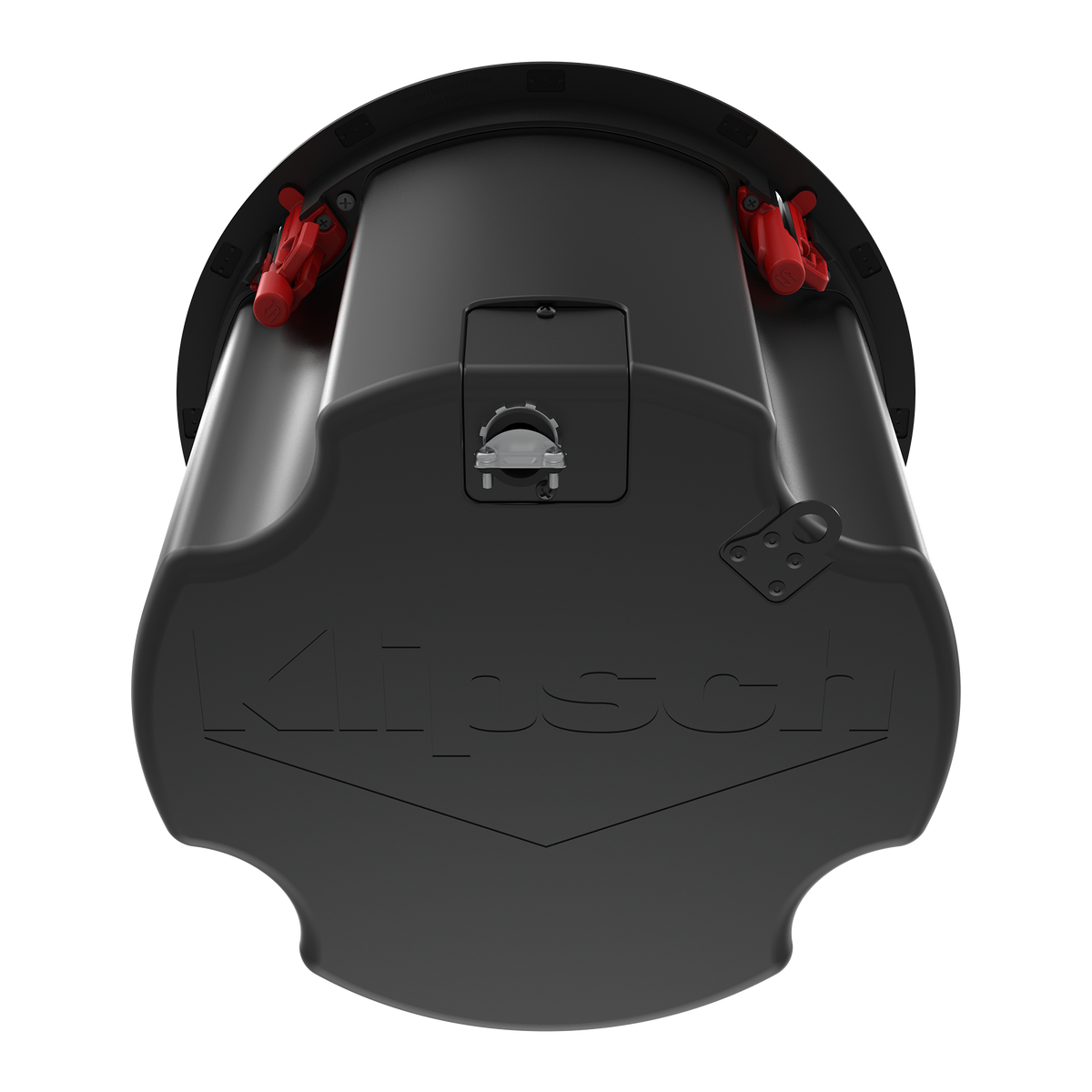

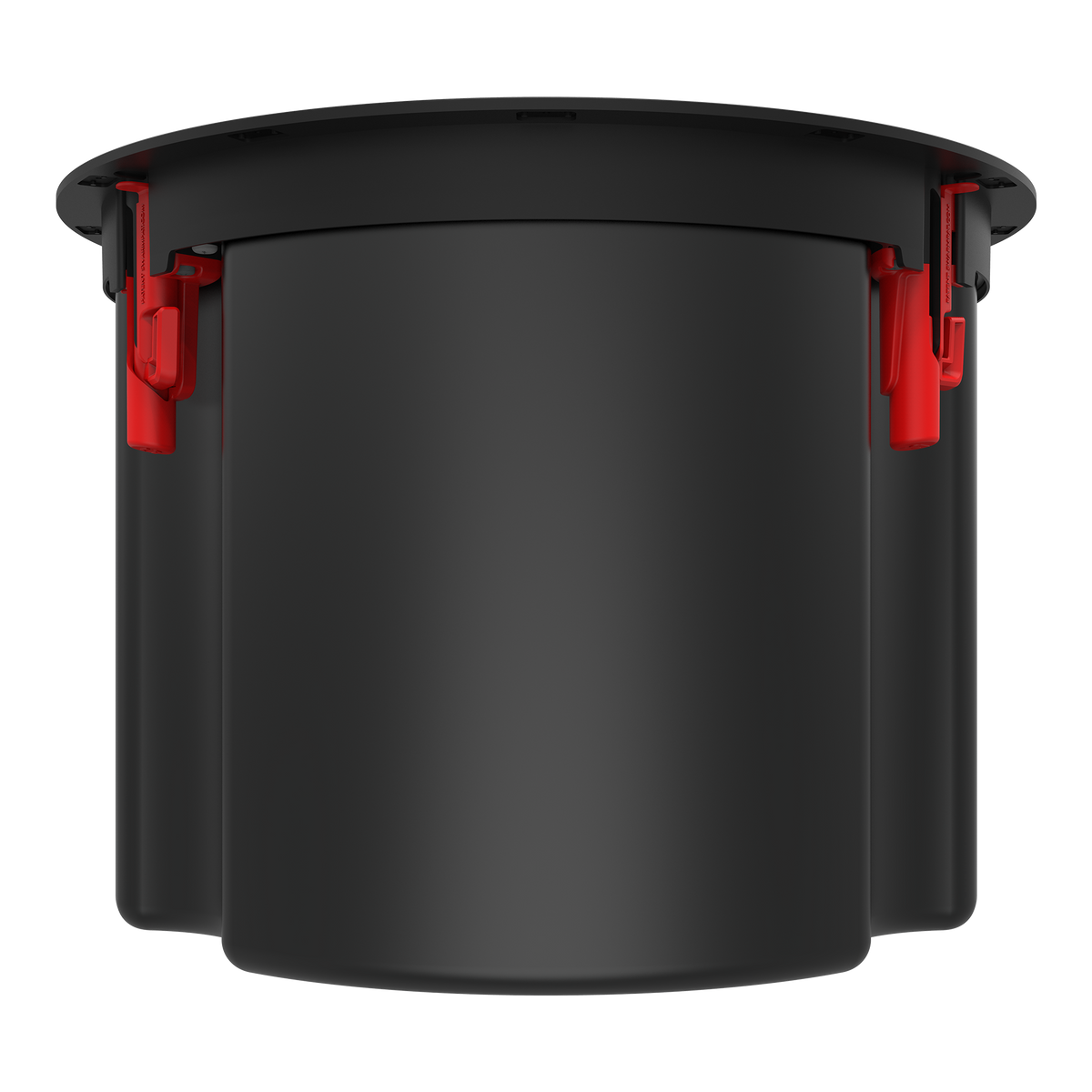

Klipsch PIC-800-SW BW Black/White, Each
Product Details

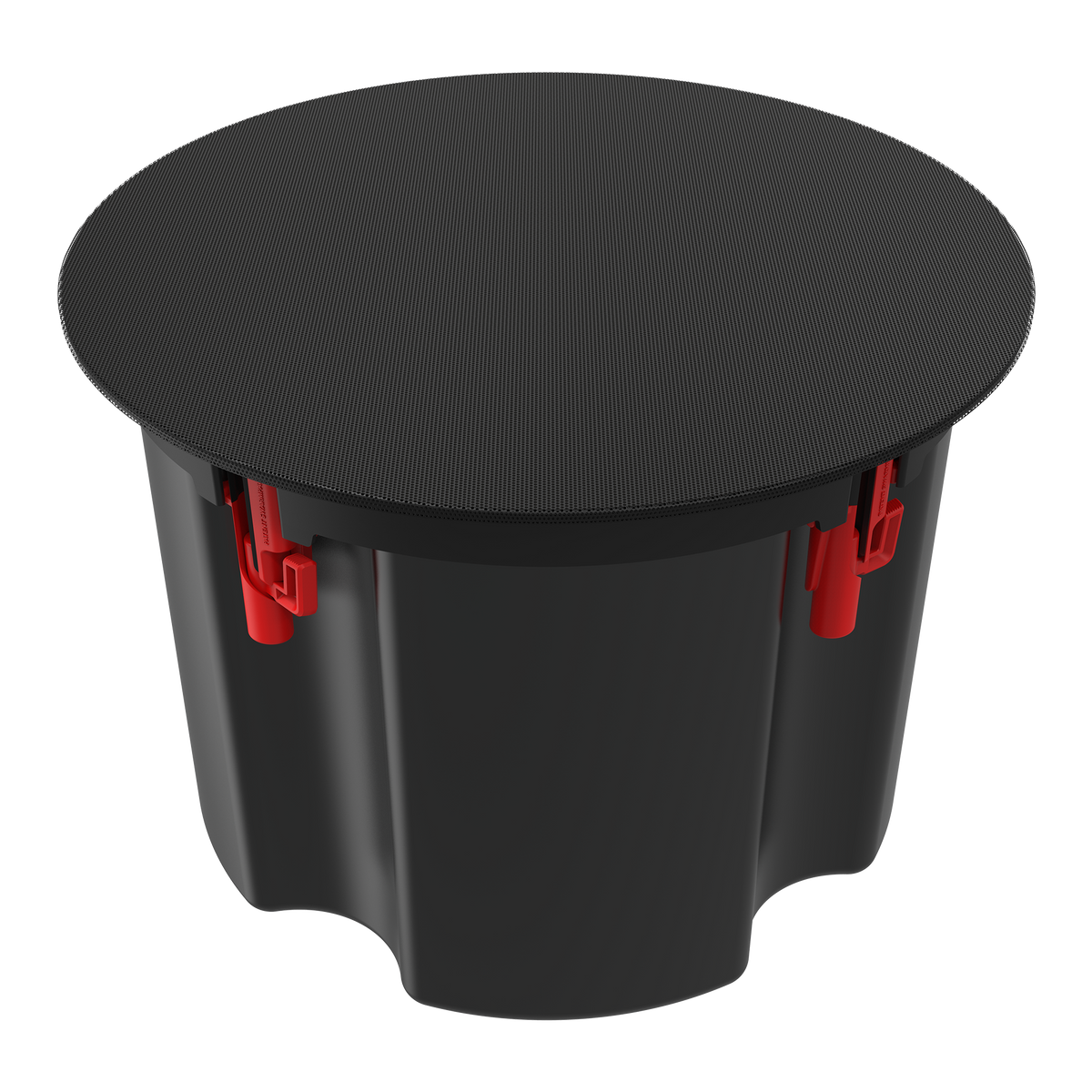

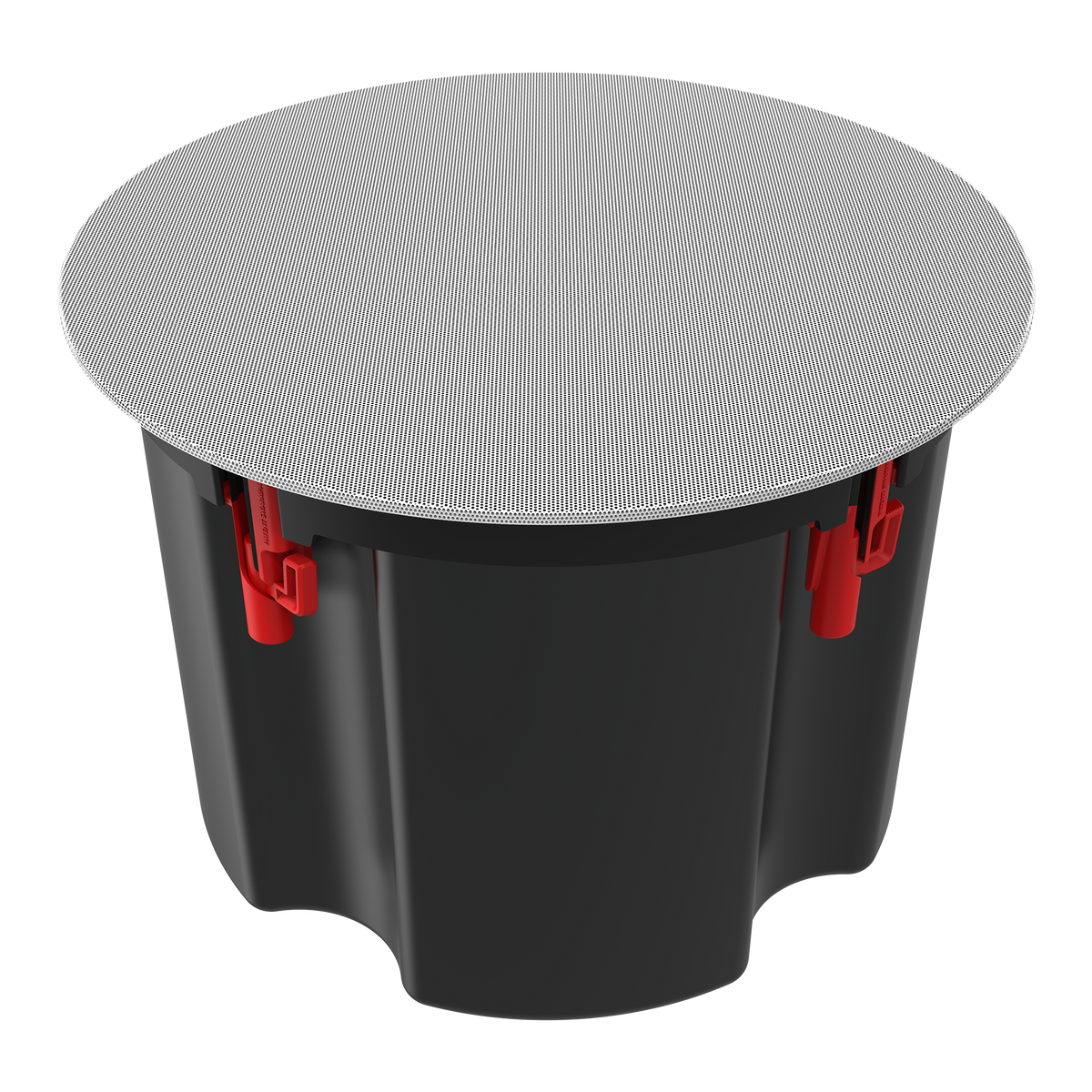

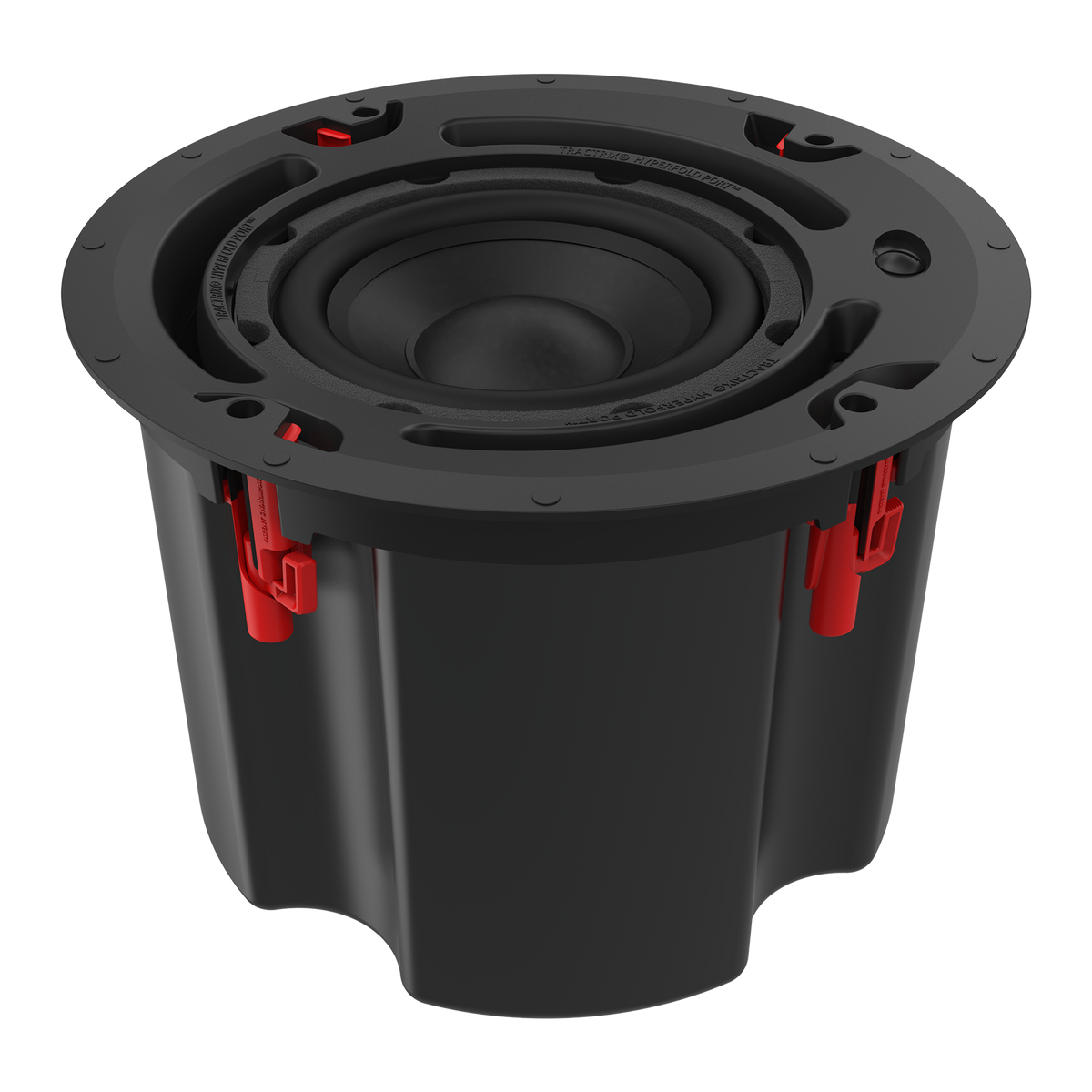

The Klipsch PIC-800-SW is an 8" pendant in-ceiling subwoofer for commercial distributed systems, replacing the IC-800T. It adds low-frequency support to a 70V or 100V line where a conventional subwoofer has nowhere to go.
The enclosure uses Klipsch's patented Tractrix Hyperfold Port — a five-step folded design that extends effective port length inside a shallow can. Longer port, more bass; the increased airflow area eliminates the chuffing and port noise a short port produces at output.
Transformer taps run 70W and 35W on both 70V and 100V lines, with an 8-ohm bypass position for low-impedance use. The cabinet is all-weather paintable ABS with a metal can, and this SKU ships in the black/white configuration.
Features
- 8" pendant/in-ceiling subwoofer for commercial distributed systems
- Replaces the Klipsch IC-800T
- Patented Tractrix Hyperfold Port — five-step folded design, no port chuffing
- 40Hz – 200Hz +/- 4dB (32Hz at -10dB)
- 150 watts continuous, 600 watts peak; 108dB max output
- 70V and 100V taps at 70W and 35W, plus 8-ohm bypass
- All-weather paintable ABS with metal can
- 4-pin Euroblock input

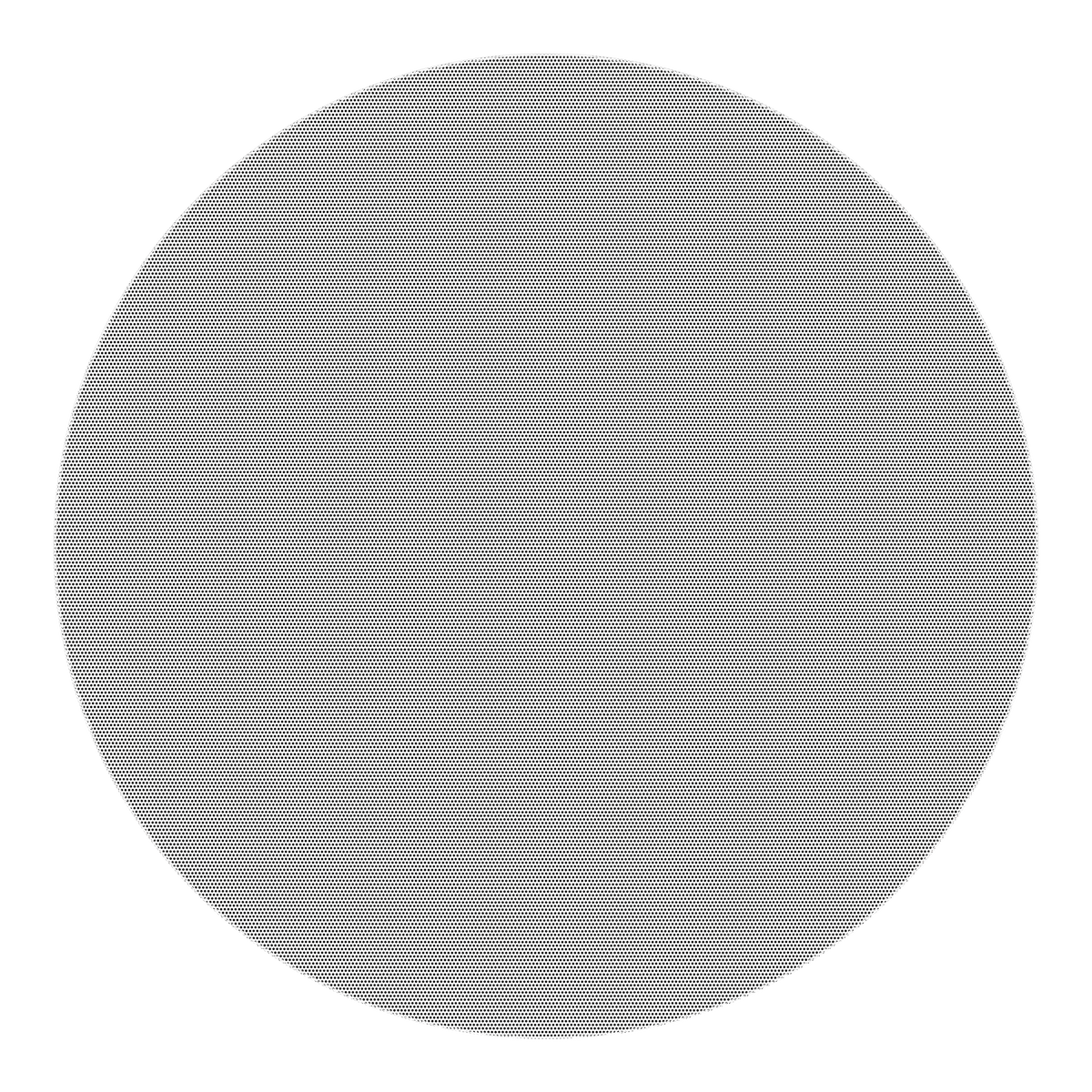

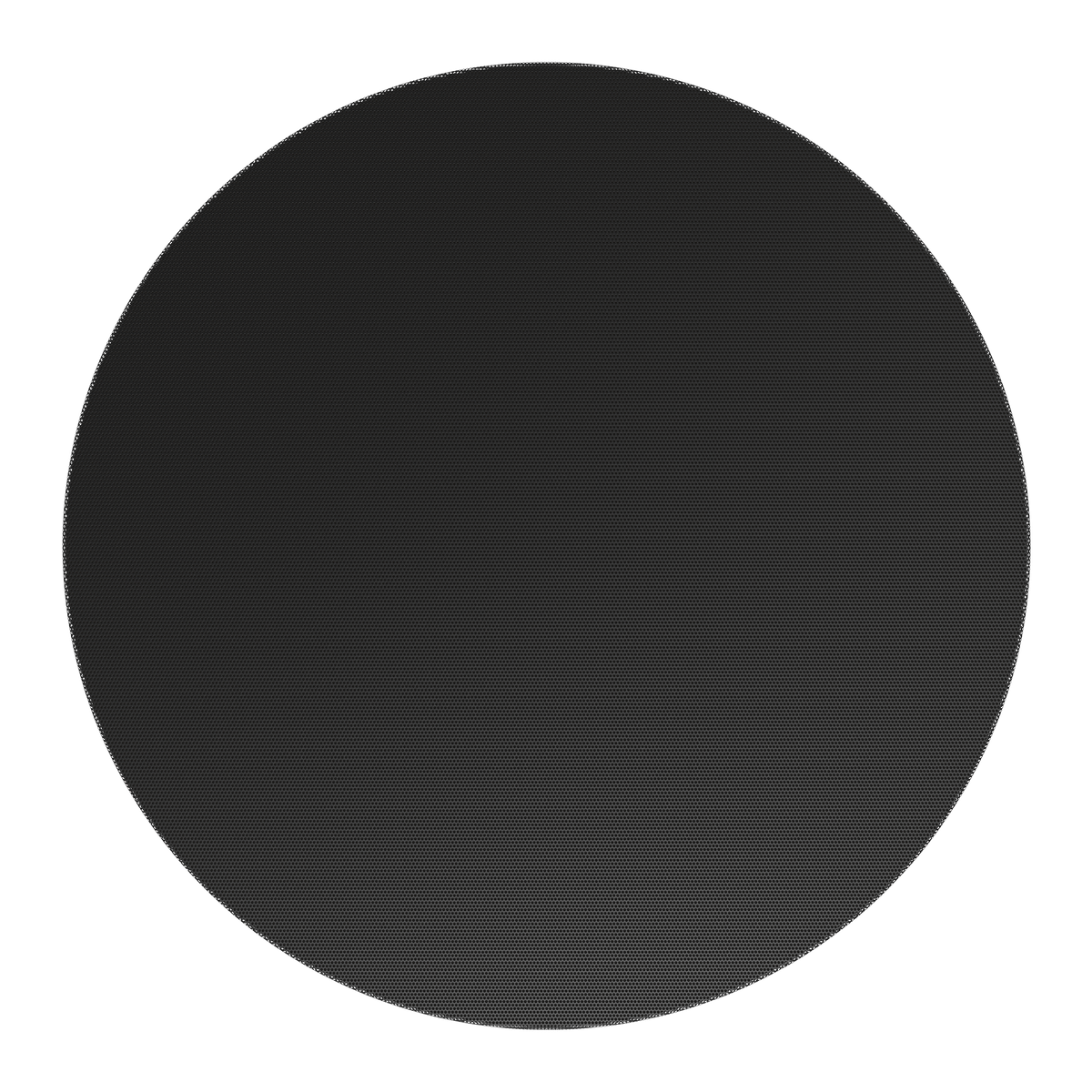

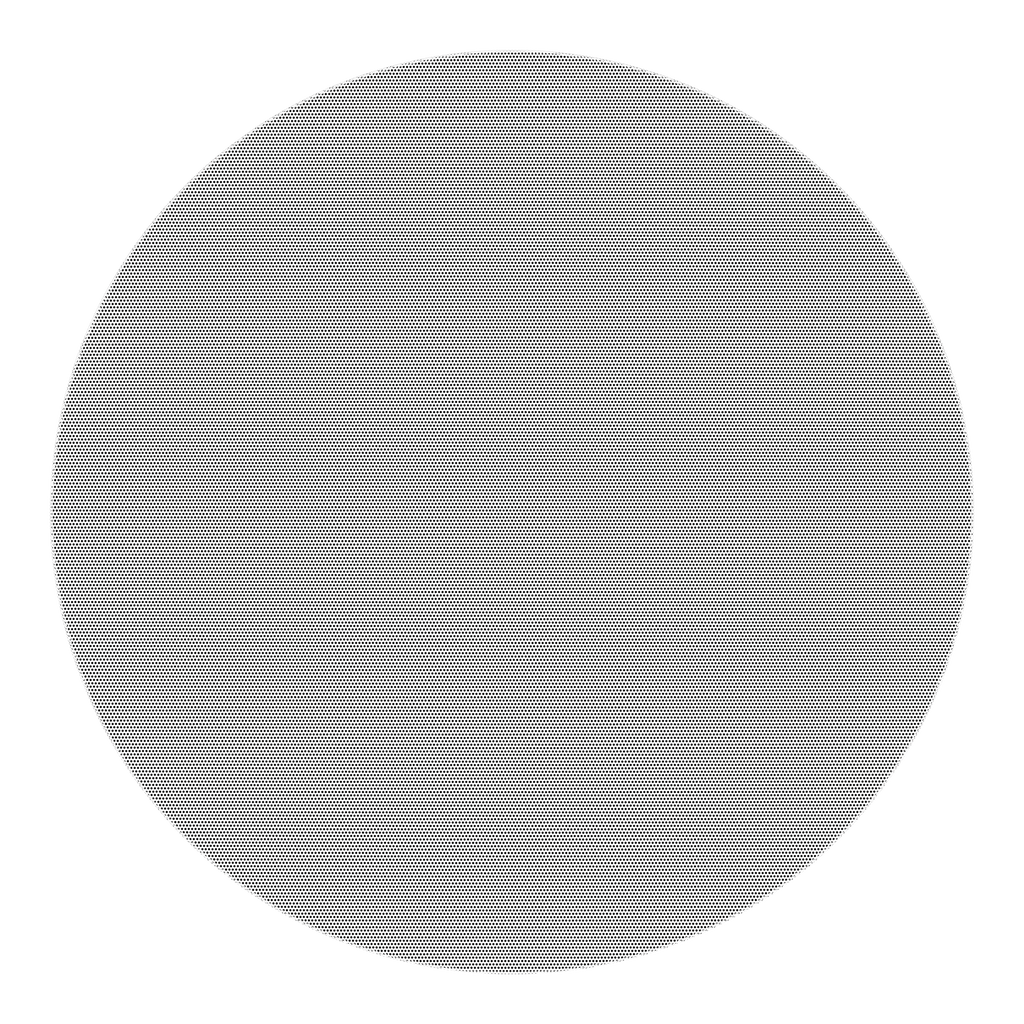

- Black/white configuration
Specifications
| Technical | |
|---|---|
| Frequency Response | 40Hz – 200Hz +/- 4dB; 32Hz at -10dB |
| Power Handling | 150 watts (25.4V) 40Hz – 200Hz; 600 watts peak |
| Calculated Max Continuous Output | 108dB |
| Sensitivity | 89dB |
| Nominal Impedance | 8 ohms (4.2 ohms at 40Hz minimum) |

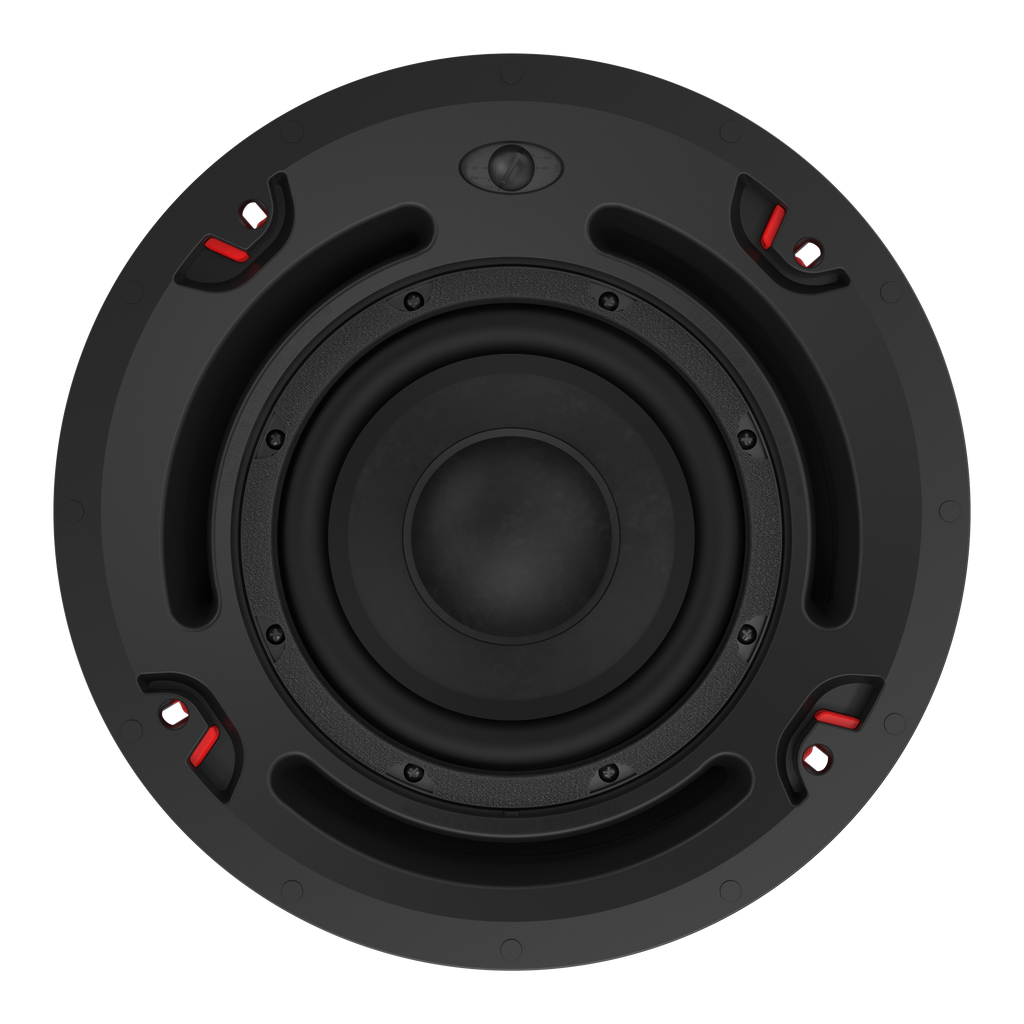

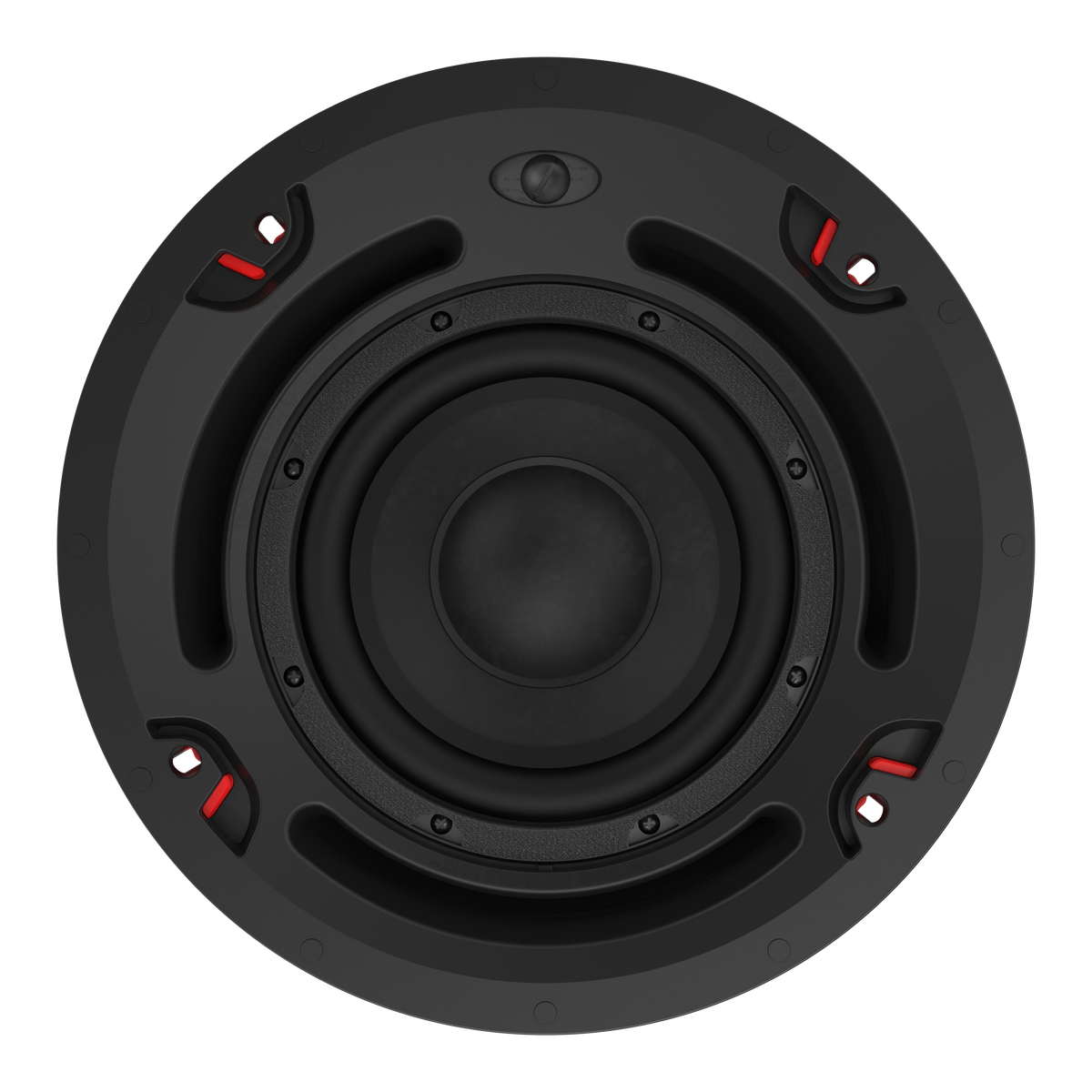

| Transducers | 8" woofer |
| Enclosure Material | All Weather ABS Plastic, Paintable; Metal Can |
| Enclosure Tuning | Vented via 3 folded Tractrix Hyperfold ports |
| Input Connectors | 4-pin Euroblock |
| Transformer Taps | 70V: 70W, 35W; 100V: 70W, 35W; bypass: 8 ohms nominal |
| Physical | |
|---|---|
| Cutout Dimension | 12.5" |
| Mounting Depth | 10.313" |
| Overall Depth | 10.375" |
| Overall Width | 13.625" |
| Thru-Hole Width | 12.313" |
| Weight | 27 lbs |
| Finish | Black / White |
Specifications subject to change.
