Klipsch PIC-525-T BW (replaces IC-525) Black/White, Each
Product Details

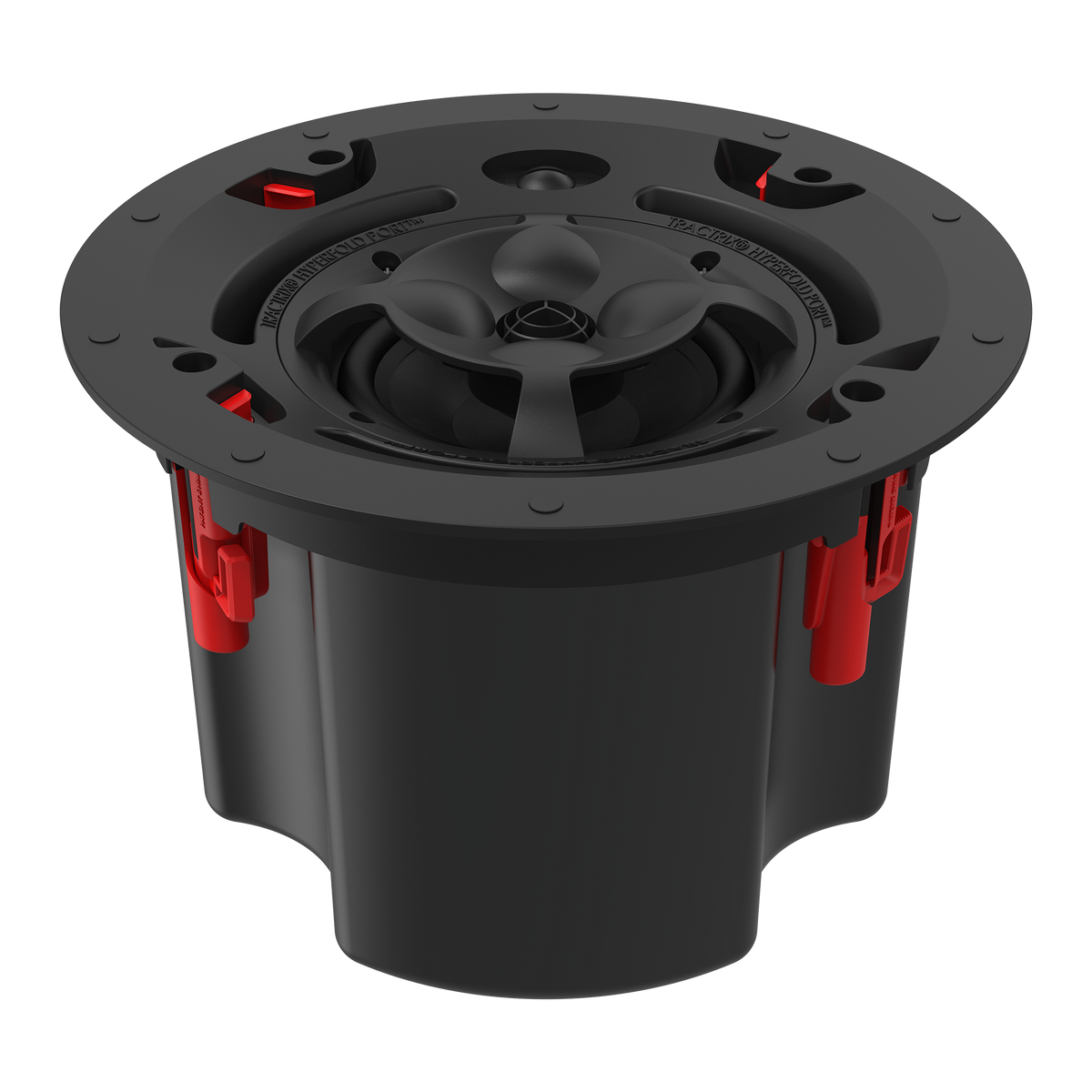

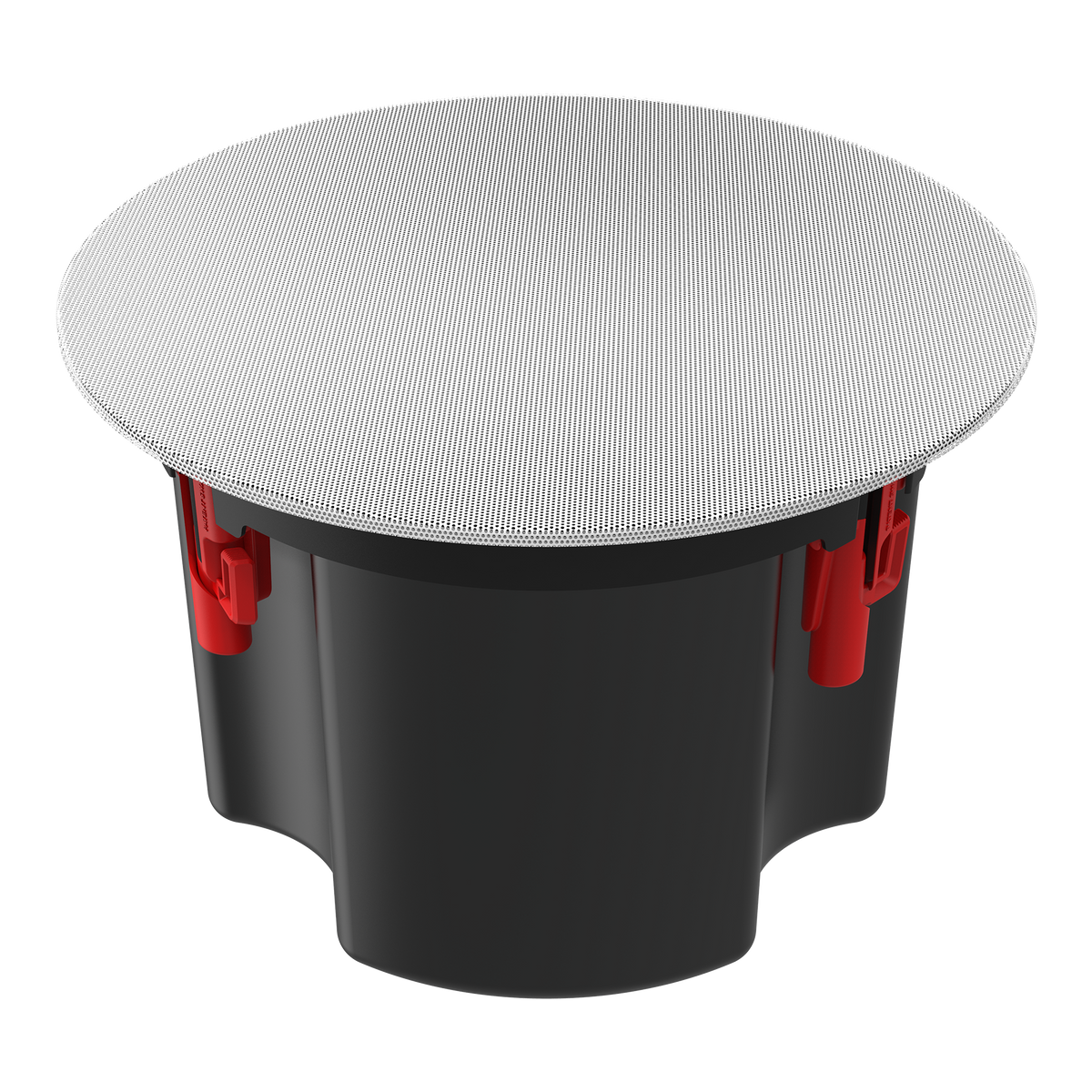

The PIC-525-T is a 5.25" professional in-ceiling speaker for 70V and 100V distributed systems, replacing the older IC-525. It is built for commercial work — retail, hospitality, transport, anywhere a lot of speakers have to cover a lot of floor evenly and keep working.
It uses the patented Tractrix® Hyperfold Port™, a five-step folded design that extends effective port length so a shallow can produces more bass than its volume suggests. The increased airflow removes chuffing and port noise, and widens the dispersion pattern for larger coverage areas — which on a commercial job means fewer speakers for the same uniformity.

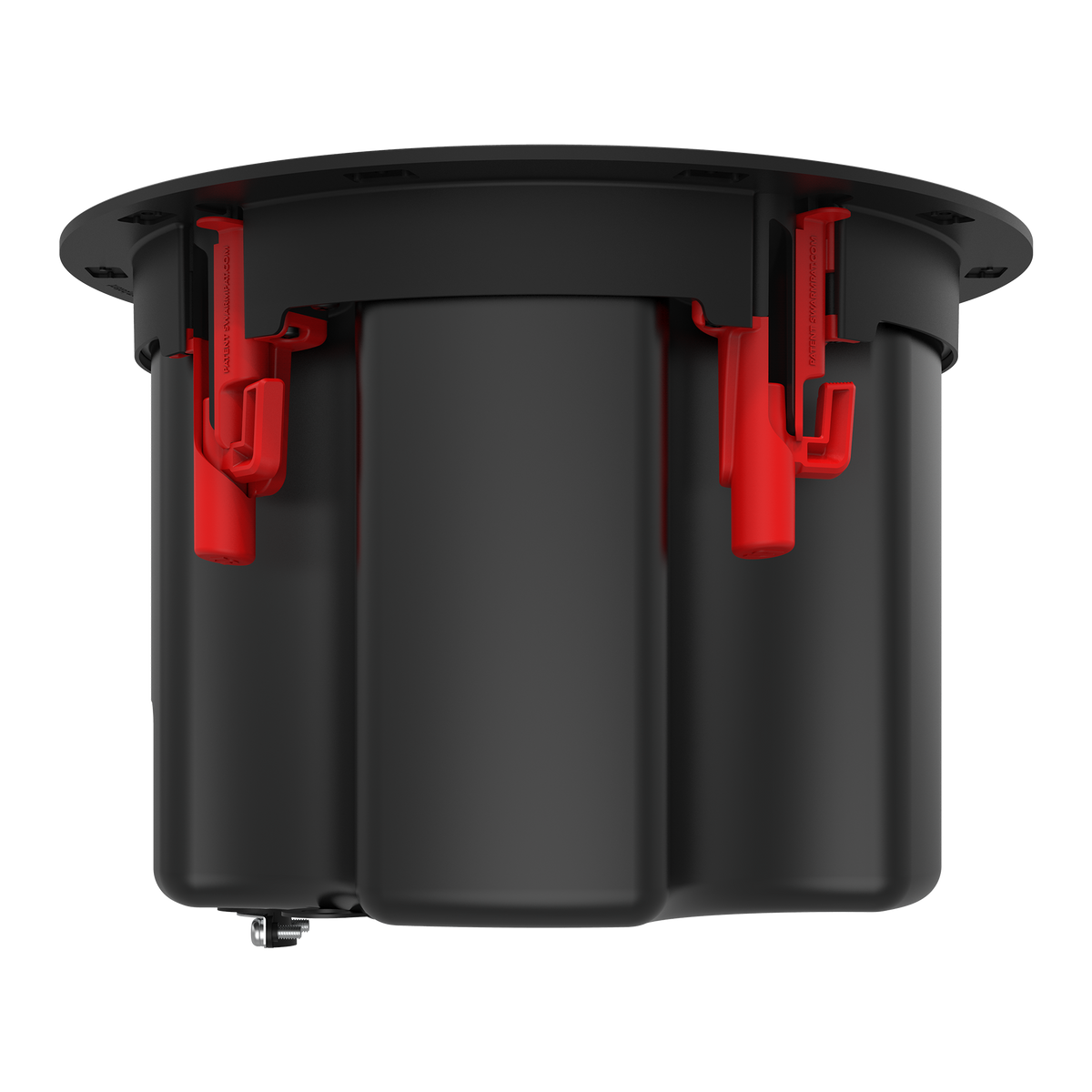

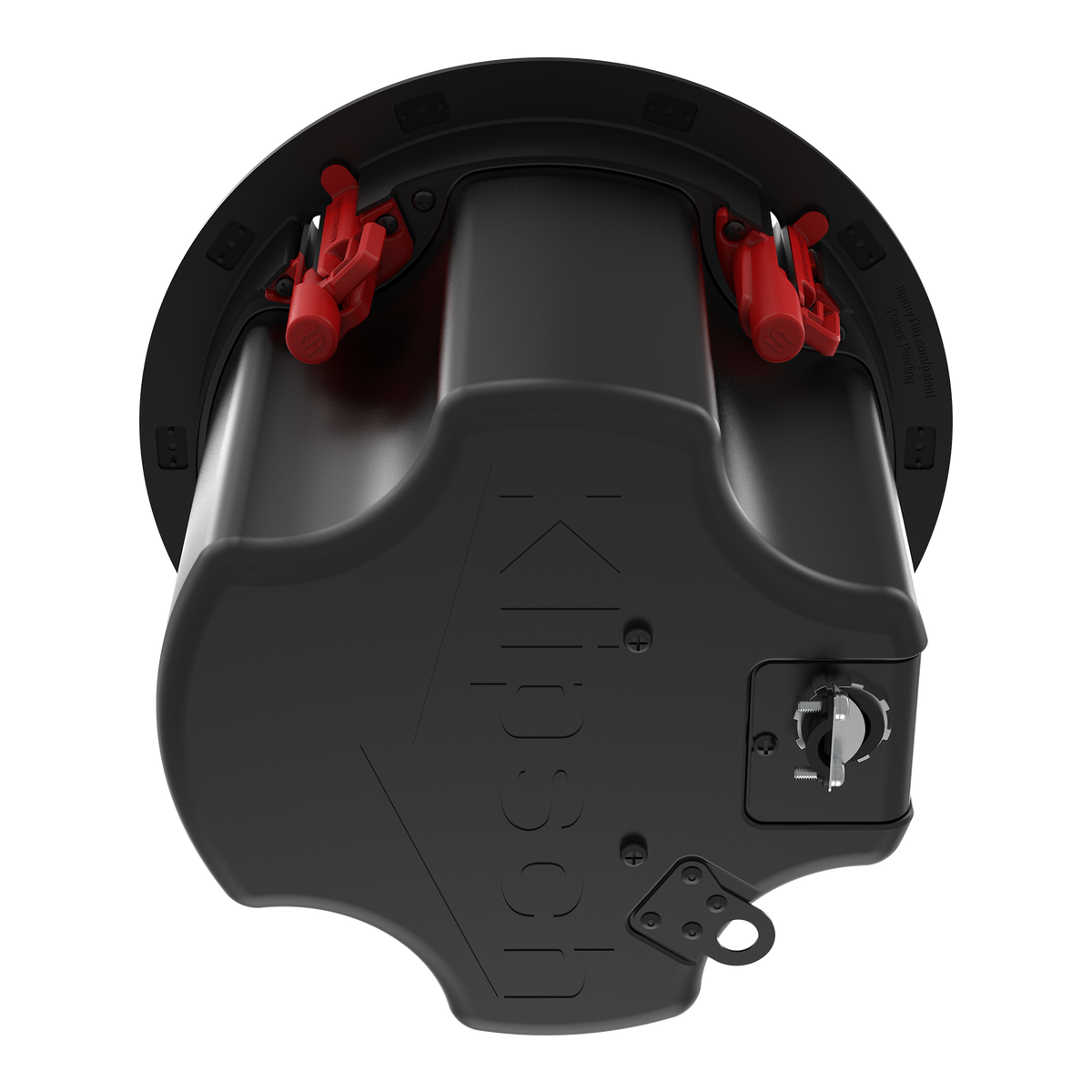

Installation is via the patented Sky Hook® Pro system: once the hole is cut, four buttons click and the speaker is in. No screw gun, no torque setting to get wrong. The multi-tap transformer covers 70V and 100V, with a bypass position for normal 8 ohm operation, and connection is a four-pin Phoenix-style euro block.

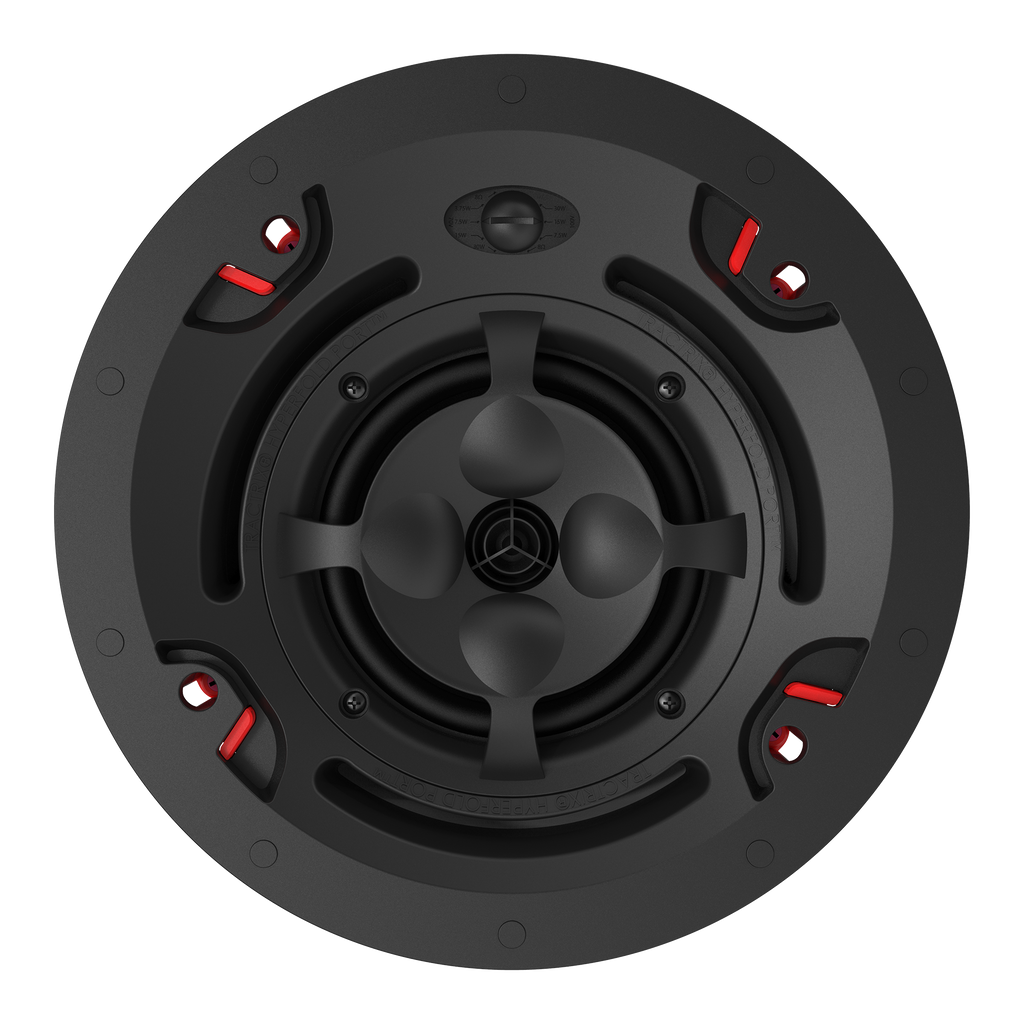

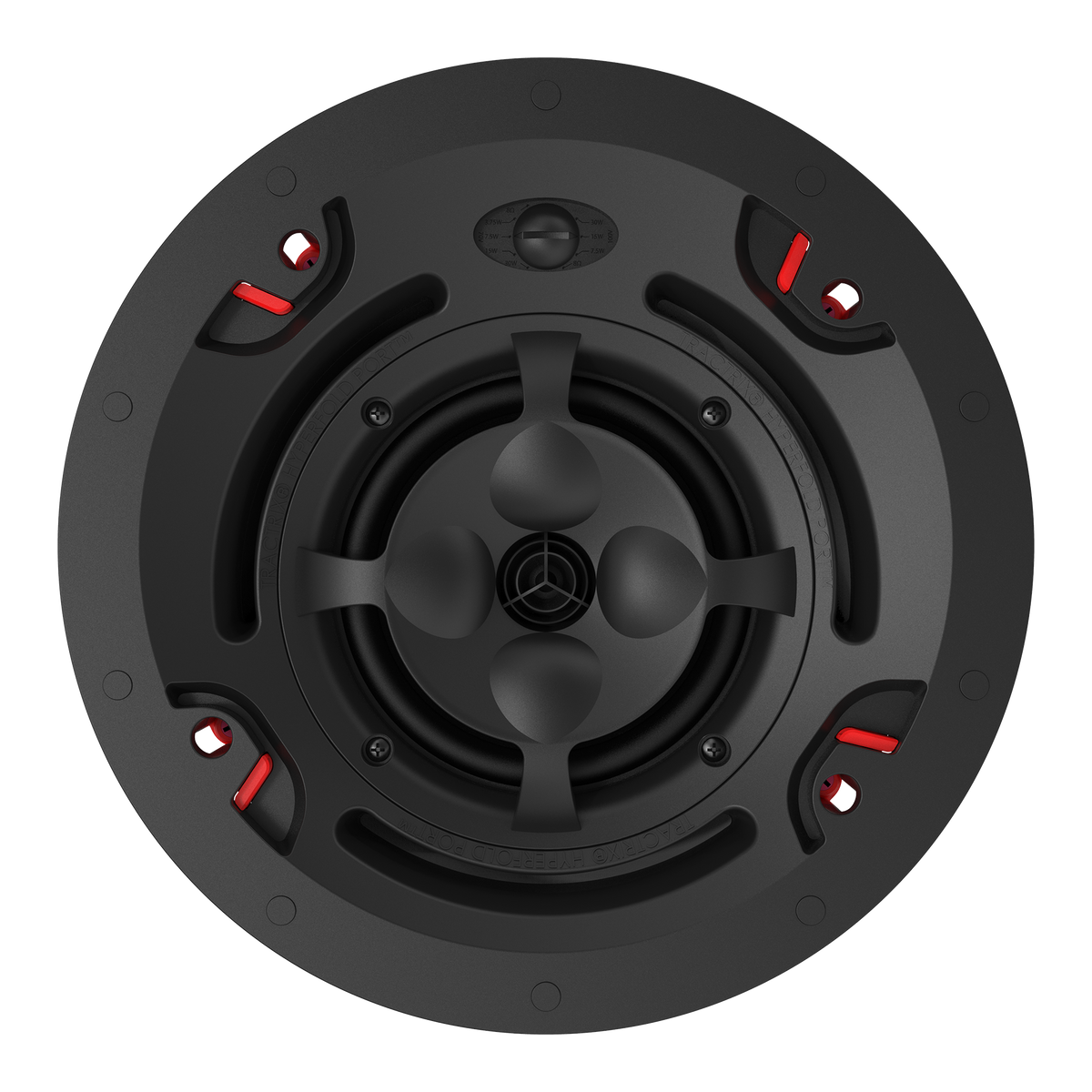

A 1" titanium compression driver on a floating driver bridge with a wide-dispersion phase plug gives even, consistent energy across the coverage angle. The enclosure is all-weather paintable ABS with a metal back can, IPX5 rated for challenging environments, and both black and white paintable grilles are supplied in the box.
Features
- 62Hz-20kHz +/- 4dB, 52Hz -10dB frequency response
- 89dB sensitivity
- 65 watts (16.7V) 55Hz-10kHz (260 watts peak) power handling
- Patented Tractrix® Hyperfold Port™ five-step folded port
- Patented Sky Hook® Pro tool-free installation — four buttons, no screw gun
- IPX5 rated for challenging commercial environments
- 1" titanium compression driver with wide-dispersion phase plug
- Multi-tap transformer for 70V and 100V systems
- Bypass position for 8 ohm operation
- Four-pin Phoenix-style euro block connector

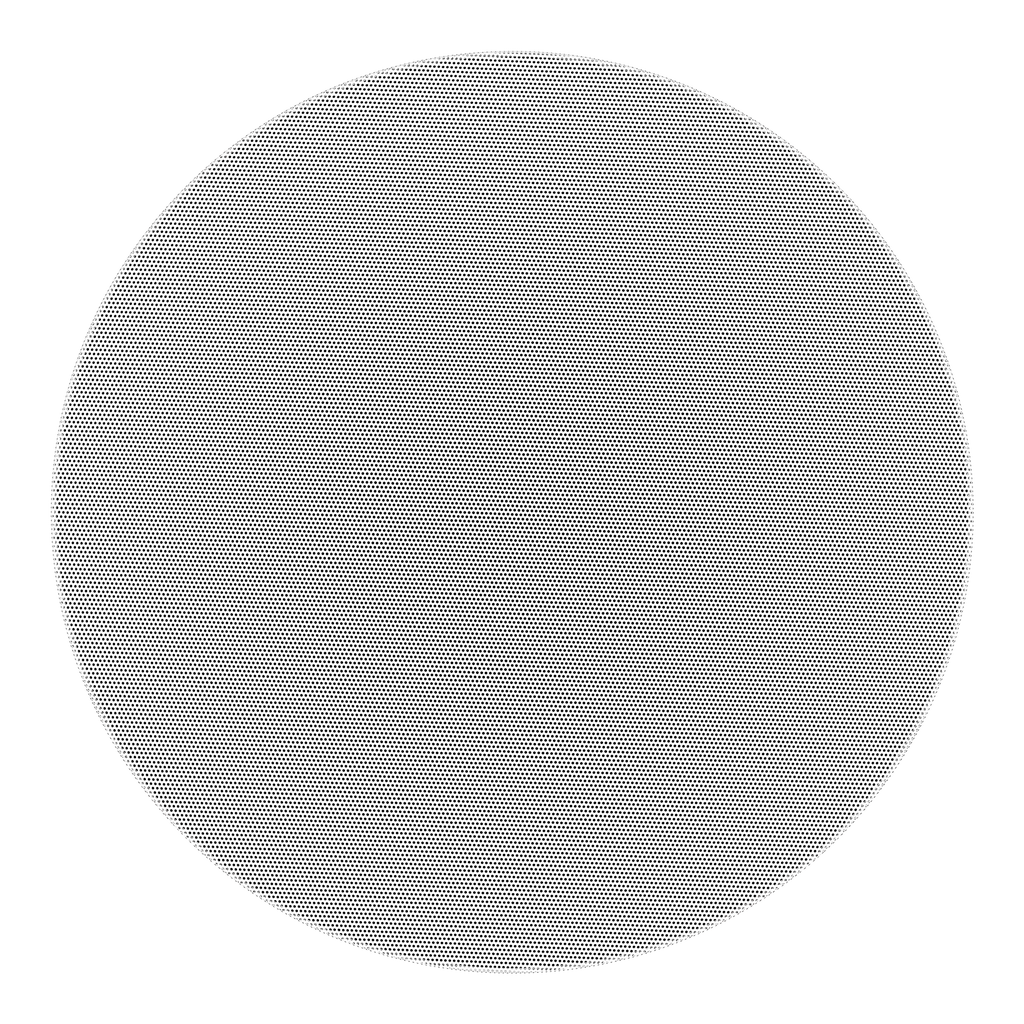

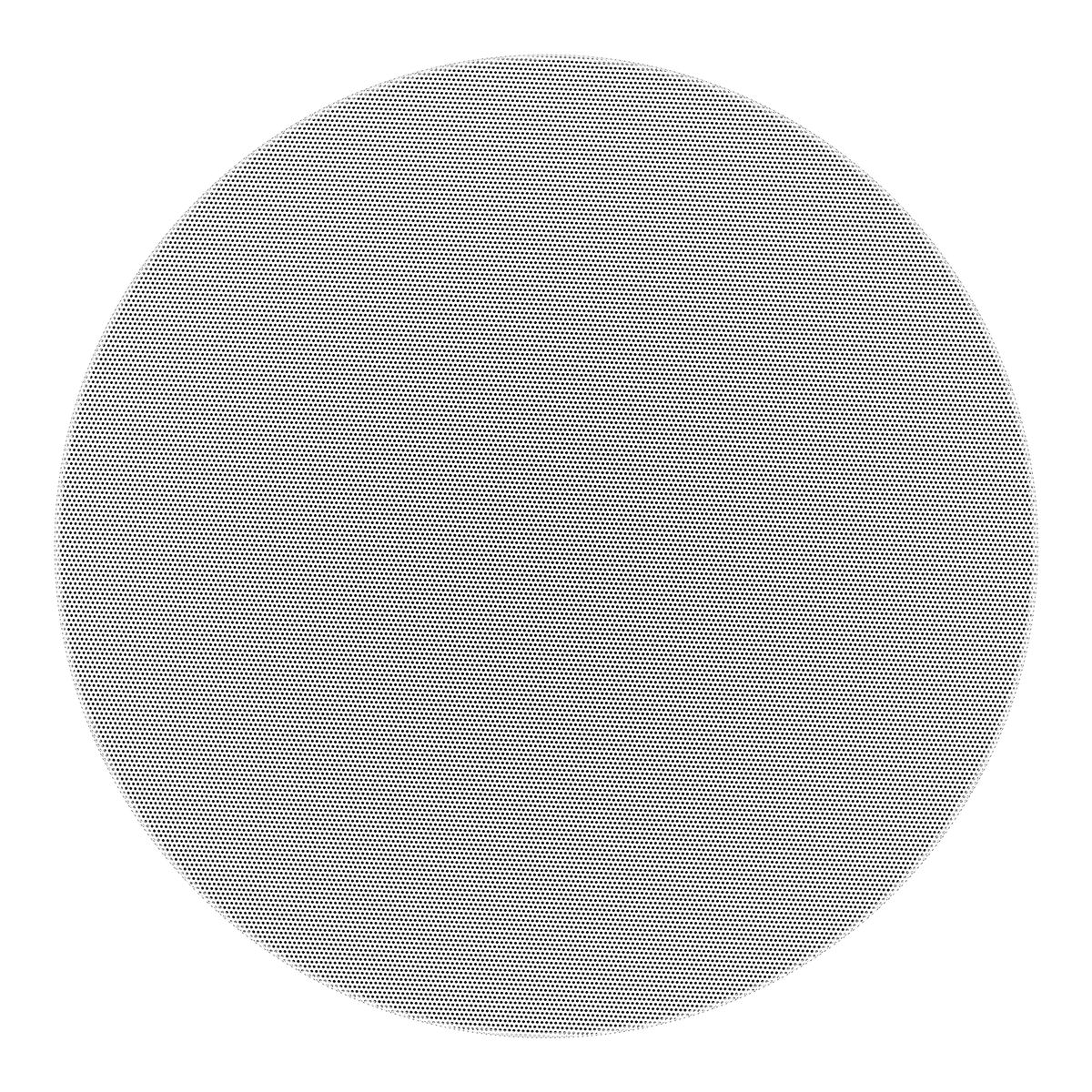

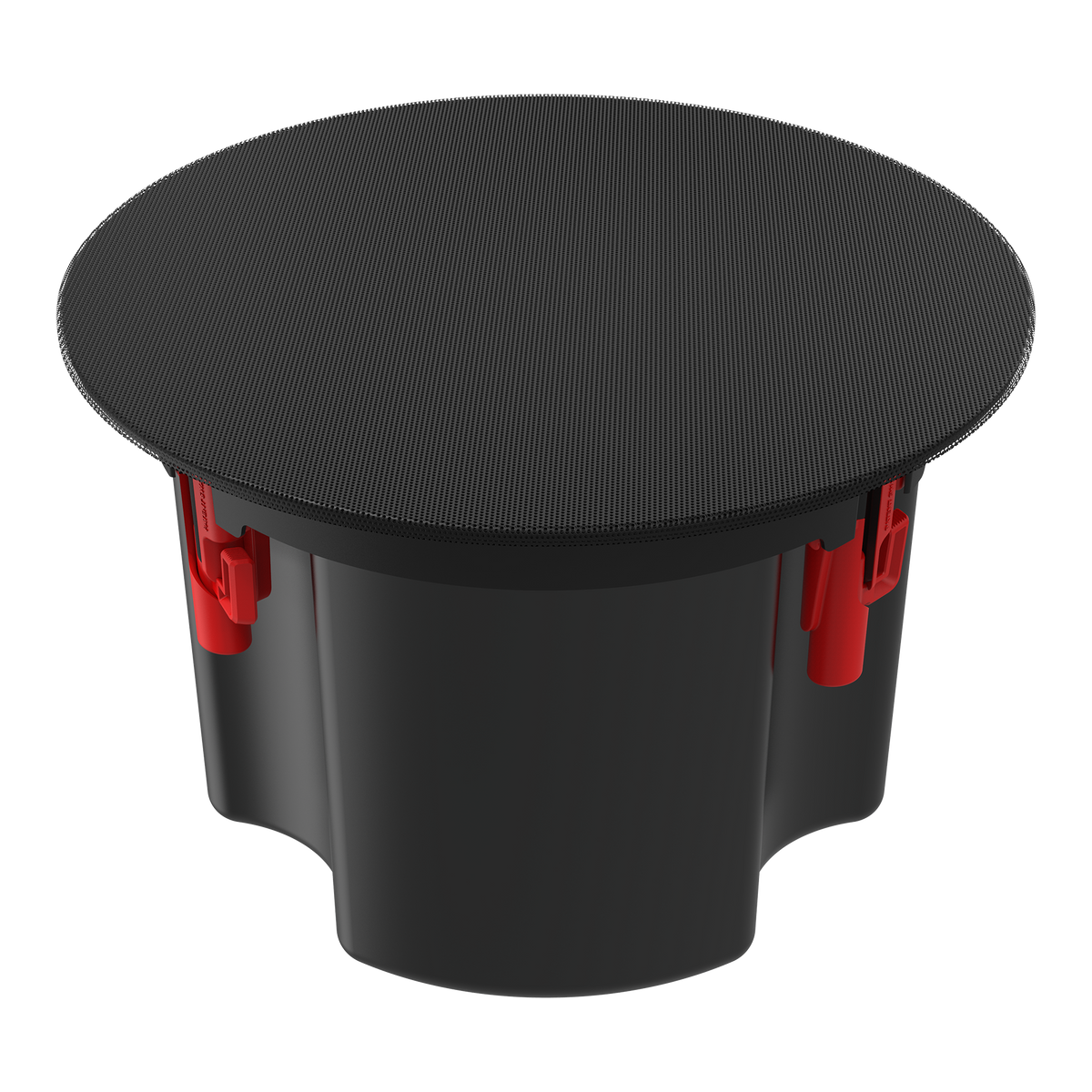

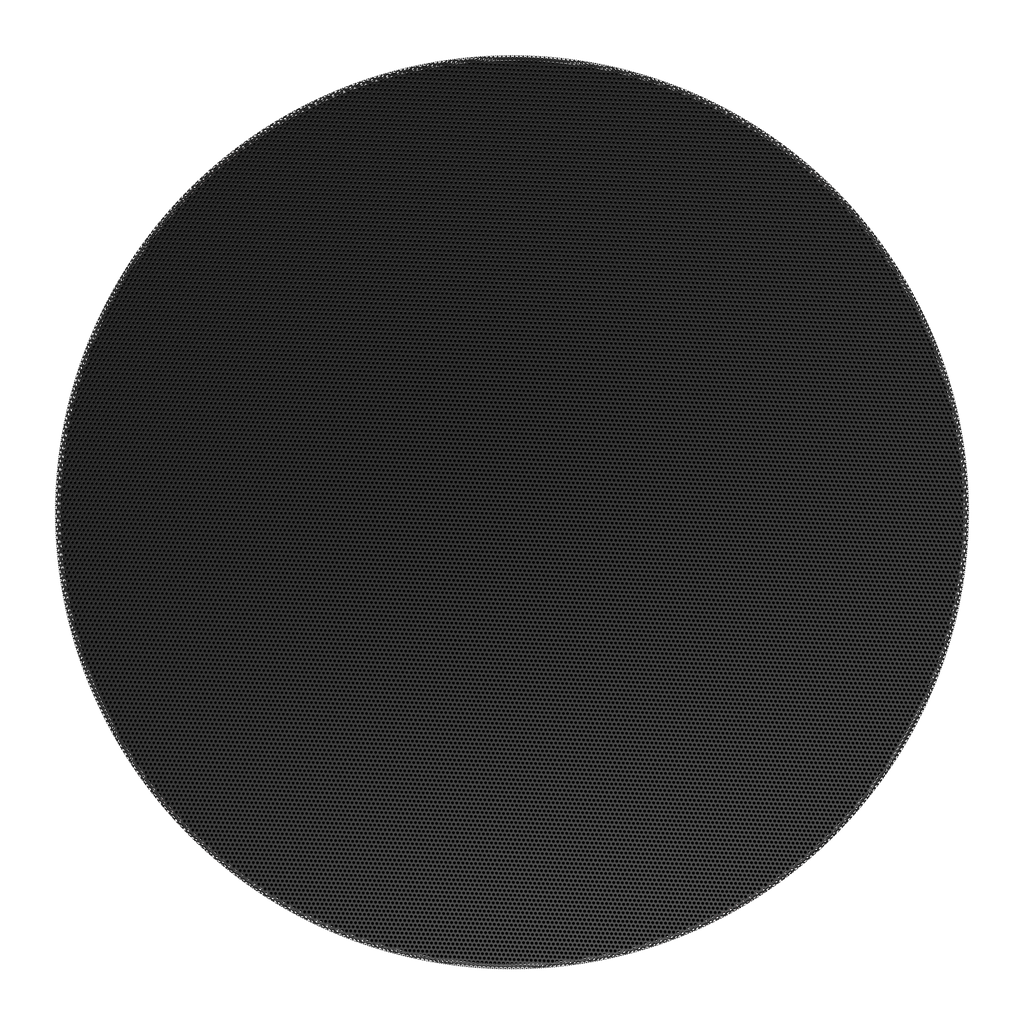

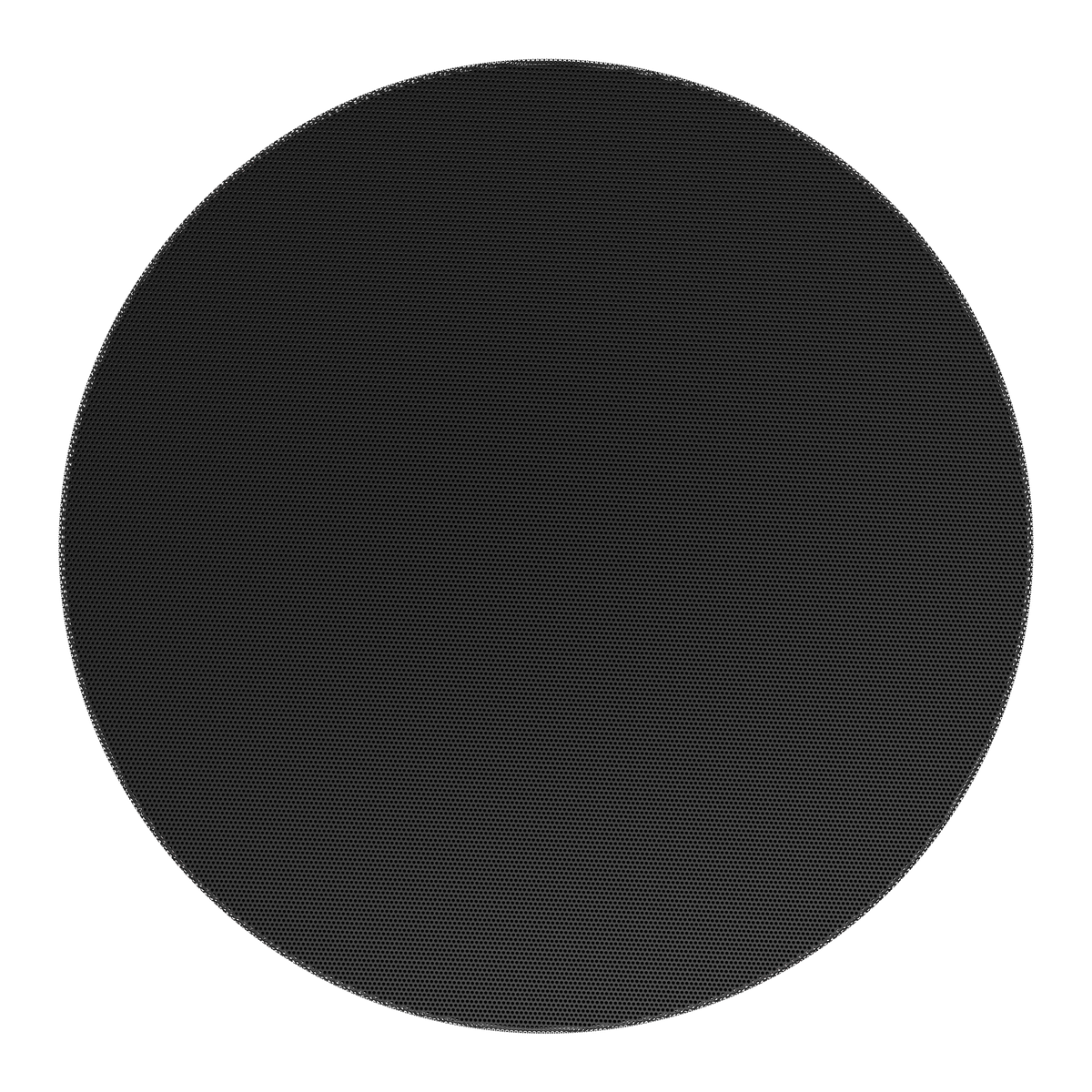

- Black and white paintable grilles both included
- All-weather paintable ABS enclosure with metal back can
- Replaces the IC-525
Specifications
| Technical | |
|---|---|
| Frequency Response | 62Hz-20kHz +/- 4dB, 52Hz -10dB |
| Power Handling | 65 watts (16.7V) 55Hz-10kHz (260 watts peak) |
| Calc. Max. Cont. Output | 104dB |
| Sensitivity | 89dB |
| Coverage | 100° +/- 20° 1kHz-20kHz |
| Directivity Index | 7dB +/- 1.5dB 1kHz-20kHz |
| Nominal Impedance | 8 ohms 4.3 ohms at 175Hz minimum |
| Acoustic Crossover | 2kHz |
| Transducers | 5.25" woofer 1" titanium compression driver, on a K-1200M Tractrix horn/tweeter bridge |
| Enclosure Material | All Weather ABS Plastic, Paintable; Metal Can |
| Enclosure Tuning | Vented via 3 folded TRACTRIX ports |
| Input Connectors | 4 pin euro block |
| Transformer Taps | 70V: 30W, 15W, 7.5W, 3.8W 100V: 30W, 7.5W, 3.8W Bypass position: 8 ohms nominal |
| Physical | |
|---|---|
| Cutout Dimension | 9.125" |
| Mounting Depth | 7.313" |
| Overall Depth | 7.438" |
| Overall Width | 10.625" |
| Thru Hole Width | 8.875" |
| Weight | 9 lbs |
Specifications subject to change.
