Description
Klipsch ME-800-C -, Each
Product Details

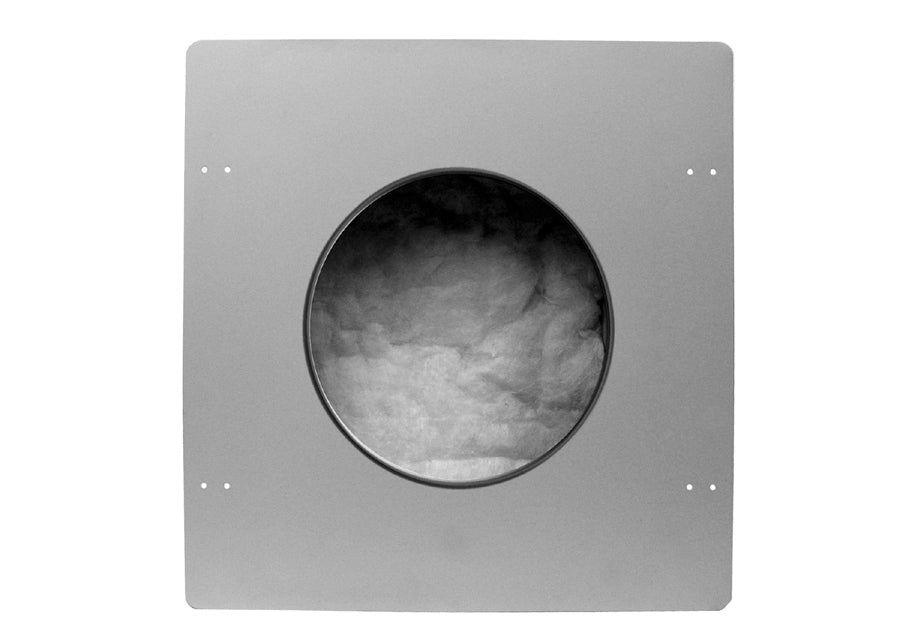

The Klipsch ME-800-C is a metal back-box enclosure for Reference series in-ceiling speakers with 8" woofers. It does two jobs an open ceiling cavity cannot: it satisfies fire-rating and plenum building codes, and it stops sound passing from one room into the next.
Manufactured from high-grade cold-rolled steel with a layer of insulation, it exceeds one-hour fire-rating requirements and meets UL2043 for installation in plenum spaces. It has also been tested to UL 263, ASTM E119-98, NFPA 251, UBC 7-1 and ULC CAN/ULC-S101-M89.
The insulation reduces sound transmission into adjacent spaces by at least 10dB — the practical reason to specify one in a bedroom ceiling or a shared wall. The fixed internal volume also gives the speaker consistent acoustic performance regardless of how the ceiling above was built.
Fits 16" or 24" stud spans, with pre-drilled holes, provisions for standard conduit connections and all mounting hardware included, tile systems covered.
Features
- Metal back-box enclosure for Klipsch Reference 8" in-ceiling speakers
- Exceeds one-hour fire-rating requirements
- Meets UL2043 for plenum-space installation
- Tested to UL 263, ASTM E119-98, NFPA 251, UBC 7-1 and ULC CAN/ULC-S101-M89
- Reduces sound transmission into adjacent rooms by at least 10dB
- Fixed internal volume gives consistent acoustic performance
- High-grade cold-rolled steel with insulation layer
- Fits 16" or 24" stud spans
- Pre-drilled holes and provisions for standard conduit
- All mounting hardware included, tile systems covered
Specifications
| Technical | |
|---|---|
| Type | In-ceiling speaker back-box enclosure |
| For | Klipsch Reference series in-ceiling speakers with 8" woofers |
| Material | High-grade cold-rolled steel with insulation layer |
| Fire Rating | Exceeds one-hour requirements; UL2043 plenum rated |
| Standards Tested | UL 263, ASTM E119-98, NFPA 251, UBC 7-1, ULC CAN/ULC-S101-M89 |
| Sound Isolation | Reduces transmission into adjacent spaces by at least 10dB |
| Physical | |
|---|---|
| Stud Span | 16" or 24" |
| Included | All installation hardware; conduit provisions |
| Sold As | Each |
Specifications subject to change.
