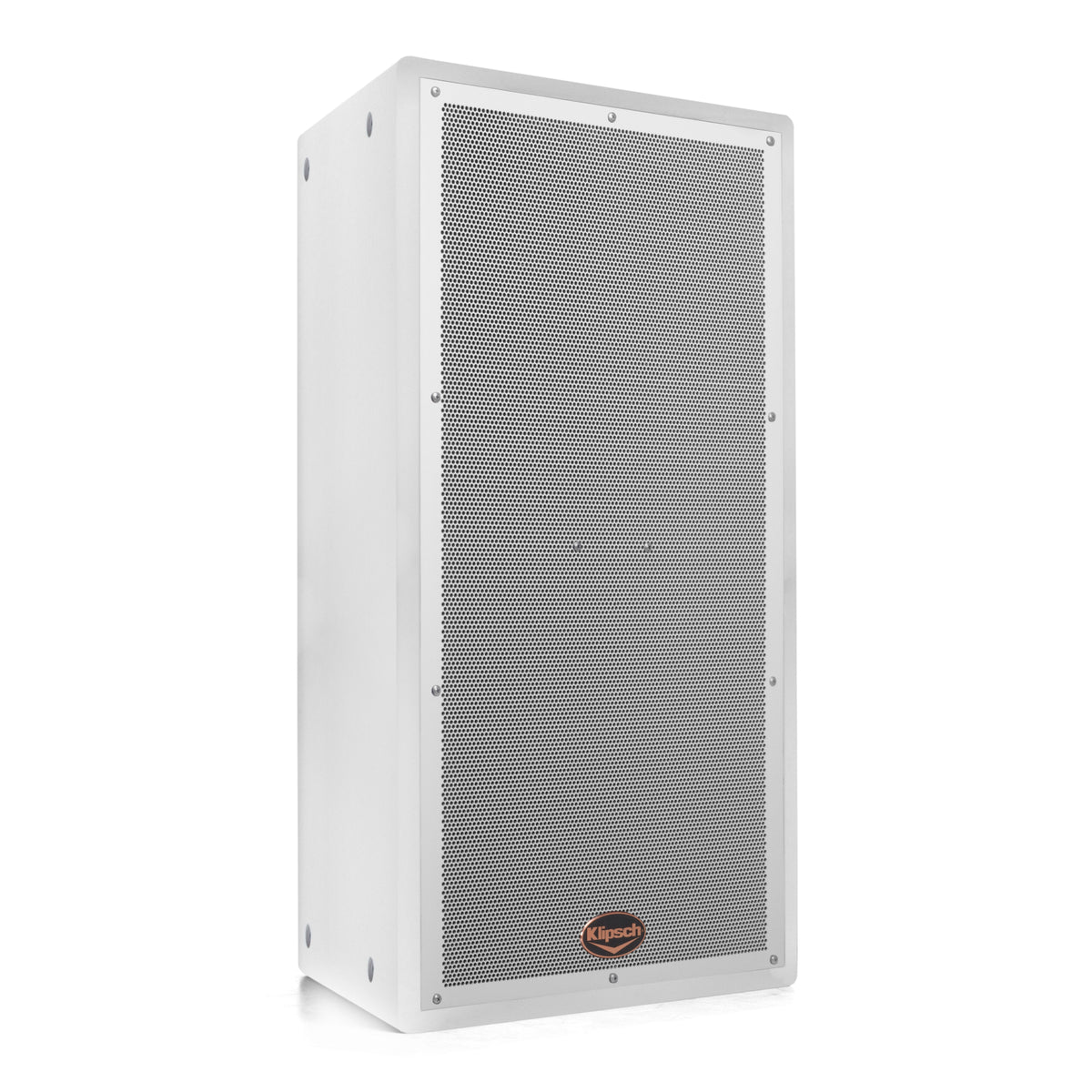

Klipsch KI-362-W-SMA-II White, Each
Product Details
The Klipsch KI-362-SMA-II is a three-way commercial loudspeaker for suspended permanent installation in small to medium venues. A 15" woofer is joined by separate 1.5" and 1" titanium compression drivers, so midrange and high frequencies are handled by dedicated transducers rather than asked of one.
The midrange and high-frequency module is user-rotatable in 45° increments, which means the 90° x 60° pattern can be oriented independently of the cabinet. A cabinet hung vertically can still throw a wide horizontal pattern — a practical necessity when rigging points and sightlines dictate cabinet orientation. The 22.5° symmetrical trapezoidal cabinet is what makes this a permanent-install speaker rather than a box on a stand: the angled sides let multiple cabinets be arrayed tightly together into a horizontal cluster with no gaps, so coverage patterns join cleanly instead of overlapping and cancelling.
A KLIP overload protection circuit guards the mid and high-frequency drivers, which is what keeps a permanently installed system alive when someone unfamiliar with it drives the amplifier hard. Sixteen 3/8"-16 fly points (four per side) allow flexible suspension and rigging-bar compatibility, with additional top and bottom attachment points for a C-bracket. The enclosure is CNC-fabricated 3/4" seven-ply birch plywood with a 1" MDF motorboard, assembled with rabbet and dado joinery.
Black and white cabinets use a lacquer-based finish. Raw Birch is supplied unfinished, for installations where the cabinet will be painted or stained to match the room. Signal connection is via a two-point barrier strip, the standard for permanent commercial install.
Features
- Three-way design with dedicated mid and high-frequency compression drivers
- 15" K-48-ST woofer; 1.5" K-53-TI and 1" K-100-TI titanium compression drivers
- User-rotatable mid/HF module in 45° increments for pattern control independent of cabinet orientation
- 90° x 60° modified Tractrix horn geometry
- 101dB sensitivity; 124dB continuous / 130dB peak SPL
- 400 watts continuous, 1600 watts peak
- 54Hz – 20kHz +/- 3dB (-10dB at 38Hz)
- KLIP overload protection circuit for mid and HF drivers
- Compact 22.5° symmetrical trapezoidal design for arraying
- 16 suspension points (4 per side) plus top and bottom C-bracket mounts
- Internal high-current full-range crossover
- White finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 54Hz – 20kHz +/- 3dB (-10dB @ 38Hz) |
| Power Handling | 400 watts (42V); 1600 watts peak |
| Maximum SPL | 124dB continuous; 130dB peak |
| Sensitivity | 101dB |
| Coverage | Horizontal 90° +/- 30° 400Hz – 16kHz; Vertical 60° +/- 20° 2.8kHz – 20kHz |
| Directivity Index (DI) | 8dB +/- 2dB 500Hz – 20kHz |
| Directivity Factor (Q) | 6.3 |
| Nominal Impedance | 8 ohms; minimum 4.4 ohms @ 106Hz |
| Overload Protection | KLIP Overload Protection Circuit — HF |
| Crossover Frequency | 1.26 kHz and 6.8 kHz |
| Components | One K-48-ST 15" woofer; one K-53-TI 1.5" titanium compression driver on a K-703-M horn; one K-100-TI 1" titanium compression driver on a K-79-T horn |
| Input Connection | Two-point barrier strip |
| Physical | |
|---|---|
| Height | 34.3" (87.12cm) |
| Width | 19.8" (50.29cm) front; 6.8" (17.27cm) rear |
| Depth | 16" (40.64cm) |
| Weight | 70 lbs (31.81kg) |
| Enclosure Material | 3/4" 7-ply birch plywood cabinet with 1" MDF motorboard |
| Mounting | Sixteen 3/8"-16 fly points |
| Bracket Mount | One C-bracket attachment point, top and bottom: 3/8"-16 |
| Finish | White |
Specifications subject to change.
