Klipsch KI-272-B-SMA-II Black, Each
Product Details
The Klipsch KI-272-SMA-II is a 12" two-way commercial loudspeaker in a horizontal cabinet, built for permanent install in venues where a wide, shallow enclosure fits the architecture better than a tall one — above a stage proscenium, under a balcony front, or across a low soffit.

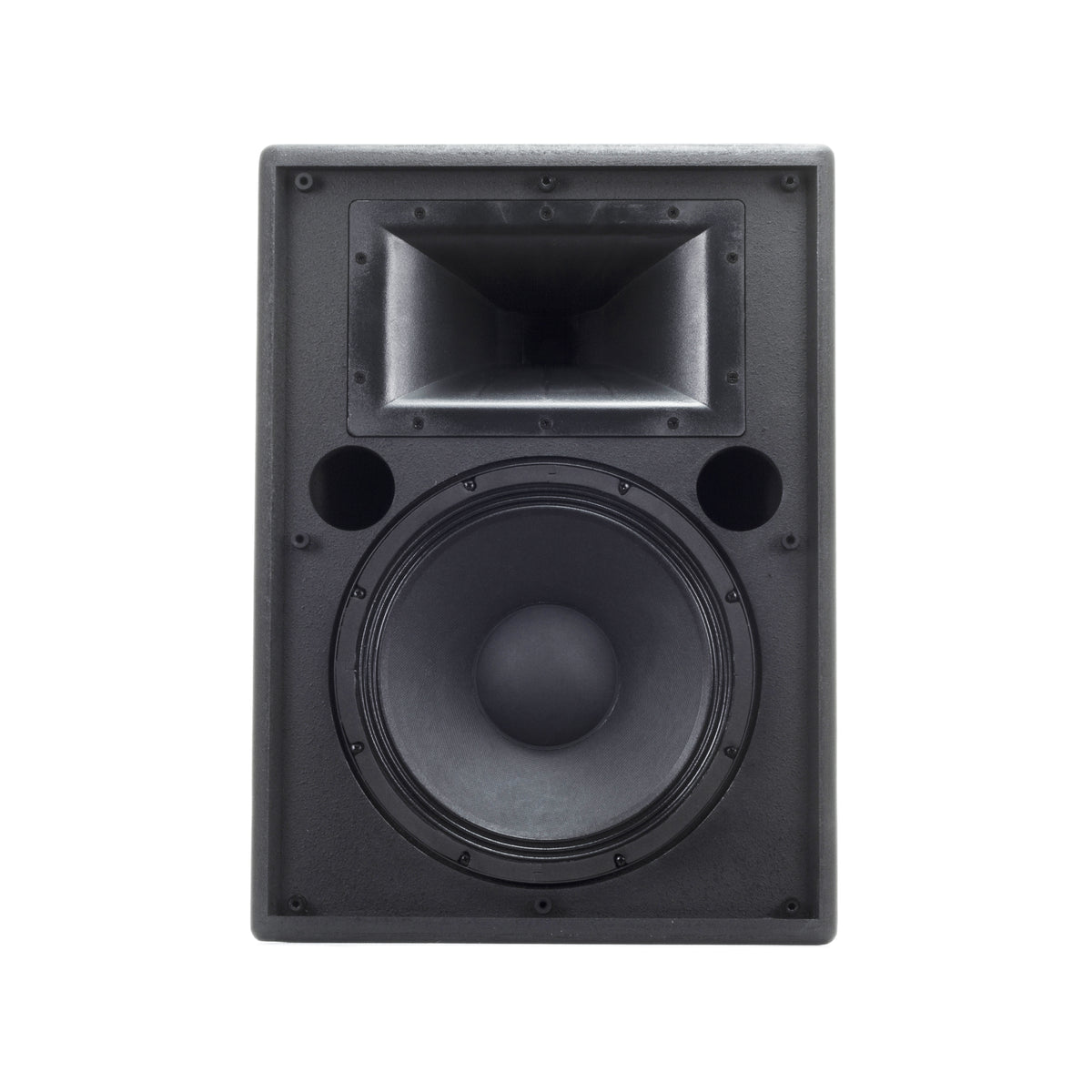

A K-281-EP 12" woofer and K-70-G 1.75" titanium compression driver on a K-604 horn give 100dB sensitivity and 127dB peak SPL. The 40° x 60° pattern is deliberately narrow horizontally: in the horizontal cabinet orientation this throws long and narrow, which is what you want covering a deep room from the front rather than spraying the side walls.
A KLIP overload protection circuit guards the high-frequency driver — what keeps a permanently installed system alive when someone unfamiliar with it drives the amplifier hard. Twelve 3/8"-16 fly points plus two 5/16"-18 threaded holes top and bottom allow suspension or C-bracket mounting.

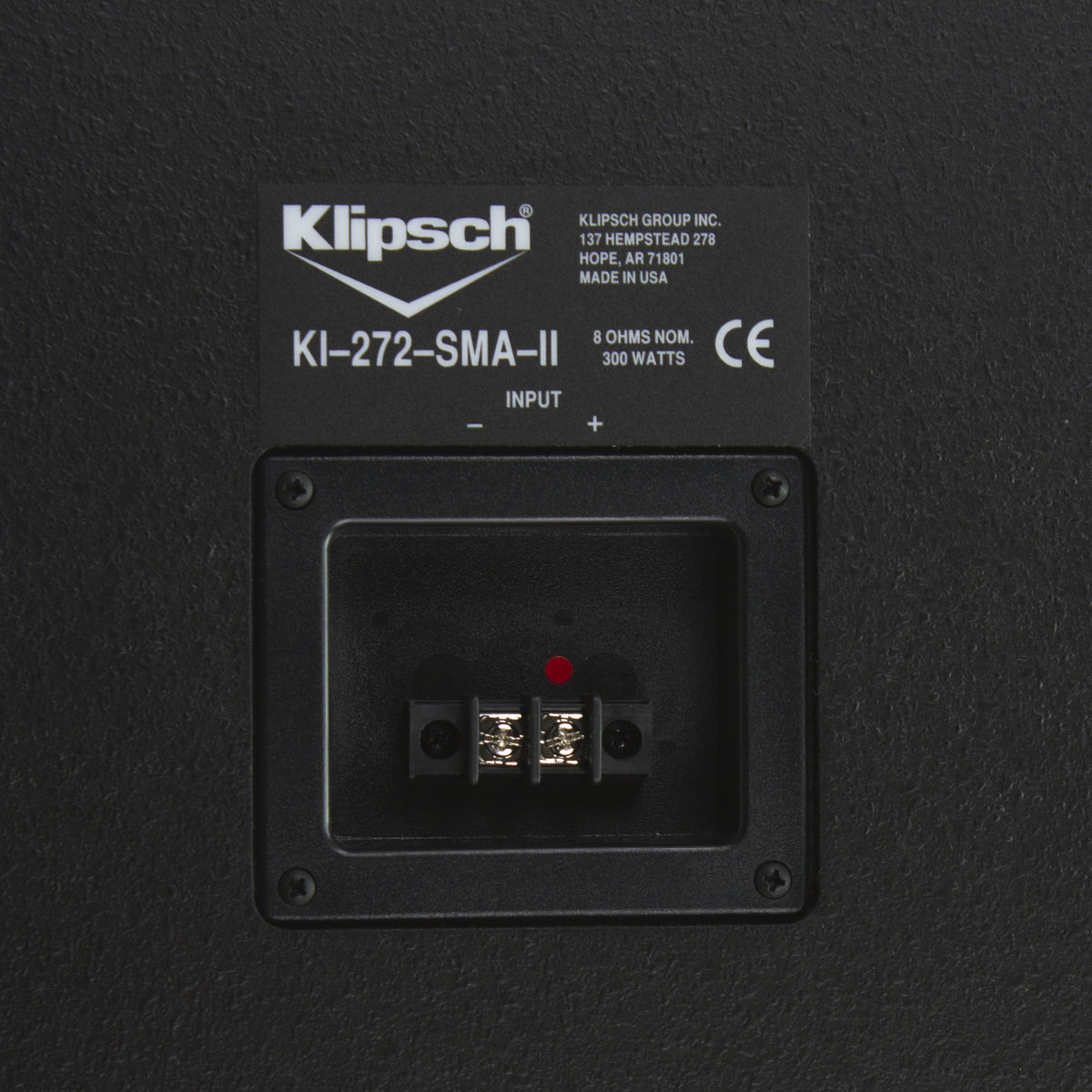

The enclosure is CNC-fabricated 3/4" seven-ply birch plywood assembled with rabbet and dado joinery, with a 1" MDF motorboard. Black and white cabinets use a lacquer-based finish. Raw Birch is supplied unfinished, for installations where the cabinet will be painted or stained to match the room. Signal connection is via a two-point barrier strip, the standard for permanent commercial install.
Features
- Horizontal two-way commercial loudspeaker for permanent install
- K-281-EP 12" woofer with K-70-G 1.75" titanium compression driver on a K-604 horn
- 40° x 60° coverage — narrow horizontal pattern for long, deep throws
- 100dB sensitivity; 121dB continuous / 127dB peak SPL
- 300 watts continuous, 1200 watts peak
- 65Hz – 20kHz +/- 3dB (-10dB at 47Hz)
- KLIP overload protection circuit for the HF driver
- Twelve 3/8"-16 fly points plus C-bracket mounting points
- 3/4" 7-ply birch plywood cabinet with 1" MDF motorboard
- Black finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 65Hz – 20kHz +/- 3dB (-10dB @ 47Hz) |
| Power Handling | 300 watts (35V); 1200 watts peak |
| Maximum SPL | 121dB continuous; 127dB peak |
| Sensitivity | 100dB |
| Coverage | Horizontal 40° +/- 20° 3.5kHz – 20kHz; Vertical 60° +/- 20° 2kHz – 20kHz |
| Directivity Index (DI) | 9dB +/- 3dB 2kHz – 20kHz |
| Directivity Factor (Q) | 7.9 |
| Nominal Impedance | 8 ohms; minimum 4 ohms @ 146Hz |
| Overload Protection | KLIP Overload Protection Circuit — HF |
| Crossover Frequency | 900 Hz |
| Components | One K-281-EP 12" woofer; one K-70-G 1.75" titanium compression driver on a K-604 horn |
| Input Connection | Two-point barrier strip |
| Physical | |
|---|---|
| Height | 17" (43.18cm) |
| Width | 23" (58.42cm) |
| Depth | 15.8" (40.13cm) |
| Weight | 51 lbs (23.18kg) |
| Enclosure Material | 3/4" 7-ply birch plywood cabinet with 1" MDF motorboard |
| Mounting | Twelve 3/8"-16 fly points; two 5/16"-18 threaded holes (top and bottom) for C-bracket |
| Finish | Black |
Specifications subject to change.
