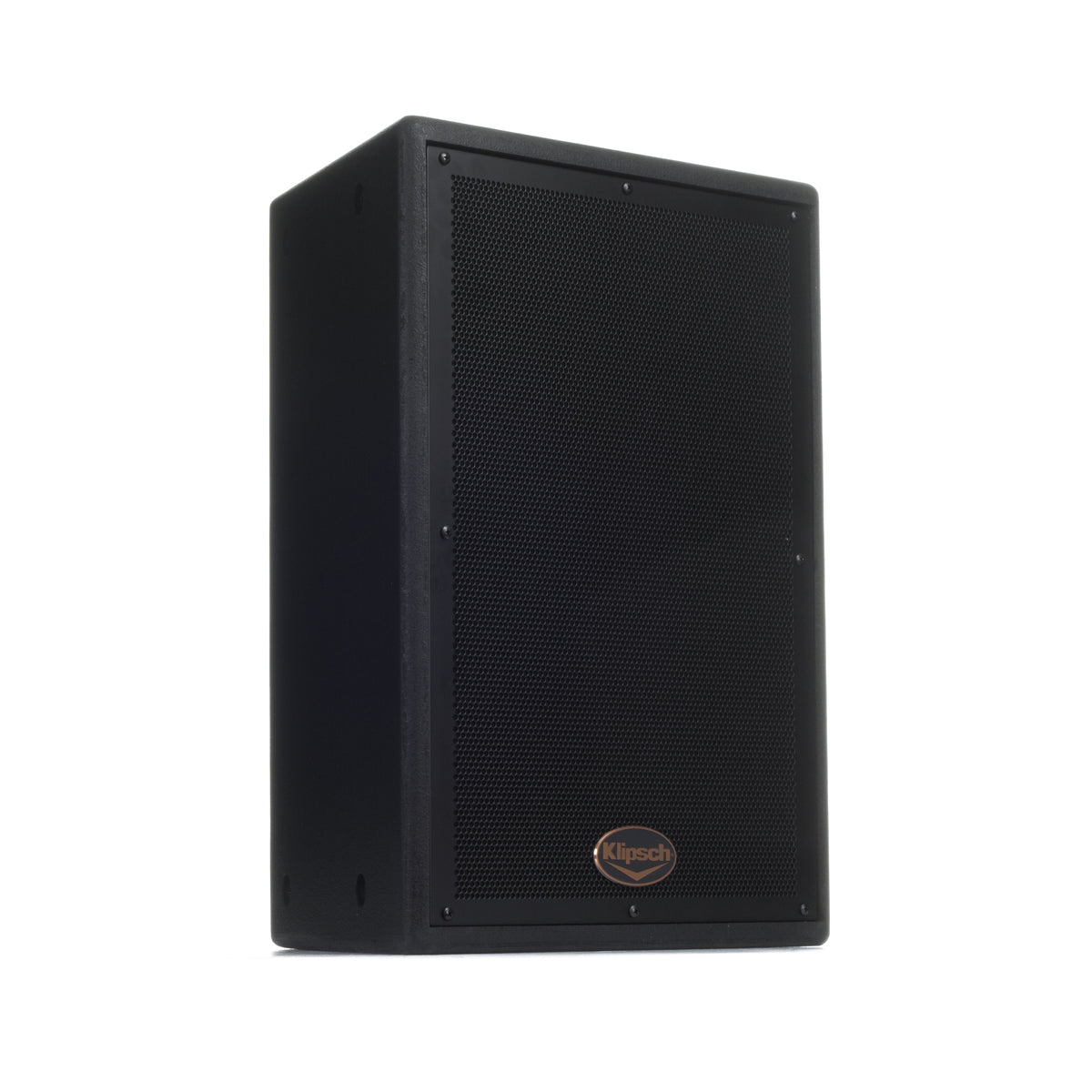

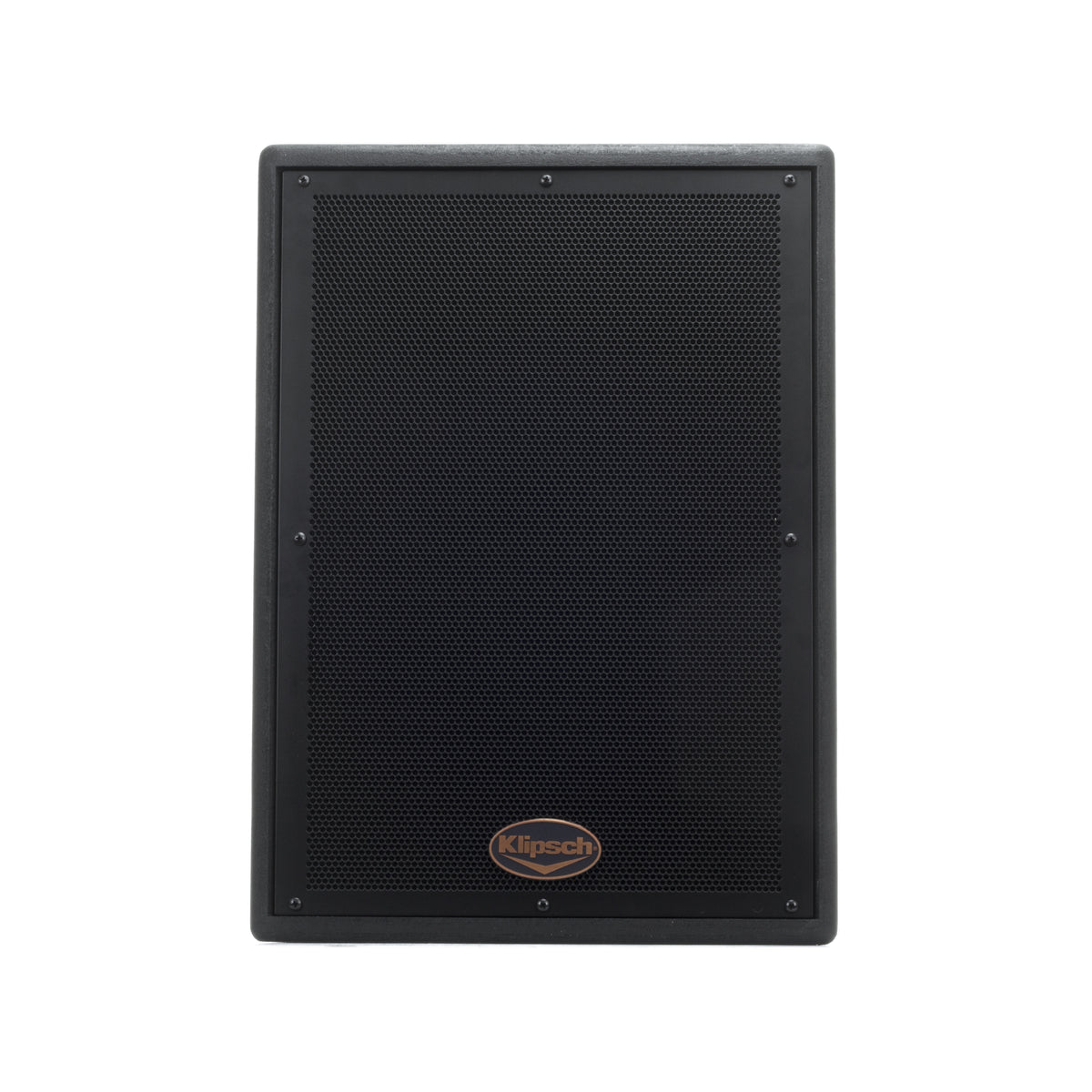

Klipsch KI-262-B-SMA-II Black, Each
Product Details

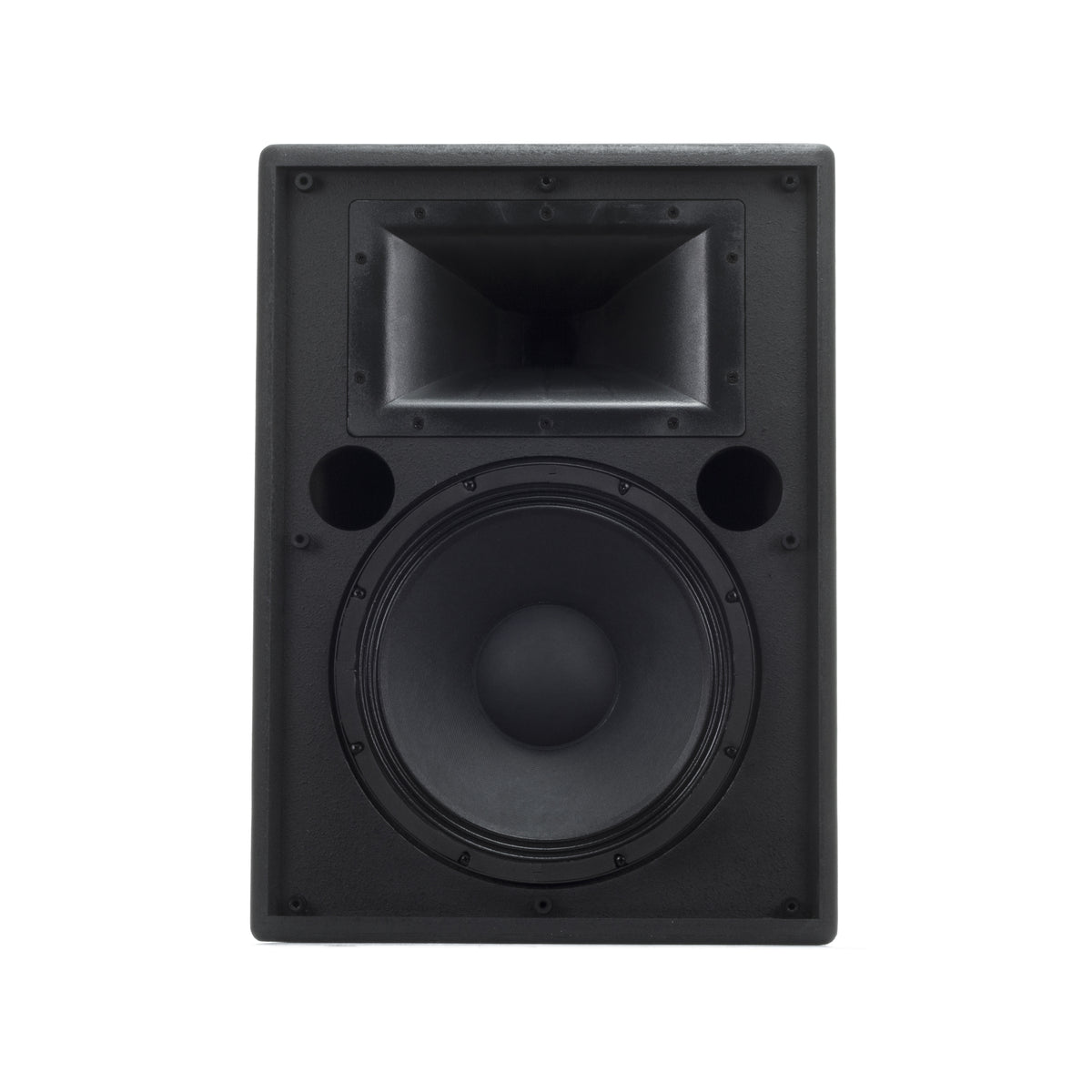

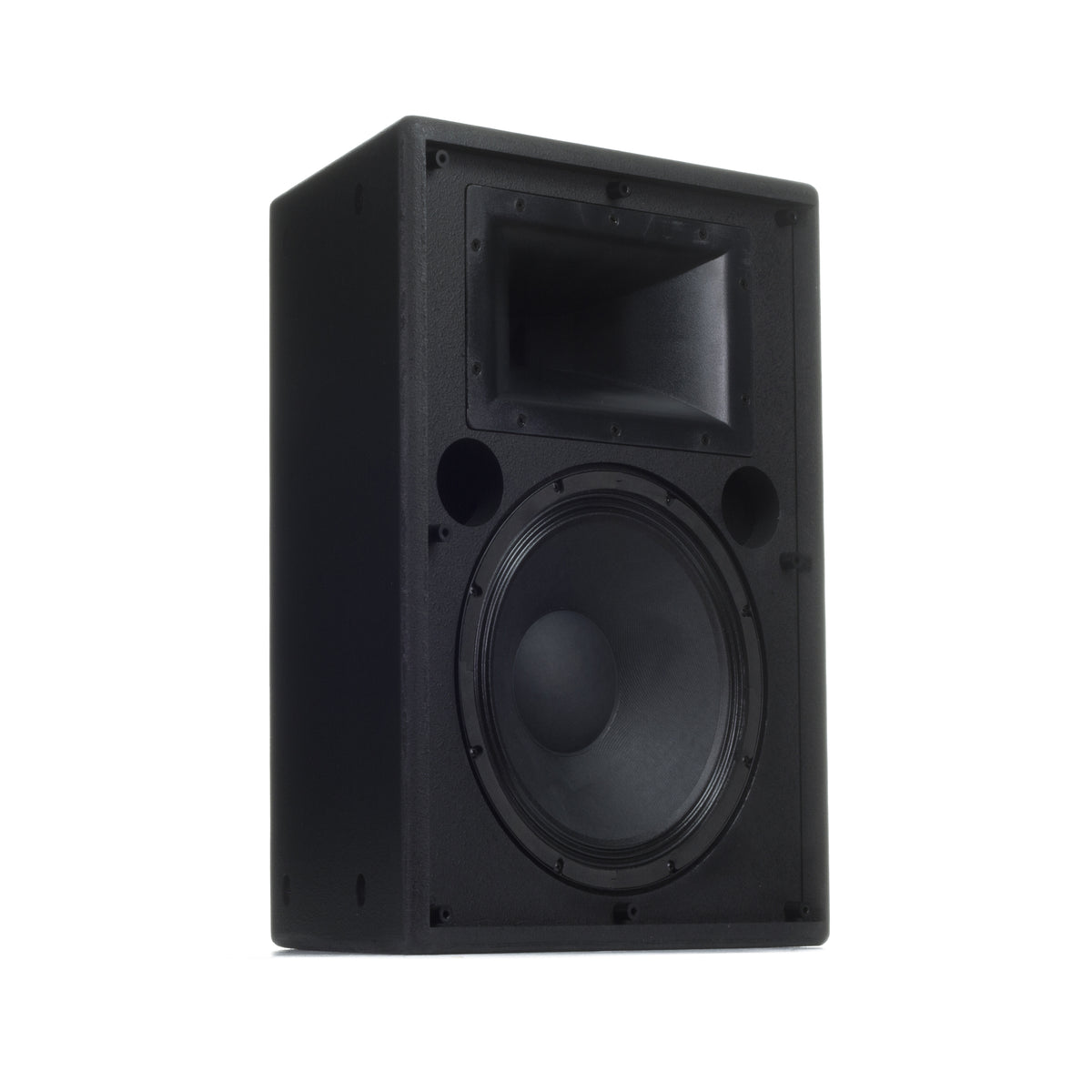

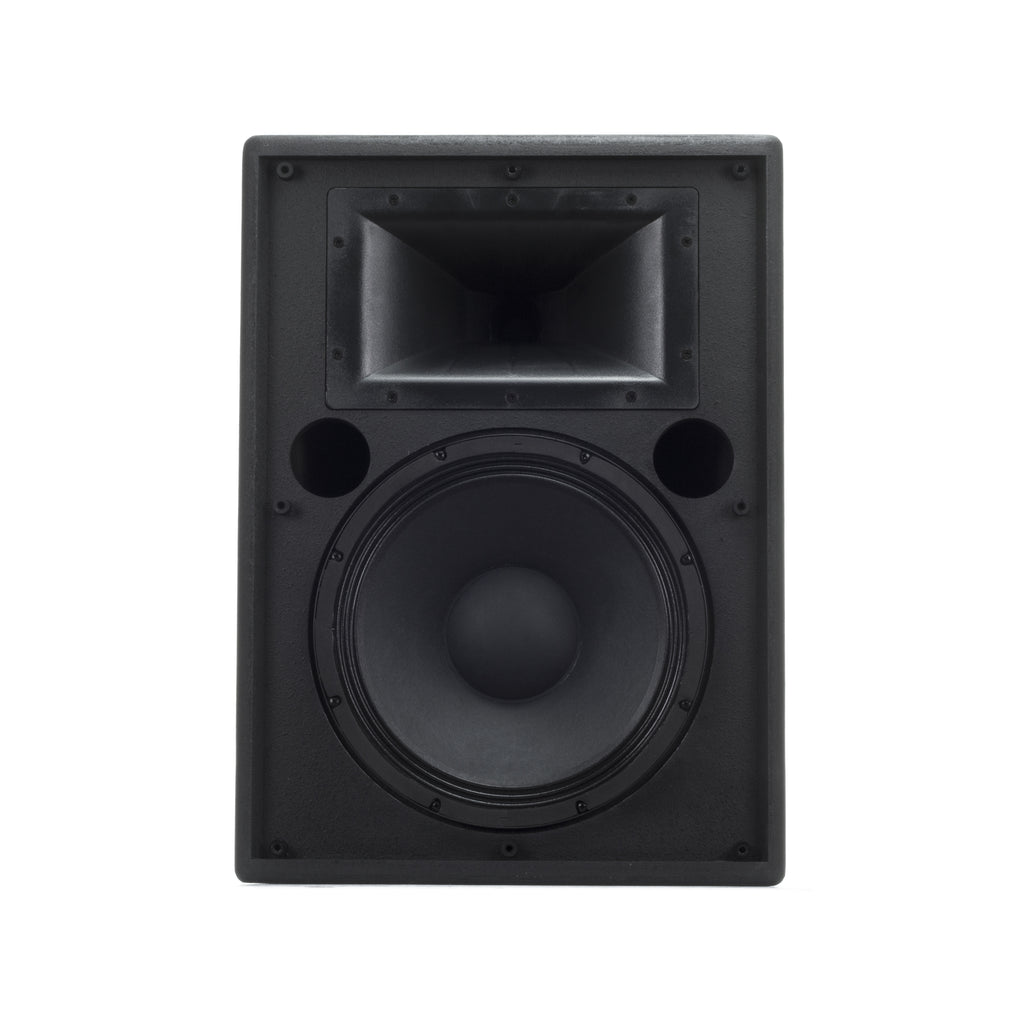

The Klipsch KI-262-SMA-II is a 12" two-way commercial loudspeaker in a 22.5° trapezoidal cabinet, built for suspended permanent install. It shares the K-281-EP 12" woofer and K-70-G 1.75" titanium compression driver of the KI-272, in a vertical trapezoidal enclosure rather than a horizontal one.

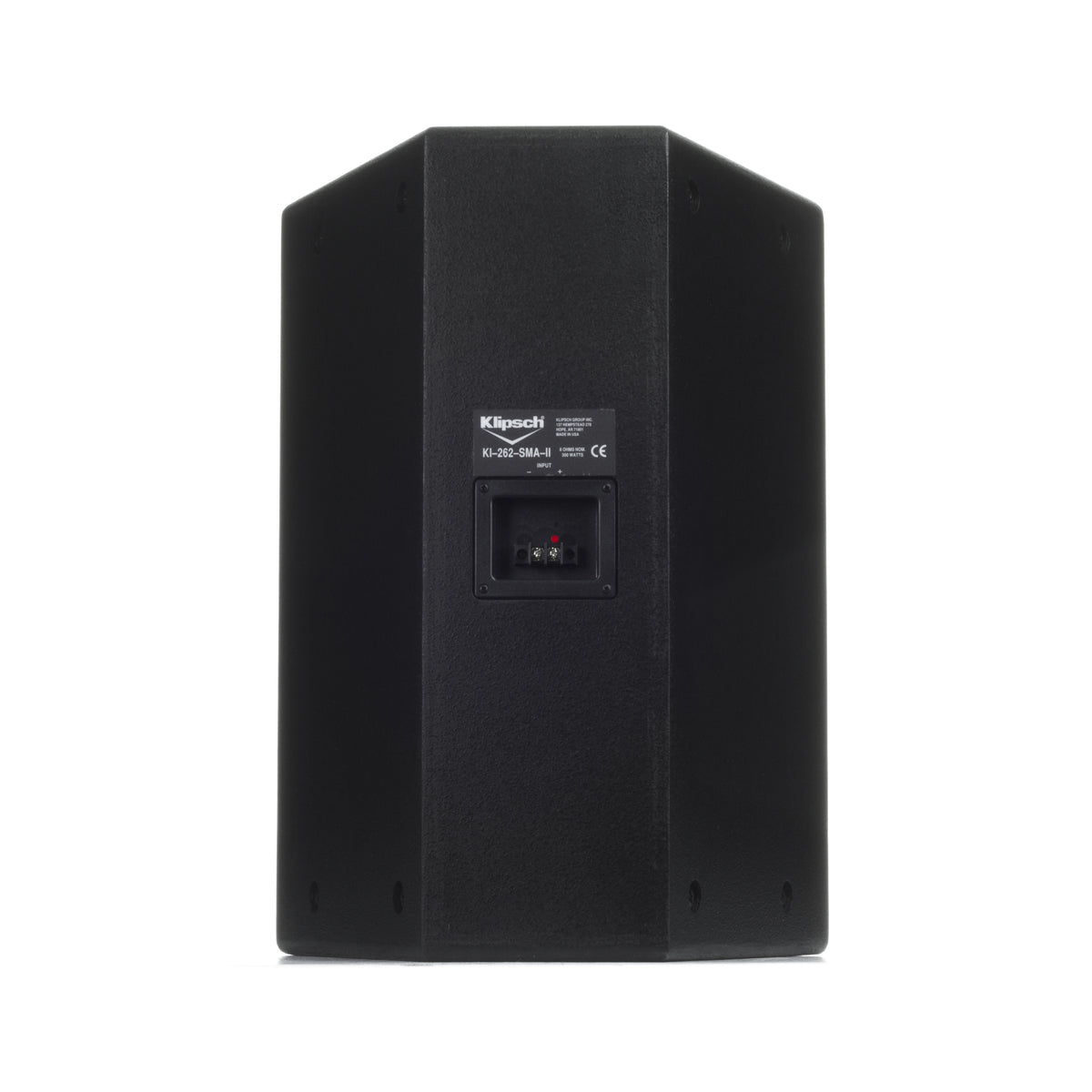

The 60° x 40° pattern is the transpose of the KI-272's — wider horizontally, tighter vertically — which suits covering a broad seating area from a single high position without wasting output on the ceiling. The trapezoidal sides let multiple cabinets be arrayed into a horizontal cluster with no gaps between them.
A KLIP overload protection circuit guards the high-frequency driver. Sixteen 3/8"-16 fly points plus two 5/16"-18 threaded holes top and bottom allow suspension, rigging-bar or C-bracket mounting.

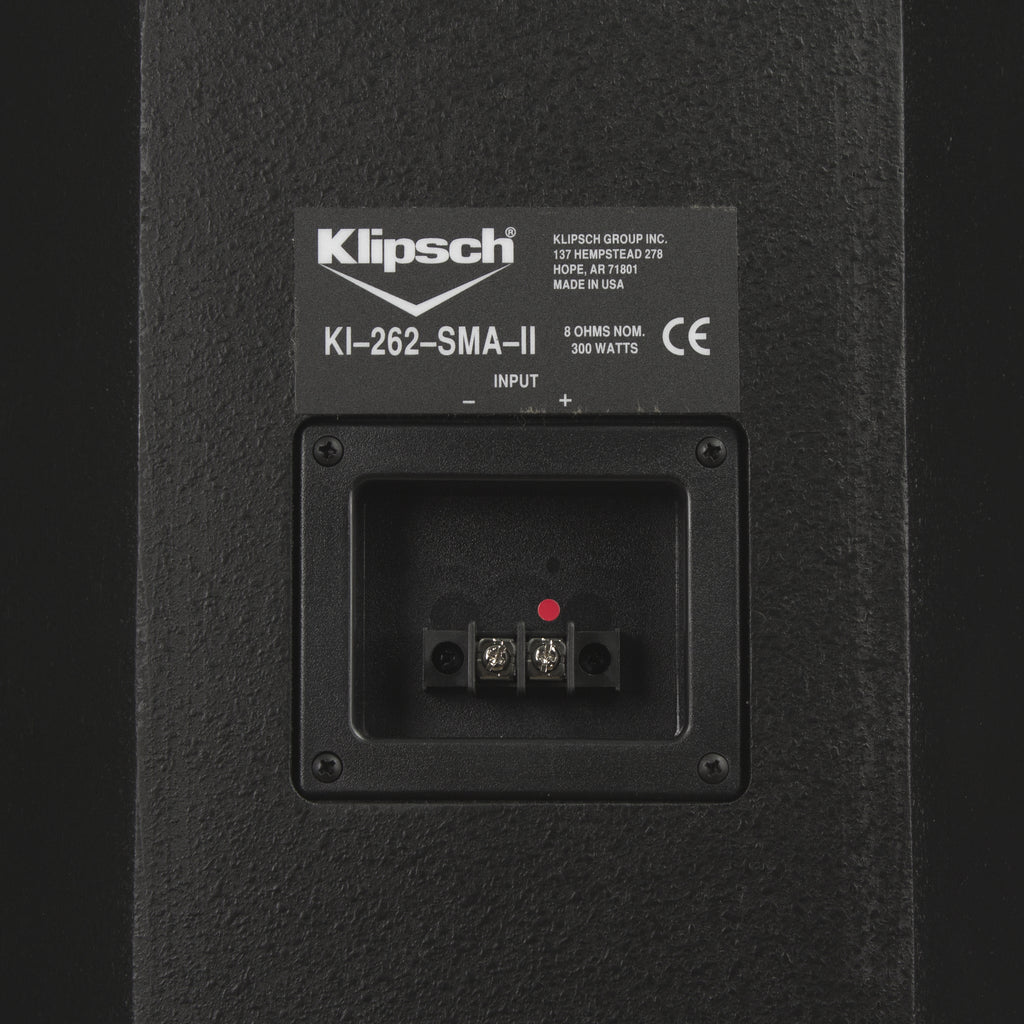

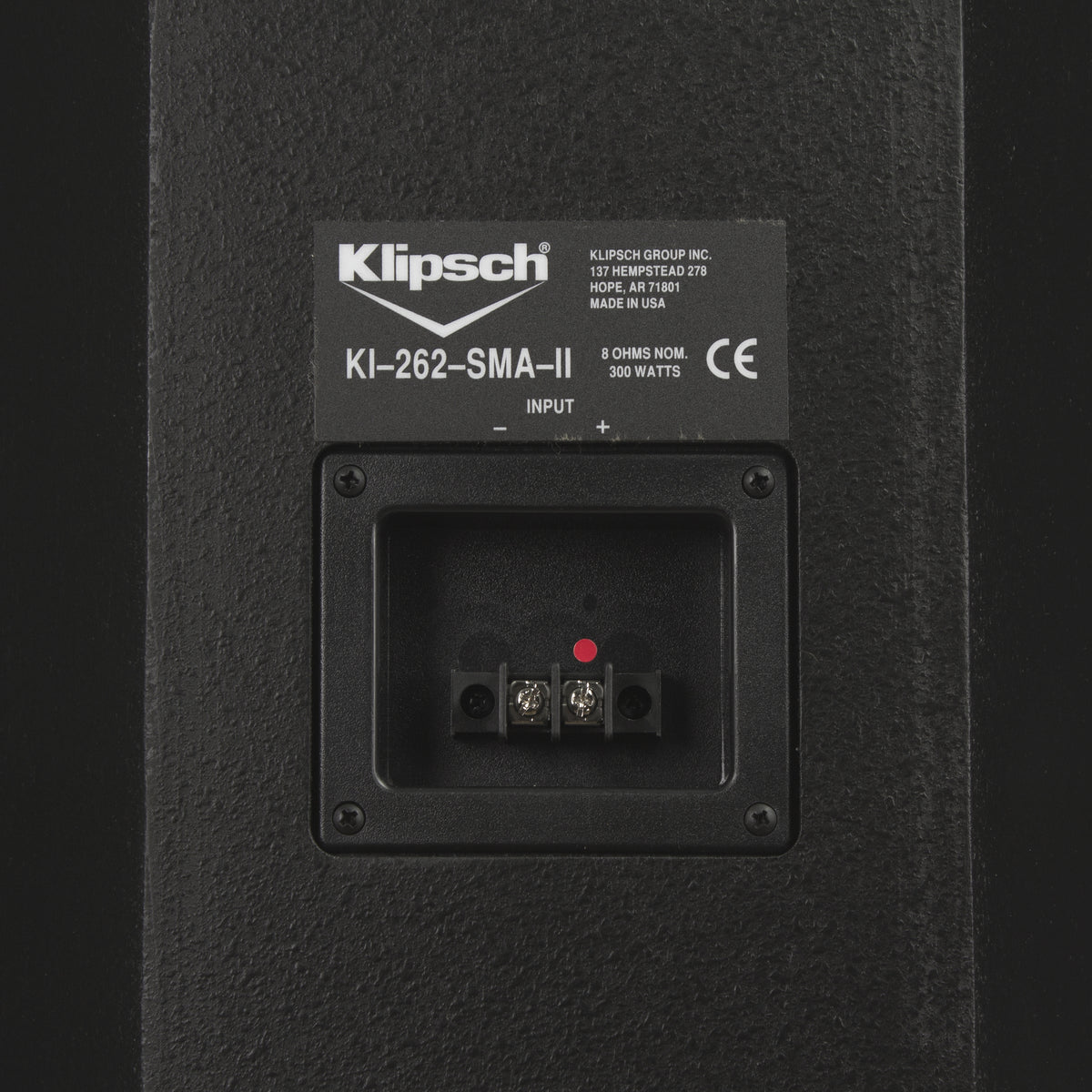

The enclosure is CNC-fabricated 3/4" seven-ply birch plywood assembled with rabbet and dado joinery, with a 1" MDF motorboard. Black and white cabinets use a lacquer-based finish. Raw Birch is supplied unfinished, for installations where the cabinet will be painted or stained to match the room. Signal connection is via a two-point barrier strip, the standard for permanent commercial install.
Features
- 22.5° trapezoidal two-way commercial loudspeaker for suspended install
- K-281-EP 12" woofer with K-70-G 1.75" titanium compression driver on a K-604 horn
- 60° x 40° coverage — wide horizontal, tight vertical
- 100dB sensitivity; 121dB continuous / 127dB peak SPL
- 300 watts continuous, 1200 watts peak
- 71Hz – 20kHz +/- 3dB (-10dB at 57Hz)
- KLIP overload protection circuit for the HF driver
- Trapezoidal cabinet arrays into gapless horizontal clusters
- Sixteen 3/8"-16 fly points plus C-bracket mounting points
- 3/4" 7-ply birch plywood cabinet with 1" MDF motorboard
- Black finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 71Hz – 20kHz +/- 3dB (-10dB @ 57Hz) |
| Power Handling | 300 watts (35V); 1200 watts peak |
| Maximum SPL | 121dB continuous; 127dB peak |
| Sensitivity | 100dB |
| Coverage | Horizontal 60° +/- 15° 2kHz – 20kHz; Vertical 40° +/- 20° 4kHz – 20kHz |
| Directivity Index (DI) | 9dB +/- 2dB 2kHz – 20kHz |
| Directivity Factor (Q) | 7.9 |
| Nominal Impedance | 8 ohms; minimum 4.1 ohms @ 152Hz |
| Overload Protection | KLIP Overload Protection Circuit — HF |
| Crossover Frequency | 900 Hz |
| Components | One K-281-EP 12" woofer; one K-70-G 1.75" titanium compression driver on a K-604 horn |
| Input Connection | Two-point barrier strip |
| Physical | |
|---|---|
| Height | 23" (58.42cm) |
| Width | 17" (43.18cm) front; 6.8" (17.27cm) rear |
| Depth | 12.6" (32.03cm) |
| Weight | 49 lbs (22.27kg) |
| Enclosure Material | 3/4" 7-ply birch plywood cabinet with 1" MDF motorboard |
| Mounting | Sixteen 3/8"-16 fly points; two 5/16"-18 threaded holes (top and bottom) for C-bracket |
| Finish | Black |
Specifications subject to change.
