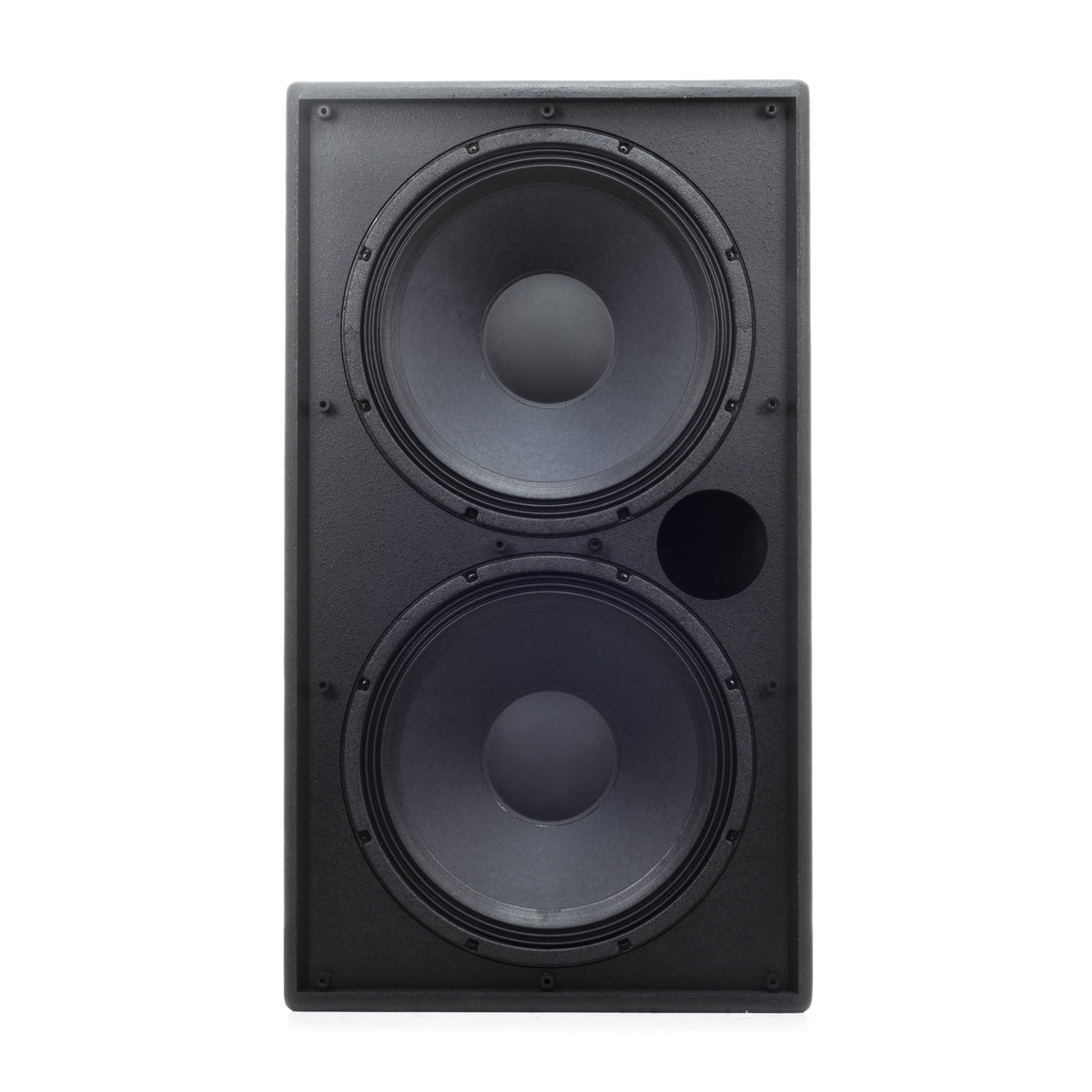

Klipsch KI-215-R-SMA-II Raw, Each
Product Details
The Klipsch KI-215-SMA-II is a dual 15" commercial subwoofer designed to partner Klipsch's high-power full-range install loudspeakers. Its enclosure dimensions and rigging configuration are identical to the KI-362-SMA-II, so the two stack and fly together as a single mechanical unit when driven from an external active two-way crossover.
Two K-45-ST 15" woofers with 3" voice coils and 104-ounce magnets give 105dB sensitivity and 136dB peak SPL — the output required for clubs, theatres, auditoriums and performance halls rather than a large living room. Cabinet tuning is deliberately low at 40Hz, which leaves headroom for electronic EQ to extend response further without putting undue stress on the drivers.
The 22.5° symmetrical trapezoidal cabinet is what makes this a permanent-install speaker rather than a box on a stand: the angled sides let multiple cabinets be arrayed tightly together into a horizontal cluster with no gaps, so coverage patterns join cleanly instead of overlapping and cancelling. It is a designed array match for the KI-396, KI-262 and KI-272 when using an external active crossover.
Sixteen 3/8"-16 fly points (four per side) allow flexible suspension and rigging-bar compatibility, with additional top and bottom attachment points for a C-bracket. The enclosure is CNC-fabricated 3/4" seven-ply birch plywood with a 1" MDF motorboard, assembled with rabbet and dado joinery.
Black and white cabinets use a lacquer-based finish. Raw Birch is supplied unfinished, for installations where the cabinet will be painted or stained to match the room. Signal connection is via a two-point barrier strip, the standard for permanent commercial install.
Features
- Dual 15" (38.1cm) K-45-ST cast-frame transducers with 3" voice coils and 104oz magnets
- 105dB sensitivity; 130dB continuous / 136dB peak SPL
- 800 watts continuous, 3200 watts peak
- 70Hz – 2.4kHz +/- 3dB (-10dB at 53Hz)
- Low 40Hz cabinet tuning leaves headroom for electronic EQ without driver stress
- Enclosure and rigging identical to the KI-362-SMA-II for matched stacking and flying
- Array match for KI-396, KI-262 and KI-272 with an external active crossover
- 22.5° symmetrical trapezoidal design
- 16 suspension points (4 per side) plus C-bracket mounts
- CNC-fabricated 3/4" 7-ply birch plywood cabinet
- Raw Birch finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 70Hz – 2.4kHz +/- 3dB (-10dB @ 53Hz) |
| Power Handling | 800 watts (53V); 3200 watts peak |
| Maximum SPL | 130dB continuous; 136dB peak |
| Sensitivity | 105dB |
| Nominal Impedance | 8 ohms; minimum 3.5 ohms @ 42Hz |
| Cabinet Tuning | 40Hz |
| Components | Two K-45-ST 15" woofers |
| Input Connection | Two-point barrier strip |
| Physical | |
|---|---|
| Height | 34.3" (87.12cm) |
| Width | 19.8" (50.29cm) front; 6.8" (17.27cm) rear |
| Depth | 16" (40.64cm) |
| Weight | 81 lbs (36.82kg) |
| Enclosure Material | 3/4" 7-ply birch plywood cabinet with 1" MDF motorboard |
| Mounting | Sixteen 3/8"-16 fly points |
| Bracket Mount | One C-bracket attachment point, top and bottom: 3/8"-16 |
| Finish | Raw Birch |
Specifications subject to change.
