Description

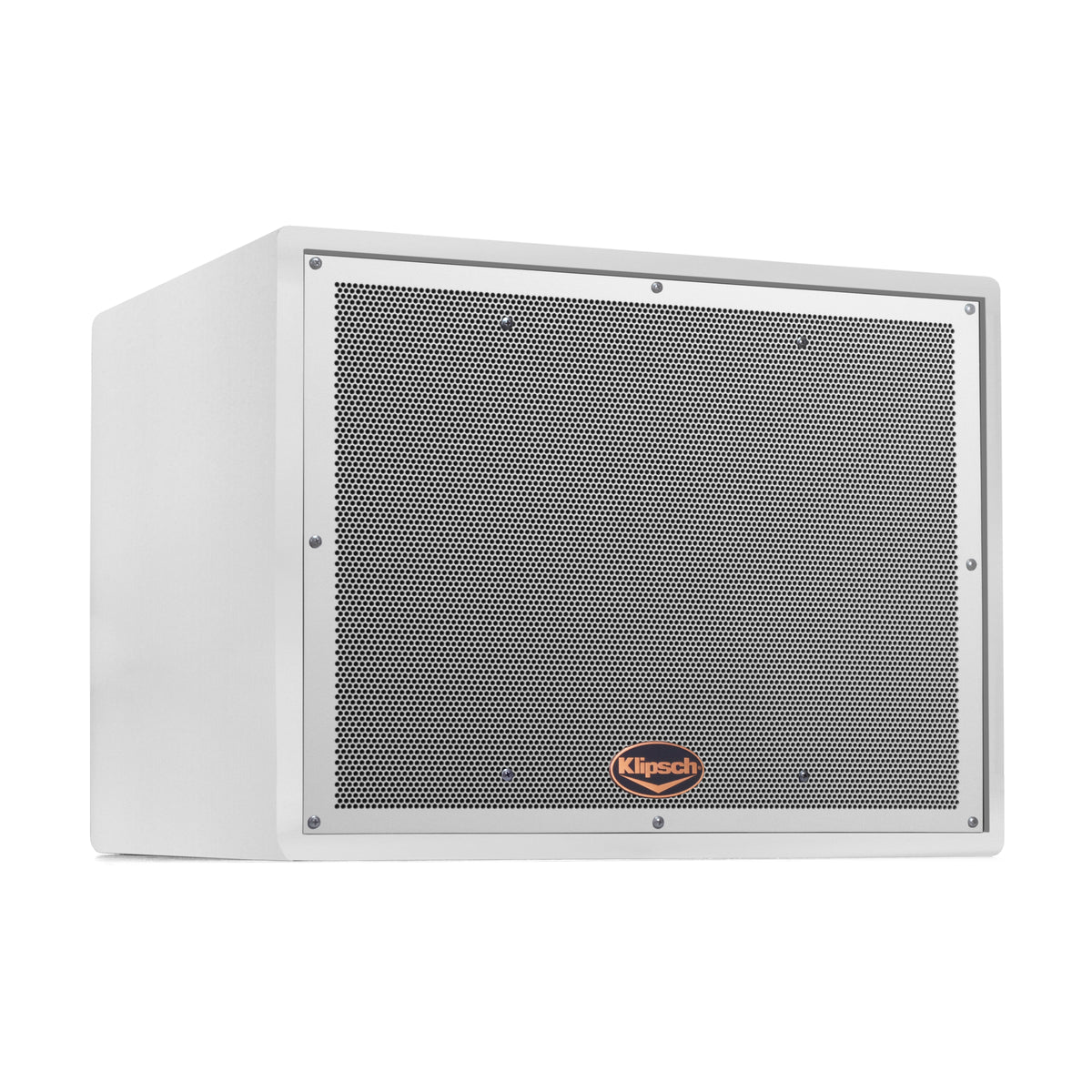

Klipsch KI-115-W-SMA-II White, Each
Product Details
The Klipsch KI-115-SMA-II is a single 15" commercial subwoofer in a compact rectangular cabinet, designed to add low-frequency extension to Klipsch professional install systems. At 18.5" high and 62 lbs it is considerably easier to place and fly than the dual-15" KI-215.
A 15" woofer with a 3" voice coil and 104-ounce motor magnet assembly in a vented enclosure gives 101dB sensitivity and 130dB peak SPL, reaching 49Hz. The cabinet carries a metal perforated grille rather than cloth, for structural integrity and to protect the transducer from impact and tampering — the practical requirement in a public venue.
Four 3/8"-16 fly points allow suspension. The enclosure is CNC-fabricated 3/4" seven-ply birch plywood assembled with rabbet and dado joinery, with a 1" MDF motorboard. Black and white cabinets use a lacquer-based finish. Raw Birch is supplied unfinished, for installations where the cabinet will be painted or stained to match the room. Signal connection is via a two-point barrier strip, the standard for permanent commercial install.
Features
- Single 15" commercial subwoofer in a compact rectangular cabinet
- 15" woofer with 3" voice coil and 104oz motor magnet assembly
- 101dB sensitivity; 124dB continuous / 130dB peak SPL
- 400 watts continuous, 1600 watts peak
- 49Hz – 200Hz +/- 3dB (-10dB at 35Hz)
- Vented enclosure design
- Metal perforated grille — structural protection against impact and tampering
- Four 3/8"-16 fly points for suspension
- CNC-fabricated 3/4" 7-ply birch plywood cabinet
- Compact 18.5" H x 24.6" W x 19.2" D, 62 lbs
- White finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 49Hz – 200Hz +/- 3dB (-10dB @ 35Hz) |
| Power Handling | 400 watts (44.7V); 1600 watts peak |
| Maximum SPL | 124dB continuous; 130dB peak |
| Sensitivity | 101dB |
| Nominal Impedance | 8 ohms; minimum 5 ohms @ 39Hz |
| Components | One K-48-ST 15" woofer |
| Enclosure Tuning | Vented |
| Input Connection | Two-point barrier strip |
| Physical | |
|---|---|
| Height | 18.5" (46.99cm) |
| Width | 24.6" (62.48cm) |
| Depth | 19.2" (48.77cm) |
| Weight | 62 lbs (28.18kg) |
| Enclosure Material | 3/4" 7-ply birch plywood cabinet |
| Grille | Metal perforated |
| Mounting | Four 3/8"-16 fly points |
| Finish | White |
Specifications subject to change.
