Description

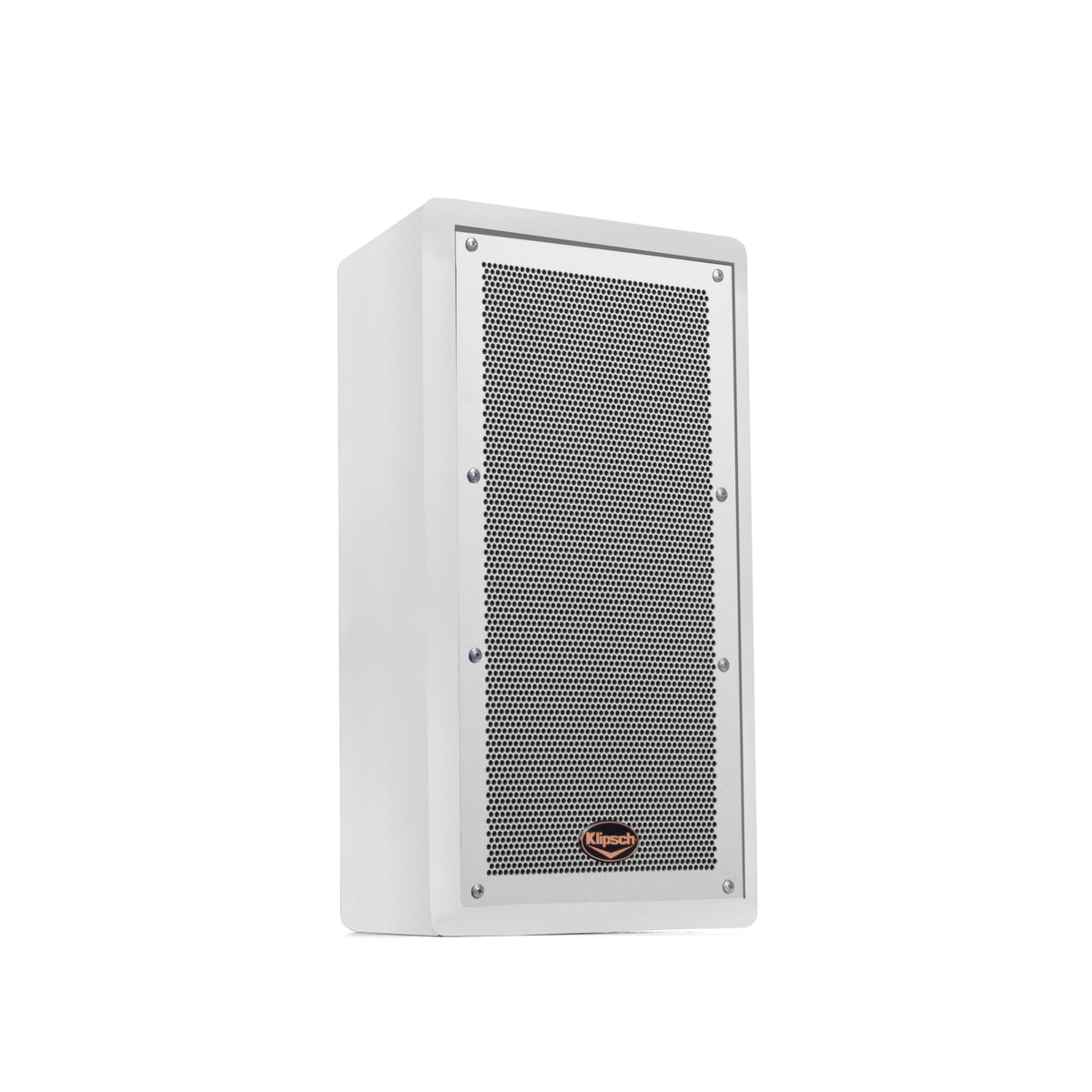

Klipsch KI-102-W-SMA-II White, Each
Product Details
The Klipsch KI-102-SMA-II is a compact two-way commercial install loudspeaker with an 8" woofer, in a vertical cabinet. It is built for restaurants, retail, hospitality and other spaces that need even, intelligible coverage from discreet boxes rather than concert output. This is the standard 8 ohm version, for conventional low-impedance amplification.
Coverage is Horizontal 90° +/- 20° 2.1kHz – 19kHz, with a 2kHz crossover to the compression driver. Sensitivity is 95dB and maximum continuous output 115dB — comfortably more than a distributed background or foreground music system asks for, which means the speakers run well within themselves.
The cabinet is 3/4" MDF. Signal connection is via a two-point barrier strip, the standard for permanent commercial install, and a KLIP overload protection circuit guards the high-frequency driver — what keeps an installed system alive when someone unfamiliar with it drives the amplifier hard. Finish is white; the raw MDF option is supplied unfinished for painting to match the room.
The SB-102 mounting bracket is the matching accessory.
Features
- Compact two-way commercial install loudspeaker, vertical cabinet
- One K-81-ST 8" woofer with compression driver
- 95dB sensitivity; 115dB continuous SPL
- 200 watts power handling
- 88Hz – 17kHz +/- 3dB (-10dB @ 56Hz) frequency response
- Horizontal 90° +/- 20° 2.1kHz – 19kHz coverage
- 2kHz crossover
- KLIP overload protection circuit for the HF driver
- Two-point barrier strip connection
- 3/4" MDF cabinet
- Standard 8 ohm version for low-impedance amplification
- Compatible with the SB-102 mounting bracket
- White finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 88Hz – 17kHz +/- 3dB (-10dB @ 56Hz) |
| Power Handling | 200 watts (31V) |
| Maximum SPL | 115 dB Continuous |
| Sensitivity | 95 dB |
| Coverage | Horizontal 90° +/- 20° 2.1kHz – 19kHz |
| Directivity Index (DI) | 7dB +/- 1dB 1kHz – 17kHz |
| Directivity Factor (Q) | 5 |
| Nominal Impedance | 8 ohms; minimum 4.9 ohms @ 184Hz |
| Overload Protection | KLIP Overload Protection Circuit — HF |
| Crossover Frequency | 2 kHz |
| Components | One K-81-ST 8" woofer |
| Input Connection | Two-point barrier strip |
| Version | Standard 8 ohm |
| Physical | |
|---|---|
| Height | 18.9" (48.00cm) |
| Width | 11.6" (29.46cm) |
| Depth | 9.3" (23.77cm) |
| Weight | 24 lbs (10.90kg) |
| Enclosure Material | 3/4" MDF |
| Mounting | 2 screw: 1/4" x 20 machine screw |
| Finish | White |
| Accessories | SB-102 Mounting Bracket |
| UPC | 743878029147 |
Specifications subject to change.
