Klipsch KI-102-B-SMA-II Black, Each
Product Details
The KI-102-SMA-II is a compact horn-loaded two-way trapezoidal loudspeaker from Klipsch Professional, built for permanent installation where fidelity matters but there is not much room to put a speaker. Restaurants, clubs, schools, houses of worship, health clubs and corporate AV production spaces are the intended homes.

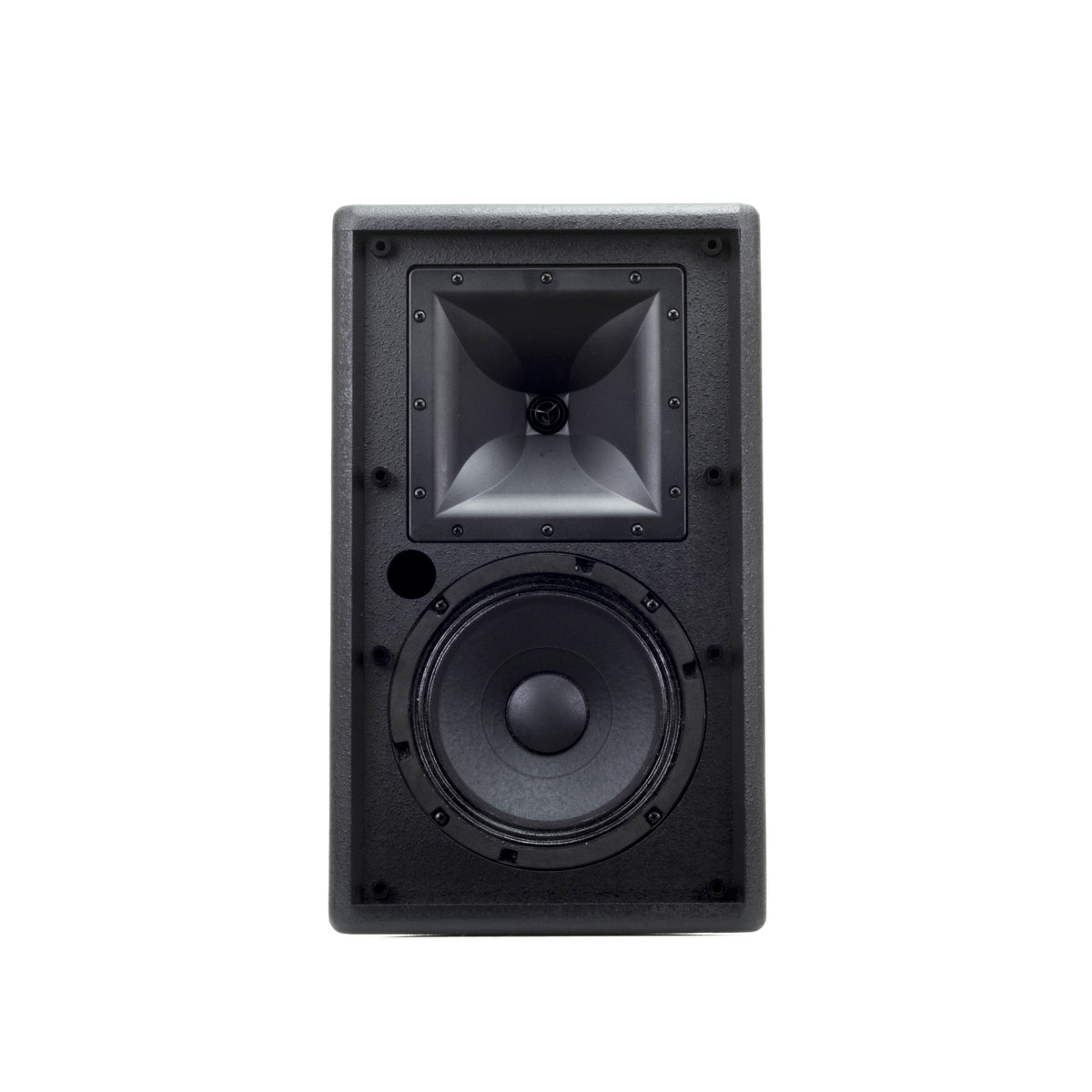

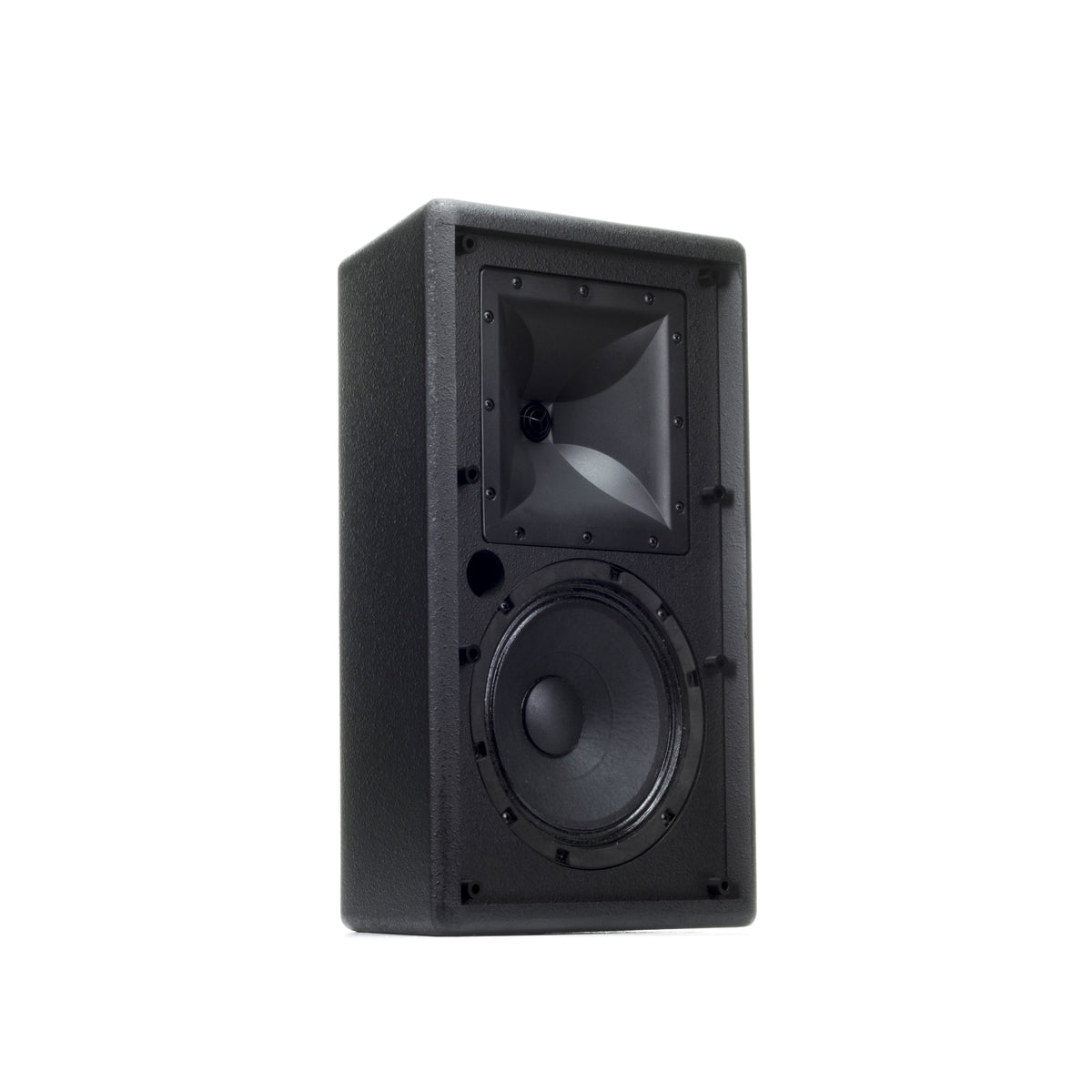

It pairs an 8" K-81-ST woofer with a 1" K-103-TI-KP titanium compression driver on a K-802-M 90° x 90° modified Tractrix horn, giving 115dB continuous output and 95dB sensitivity from a cabinet 18.9" tall. The KLIP overload protection circuit guards the high-frequency driver in the real-world conditions permanent installs actually see.
The 22.5° symmetrical trapezoidal enclosure is 3/4" MDF built with CNC fabrication, dado “lock-tab” and rabbet-joint construction — a cabinet largely free of resonance and cabinet-induced coloration. Top and bottom attachment points take the optional SB-102 U-shaped mounting bracket. Klipsch KI series enclosures are made in the USA in Hope, Arkansas.
Features
- Compact 22.5° symmetrical trapezoidal two-way design
- 115dB maximum continuous output
- 8" woofer and 1" titanium diaphragm compression driver
- 90° x 90° modified Tractrix® horn
- KLIP overload protection circuit for the HF driver
- 3/4" MDF enclosure, CNC fabricated with dado lock-tab and rabbet-joint construction

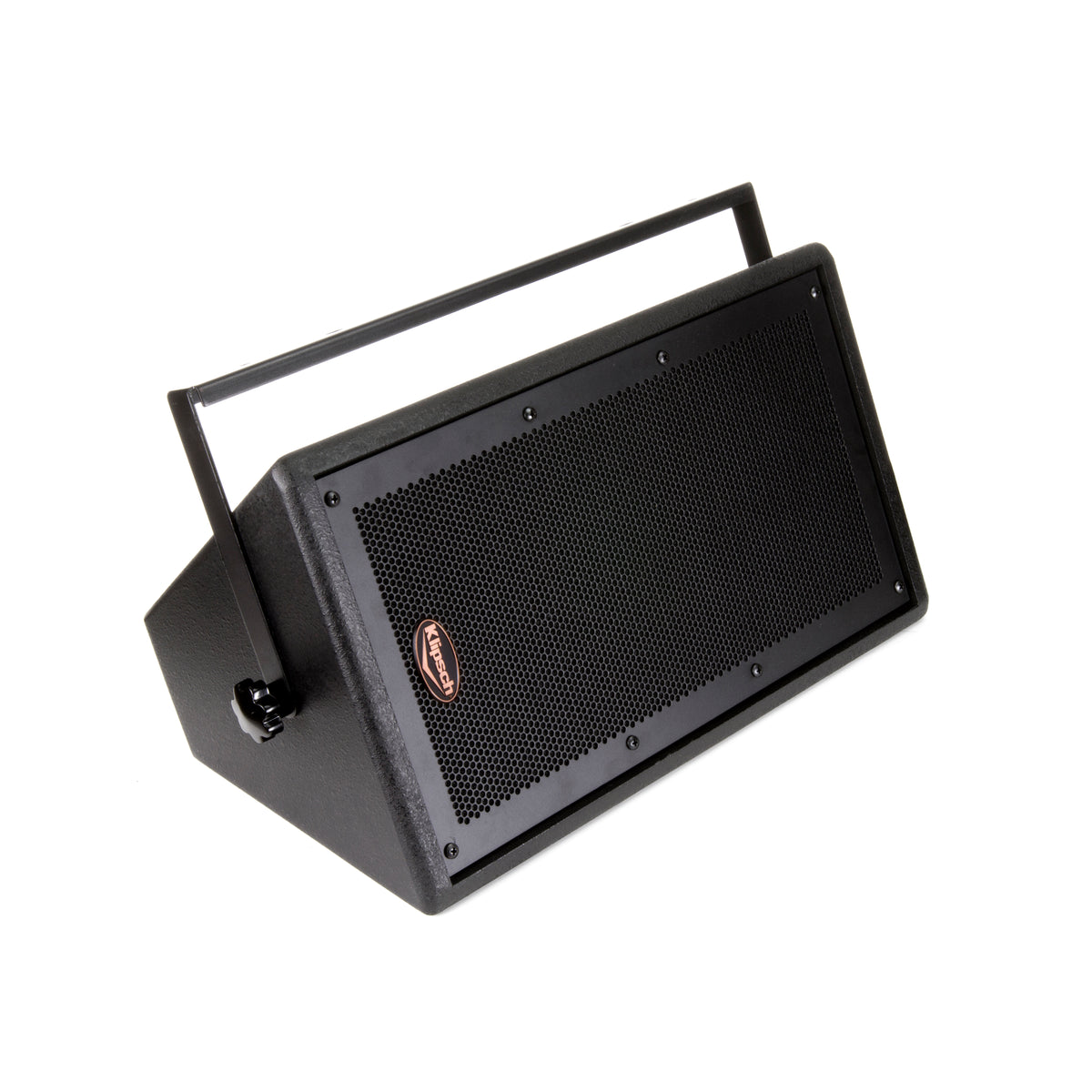

- Top and bottom attachments for the optional SB-102 U-shaped bracket

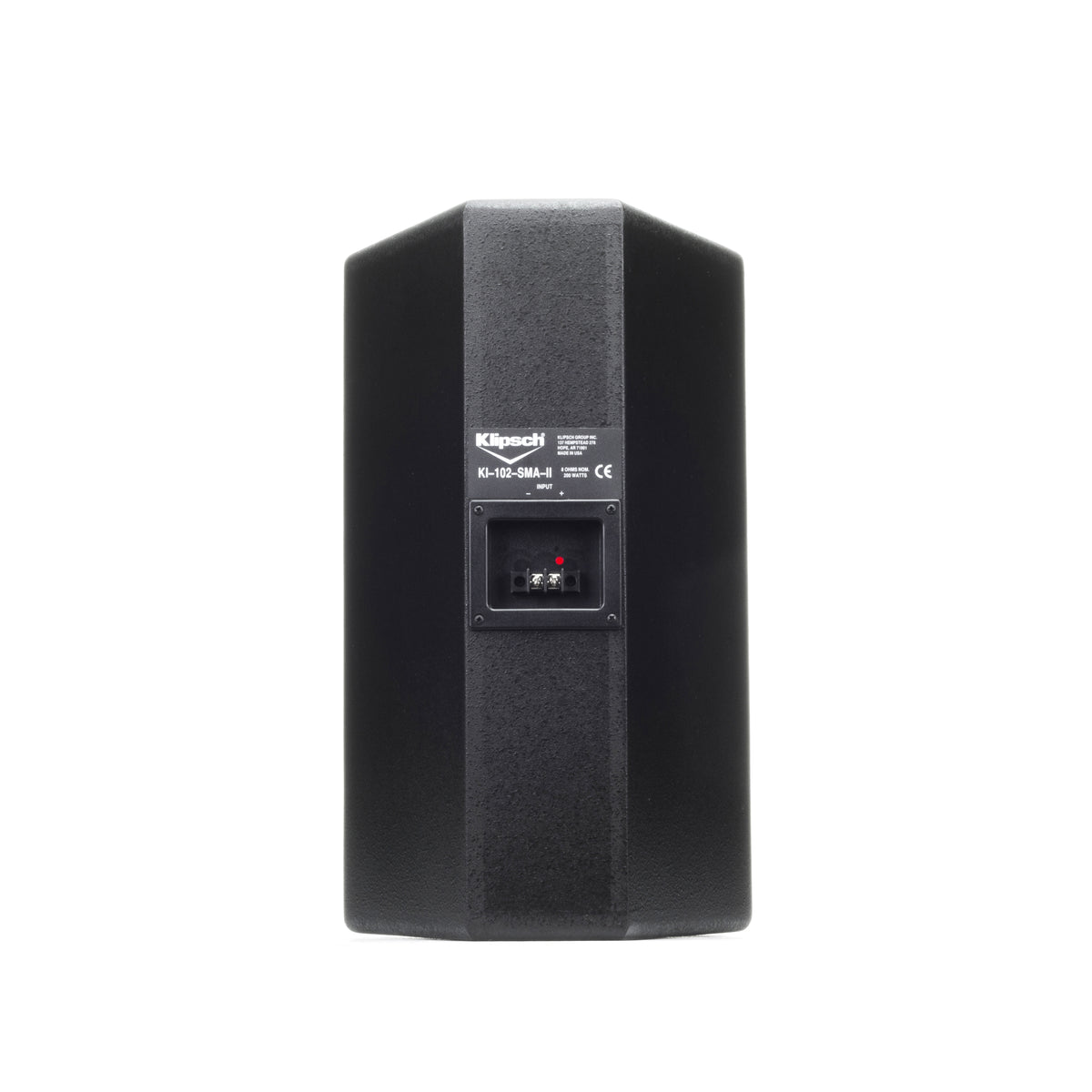

- Two-point barrier strip input connection
- Made in the USA in Hope, Arkansas
- Black finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 88Hz – 17kHz +/- 3dB (-10dB @ 56Hz) |
| Power Handling | 200 watts (31V); 800 watts peak |
| Maximum SPL | 115dB continuous; 121dB peak |
| Sensitivity | 95dB |
| Coverage | Horizontal 90° +/- 20° 2.1kHz – 19kHz; Vertical 90° +/- 30° 2.5kHz – 19kHz |
| Directivity Index (DI) | 7dB +/- 1dB, 1kHz – 17kHz |
| Directivity Factor (Q) | 5 |
| Nominal Impedance | 8 ohms, minimum 4.9 ohms @ 184Hz |
| Overload Protection | KLIP overload protection circuit — HF |
| Crossover Frequency | 2kHz |
| Components | One K-81-ST 8" woofer; one K-103-TI-KP 1" titanium compression driver on a K-802-M horn |

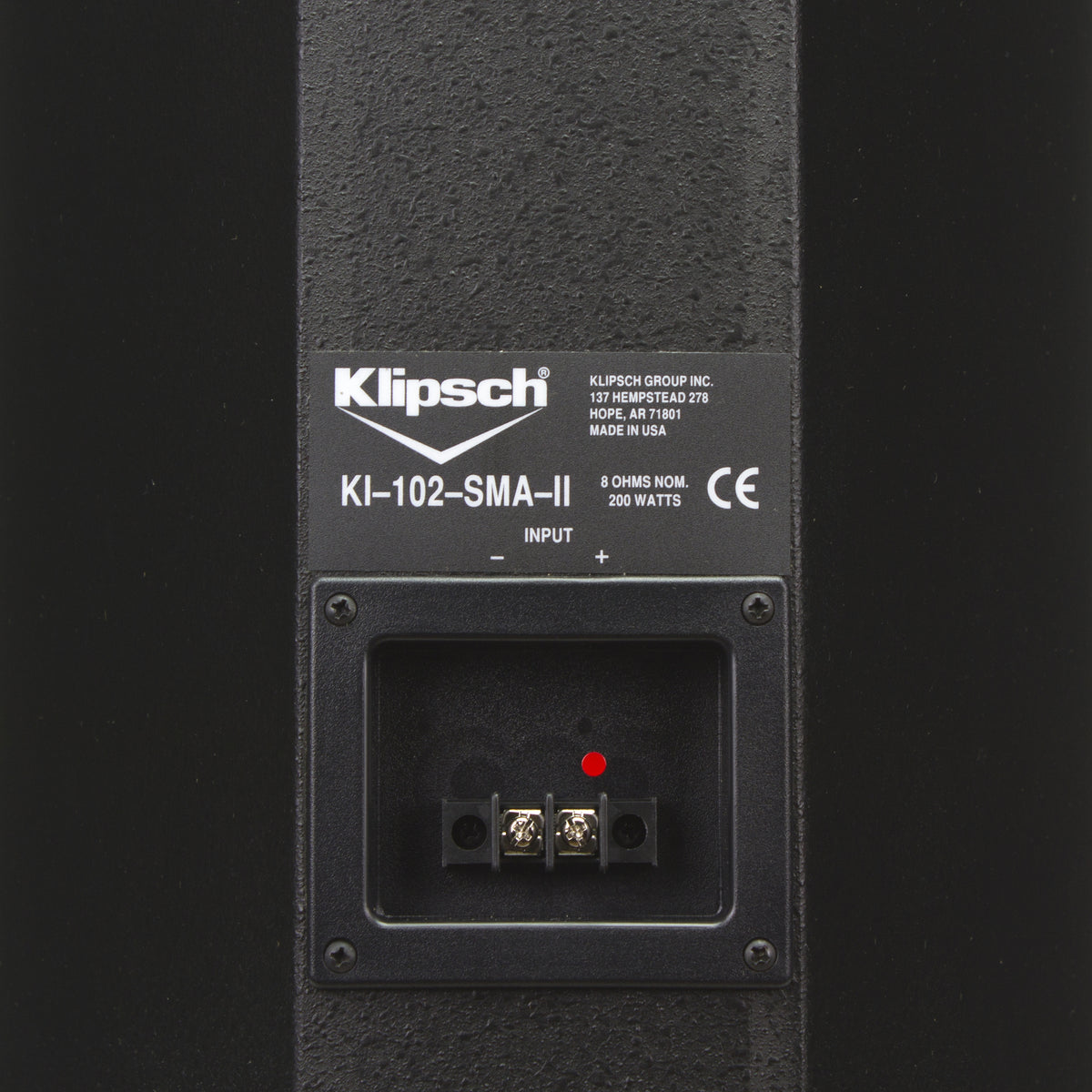

| Input Connection | Two-point barrier strip |
| Mounting Options | 2 screw: 1/4" x 20 machine screw for SB-102 bracket |
| Enclosure Material | 3/4" MDF |
| Physical | |
|---|---|
| Height | 18.9" (48.00cm) |
| Width | 11.6" (29.46cm) front; 4.2" (10.67cm) rear |
| Depth | 9.3" (23.77cm) |
| Weight | 24 lbs (10.90kg) |
| Finish | Black |
| Accessories | SB-102 mounting bracket (optional) |
Specifications subject to change.
