Klipsch IK-810C-C Install Kit -, 2pcs
Product Details

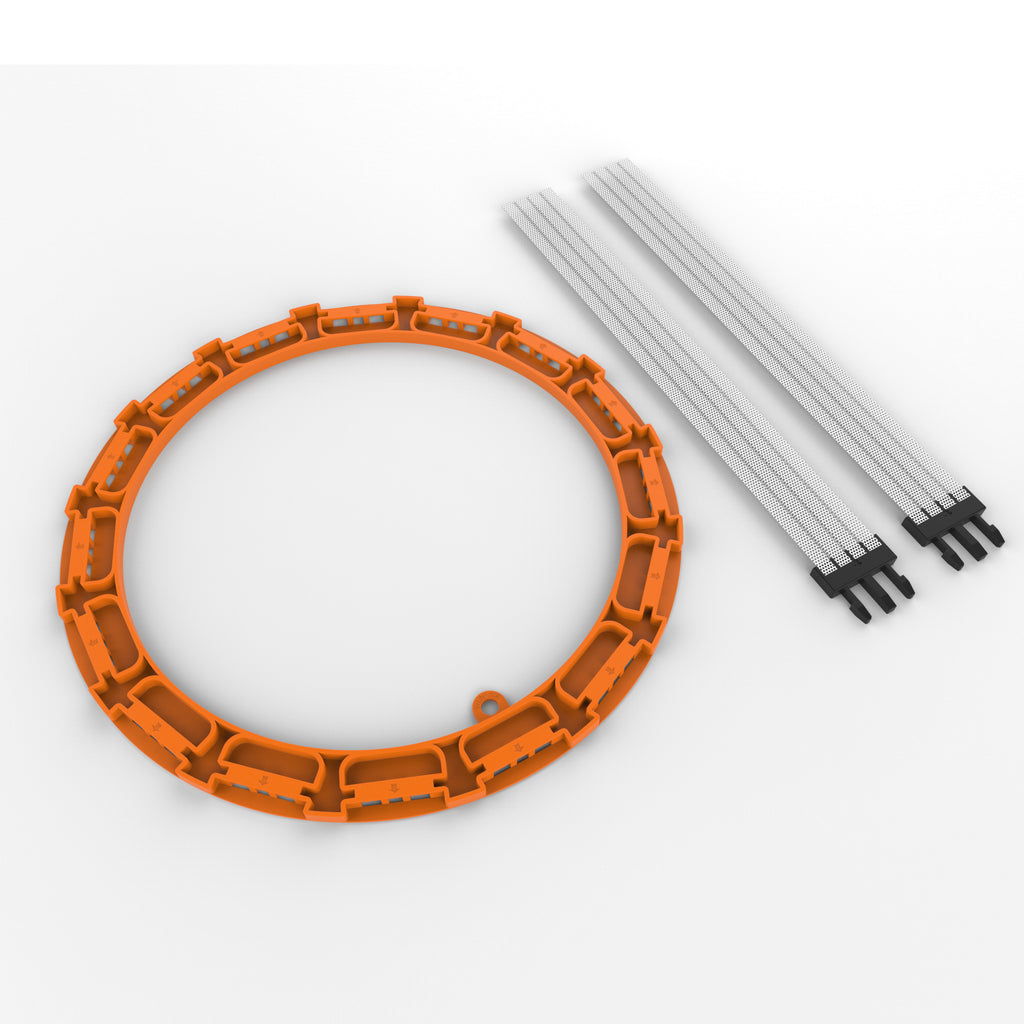

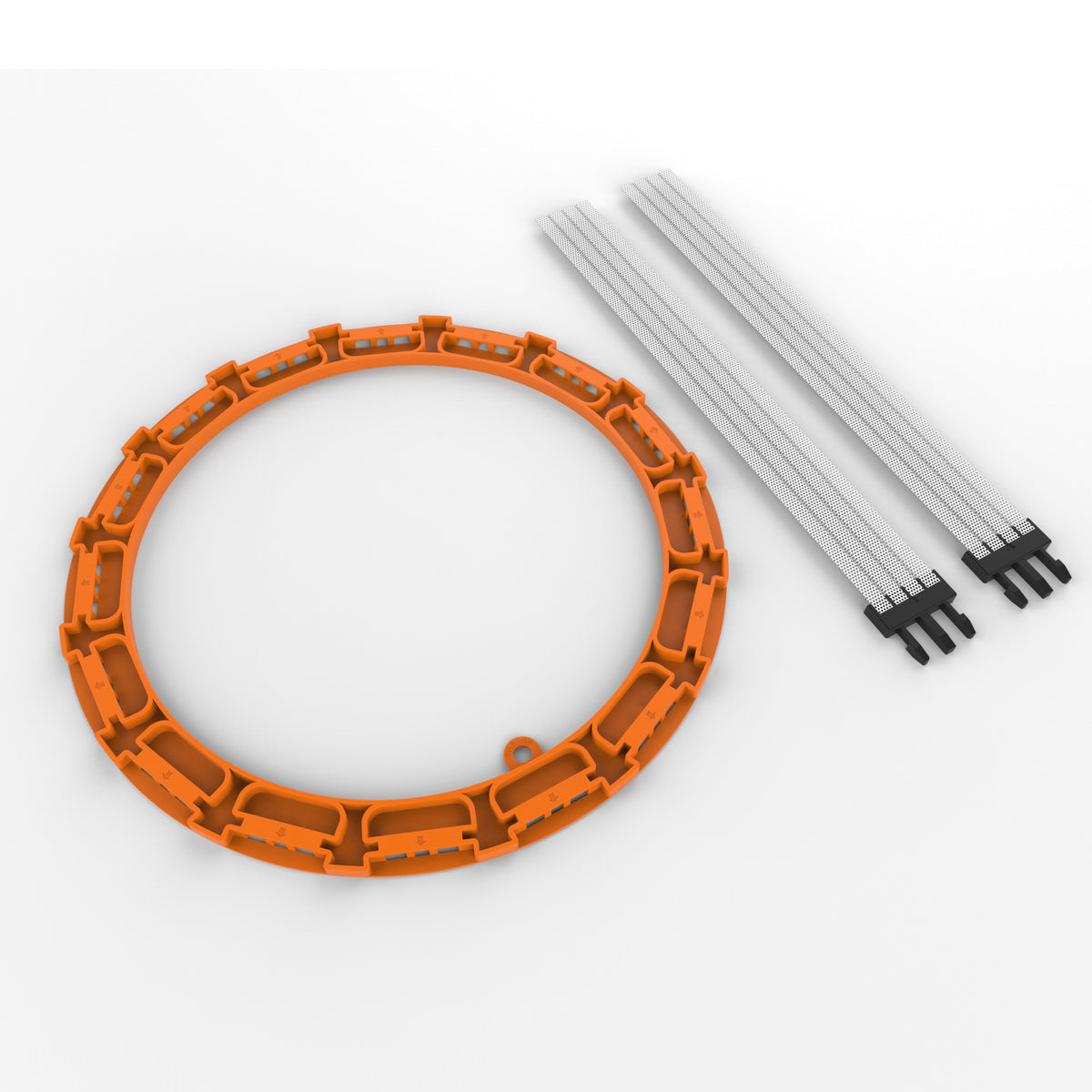

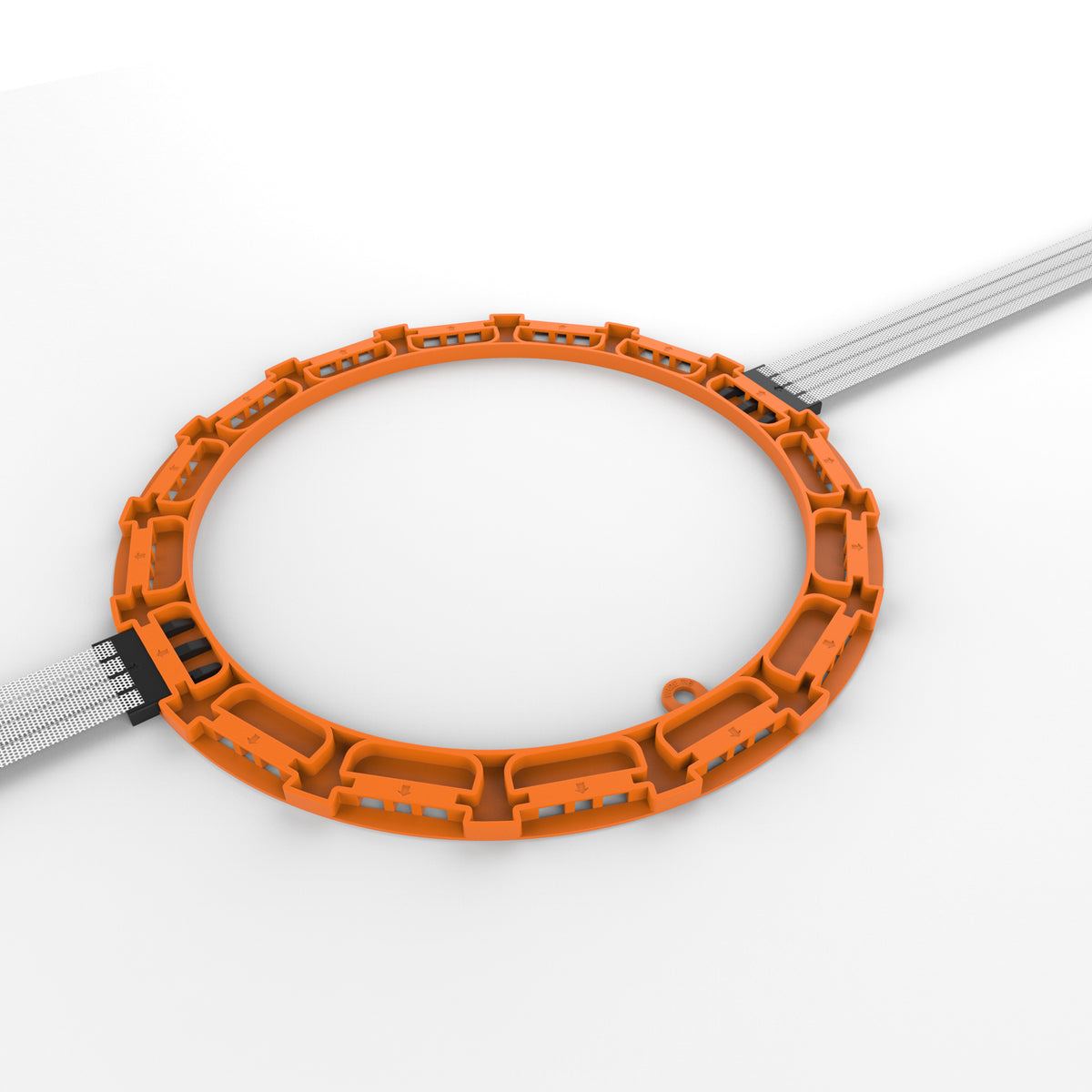

The Klipsch IK-810C-C install kit provides mounting support for 8" in-ceiling speakers. It is a pre-construction bracket: fitted to the studs or joists before drywall goes up, it establishes the exact speaker position and gives the cutout a clean, square edge.
It fits the Klipsch 8" in-ceiling LCR speakers (sold separately).
The design incorporates a mud ring, a breakaway wire tie and color-coded brackets for quick size identification on site. A flat side with a raised wall allows direct mounting to a joist, which is what makes it possible to line speakers up with lights and vents rather than wherever the bracket lands.
Perforated metal wings fasten to studs with screws, staples or nails, and are ribbed for rigidity so a single kit spans the full bay.
Features
- Pre-construction install kit for 8" in-ceiling speakers
- Mud ring gives the cutout a clean, finished edge
- Color-coded brackets for quick size identification
- Breakaway wire tie included
- Flat side with raised wall for direct joist mounting — align speakers with other ceiling fittings
- Perforated metal wings fasten with screws, staples or nails
- Ribbed wings for rigidity across the bay
- Supplied as 2 pieces
Specifications
| Technical | |
|---|---|
| Type | Speaker install / pre-construction kit |
| For Speaker Size | 8" |
| Application | In-ceiling |
| Fits | Klipsch 8" in-ceiling LCR speakers |
| Includes | Mud ring, breakaway wire tie, colour-coded brackets, perforated metal wings |
| Physical | |
|---|---|
| Packed Quantity | 2 pieces |
| Mounting | Screws, staples or nails to studs or joists |
Specifications subject to change.
