Klipsch IK-800-W II Install Kit - 10pcs

Klipsch IK-800-W II Install Kit - 10pcs

Product Details

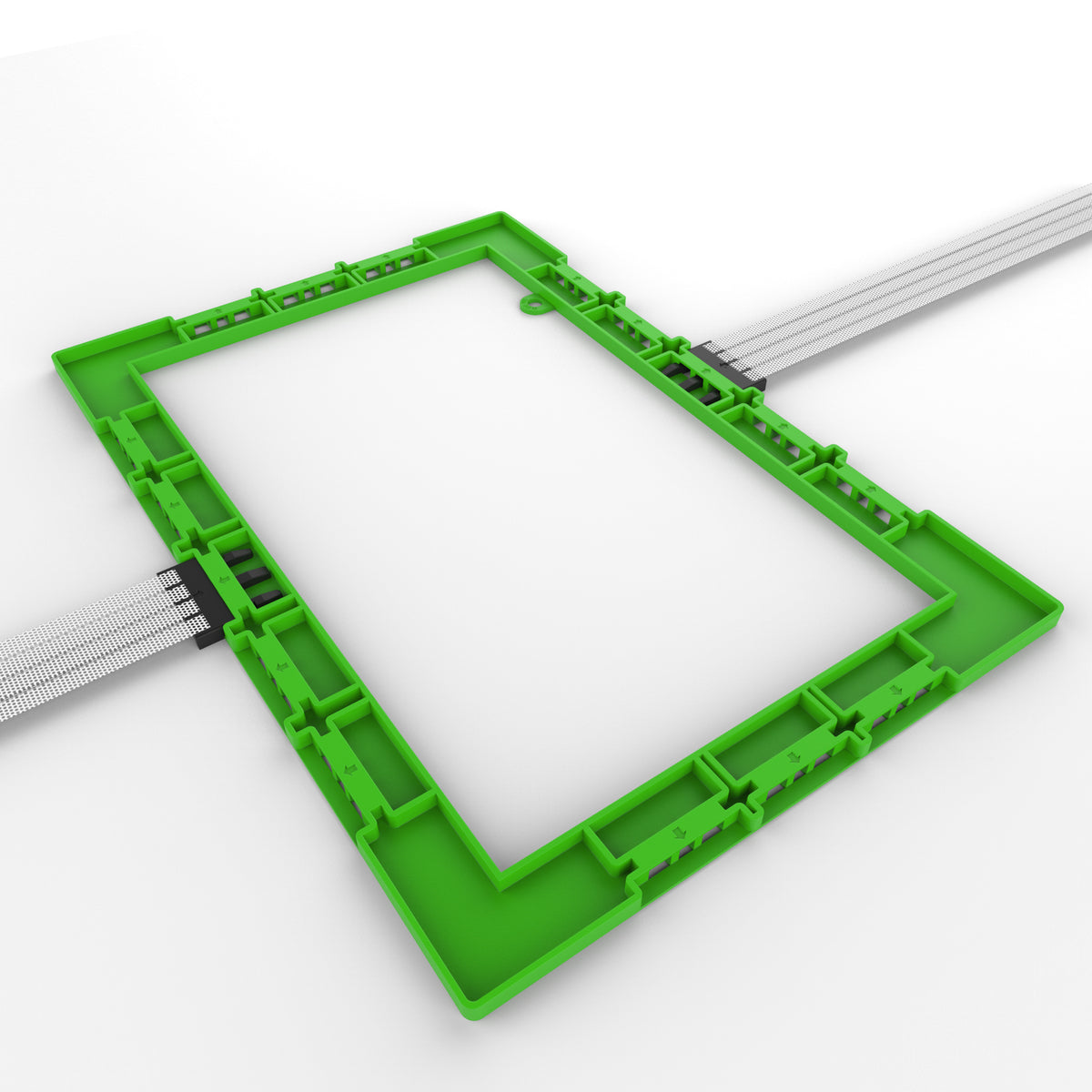

The Klipsch IK-800-W II install kit adds mounting flexibility to 8" in-wall speakers. It is a pre-construction bracket: it goes in before the drywall so the speaker cut-out lands exactly where it was designed to, rather than wherever the finished ceiling happens to allow.

The kit combines a mud ring with a breakaway wire tie and color-coded brackets that identify the speaker size at a glance on a job site running several sizes at once. One flat side with a raised wall lets it mount directly against a joist, which is how you line a run of speakers up with lights, vents and each other.

Perforated metal wings fasten to the studs with screws, staples or nails and are ribbed for rigidity, letting a single kit span up to 24 inches. They are painted white for easy marking and will fold around the edge of a stud where the framing does not cooperate.

Features

• Pre-construction install kit for 8" in-wall speakers
• Mud ring with breakaway wire tie simplifies pre-wiring
• Color-coded brackets for quick speaker-size identification
• Flat side with raised wall mounts directly to a joist for precise alignment
• Multi-position snap-fit wings for mounting flexibility
• Ribbed perforated metal wings span up to 24"
• Wings fasten with screws, staples or nails and fold around stud edges
• Painted white for easy marking and placement
• Compatible with PRO-180RPW, PRO-18RW

Specifications

Specifications subject to change.
