Klipsch IK-400-W Install Kit -, 2pcs
Product Details
The Klipsch IK-400-W install kit adds mounting flexibility to 4" in-wall speakers. It is a pre-construction bracket: it goes in before the drywall so the speaker cut-out lands exactly where it was designed to, rather than wherever the finished ceiling happens to allow.

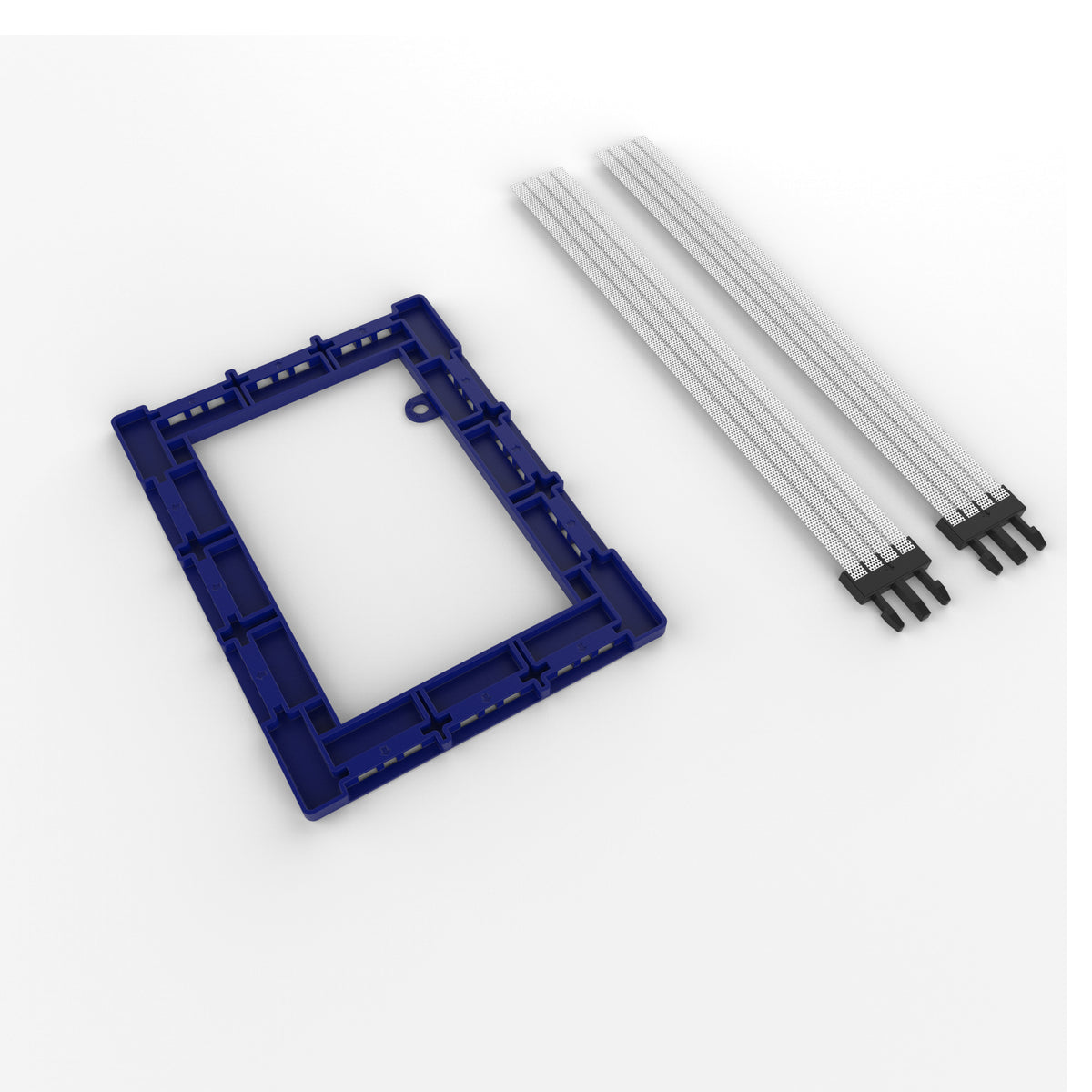

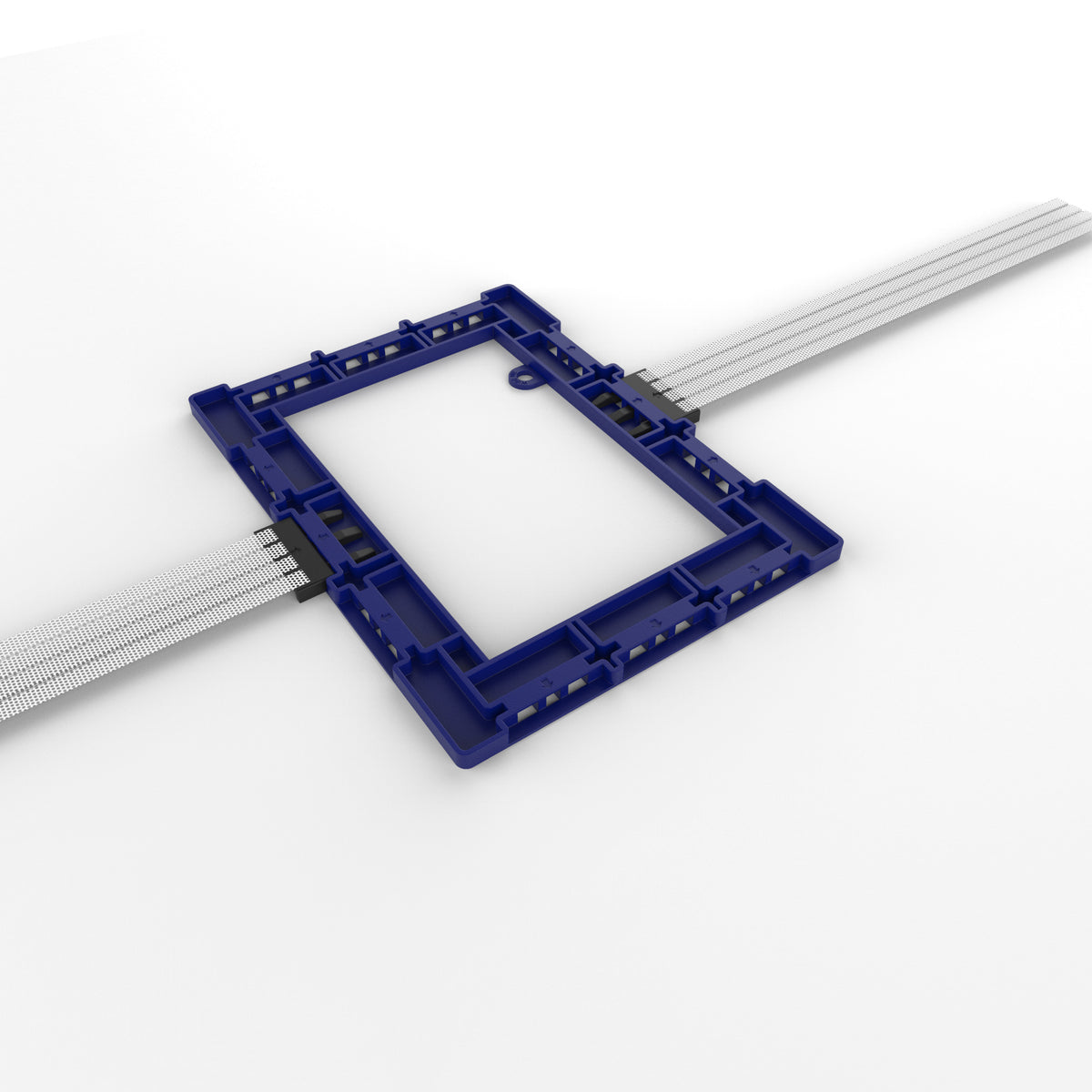

The kit combines a mud ring with a breakaway wire tie and color-coded brackets that identify the speaker size at a glance on a job site running several sizes at once. One flat side with a raised wall lets it mount directly against a joist, which is how you line a run of speakers up with lights, vents and each other.
Perforated metal wings fasten to the studs with screws, staples or nails and are ribbed for rigidity, letting a single kit span up to 24 inches. They are painted white for easy marking and will fold around the edge of a stud where the framing does not cooperate.
Features
- Pre-construction install kit for 4" in-wall speakers
- Mud ring with breakaway wire tie simplifies pre-wiring
- Color-coded brackets for quick speaker-size identification
- Flat side with raised wall mounts directly to a joist for precise alignment
- Multi-position snap-fit wings for mounting flexibility
- Ribbed perforated metal wings span up to 24"
- Wings fasten with screws, staples or nails and fold around stud edges
- Painted white for easy marking and placement
- Compatible with PRO-14RW
Specifications
| Technical | |
|---|---|
| Type | Pre-construction in-wall install kit |
| Speaker Size | 4" |
| Maximum Stud Span | 24" |
| Wing Material | Perforated ribbed metal, painted white |
| Wire Management | Breakaway wire tie |
| Speaker Compatibility | PRO-14RW |
| Physical | |
|---|---|
| Packaged Quantity | 2 pieces |
| Finish | White |
Specifications subject to change.
