Klipsch DS-250W-LCR SkyHook Cinch White, Each
Product Details
The DS-250W-LCR sits in the Klipsch Designer series — architectural speakers that carry the same Tractrix® horn technology as the premium Klipsch lines into a price bracket that suits a whole-house distributed system rather than one showpiece room.

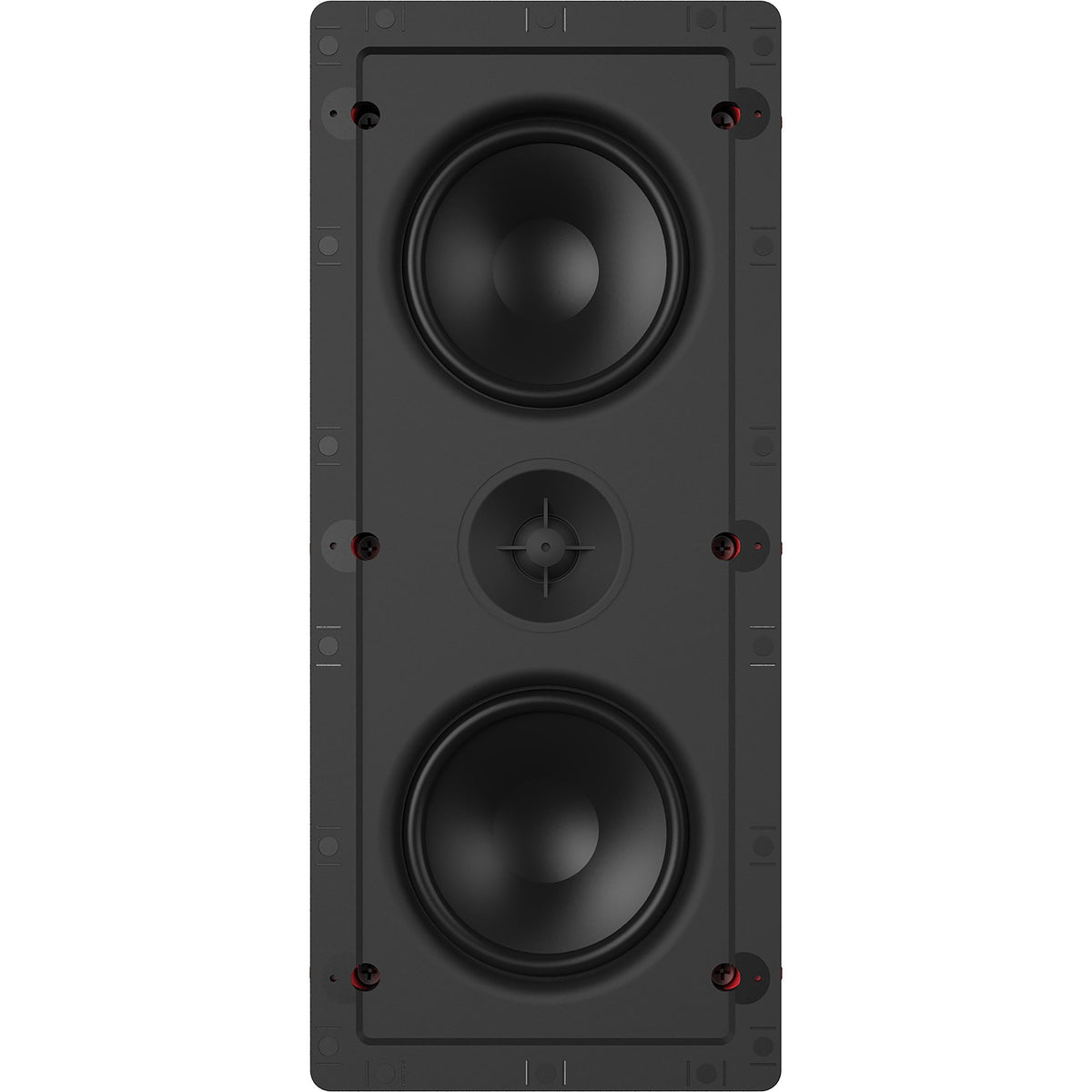

Acoustically it pairs dual 5.25" (13.34cm) polypropylene woofers with a 1" (2.54cm) silk dome tweeter mated to a 90°x90° Tractrix® horn. The horn is what separates these from a generic architectural speaker: it controls dispersion, so the sound arrives at ear level rather than spraying across the ceiling.

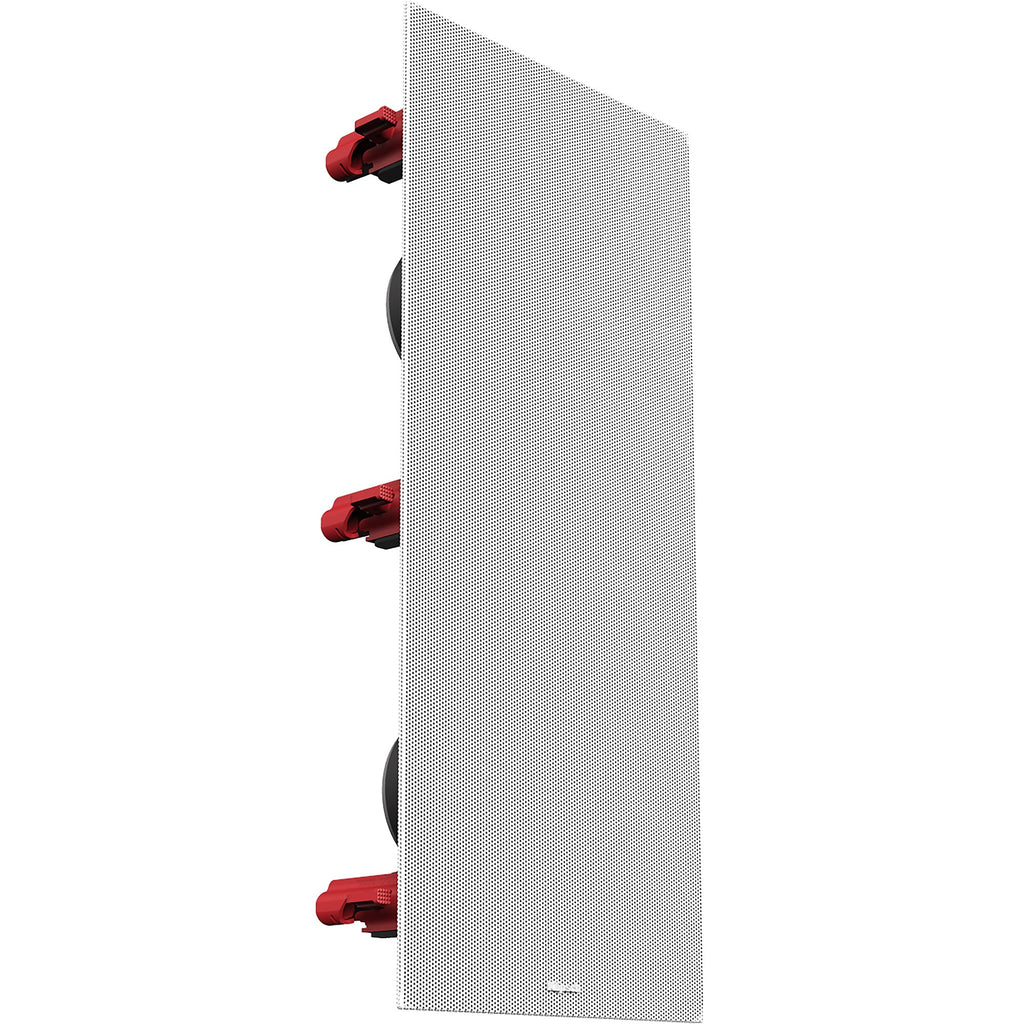

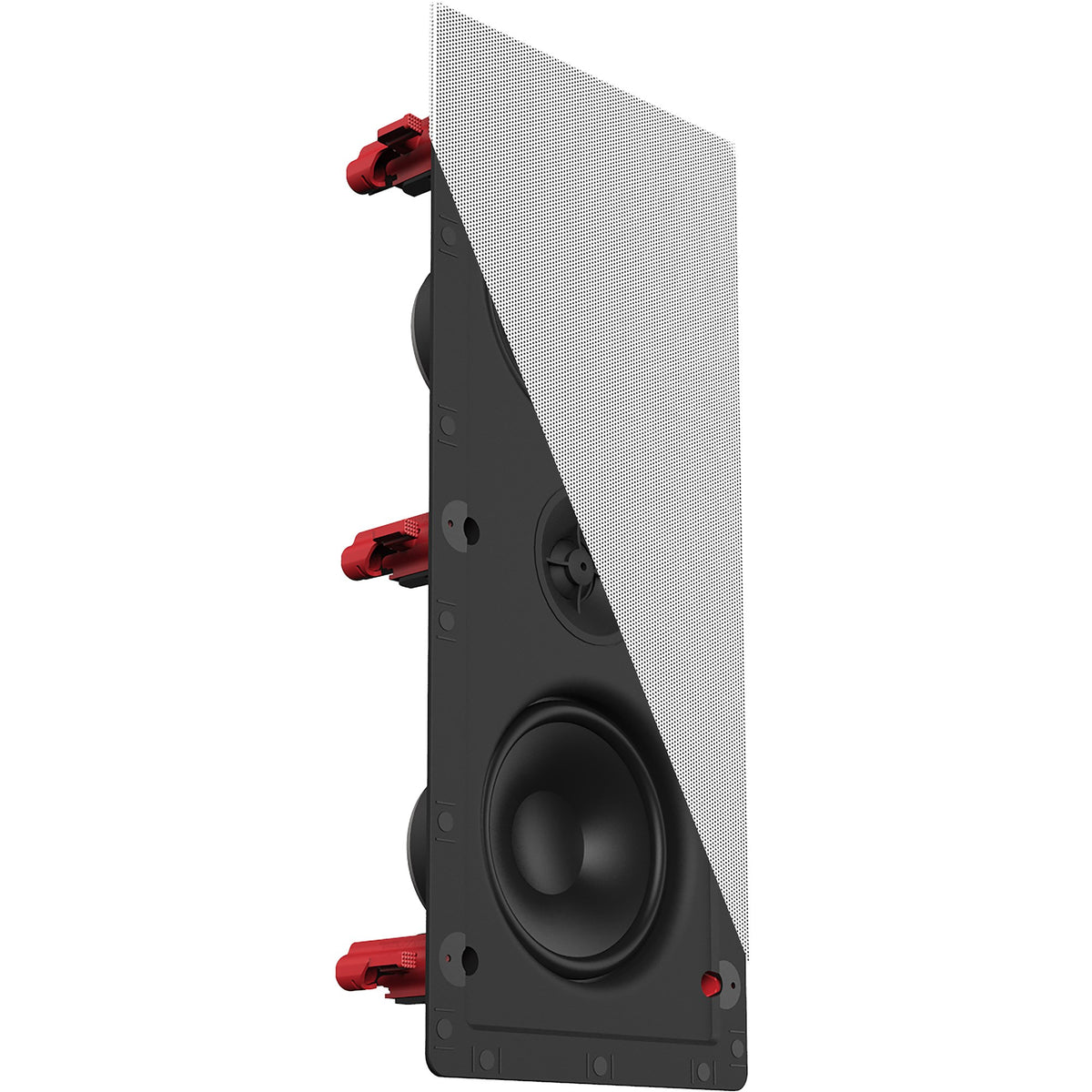

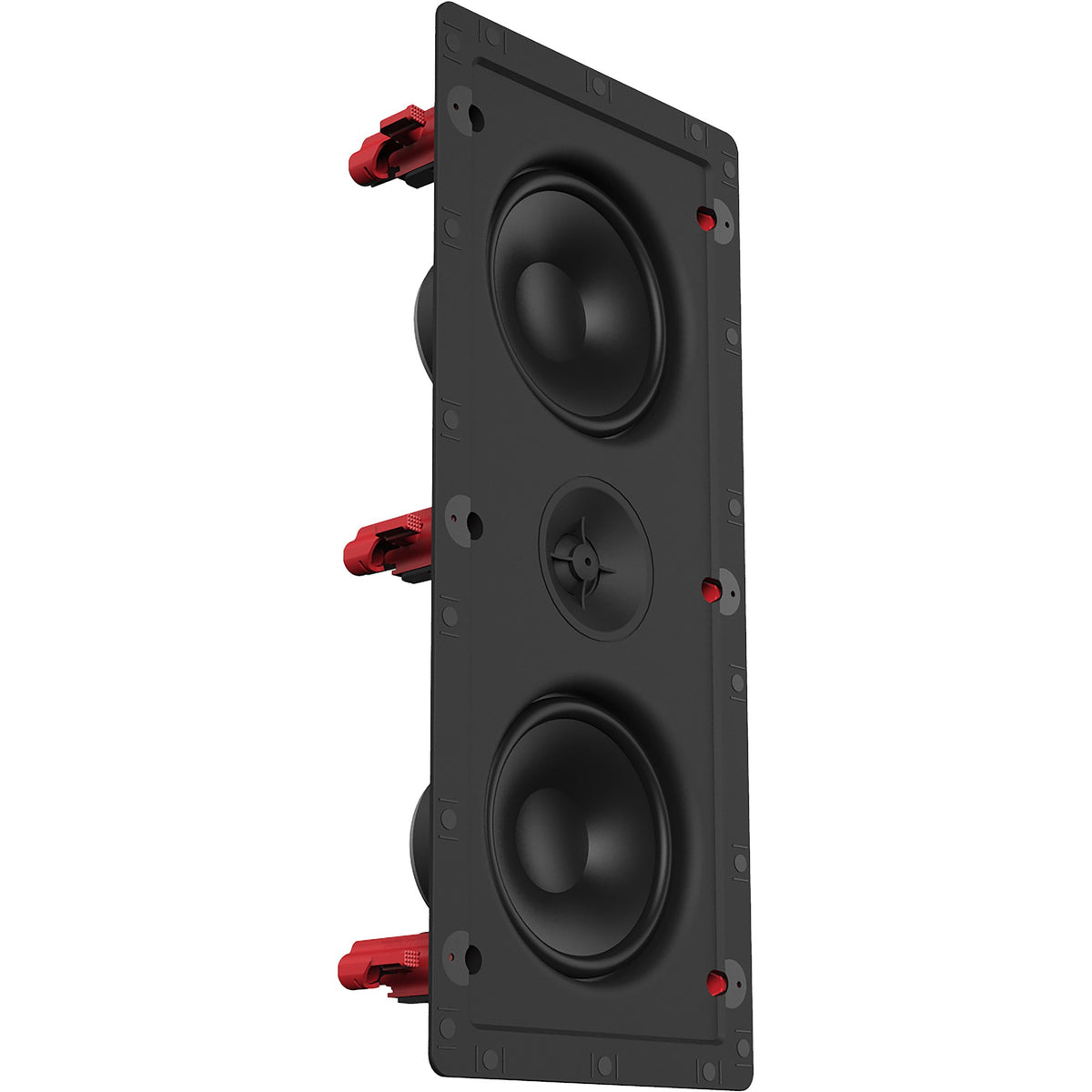

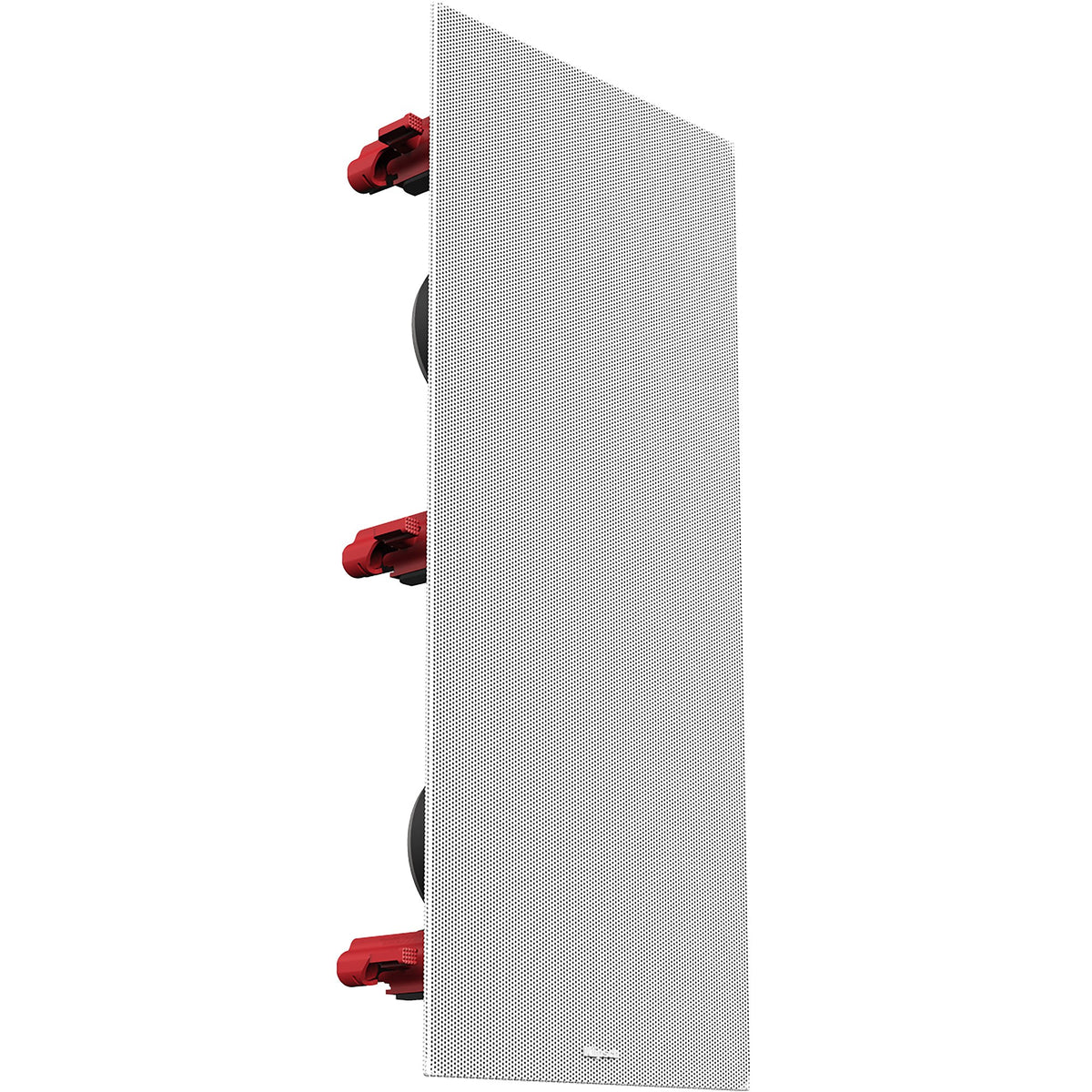

The headline feature is the patented Sky Hook® Cinch installation system. The dog legs engage automatically when the speaker is pushed into the cut-out, at a preset clamping force — so there is no way to over-torque and crack the baffle. If the opening is uneven, a quarter turn on each dog leg screw pulls it flush. Klipsch put install time reduction at up to 75%, which on a job with twenty ceiling speakers is most of a day.
This is the LCR version: a horizontal three-driver layout for left, centre and right behind a single grille, sized to sit above or below a screen.

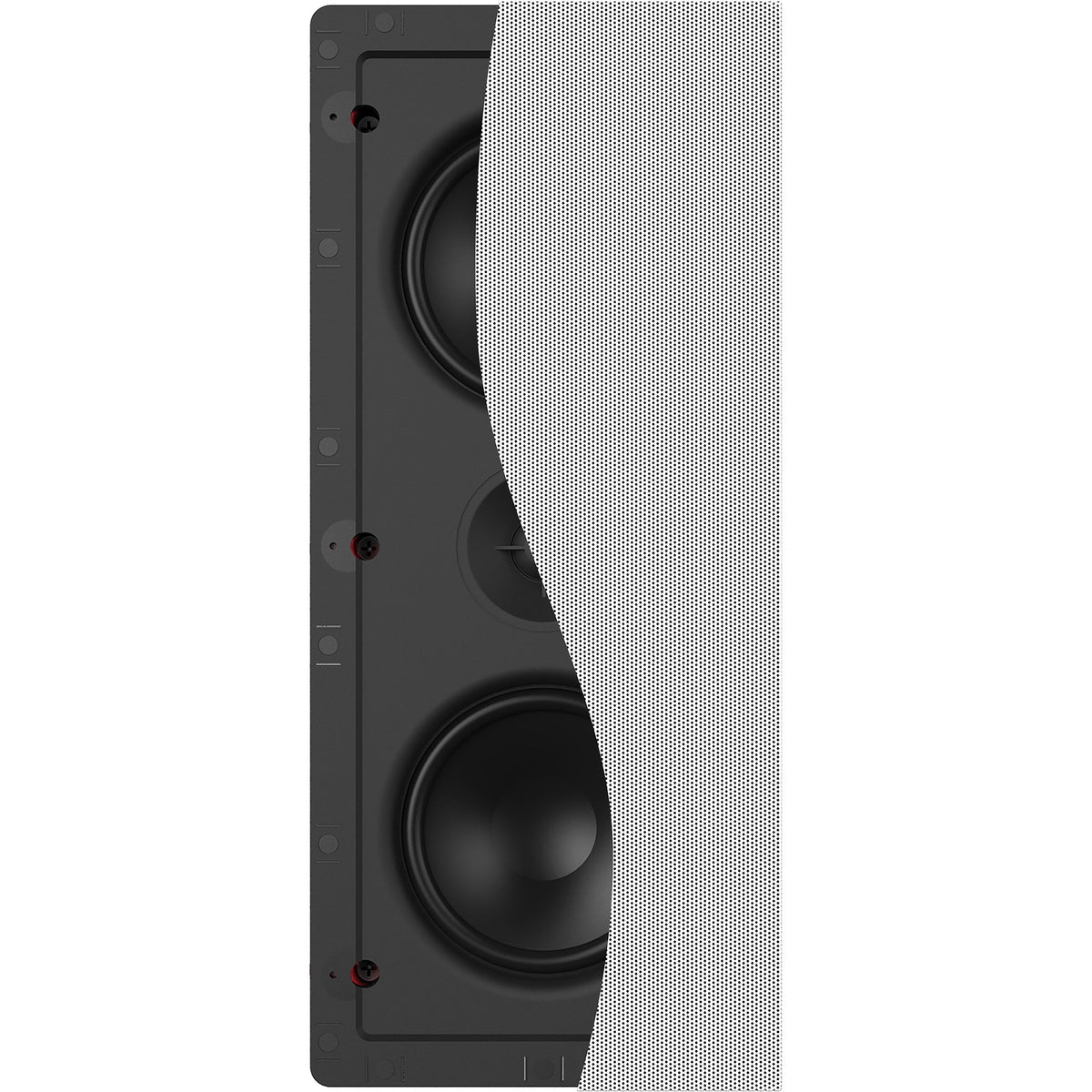

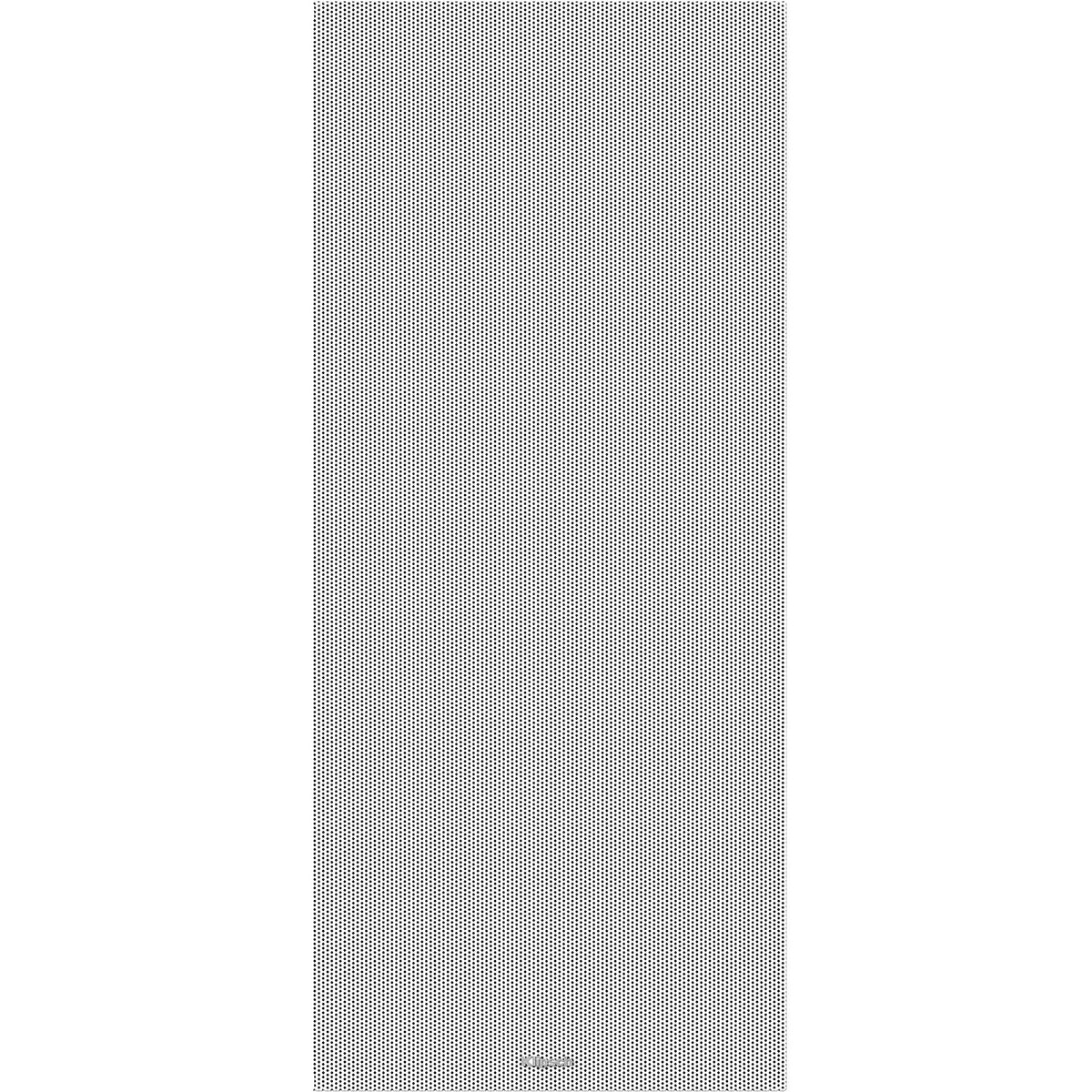

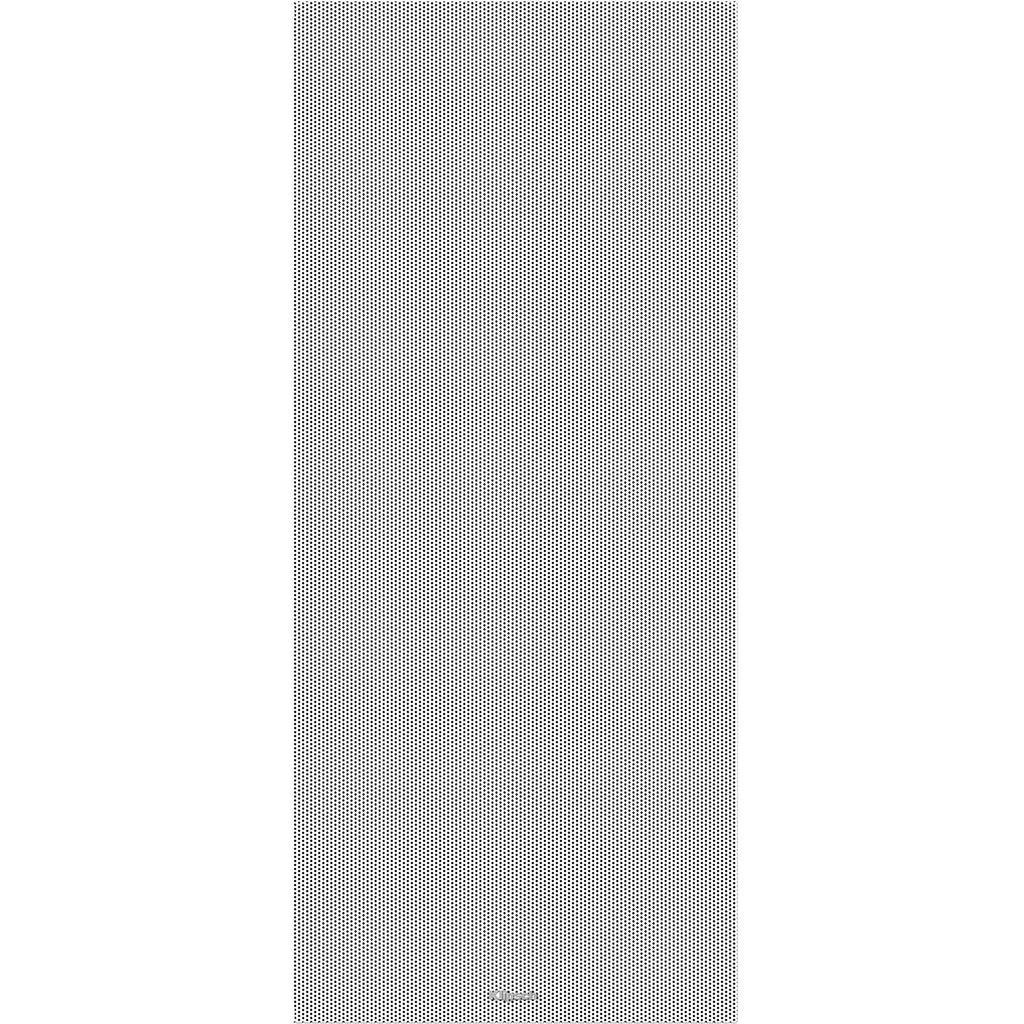

A redesigned powder-coated magnetic steel grille removes the bezel entirely, so the speaker sits flush and reads as part of the ceiling rather than a fitting attached to it.
Features
- 1" (2.54cm) Silk Dome Tweeter mated to a 90°x90° Tractrix® Horn
- Dual 5.25" (13.34cm) Polypropylene Woofers
- 73Hz - 20kHz +/- 3dB frequency response
- 92 dB @ 2.83V / 1m sensitivity
- 60W RMS / 240W Peak power handling
- Patented Sky Hook® Cinch tool-free installation system
- Dog legs engage automatically at a preset clamping force — no over-torquing
- Quarter-turn dog leg adjustment for uneven openings
- Install time reduced by up to 75%
- All-new bezel-free magnetic grille
- Powder-coated magnetic steel grille, paintable
- Tractrix® horn-loaded design
- In-wall mounting
Specifications
| Technical | |
|---|---|
| Frequency Range | 73Hz - 20kHz +/- 3dB |
| High Frequency Driver | 1" (2.54cm) Silk Dome Tweeter mated to a 90°x90° Tractrix® Horn |
| Low Frequency Driver | Dual 5.25" (13.34cm) Polypropylene Woofers |
| Sensitivity | 92 dB @ 2.83V / 1m |
| Coverage Angle | 100° |
| Power Handling | 60W RMS / 240W Peak |
| Impedance | 8 Ohm Compatible |
| Enclosure Material/Type | ABS/Infinite Baffle |
| Tool-Free Installation System | The exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%. |
| Physical | |
|---|---|
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 7.5" W x 17.4" H x 3.8" D (19.1cm H x 44.2cm W x 9.6cm D) |
| Mounting Depth | 3.78" (9.35cm) |
| Cutout Dimensions | 16.5" H X 6.5" W (41.9cm H X 16.5cm W) |
| Product Weight | 6.5lbs (2.95kg) |
| Included In Box | Flat Magnetic Grille |
| Install Kit | IK-502-W II (Sold Separately) |
| Built From | 2017 Dual |
Specifications subject to change.
