Description
Klipsch DS-180CDT SkyHook Cinch White, Each
Product Details
The DS-180CDT sits in the Klipsch Designer series — architectural speakers that carry the same Tractrix® horn technology as the premium Klipsch lines into a price bracket that suits a whole-house distributed system rather than one showpiece room.

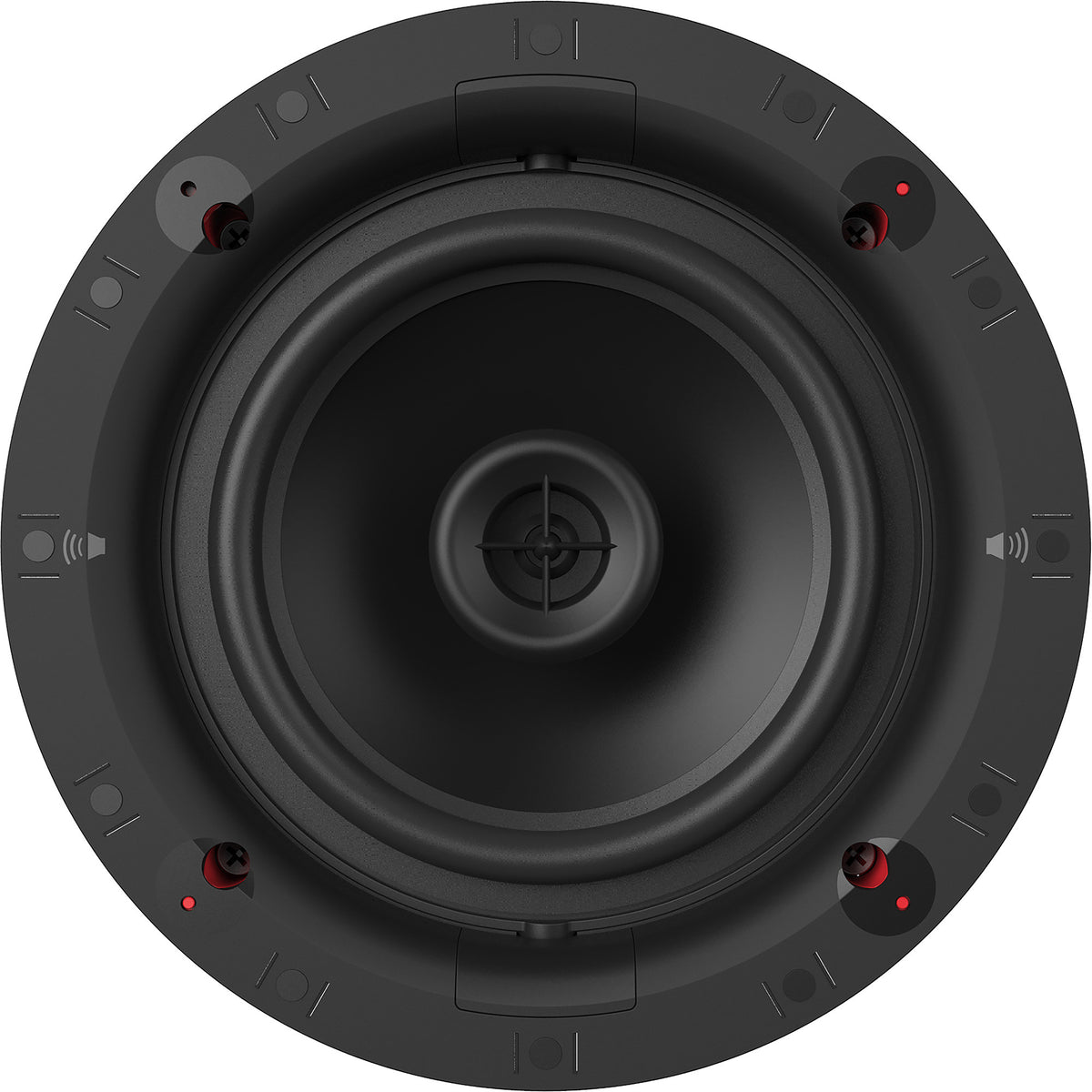

Acoustically it pairs an 8" (203.2mm) polypropylene woofer with a 1" (25.4mm) silk dome tweeter mated to a round Tractrix® horn. The horn is what separates these from a generic architectural speaker: it controls dispersion, so the sound arrives at ear level rather than spraying across the ceiling.

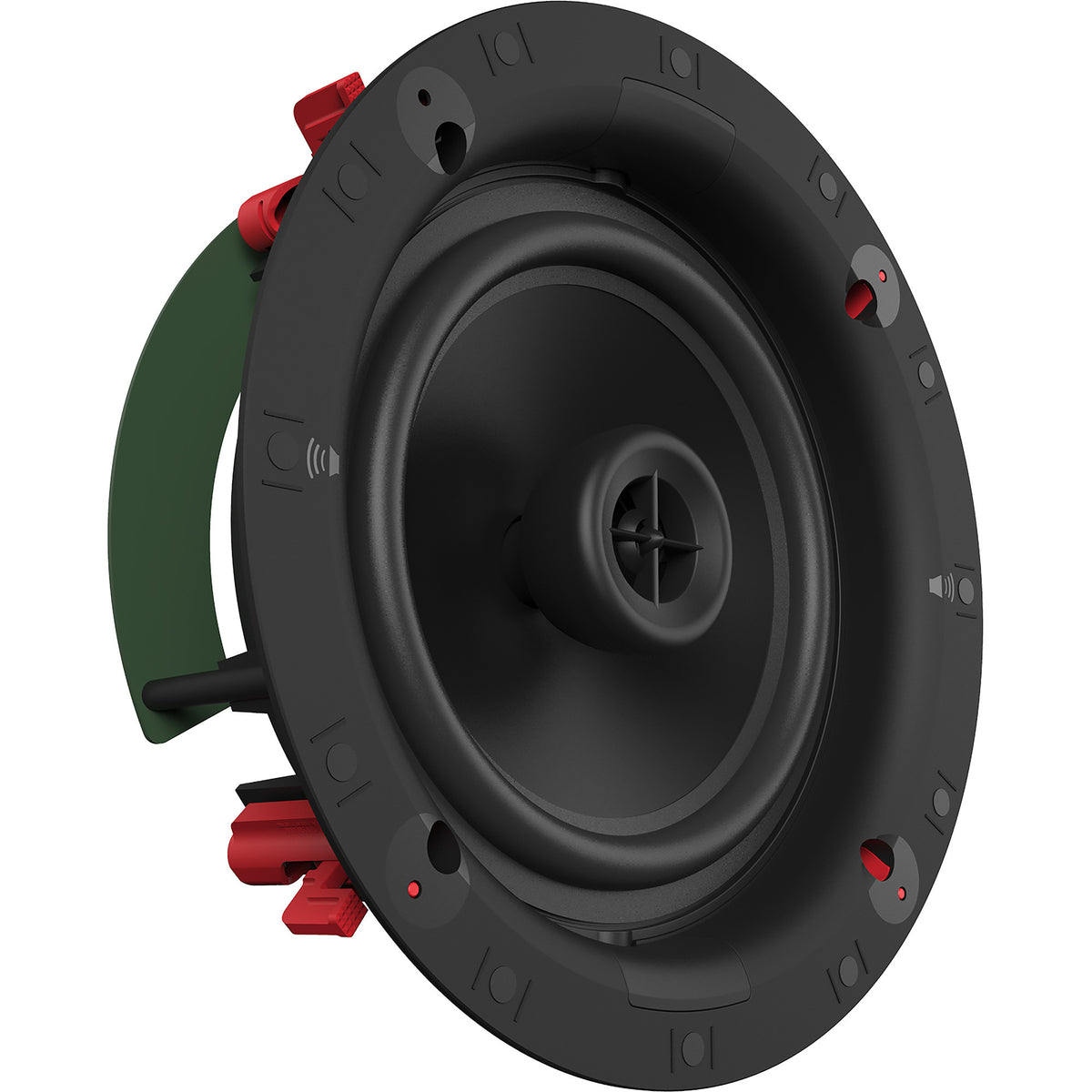

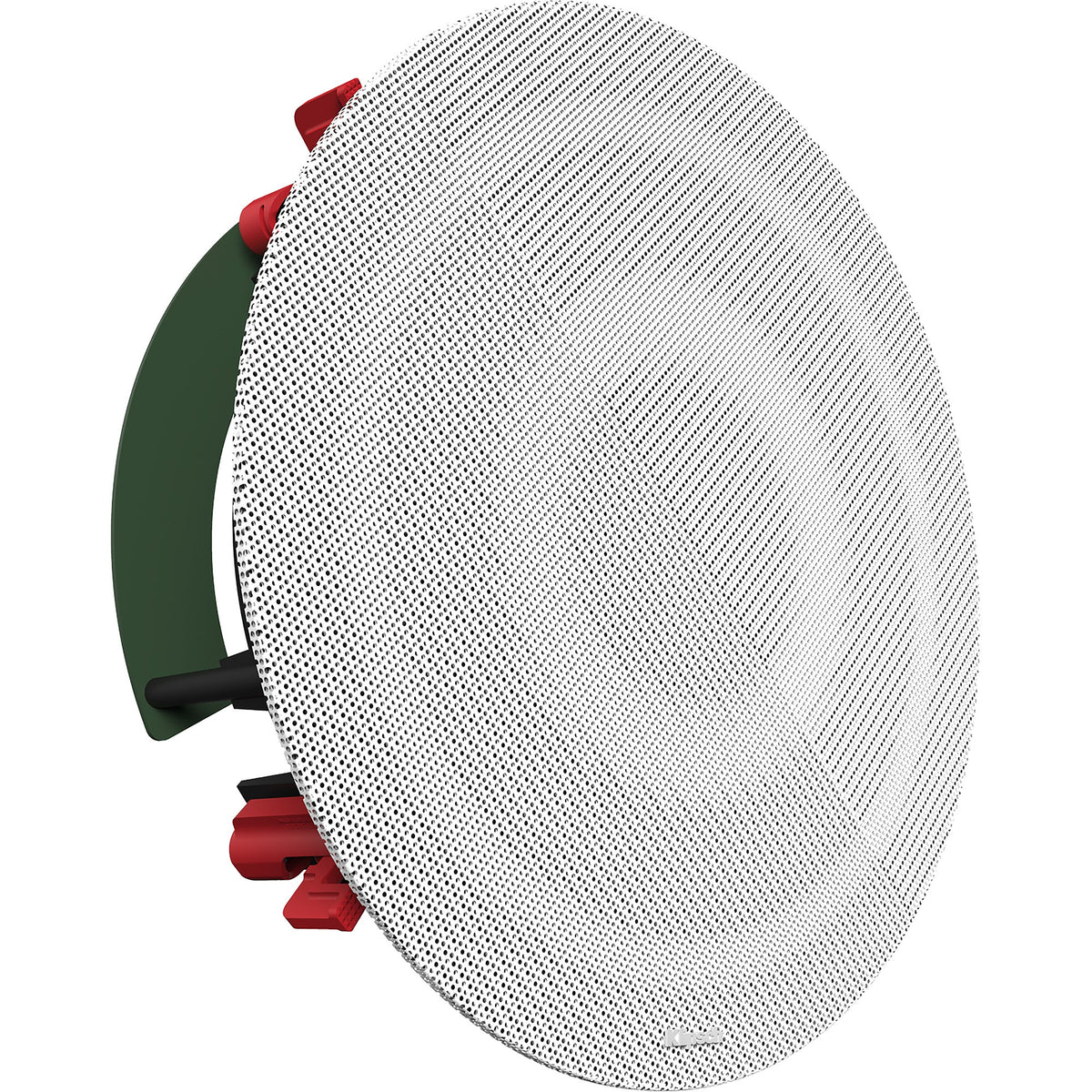

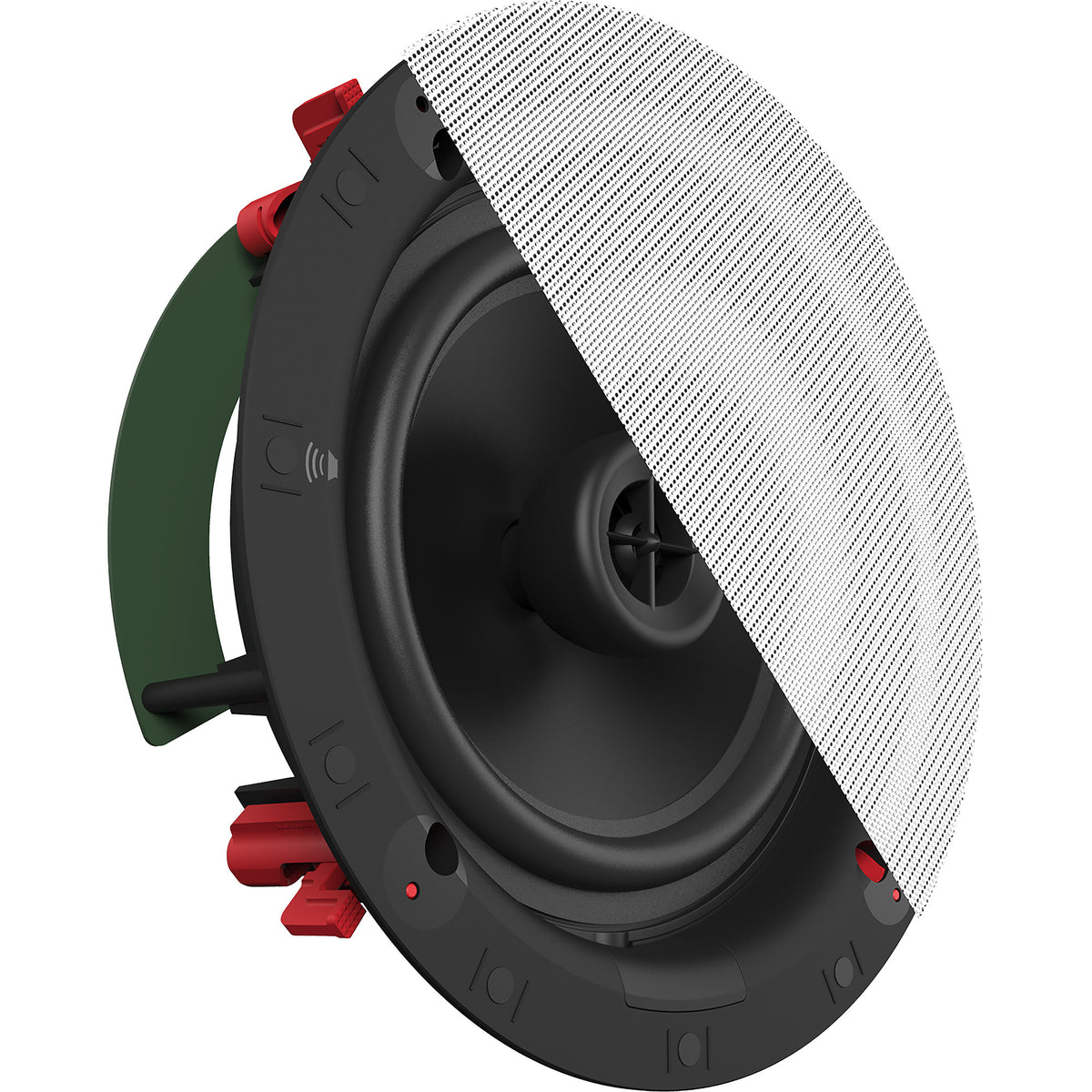

The headline feature is the patented Sky Hook® Cinch installation system. The dog legs engage automatically when the speaker is pushed into the cut-out, at a preset clamping force — so there is no way to over-torque and crack the baffle. If the opening is uneven, a quarter turn on each dog leg screw pulls it flush. Klipsch put install time reduction at up to 75%, which on a job with twenty ceiling speakers is most of a day.
The CDT designation means a directional tweeter: the horn assembly aims, so a speaker in a high or off-center ceiling position can still be pointed at the listening area.

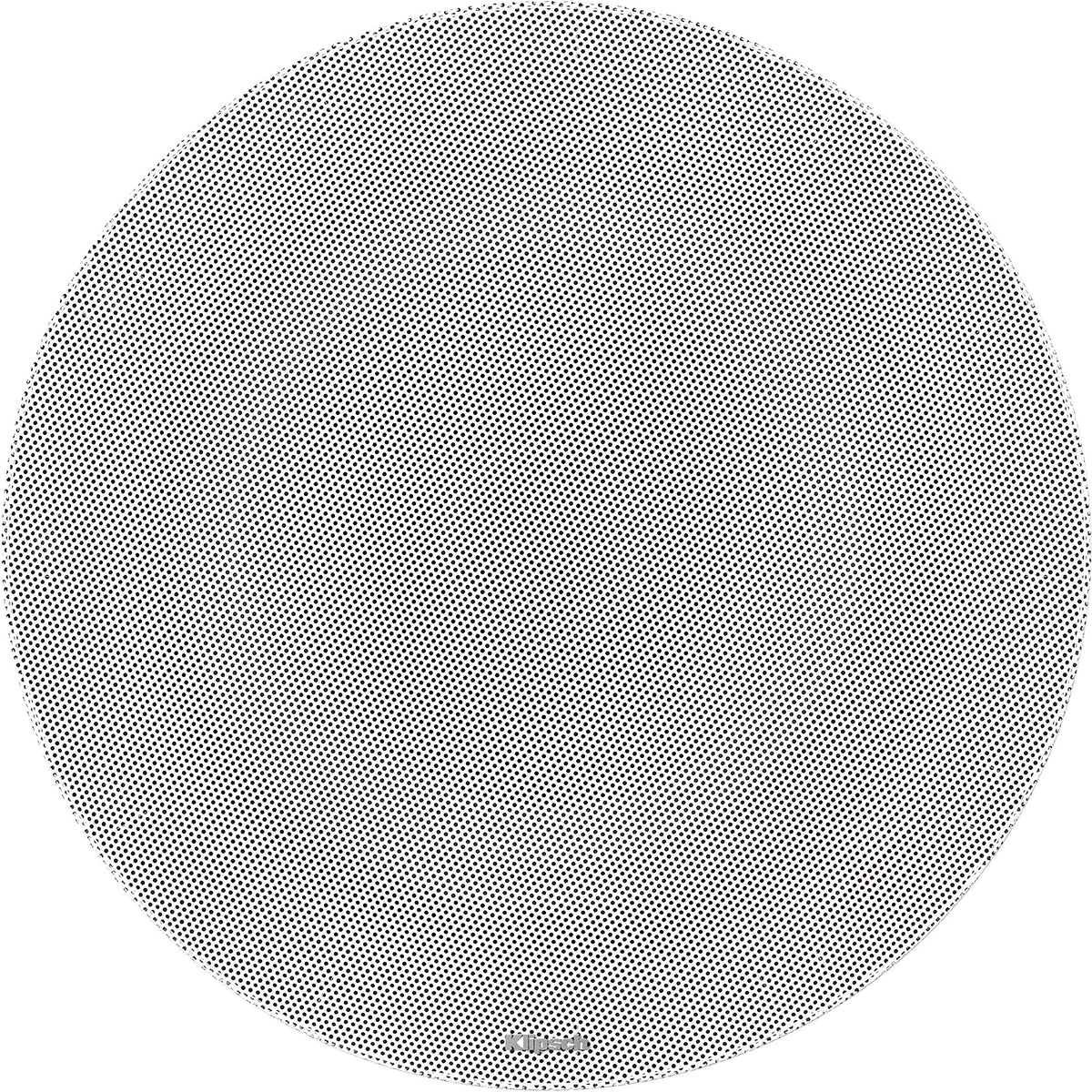

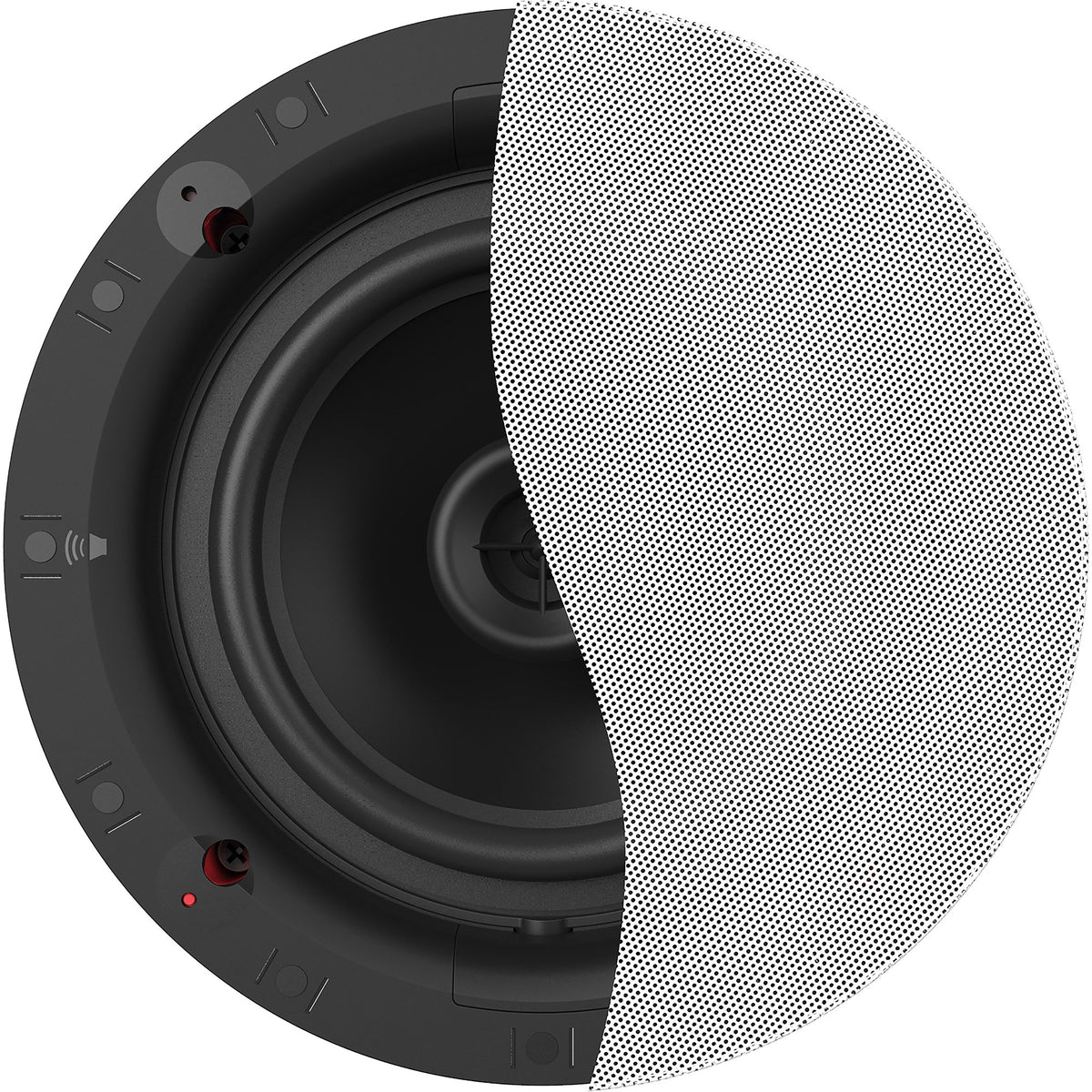

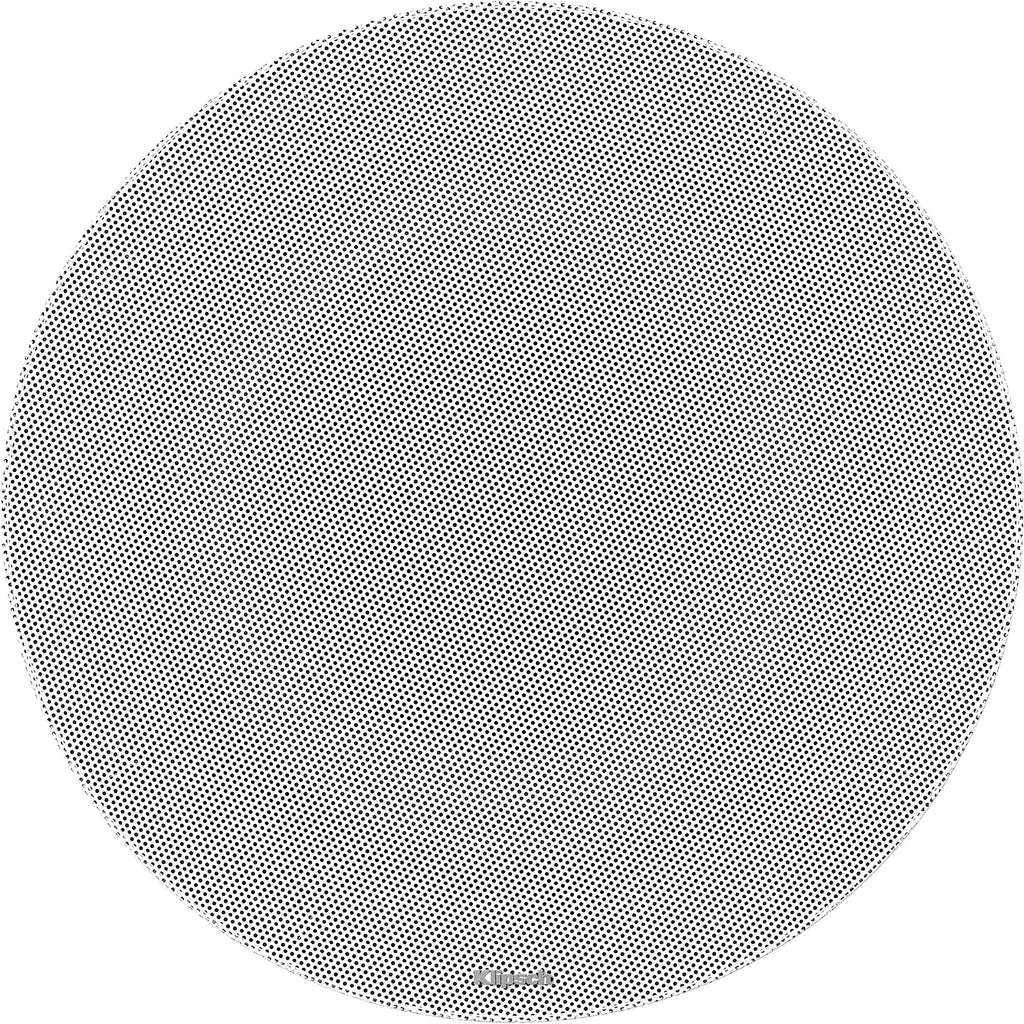

A redesigned powder-coated magnetic steel grille removes the bezel entirely, so the speaker sits flush and reads as part of the ceiling rather than a fitting attached to it.
Features
- 1" (25.4mm) Silk Dome Tweeter mated to a round Tractrix® Horn
- 8" (203.2mm) Polypropylene Woofer
- 55Hz-20KHz +/- 3dB frequency response
- 94 dB @ 2.83V / 1m sensitivity
- 50W RMS / 200W RMS power handling
- Patented Sky Hook® Cinch tool-free installation system
- Dog legs engage automatically at a preset clamping force — no over-torquing
- Quarter-turn dog leg adjustment for uneven openings
- Install time reduced by up to 75%
- All-new bezel-free magnetic grille
- Powder-coated magnetic steel grille, paintable
- Tractrix® horn-loaded design
- In-ceiling mounting
Specifications
| Technical | |
|---|---|
| Frequency Range | 55Hz-20KHz +/- 3dB |
| High Frequency Driver | 1" (25.4mm) Silk Dome Tweeter mated to a round Tractrix® Horn |
| Low Frequency Driver | 8" (203.2mm) Polypropylene Woofer |
| Sensitivity | 94 dB @ 2.83V / 1m |
| Coverage Angle | 100° |
| Power Handling | 50W RMS / 200W RMS |
| Impedance | 8 Ohm Compatible |
| Enclosure Material/Type | ABS/Infinite Baffle |
| Installation System | This exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of over torquing. If dealing with an uneven space, a 1/4 turn of each dog leg screw achieves an even more flush finish. This fast, easy installation system reduces install time by up to 75%. |
| Controlled Dispersion Technology&Trade; | CDT technology allows for the tweeter and the woofer to be aimed up to 15°, helping to ensure on-axis frequency response at almost any listening position. |
| Physical | |
|---|---|
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 10.75" W x 10.75" H x 4.76" D (273mm H x 273mm W x 121mm D) |
| Mounting Depth | 4.65" (118mm) |
| Cutout Dimensions | 9.57" (243mm) |
| Product Weight | 7.4 lbs (3.36kg) |
| Included In Box | Flat Paintable Magnetic Grille |
| Install Kit | IK-800-C II (Sold Separately) |
| Fire Rated Enclosure | ME-800-C (Sold Separately) |
| Built From | 2017 |
Specifications subject to change.
