Klipsch DS-160W SkyHook Cinch White, Each
Product Details
The DS-160W sits in the Klipsch Designer series — architectural speakers that carry the same Tractrix® horn technology as the premium Klipsch lines into a price bracket that suits a whole-house distributed system rather than one showpiece room.
Acoustically it pairs a 6.5" (16.51cm) polypropylene woofer with a 1" (2.54cm) silk dome tweeter mated to a round Tractrix® horn. The horn is what separates these from a generic architectural speaker: it controls dispersion, so the sound arrives at ear level rather than spraying across the ceiling.
The headline feature is the patented Sky Hook® Cinch installation system. The dog legs engage automatically when the speaker is pushed into the cut-out, at a preset clamping force — so there is no way to over-torque and crack the baffle. If the opening is uneven, a quarter turn on each dog leg screw pulls it flush. Klipsch put install time reduction at up to 75%, which on a job with twenty ceiling speakers is most of a day.
A redesigned powder-coated magnetic steel grille removes the bezel entirely, so the speaker sits flush and reads as part of the ceiling rather than a fitting attached to it.
Features
- 1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn
- 6.5" (16.51cm) Polypropylene Woofer
- 77Hz - 20kHz +/- 3dB frequency response
- 91 dB @ 2.83V / 1m sensitivity
- 50W RMS / 200W RMS power handling

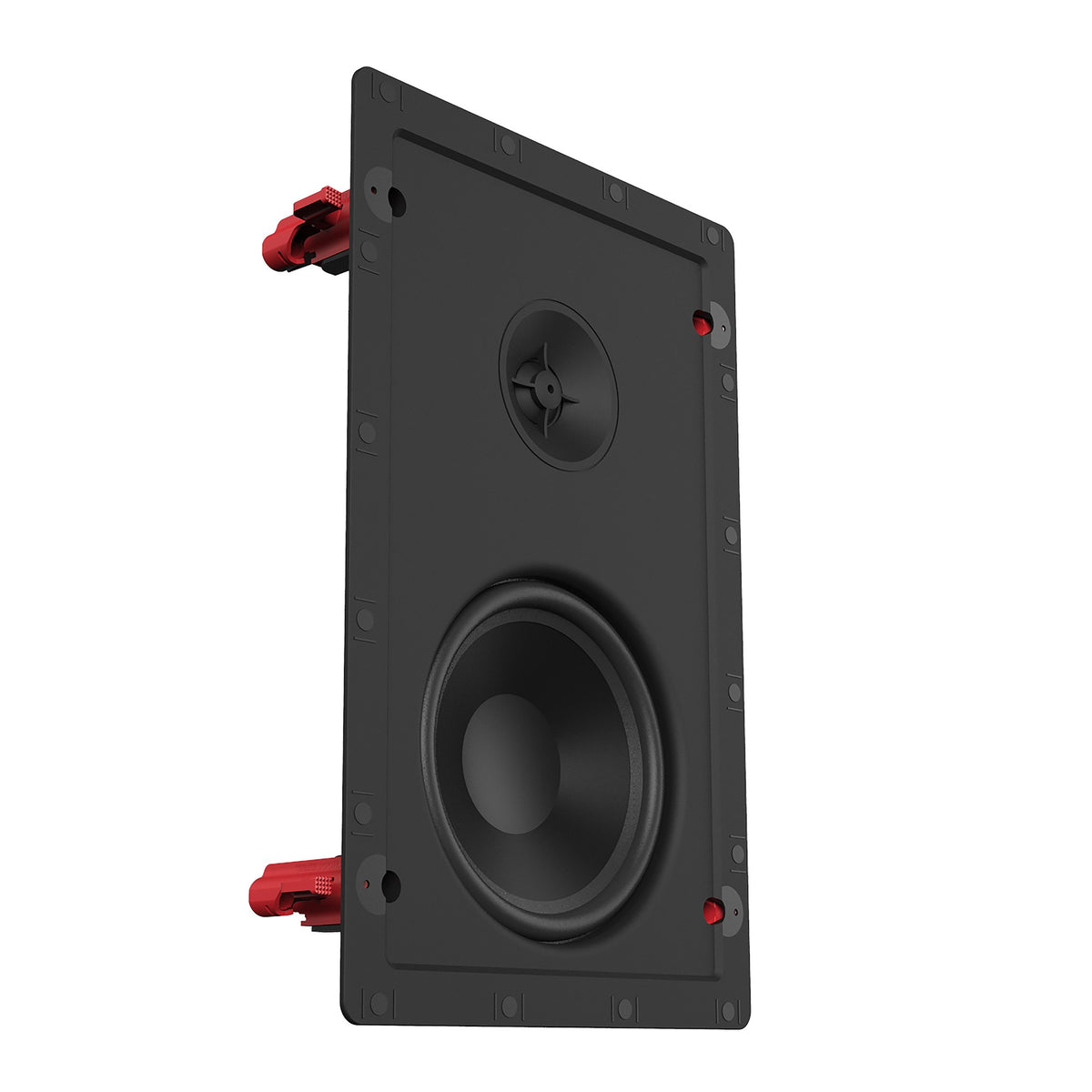

- Patented Sky Hook® Cinch tool-free installation system
- Dog legs engage automatically at a preset clamping force — no over-torquing
- Quarter-turn dog leg adjustment for uneven openings
- Install time reduced by up to 75%

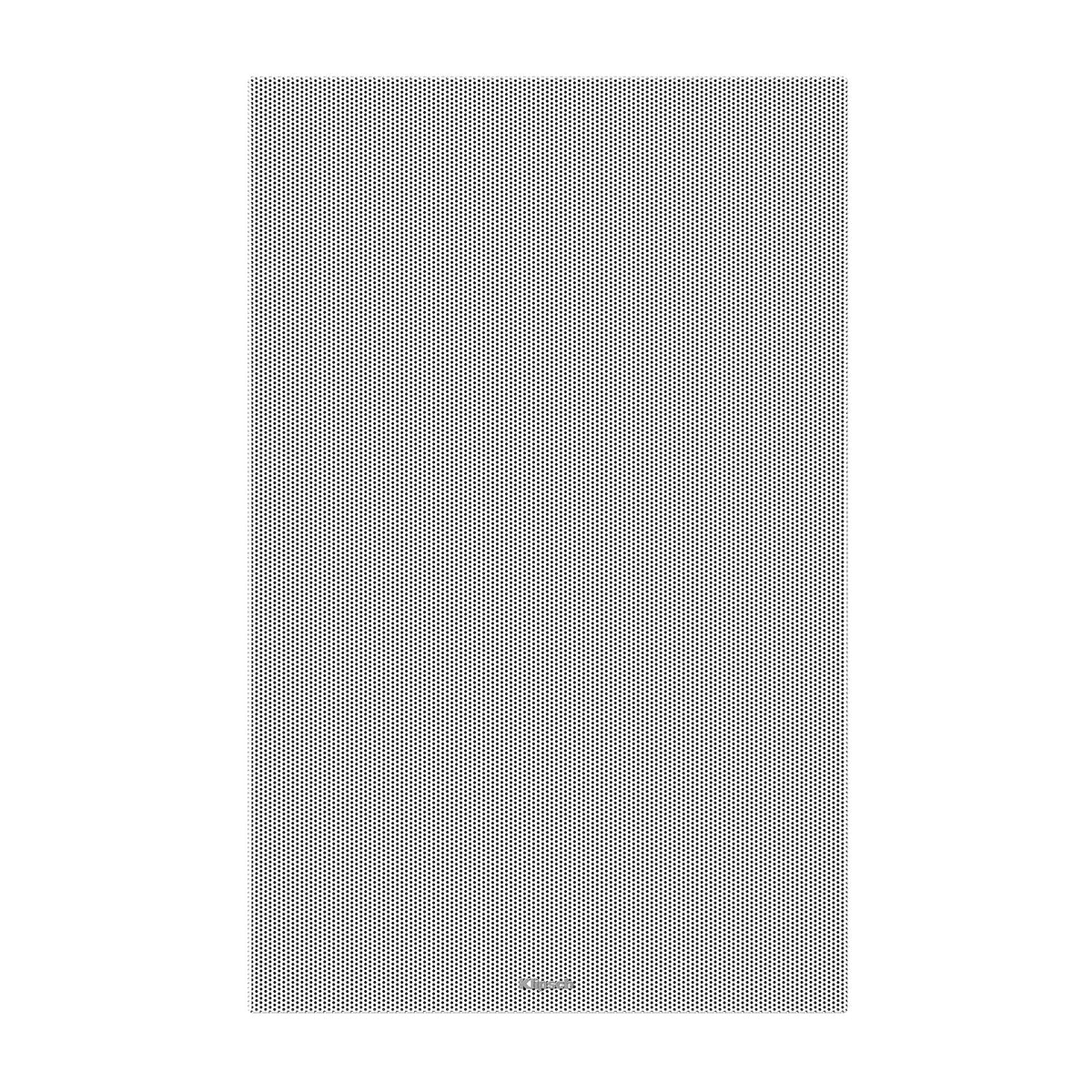

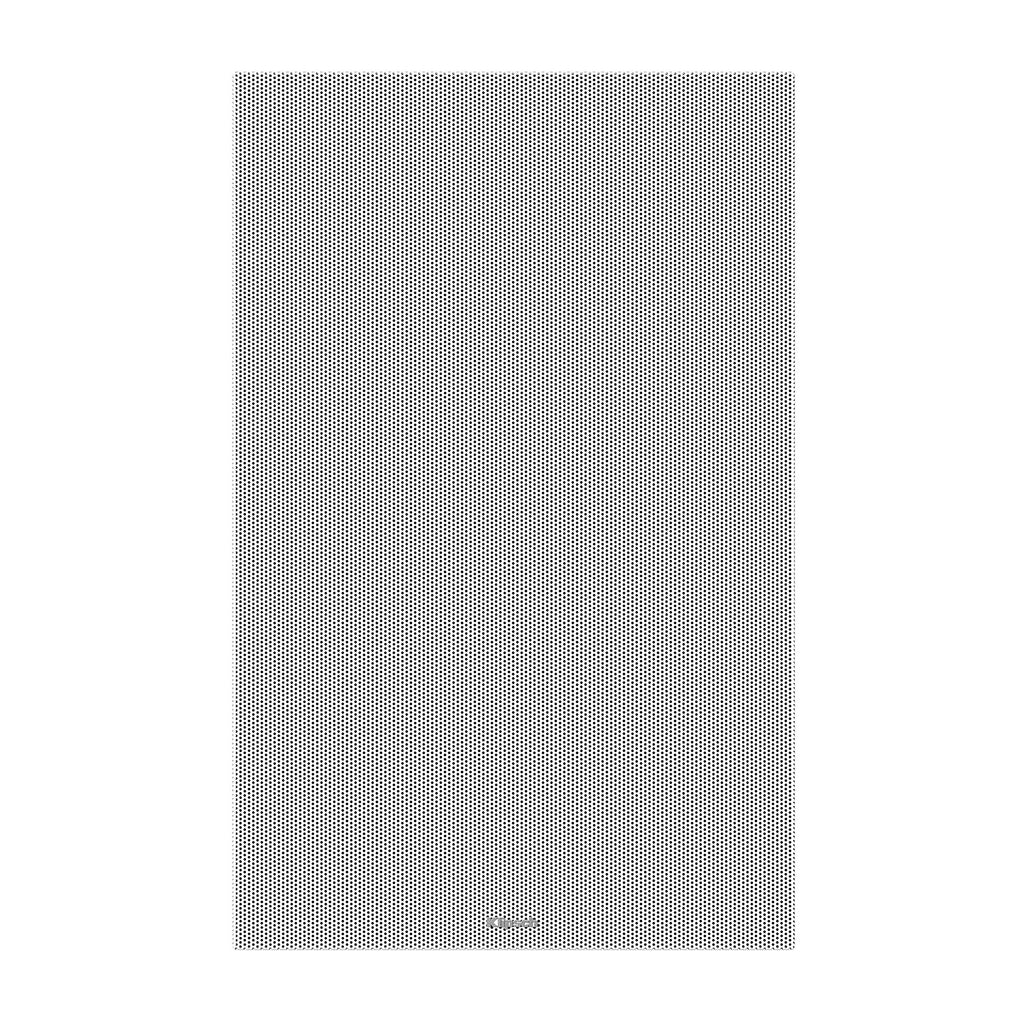

- All-new bezel-free magnetic grille
- Powder-coated magnetic steel grille, paintable
- Tractrix® horn-loaded design
- In-wall mounting
Specifications
| Technical | |
|---|---|
| Frequency Range | 77Hz - 20kHz +/- 3dB |
| High Frequency Driver | 1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn |
| Low Frequency Driver | 6.5" (16.51cm) Polypropylene Woofer |
| Sensitivity | 91 dB @ 2.83V / 1m |
| Coverage Angle | 100° |
| Power Handling | 50W RMS / 200W RMS |
| Impedance | 8 Ohm Compatible |
| Enclosure Material/Type | ABS/Infinite Baffle |
| Physical | |
|---|---|
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 9.0" W x 14.1" H x 3.9" D (22.8cm H x 35.8cm W x 9.8cm D) |
| Mounting Depth | 3.78" (9.6cm) |
| Cutout Dimensions | 13" H X 8" W (33.0cm H X 20.3cm W) |
| Product Weight | 7.2lbs (3.25kg) |
| Included In Box | Magnetic Grille |
| Install Kit | IK-650-W II (Sold Separately) |
| Fire Rated Enclosure | ME-650-W (Sold Separately) |
| Built From | 2017 |
Specifications subject to change.
