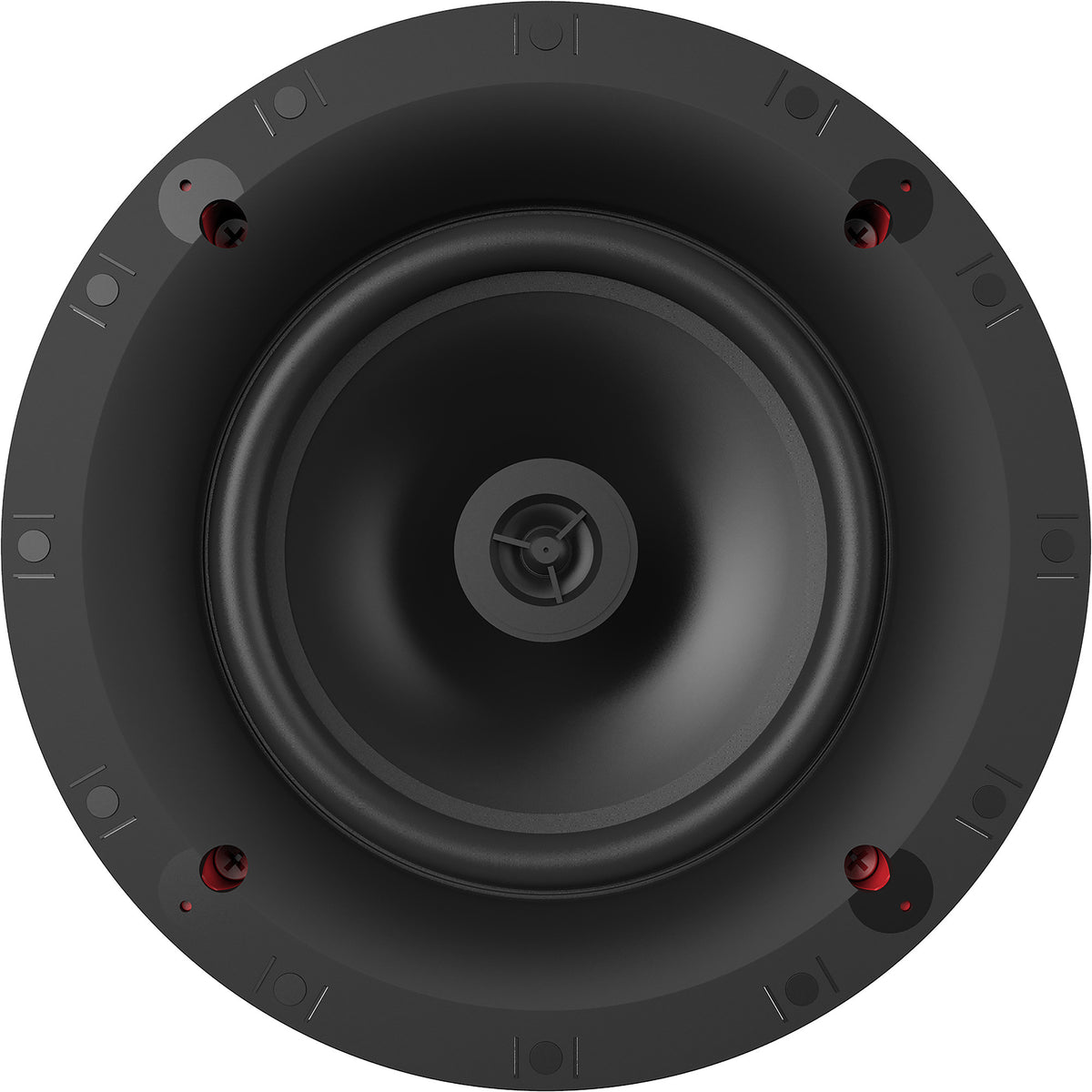

Klipsch CS-18C SkyHook Cinch White, Each
Product Details
The CS-18C is a value-focused Klipsch architectural speaker: the performance, reliability and finish you would expect from the brand, at a price that makes sense when a job needs eight of them rather than two.
It uses an 8" (203.2mm) polymer woofer with a 1" (19mm) polymer dome tweeter. The low-resonance polymer dome recreates high frequencies with reduced distortion and wide, balanced dispersion, and the dense but lightweight poly cone gives authoritative bass for the driver size.

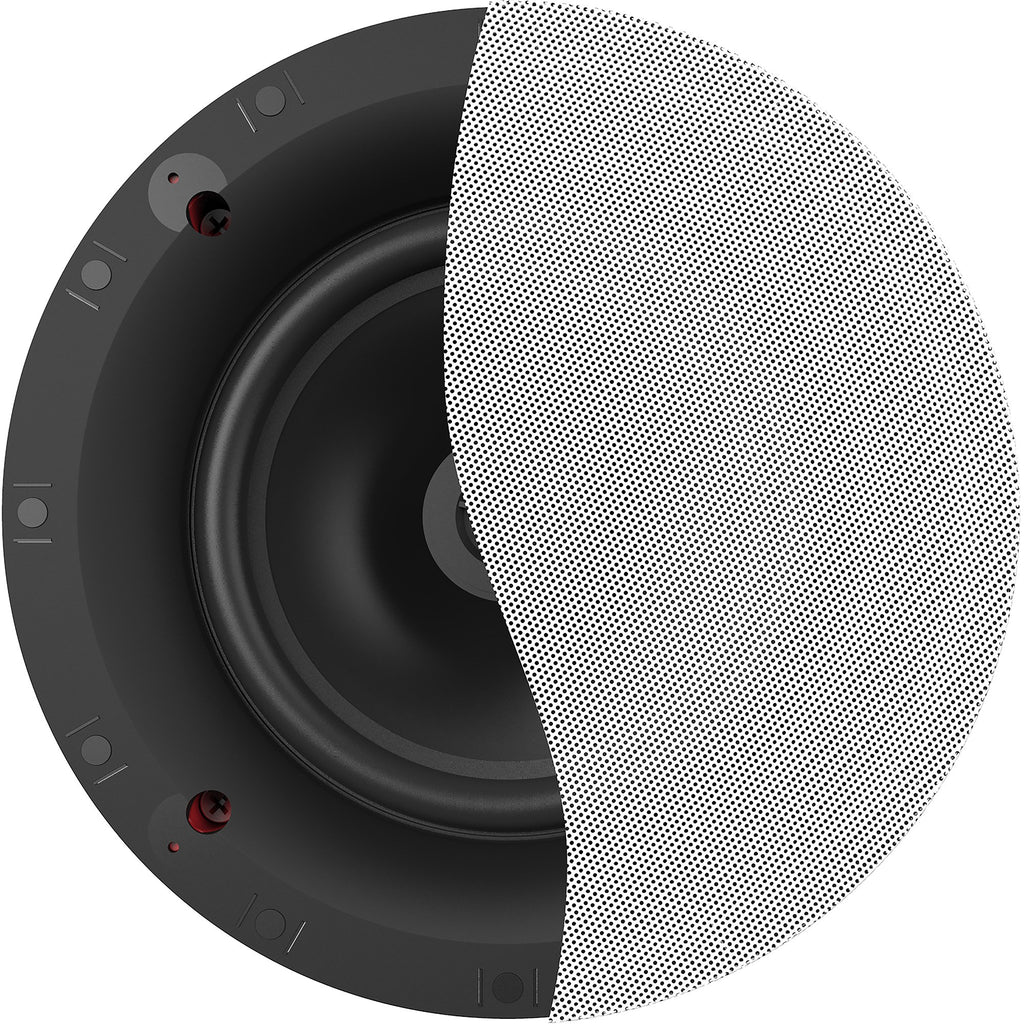

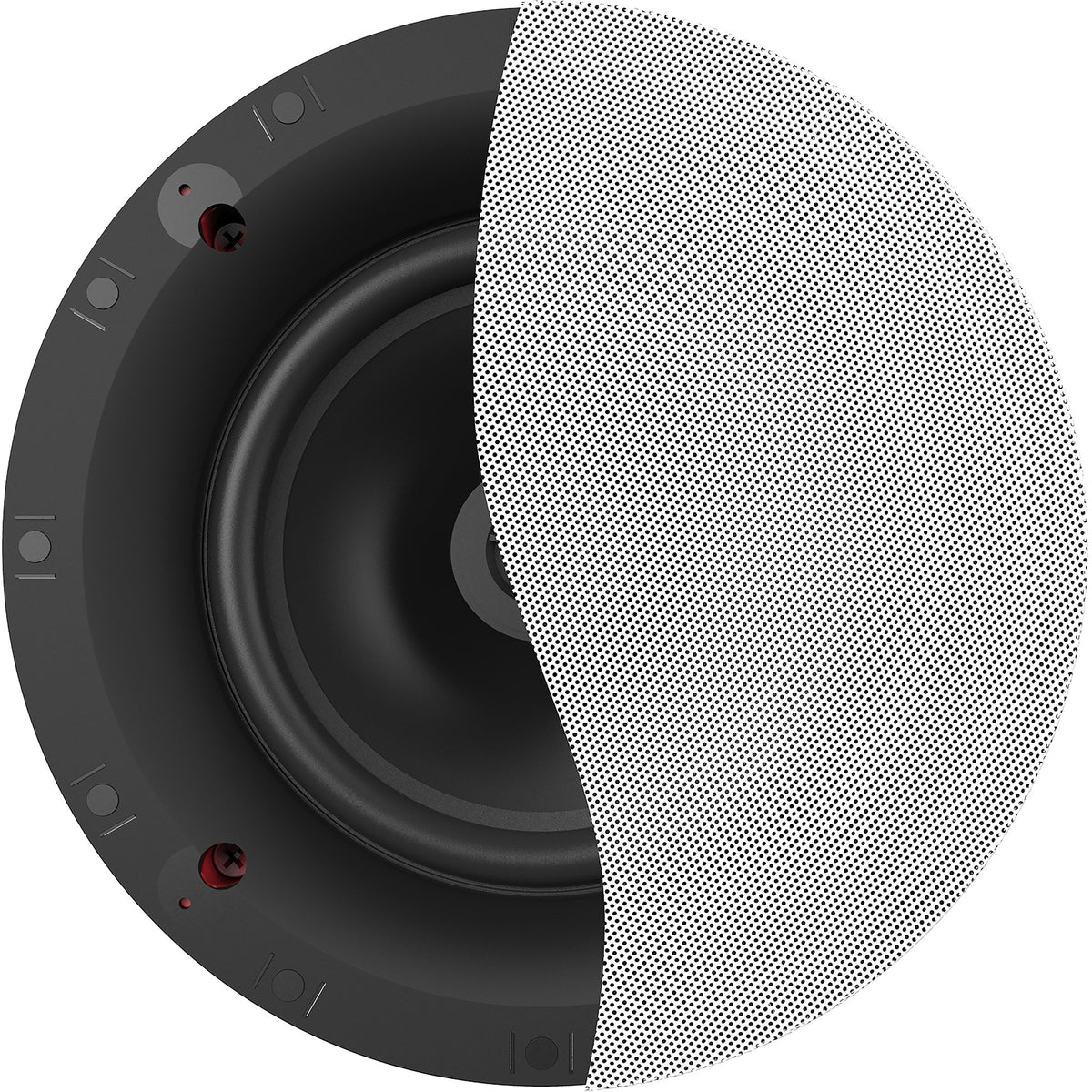

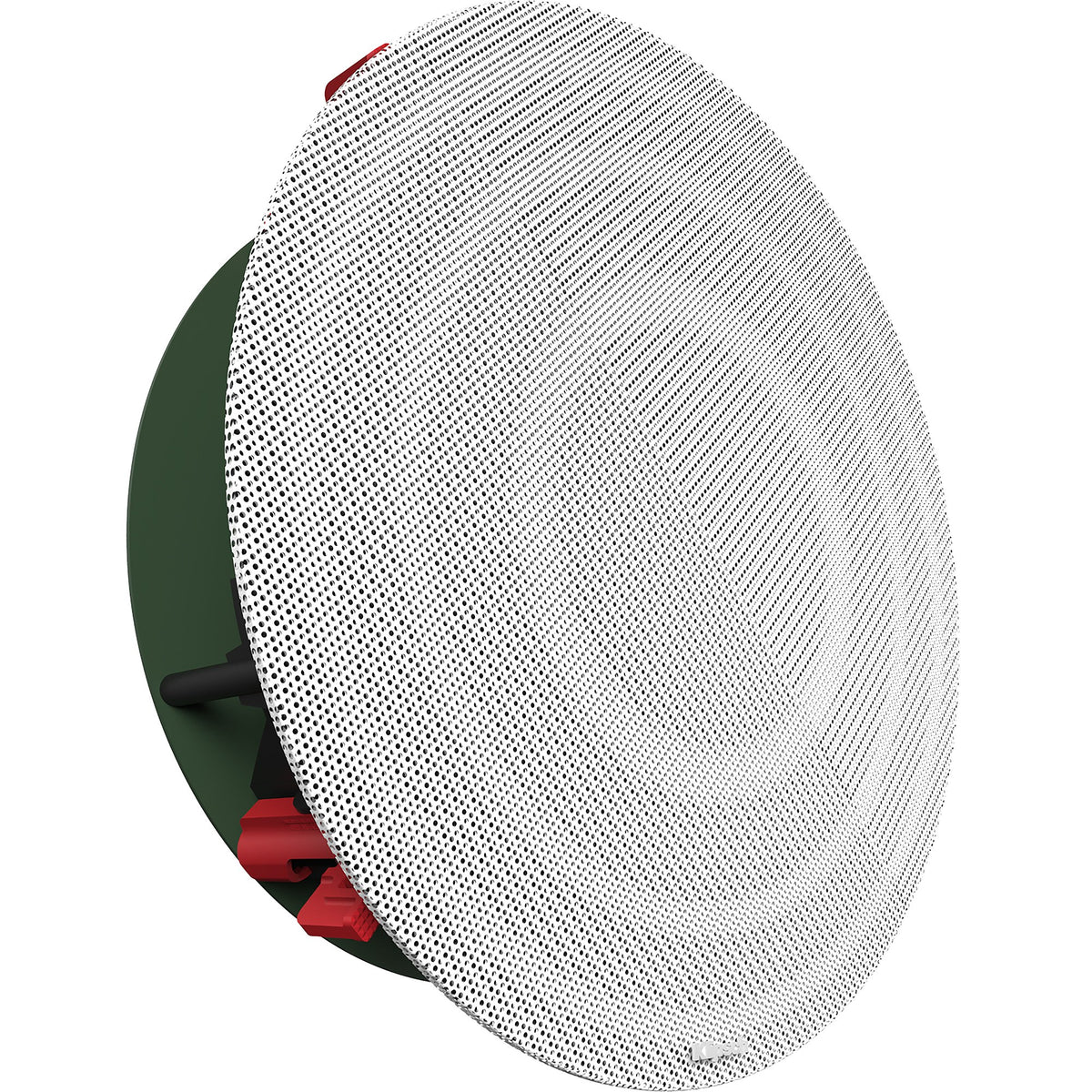

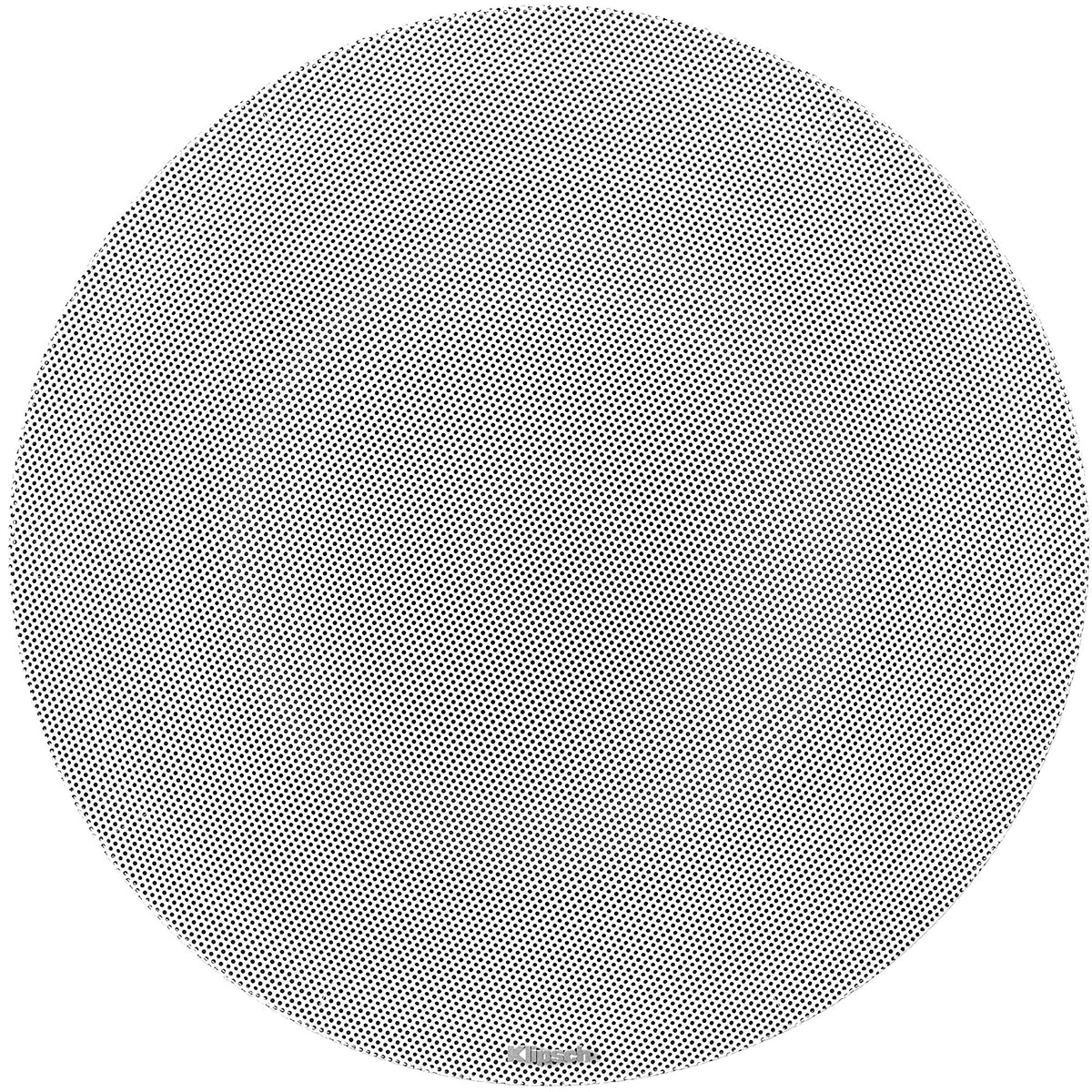

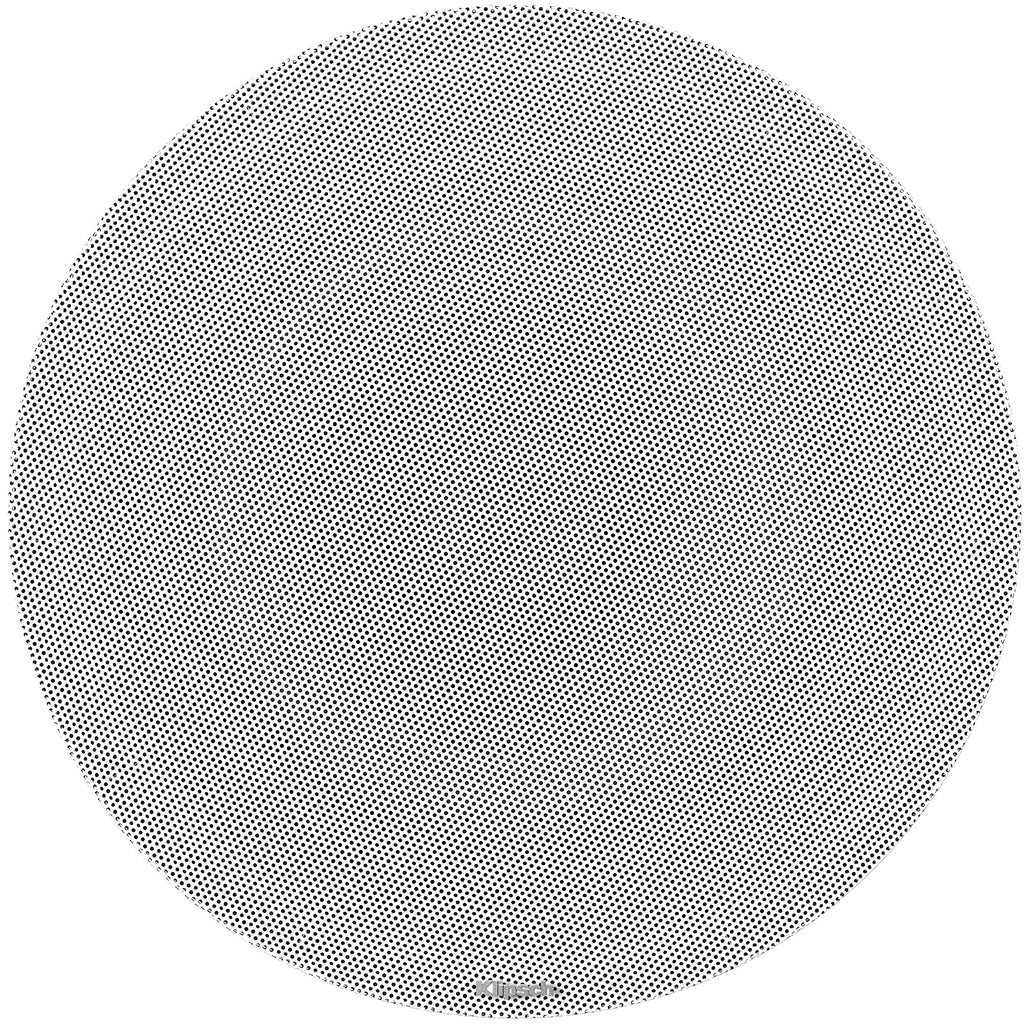

The SlimTrim™ grille reduces visible frame size by around 90% and grille depth by around 80% against competing designs, for an edge-to-edge look that blends into the ceiling or wall. The powder-coated steel grille attaches magnetically and tightly, which also virtually eliminates resonant buzz from a loose grille.

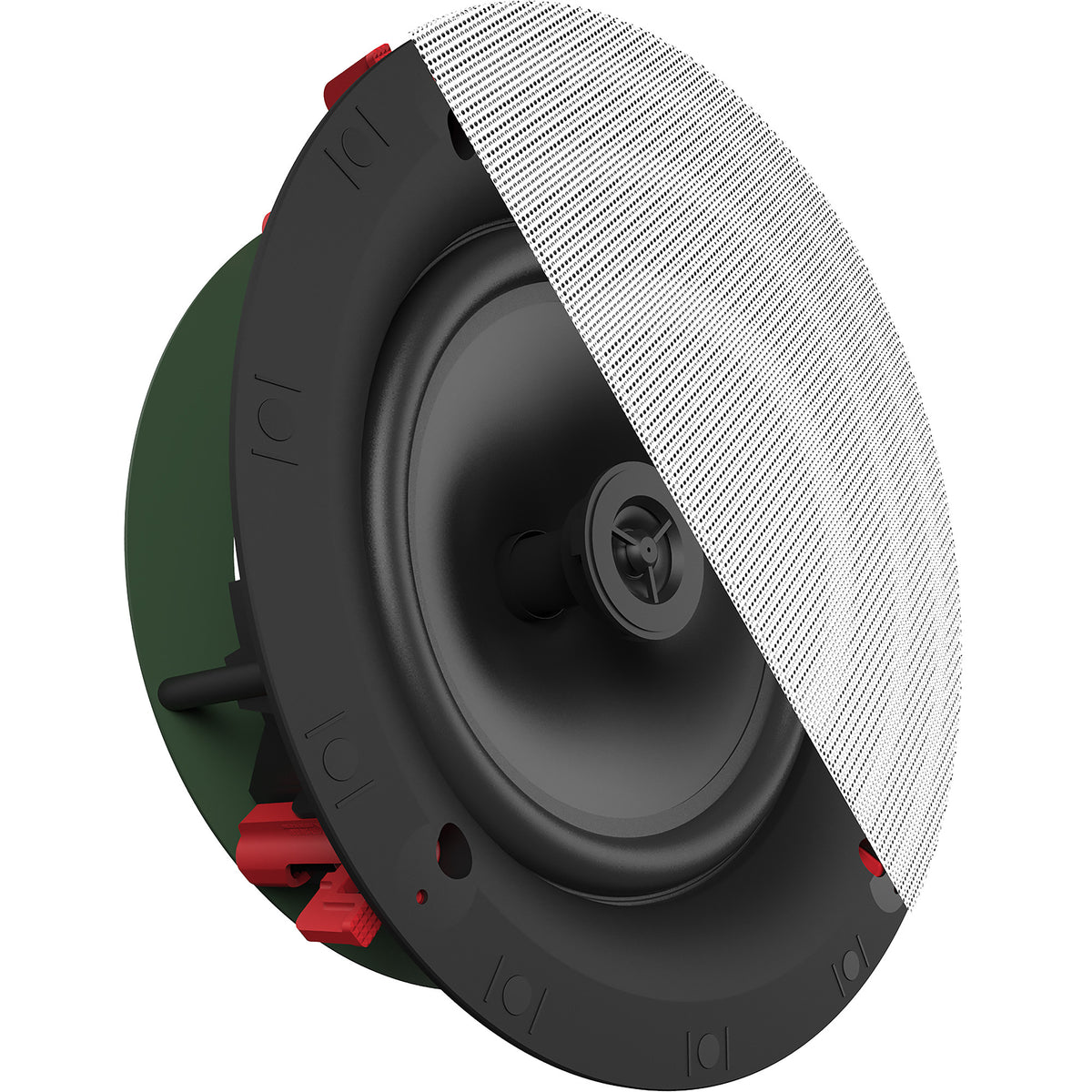

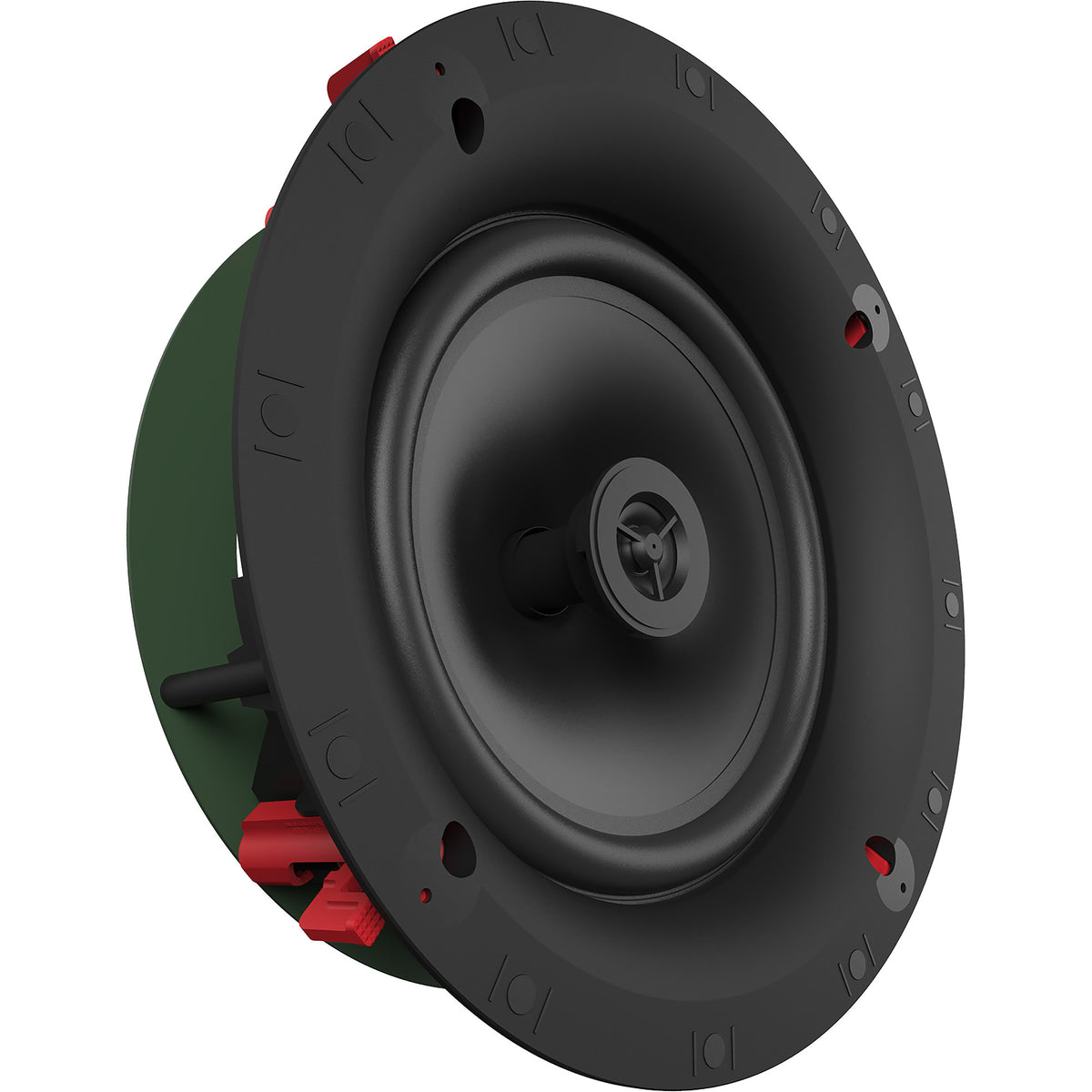

Sky Hook® Cinch installation is included: preset clamping force, no over-torquing, and a quarter-turn adjustment for uneven openings.
Features
- 1" (19mm) Polymer Dome Tweeter
- 8" (203.2mm) Polymer Woofer
- 55Hz-20KHz +/- 3dB frequency response
- 92 dB @ 2.83V / 1m sensitivity
- 40W RMS / 160W PEAK power handling
- SlimTrim™ grille — visible frame reduced by around 90%
- Grille depth reduced by around 80% versus competing designs
- Powder-coated magnetic steel grille, paintable
- Patented Sky Hook® Cinch tool-free installation system
- Low-resonance polymer dome tweeter for balanced, wide dispersion
- Dense, lightweight poly cone woofer
- In-ceiling mounting
Specifications
| Technical | |
|---|---|
| Frequency Range | 55Hz-20KHz +/- 3dB |
| High Frequency Driver | 1" (19mm) Polymer Dome Tweeter |
| Low Frequency Driver | 8" (203.2mm) Polymer Woofer |
| Sensitivity | 92 dB @ 2.83V / 1m |
| Power Handling | 40W RMS / 160W PEAK |
| Impedance | 8 Ohm Compatible |
| Enclosure Material/Type | ABS/Infinite Baffle |
| Physical | |
|---|---|
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 10.75" W x 10.75" H x 4.29" D (273mm H x 273mm W x 109mm D) |
| Mounting Depth | 4.17" (106mm) |
| Cutout Dimensions | 9.57" (243mm) |
| Product Weight | 7.4 lbs (3.36kg) |
| Included In Box | Flat Magnetic Grille |
| Install Kit | IK-800-C II (Sold Separately) |
| Fire Rated Enclosure | ME-800-C (Sold Separately) |
| Built From | 2017 |
Specifications subject to change.
