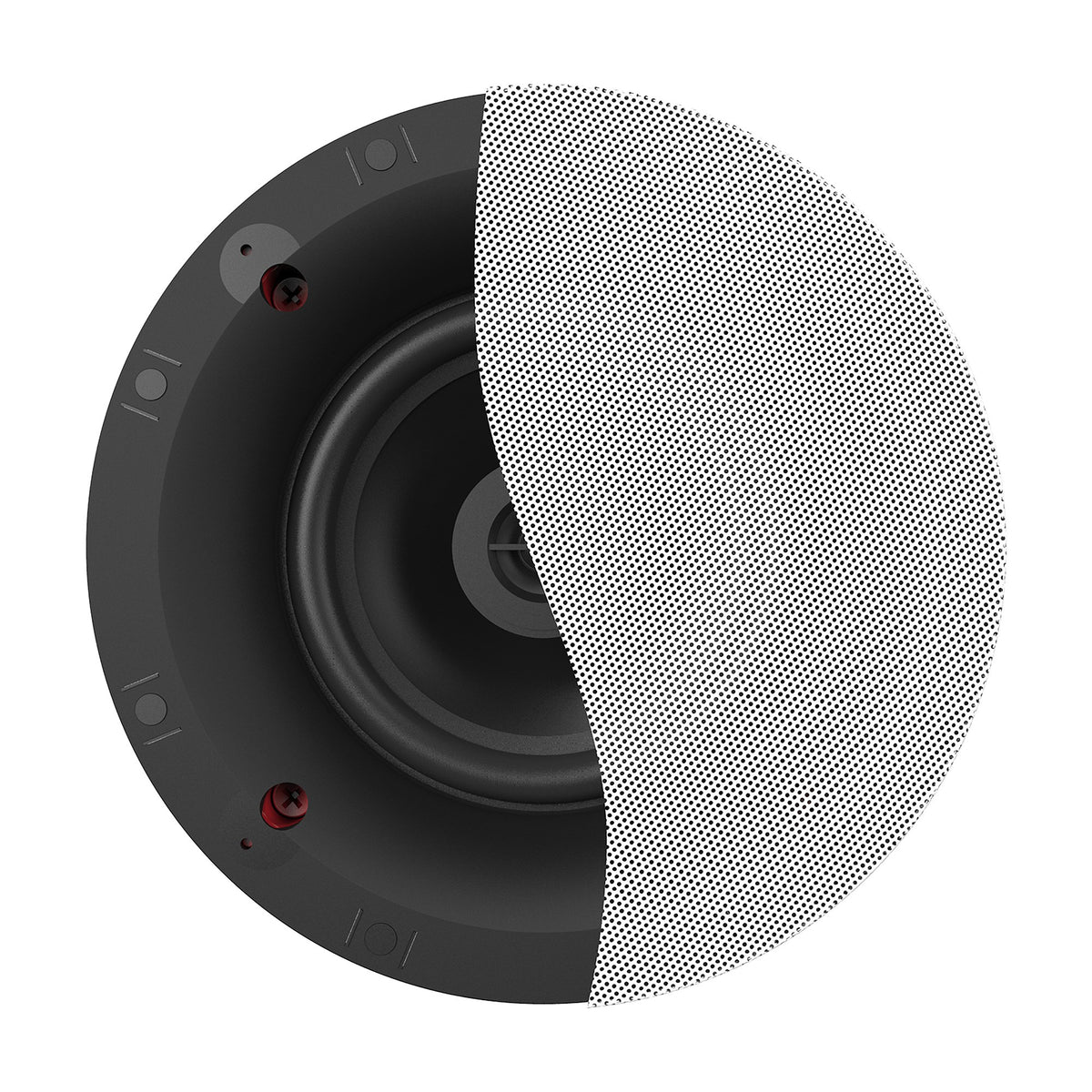

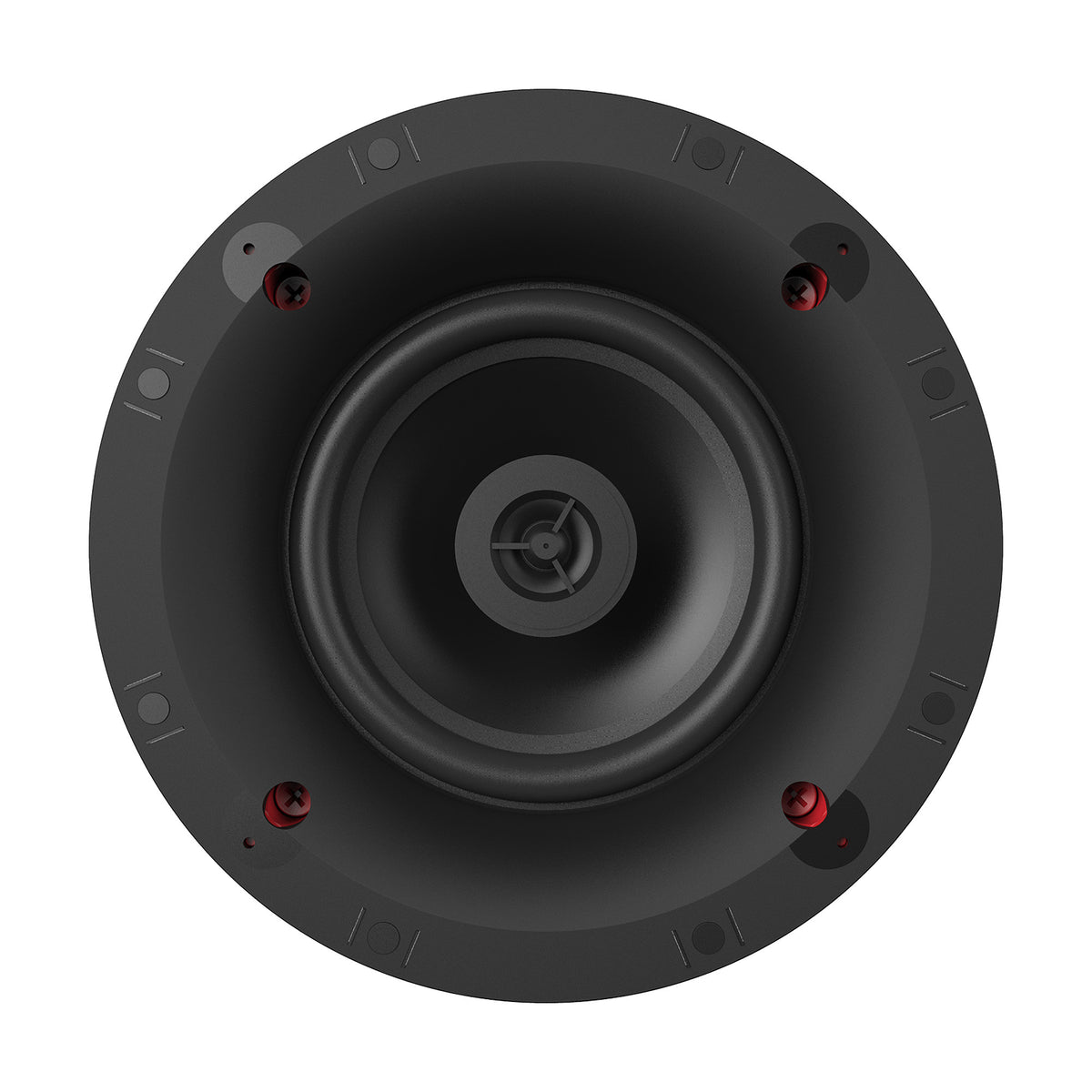

Klipsch CS-16C II SkyHook Cinch White, Each
Product Details
The CS-16C II is a value-focused Klipsch architectural speaker: the performance, reliability and finish you would expect from the brand, at a price that makes sense when a job needs eight of them rather than two.
It uses a 6.5" (165.1mm) polymer woofer with a 1" (25.4mm) polymer dome tweeter. The low-resonance polymer dome recreates high frequencies with reduced distortion and wide, balanced dispersion, and the dense but lightweight poly cone gives authoritative bass for the driver size.

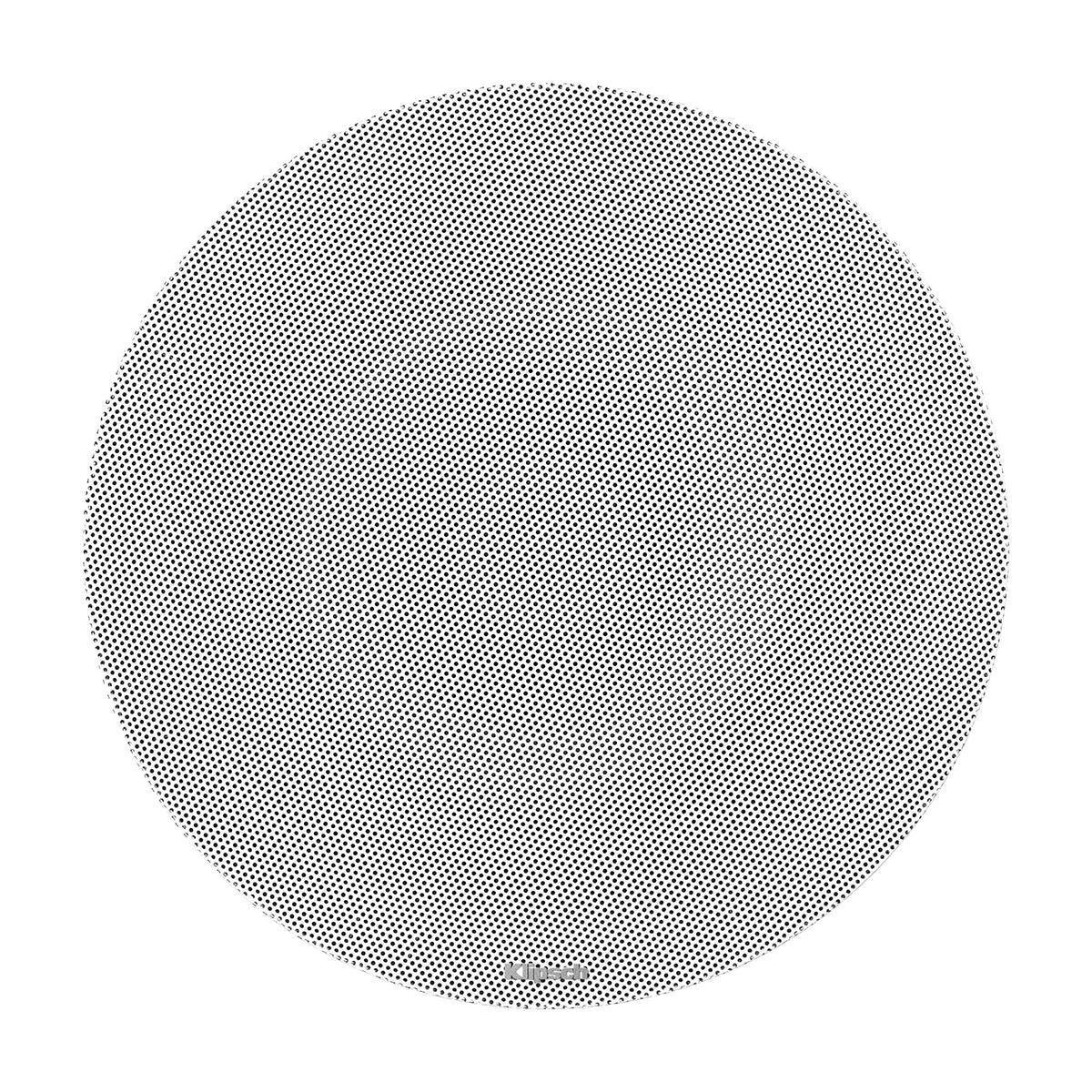

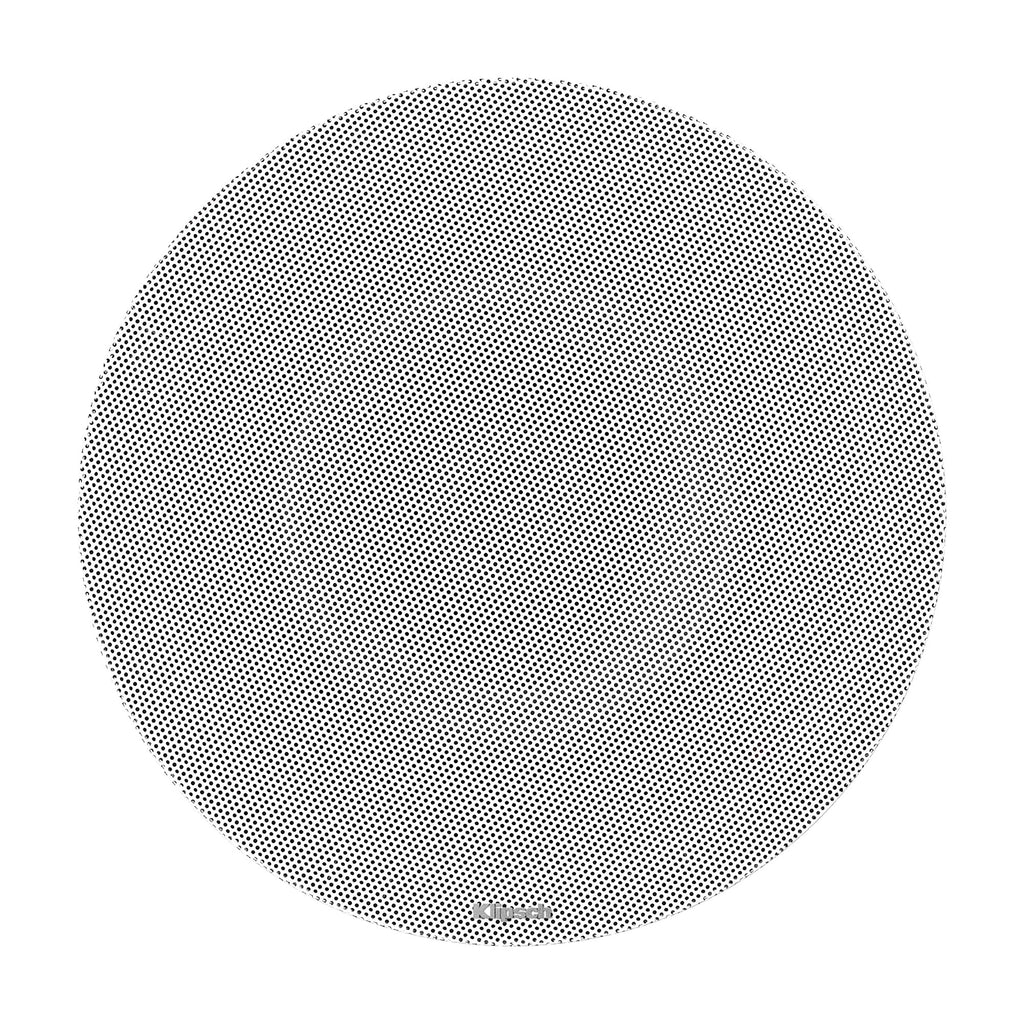

The SlimTrim™ grille reduces visible frame size by around 90% and grille depth by around 80% against competing designs, for an edge-to-edge look that blends into the ceiling or wall. The powder-coated steel grille attaches magnetically and tightly, which also virtually eliminates resonant buzz from a loose grille.

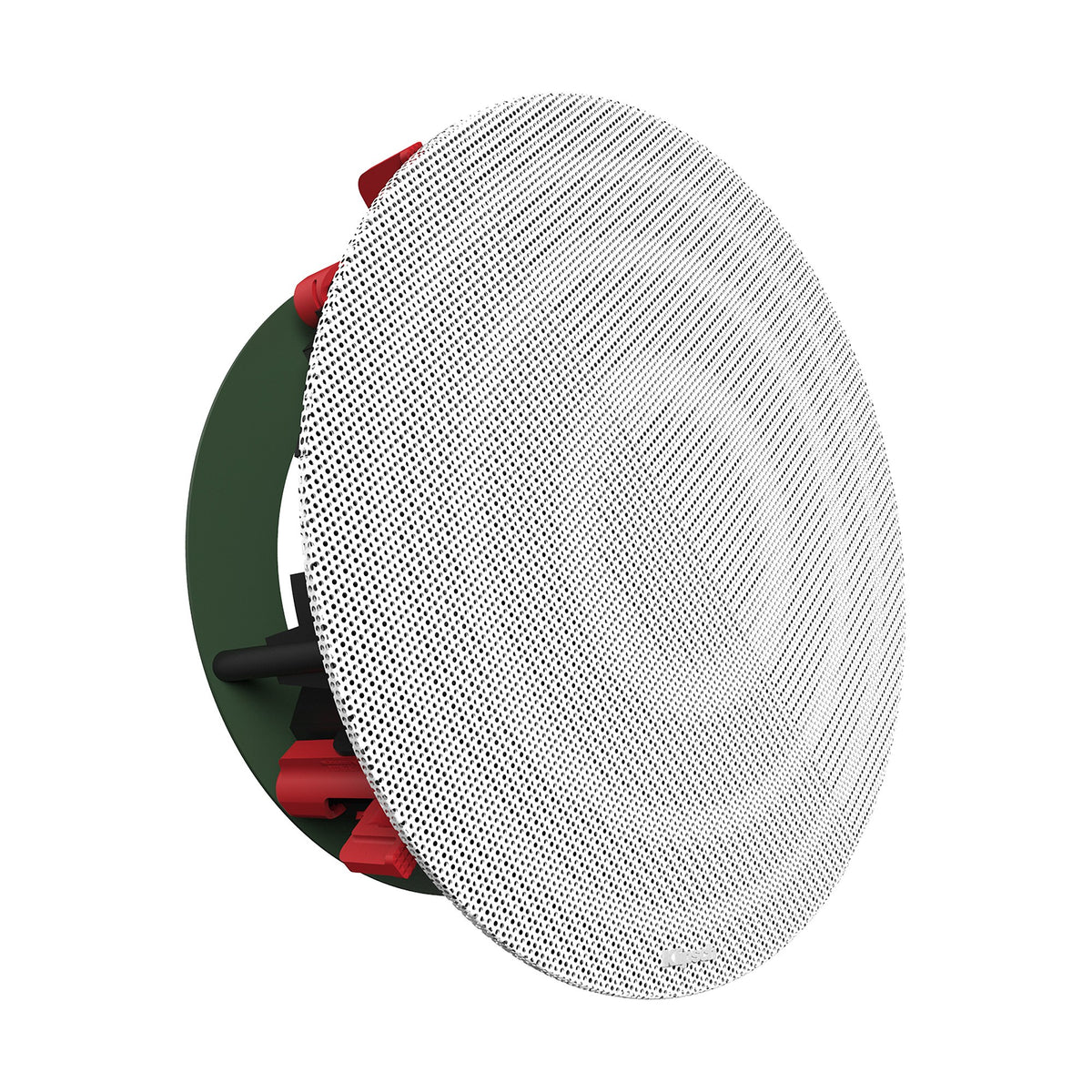

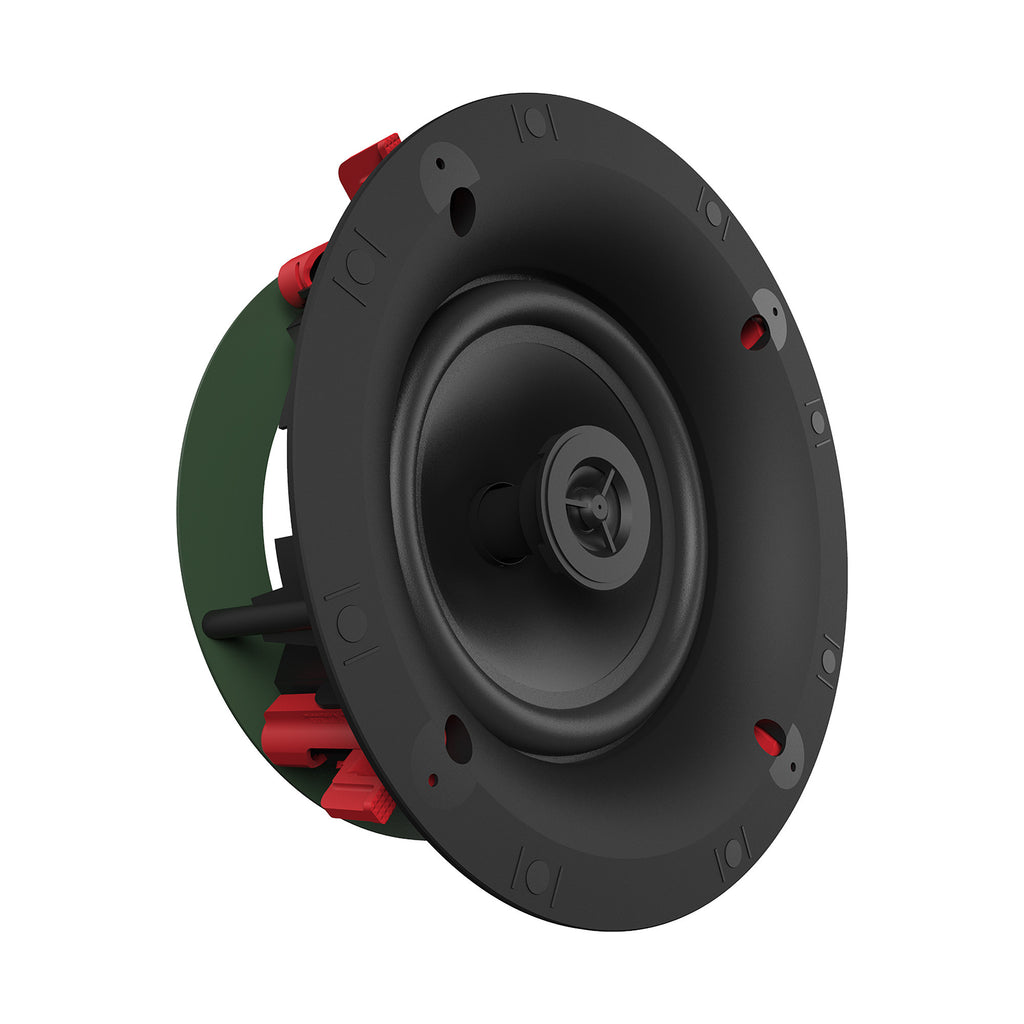

Sky Hook® Cinch installation is included: preset clamping force, no over-torquing, and a quarter-turn adjustment for uneven openings.
Features
- 1" (25.4mm) Polymer Dome Tweeter
- 6.5" (165.1mm) Polymer Woofer
- 65Hz - 20kHz +/- 3dB frequency response
- 91 dB @ 2.83V / 1m sensitivity
- 40W RMS / 160W Peak power handling
- SlimTrim™ grille — visible frame reduced by around 90%
- Grille depth reduced by around 80% versus competing designs
- Powder-coated magnetic steel grille, paintable
- Patented Sky Hook® Cinch tool-free installation system
- Low-resonance polymer dome tweeter for balanced, wide dispersion
- Dense, lightweight poly cone woofer
- In-ceiling mounting
Specifications
| Technical | |
|---|---|
| Frequency Range | 65Hz - 20kHz +/- 3dB |
| High Frequency Driver | 1" (25.4mm) Polymer Dome Tweeter |
| Low Frequency Driver | 6.5" (165.1mm) Polymer Woofer |
| Sensitivity | 91 dB @ 2.83V / 1m |
| Power Handling | 40W RMS / 160W Peak |
| Impedance | 8 Ohm Compatible |
| Enclosure Material/Type | ABS/Infinite Baffle |
| Physical | |
|---|---|
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 9.2" W x 9.2" H x 4.09" D (233mm H x 233mm W x 104mm D) |
| Mounting Depth | 3.91" (99mm) |
| Cutout Dimensions | 7.99" (203mm) |
| Product Weight | 5.1 lbs (2.3 kg) |
| Included In Box | Flat Paintable Magnetic Grille |
| Install Kit | IK-650-C II (Sold Separately) |
| Fire Rated Enclosure | ME-650-C (Sold Separately) |
| Built From | 2017 |
Specifications subject to change.
