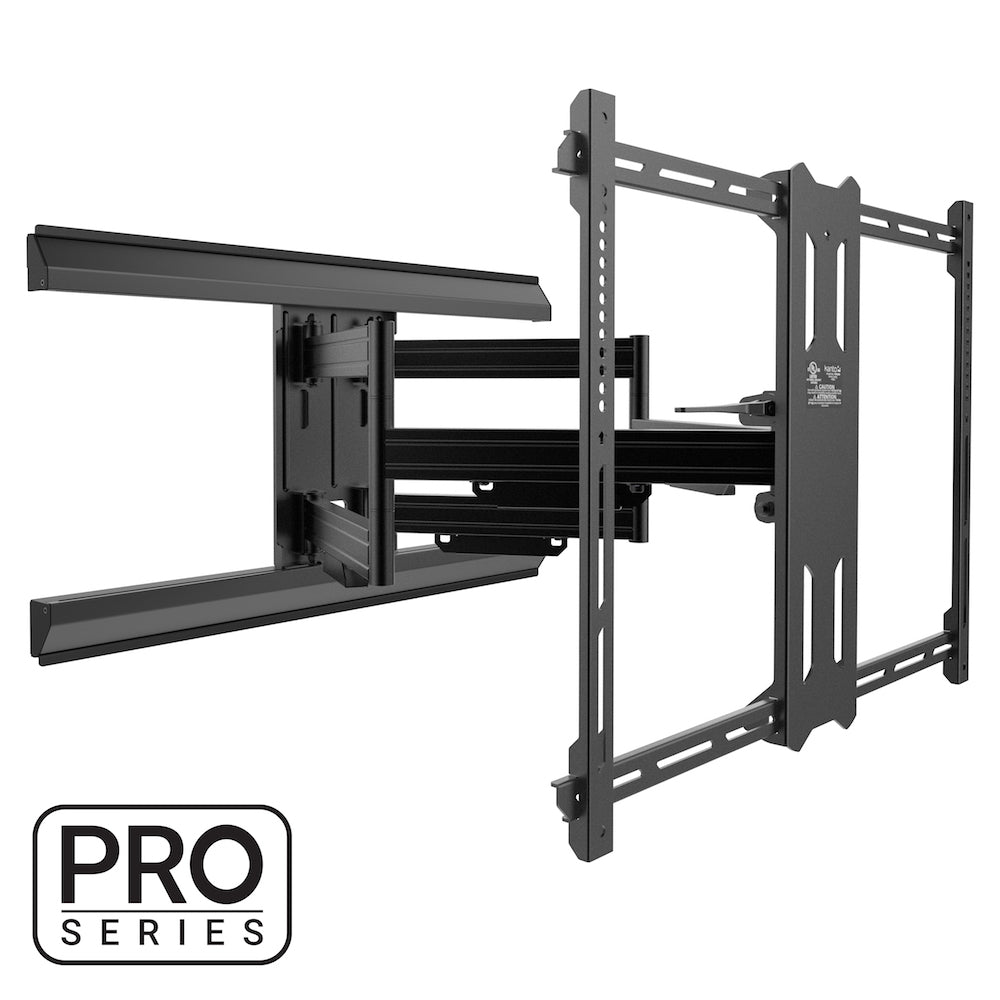

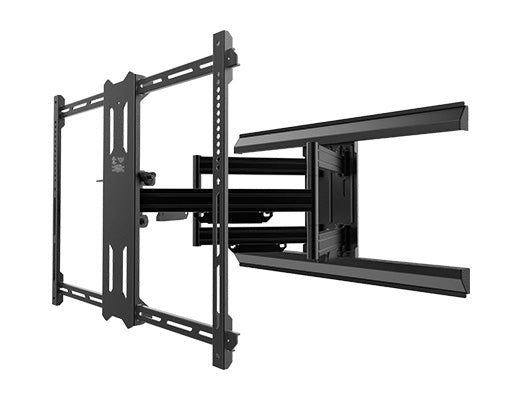

Kanto PMX700 Pro Series Full Motion TV Wall Mount with Adjustable Offset for 50" - 100" TVs
Don’t let the size of your TV dictate where you put it. Capable of supporting TVs up to 100”, the PMX700 features two articulating arms that can be horizontally offset to give you the utmost discretion over where your TV is placed. With 31.3” of extension, this full motion wall mount provides enough tilt and swivel movement to ensure you always have the perfect viewing angle. Its low profile design allows your TV to sit 2.6” from the wall when fully retracted and features cable management clips to keep your cables out of sight.
Features & Specifications:
- Fits most flat panel TVs from 50" to 100"
- Supports TVs up to 150 lb (68 kg)
- Accommodates VESA sizes from 200x100 to 700x500
- Accessible tilt mechanism provides a +12° to -3° tilt angle

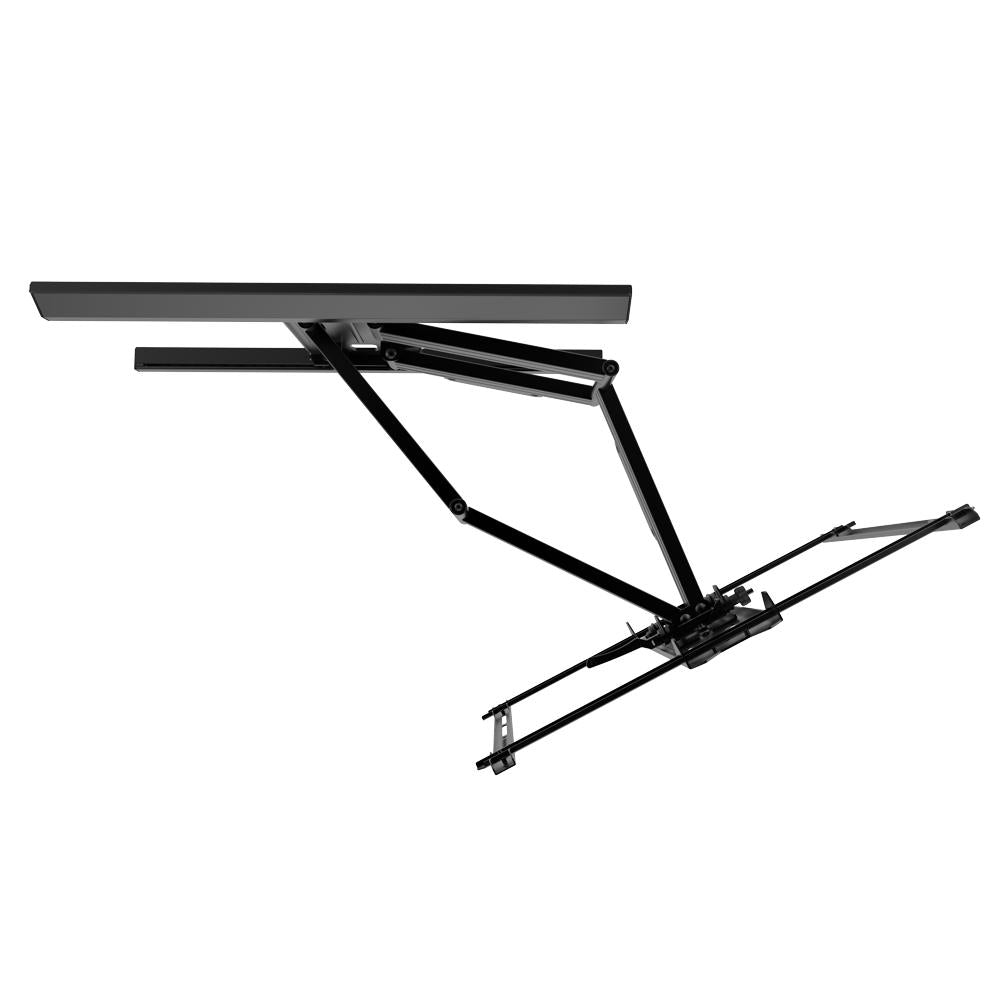

- Up to 90° of swivel in either direction, depending on screen size
- Sits 2.6" (6.6 cm) when fully retracted

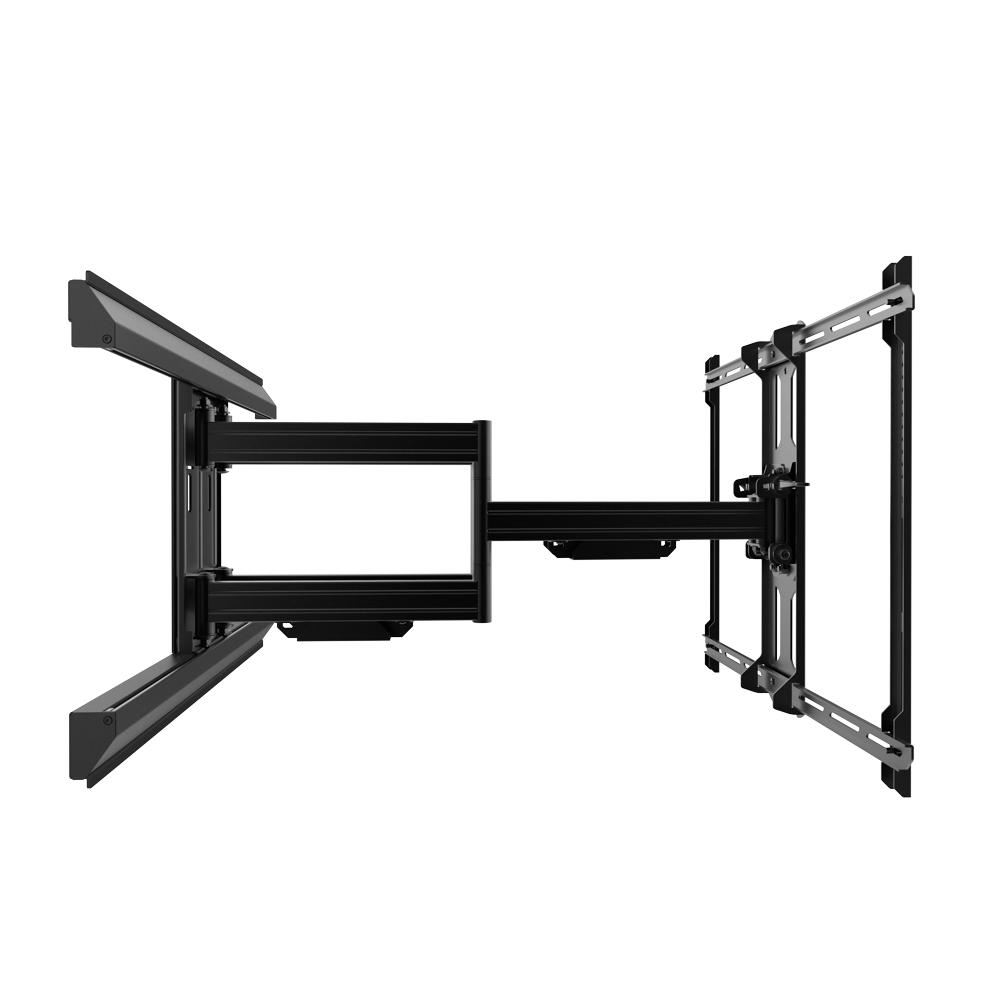

- Extends up to 31.3" (79.5 cm) from the wall
- +/- 11" (27.9 cm) of horizontal offset
- Adjustable horizontal leveling

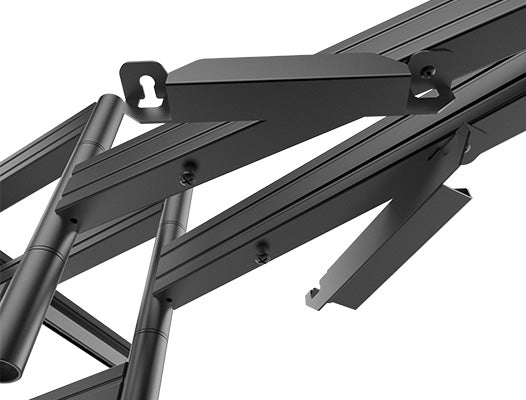

- Integrated cable management
- 32.4" (82.3 cm) dual stud wall plate accommodates up to 24" stud spacing
- Solid steel construction with durable powder coated finish
- Installation manual and all mounting hardware for wood stud and concrete installation is included
- cULus Certified
- Ten year warranty
- Shipping box weight: 56 lb (25.4 kg)
- Shipping Box Dimensions: 40" x 20.9" x 4.8" (101.5 x 53.2 x 12.3 cm)
- Product Weight: 44.5 lb (20.2 kg)
- UPC: 800152716640
Dimensions from the technical drawings:
| Measurement | Imperial | Metric |
|---|---|---|
| Wall plate width | 32.4" | 823 mm |
| Wall plate height | 18.2" | 463.1 mm |
| Wall plate depth | 2.8" | 70.9 mm |
| Mount depth, retracted | 2.6" | 65.5 mm |
| Mount depth, extended | 31.3" | 793.9 mm |
| Depth range | 2.6" – 31.3" | 65.5 – 793.9 mm |
| VESA horizontal range | 7.9" – 27.6" | 200 – 700 mm |
| VESA vertical range | 3.9" – 19.7" | 100 – 500 mm |
| Bracket width | 27.6" | 700 mm |
| Bracket height | 19.7" | 500 mm |
| Stud spacing supported | 16" / 24" | 406 mm / 609.6 mm |
| Tilt | +12° / −3° | — |
| Swivel | ±90° | — |
| Leveling adjustment | ±5° | — |
