Kanto LDX640 Full-Motion TV Wall Mount For 34" - 65" TVs
Product Details

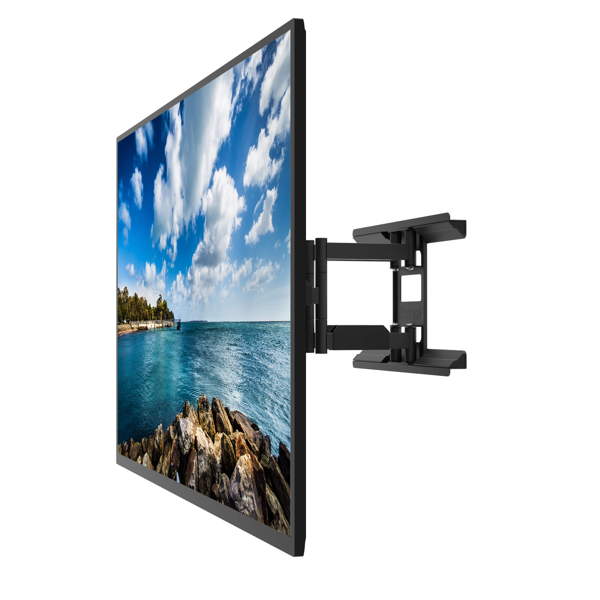

The Kanto LDX640 wall mount ensures a hassle-free installation for TVs weighing up to 100 pounds. Its dual articulating arms extend 17 inches in order to pan and swivel your TV for angled viewing, and sit 2.2 inches from the wall when fully retracted. Up to 18° of tilt is also achievable, helping to reduce glare and improve line-of-sight with your TV. Easy to install, the Kanto LDX640 features an 18-inch wall plate to accommodate both concrete walls and wood studs up to 16 inches apart. This TV hanger for 34-65 inch TVs also comes with plastic cable management clips and clip-on wall plate covers to ensure a clean, professional-grade setup.
Features
- Easy Installation
- Improved Viewing
- Low-Profile Design
- Clean Setup
Key Feature Details

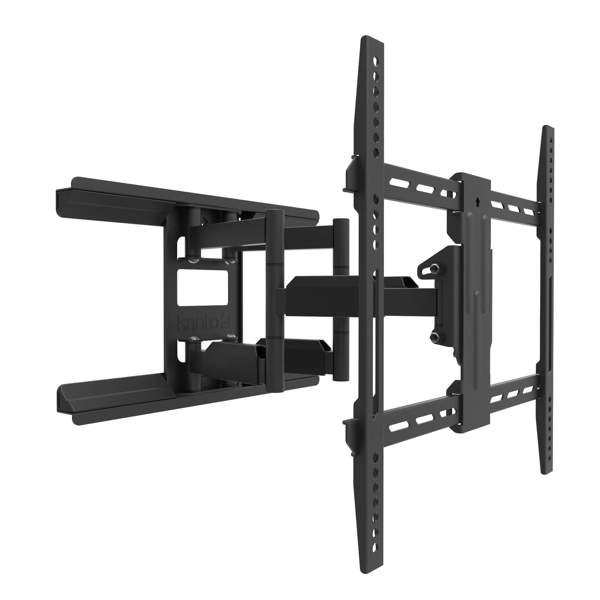

- Capable of supporting up to 100 lb., the LDX640 can be mounted to any concrete wall or wood studs up to 16" apart.

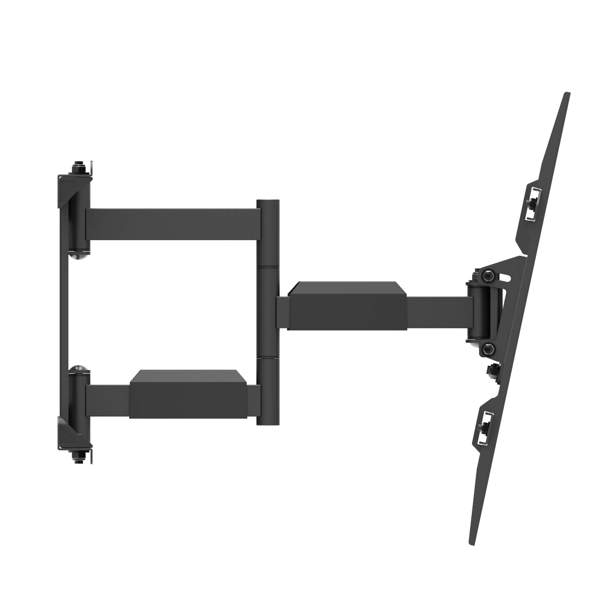

- Heavy-duty articulating arms allow you to swivel your TV 45° in either direction and tilt it -3° to +15° to achieve the best viewing angle.

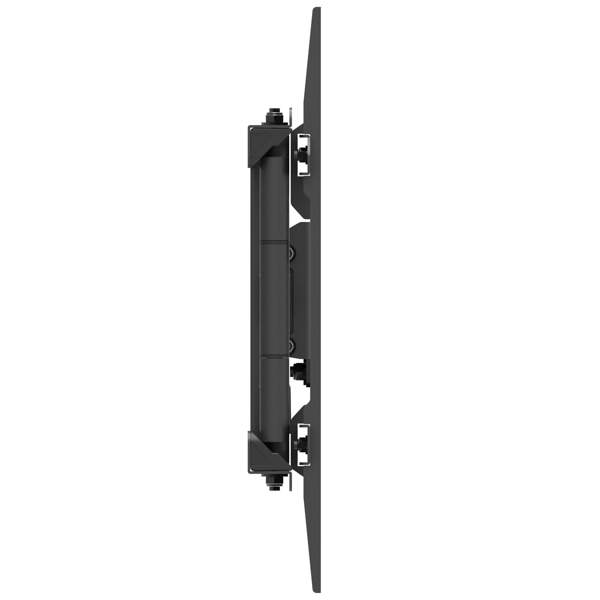

- Low-profile design allows your TV to sit 2.2" from the wall when fully retracted.

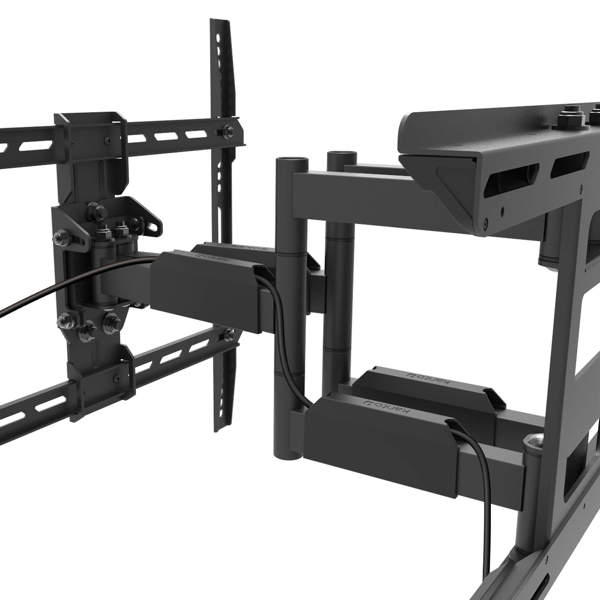

- Cable management clips are provided to conveniently route your cables, while plastic wall plate covers hide any sign of installation.
Specifications
| Spec | Detail |
|---|---|
| TV Sizes | 34" to 65" |
| Weight Allowance | 100 lb (45 kg) |
| VESA Sizes | 100×100 to 400×400 |
| Profile (from wall) | 2.2" to 17" extension |
| Tilt | +15° to -3° |
| Swing/Swivel | 45° |
| Material | Solid steel construction with durable powder coated finish |
| Adjustable horizontal leveling | Yes |
| Cable management | Yes |
| Warranty | 5 Year |
Measurements
| Shipping box weight | 18.3 lb (8.3 kg) |
| Shipping box dimensions | 19.5" x 13" x 2.8" (49.5 x 33 x 7 cm) |
| Product weight | 16.9 lb (7.7 kg) |
| UPC | 800152718736 |
What's Included
- Installation Manual
- All mounting hardware for wood stud and concrete installation
