Description

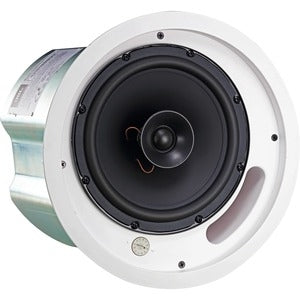

JBL Professional Control 18C/T 2-way In-ceiling Speaker
Two-Way 8-Inch Coaxial Ceiling Loudspeaker
Control 18C/T is a full-range ceiling speaker consisting of a 200 mm (8.0 inch) high tech cone driver and a 25 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation. The speaker is designed to provide excellent sound quality for a wide variety of medium to high volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.
Package Contents:
- Control 18C/T Two-Way 8-Inch Coaxial Ceiling Loudspeaker
- C-ring support backing plate
- 2 tile support rails (for 2 ft or 600 mm tile spans
- Cutout template
- Paint shield
- Removable locking multi-pin connector
- Grille with safety tether
Specifications:
| Product Name | Control 18C/T Two-Way 8-Inch Coaxial Ceiling Loudspeaker |
| Brand | JBL Professional |
| Manufacturer | Harman International Industries, Inc |
| Manufacturer Part Number | CONTROL 18C/T |
| Product Line | Control |
| Product Model | 18C/T |
| Product Type | Speaker |
| Manufacturer Website | http://www.harman.com |
| Description | Control 18C/T is a full-range ceiling speaker consisting of a 200 mm (8.0 inch) high-tech cone driver and a 25 mm soft-dome liquid-cooled tweeter mounted in a vented, paintable baffle made of UV-resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation. Designed for excellent sound quality across medium to high volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. |
| Crossover Type | 2-way |
| PMPO Output Power | 180 W |
| Woofer Driver Size | 8" |
| Woofer Driver Material | Polypropylene |
| Tweeter Driver Size | 1" |
| Tweeter Driver Material | Silk Dome |
| Minimum Frequency Response | 58 Hz |
| Maximum Frequency Response | 20 kHz |
| Impedance | 8 Ohm |
| Sensitivity | 92 dB |
| Form Factor | In-ceiling |
| Durability | UV Resistant |
| Depth | 10.79" |
| Diameter | 12.1" |
| Weight (Approx.) | 14.11 lb |
| Package Contents | Control 18C/T Loudspeaker; C-ring support backing plate; 2 tile support rails (for 2 ft/600 mm tile spans); Cutout template; Paint shield; Removable locking multi-pin connector; Grille with safety tether |
| Environmentally Friendly | Yes |
| Environmental Compliance | RoHS |
| Country of Origin | Mexico |
