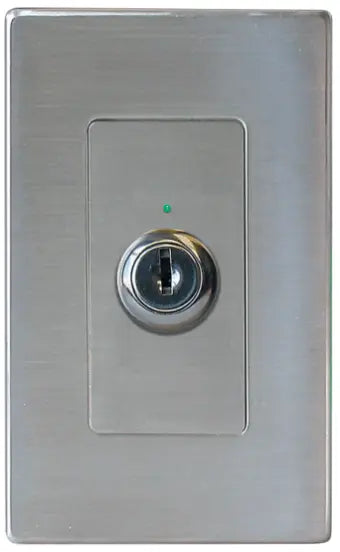

ILC LightSync Digital Key Switch Station
Product Details
The LightSync Digital Key Switch Station provides an extra level of security and limits access to only those who possess the key. Switch stations have a high quality 5-tumbler key switch and status LED. Key switches may be programmed to control any relay(s), group(s) or preset(s) throughout the network. Key Switches are available in four colors, stainless steel, and brushed aluminum.
Cutsheets
LightSync Digital Key Switch Station
Specifications
Physical
- Standard single gang mounting
- Digital addressing switches
- RJ45 connectors provided for easy connection
- Mounting screws provided
- Laser engraving up to 10 characters provided
- Available in ivory, white, black, gray, stainless steel and brushed aluminum
Switches
- Momentary SPDT
- Maintained SPDT (on-off-on) key removable in “on” position (Version A)
- Maintained SPDT (on-off-on) key removable in “off” position (Version B)
Switch Plates
- Brushed Aluminum (visible screws)
- Stainless Steel (visible screws)
- Painted (visible screws)
- Optional Lexan® Screwless
Electrical
- Powered from the panel or LightSync network
Operating Environment
- Location: Interior space
- Operating Temp.: 0° to 50° C
- Humidity: 10% - 90% Non-condensing
- Atmosphere: Non-explosive/corrosive
- Vibration: Stationary
Certifications and Approvals
