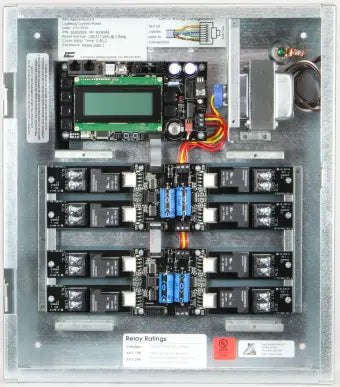

ILC AP3-32 Apprentice 3 Lighting Control Panel
Product Details
The Apprentice3 programmable lighting control panel is an energy saving lighting controller. You can network up to 48 control points and 64 LightSync™ devices per network and connect via easy to use RJ-45 ports. Connect and program panels using a USB port on a laptop and our free Apprentice3 software. Also optional remote mount 0-10V isolated dimming control modules for standard daylight harvesting operations.
Specifications
Relays
- 1 Pole relays (AP3R-1) with control for 16 Amp loads up to 347VAC, used for electronic ballasts, ballasts, resistive and general loads.
- 2 Pole relays (AP3R-2) with the same footprint as the single pole, control of 16 Amp loads up to 347VAC per pole used for electronic ballasts, ballasts, resistive and general loads, 208/240/480VAC 2-pole circuits.
- Plug-load compatible 16 Amp lighting relay
Safeguards
- Power surge and spike suppression up to 123 volts on the 24VAC power input
- Memory retention for firmware and programming up to 50 years
- Real-Time-Clock time retention 45 days or greater without power
Physical
- NEMA1 galvanized enclosure
- Double sided construction for wiring on both sides
- Provided with pre-drilled mounting holes
- Painted removable hinged locking door for flush or surface mounting
- High voltage barriers separate Normal/Emergency and Class 2 wiring
Electrical
- 120/ 277 VAC or optional 120/ 347 VAC
- 1 Amp
Capacities
- 4, 8, 16, 24 or 32 relays
Operating Environment
- Location: Interior space
- Operating Temp.: 0° to 40° C
- Humidity: 10% - 90% Non-condensing
- Vibration: Stationary
Certifications and Approvals
- UL CUL
- FCC Part 15
- FCC Part 68
- Title 24
- ASHRAE compliant
