Description

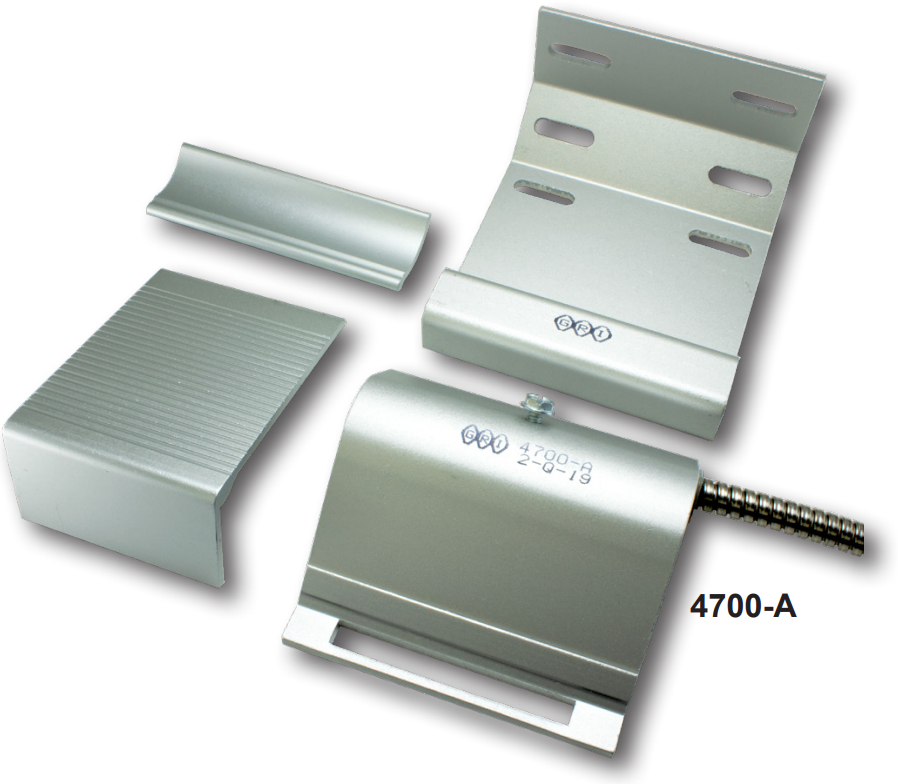

GRI 4700-A Industrial Track Mount Switch Set, Each
Product Details
The GRI 4700-A Series is engineered to eliminate false alarms caused by damaged floor switches. By moving the contacts off the floor and onto the door track, the sensor is protected from forklifts and other heavy industrial equipment.
Features
-
Superior Protection: Contacts are mounted high on the channel, keeping them safe from floor-level traffic and equipment damage.
-
Highly Adjustable: * Reversible probe assembly for left or right-side installation.
-
Reversible cable exit to simplify wiring runs.
-
Multi-position adjustable magnet bracket for difficult or misaligned installations.
-
-
Easy Installation: * Innovative hinge design provides tighter clamping to the track.
-
Installs by tightening only one or two screws—no special tools required.
-
Self-drilling screws included to shorten installation time.
-
-
Durable Construction: Includes a 3 ft. armored cable as standard.
-
Wide Operating Gap: Accommodates doors that wear or become misaligned with a gap of up to 3”.

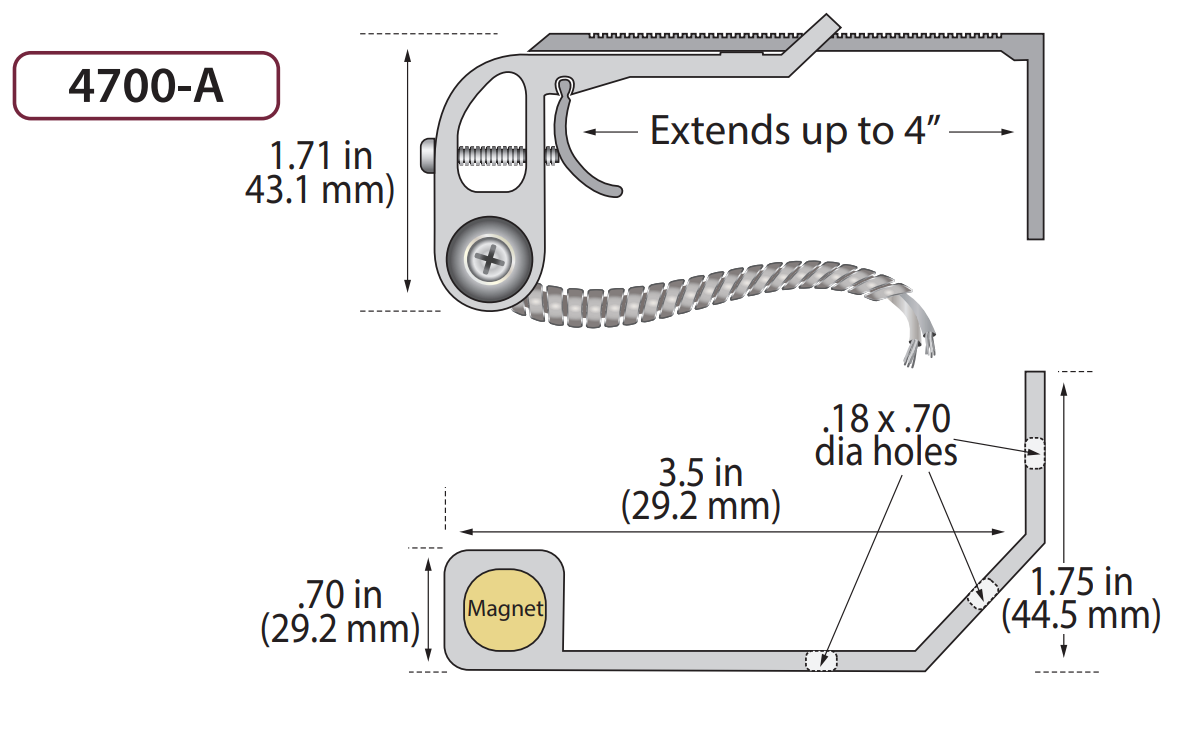

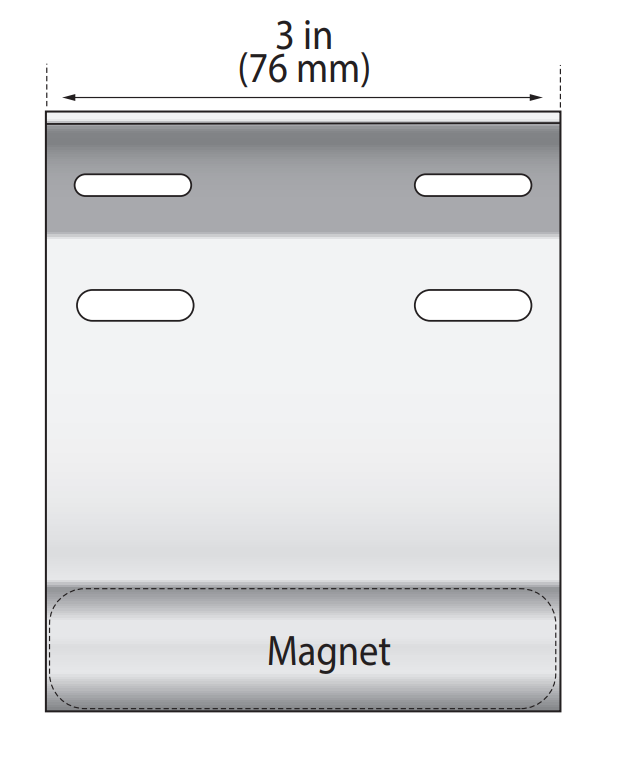

Specifications
The series fits a wide range of track sizes and is available in various electrical configurations to meet your specific security needs.
| Track Size | Closed Loop | SPDT | DPDT |
| 1.75” to 2.75” | 4700-A | 4701-A | — |
| 2.5” to 4” | 4700-AXL | 4701-AXL | 4705-AXL |
-
Operating Gap: Up to 3”
-
Cable: 3 ft. Armored Cable
-
Compatibility: Fits channels from 1.75” up to 4”
