Description

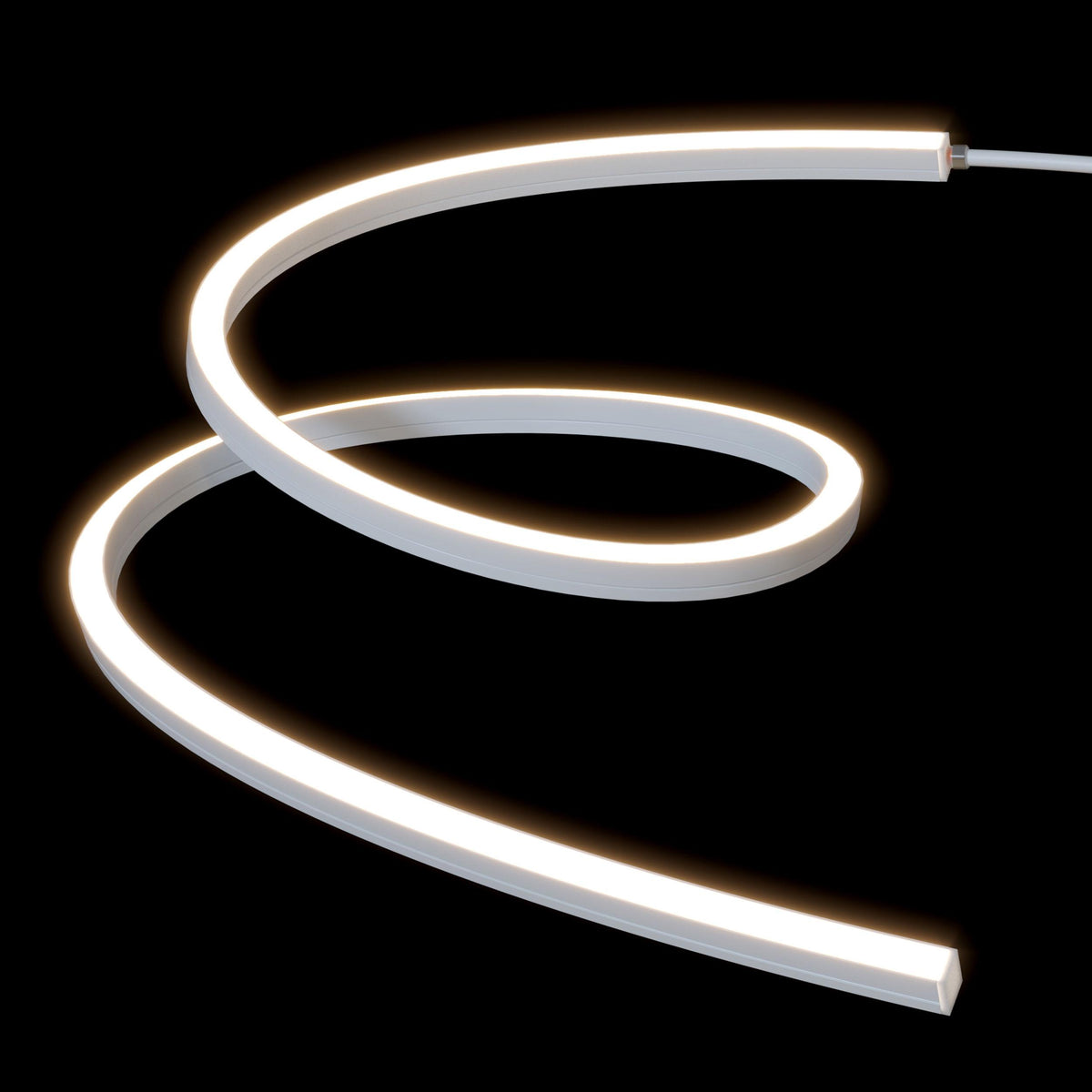

Diode LINAIRE Flex Mini 3D Bend 3000K
Product Details
The Diode LINAIRE Flex Mini 3D Bend series represents a breakthrough in linear lighting versatility. Engineered to bend in both directions—top and side—this small, flexible fixture allows for seamless installation around complex architectural curves and tight corners. Its advanced design ensures a smooth, uniform glow with no visible dots, providing a professional finish for any high-end lighting project.
Built for durability in diverse environments, these fixtures are water-resistant and suitable for both indoor and outdoor applications. With a high color rendering index (90+ CRI), the LINAIRE Flex Mini 3D delivers exceptional light quality that accurately represents colors, making it an ideal choice for residential, commercial, and landscape accentuation.
Features
• Bends in both directions (top and side) for maximum versatility
• Small, flexible fixture with no visible dots
• Water resistant for indoor and outdoor use
• 90+ CRI
• Factory assembly (IP67)
• Field cuttable, free-cut termination (IP65)
Specifications
| Specification | Details |
| Voltage | 24VDC |
| Wattage | 1.5W/ft. |
| 3000K Lumens | 81 Lm/ft. |
| Cut Points | Free Cut (cut anywhere) |
| Dimmable | Yes |
| Max Run (ft.) | 32.8 ft. |
| CRI | 90+ |
| Dimensions | 0.39 x 0.39 in. (W x H) |
| TM-21 (LM-80) | >50,000 hours |
| Environment | Outdoor / Wet Location (IP65 / IP67) |
| Lead Wire | 96 in. UL 2464 Wire (20/2 AWG) with Strain Relief |
| LED Chips | 69/ft. (Chip Type 2835) |
| Certification | UL Listed 2108 |
| Limited Warranty | 5 Year Limited Warranty |
