Description

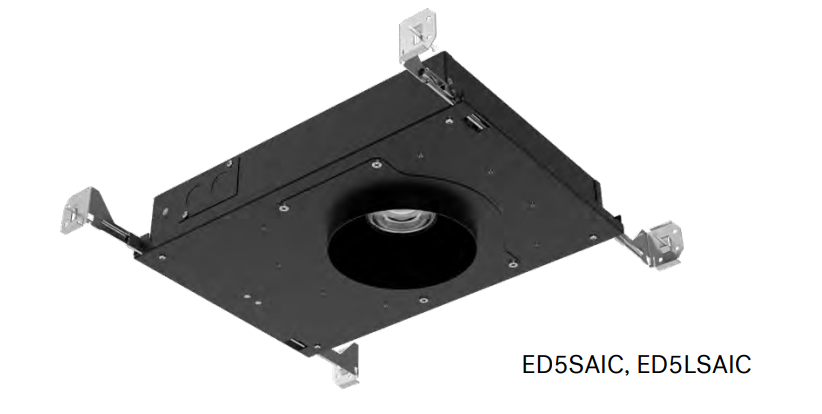

CSL 5" Shallow Plenum Housing
Features
- Shallow plenum design
- IC Airtight rated
- CCEA compliant
- Steel junction box with up to (4) ½" knockouts
- ASTM E283 Certified Airtight
- CA Title 24 JA-8 Compliant
Specifications
- Aperture: 5"
- Installation Type: Shallow Plenum New Construction, IC Rated, CCEA Compliant
- Wattage: 24W
- Color Temperature: 2700K, 3000K
- CRI: 90+, 2-Step SDCM
- Optic: 50° Flood (installed); 10°, 30°, 80° available separately
- Delivered Lumens @ 2700K/50° optic: 1,836 lm (ED5S), up to 2,657 lm max across the family
- Efficacy: Up to 104 LPW
- LED Lifetime: 55,000 hours @ L90
- Voltage: 120/277V, 50/60Hz
- Dimming: Universal — 0-10V, TRIAC, ELV; dims to 1%
- Driver Access: Below ceiling (serviceable without attic access)
- Min Plenum Height: 2½" (Shallow)
- Ceiling Thickness: 5/8" – 2"
- Ceiling Material: Drywall or T-bar grid
Certifications / Listing
- cULus Listed
- UL Listed for Damp Location
- UL Listed for Wet Location (with wet location trim)
- CCEA Approved
- CA Title 24 JA-8 Compliant
- ASTM E283 Certified Airtight
Warranty
- 5 years limited
Trim (Sold Separately — Housing Only)
Compatible with round or square, fixed, standard or trimless, wet location, and wall wash trims in White, Black, Champagne, Silver w/White Flange, Black w/White Flange, Champagne w/White Flange.
Compatible Dimmers (Driver S — Universal)
- Lutron: LGCL-153PL, DVRP-253P, RRD-6CL, NTELV-600P, DVELV-303P, MAELV-600, PD-6WCL, SELV-300P, DVCL-153-P
- Leviton: VPE06, DW1KD-1BZ, IPE04, IPL06
- Cooper: SAL06P
- 0-10V Dimmers: Lutron NFTV/DVTV/DVSTV, Leviton IP710-LFZ, Lightolier SR1200ZTUNV, Cooper SF10P-W
