Description

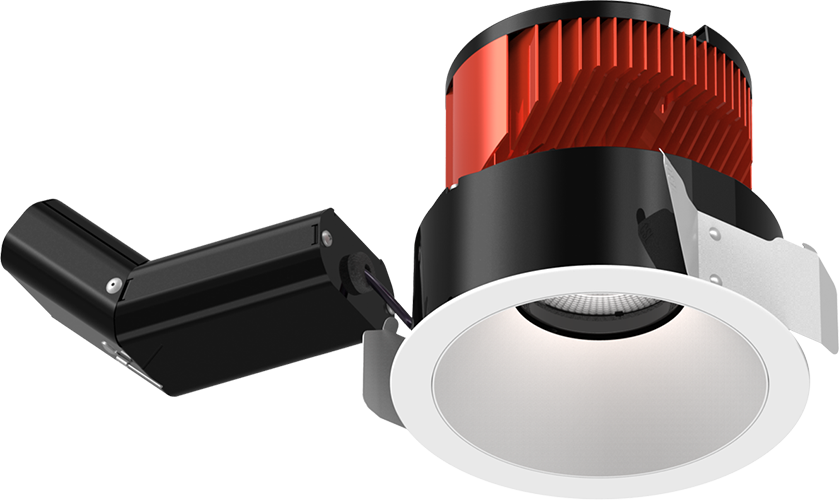

CSL A2-2790-RSTWT-STWTCL-50 Acrobat 2" LED Downlight
Product Details
The CSL Acrobat 2" LED Downlight is a compact, high-performance recessed fixture featuring Silent Vu™ optics for glare-free, quality light in a small aperture form.
Specifications
Configuration
- Aperture: 2" Acrobat
- CCT: 2700K
- CRI: 90+, 2-Step SDCM
- Trim: Round, Standard, White
- Reflector: Standard, White with Clear Lens
- Optic: 50° Flood
Performance
- Wattages Available: 10W, 15W, 20W
- Delivered Lumens: Up to 1,541 lm (2700K, 20W, 50° Optic)
- Efficacy: Up to 96.2 LPW
- LED Lifetime: 55,000 hours @ L90
- Input Voltage: 120–277V, 50/60Hz
- Dimming: Multiple driver options (0-10V, TRIAC, ELV, DALI, DMX)
- Below-ceiling driver access
Listings & Compliance
- cULus Listed, 40°C Ambient
- IC Rated and Non-IC Rated options available
- UL Listed for Damp Location
- CA Title 24-JA8 Compliant
- ASTM E283 Certified Airtight (IC models)
- CCEA (Chicago Plenum) Approved (IC models)
- 5-Year Limited Warranty
Housing Options: New Construction (IC/NC), Remodel, Shallow Plenum, Acoustic Tile
