Description

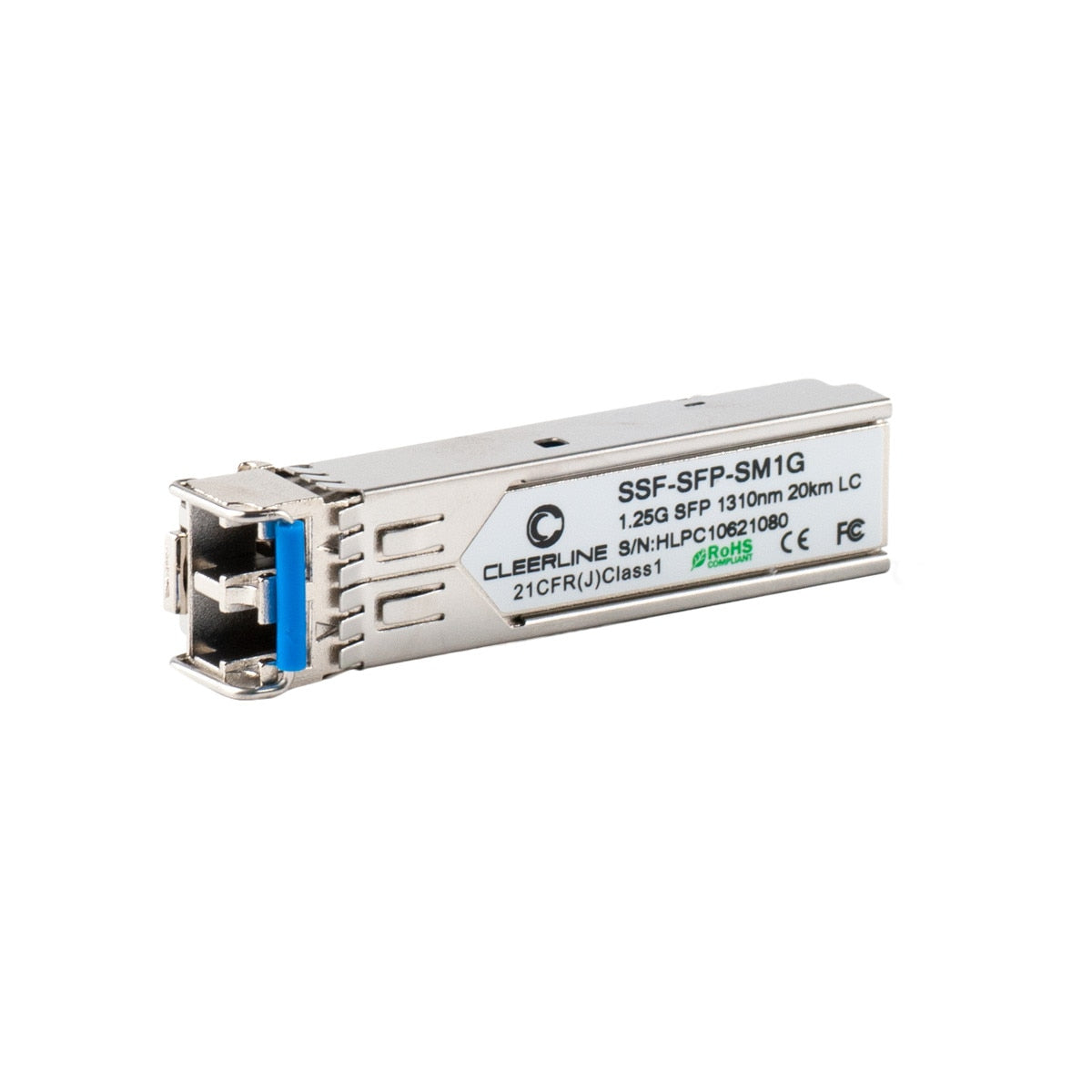

Cleerline SSF-SFP-SM1G 1.25G SFP transceiver SM 1000Base-LX, 1310nm, 20Km max reach, w/DDM Per Each
Product Details
Cleerline Fiber Optic Transceivers provide compact, hot-swappable connectivity for media converters, network switches, routers and other fiber-enabled devices with a small form-factor pluggable (SFP) port. They're the critical component that converts electrical signals into light pulses, allowing a variety of signals to transmit over optical cable.
Cleerline 1G SFP Transceivers transmit signals up to 20km (12.4 miles) over single-mode fiber at 1310nm wavelengths. They require a duplex LC connection and support data rates up to 1.25G.
Please note: two matching transceivers are required for reliable operation -- one on the source end and one on the destination end.
Features
- SFP MSA compliant
- 1000Base-LX compliant
- MSA SFF-8472 compliant
- 1310nm wavelength
- Transmit up to 20km (12.4 miles) over two single-mode fibers
- Duplex LC connection
- Compatible with SONET OC-24-LR-1
- -20 to 85°C (-4 to 185°F) operating temperature
- Tested for compatibility with Cisco, Juniper, Force10, Edge-Core, ZyXEL and D-Link products
- Compatible with other 3rd party equipment following the MSA open slot (generic EEPROM) standard
