Description

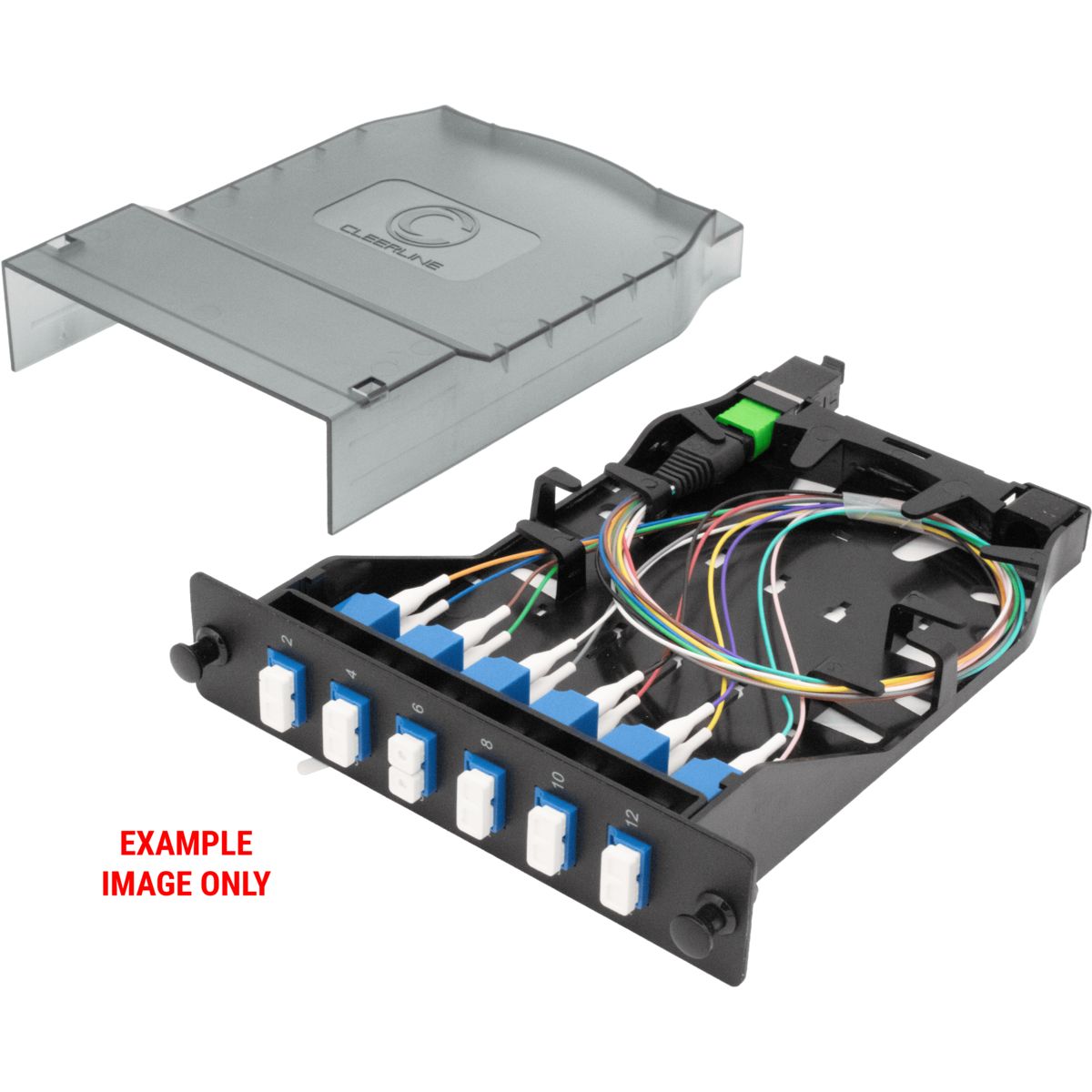

Cleerline CTG-MTLC24-MM-AF HD MTP Elite 24F Cassette, MM(OM4), 1x24F MTP Male to 24 Quad LC/UPC, Type AF Per Each
Product Details
Cleerline HD MTP Elite® Splice Cassettes provide a secure and efficient enclosure for managing MTP and MPO connections and patching. Cassettes conform to the LGX standard, making them compatible with a wide arrange of rack and wall-mount enclosures, patch panels and mounting brackets.
Each splice cassette comes pre-loaded with 1x MTP male (pinned) connector distributed to 24x LC female connectors. For added versatility and security, each cassette also features port ID labeling, cable winding tabs and a removable transparent cover. Cassette adapters and fibers are color-coded according to TIA standards.
Cleerline HD MTP Elite Splice Cassettes install seamlessly with both MTP and MPO female (unpinned) trunk and patch cables, eliminating the need for fusion-spliced pigtails and splice trays.
Features
- Quickly and efficiently manage MTP and MPO fiber connections
- Engineered for durable and reliable connectivity
- 1x MTP male (pinned) connector distributed to 24x LC female connectors
- Premium US Conec Elite® MTP connector
- Available in 24 strand multimode OM4 or single-mode fiber
- Available in Type A, Type AF, Type B1, Type B2 and Universal polarities
- Conforms to LGX standards
- Compatible with LGX-style enclosures, patch panels and mounting brackets
- Eliminates the need for fusion-spliced pigtails and splice trays
- Features mounted cable winding tabs, guided fanout and strain reliefs
- Transparent housing provides easy verification of fiber
- Color-coded to TIA standards
