Brownlee 2341-24-BW-R23-35K-90R LED Light

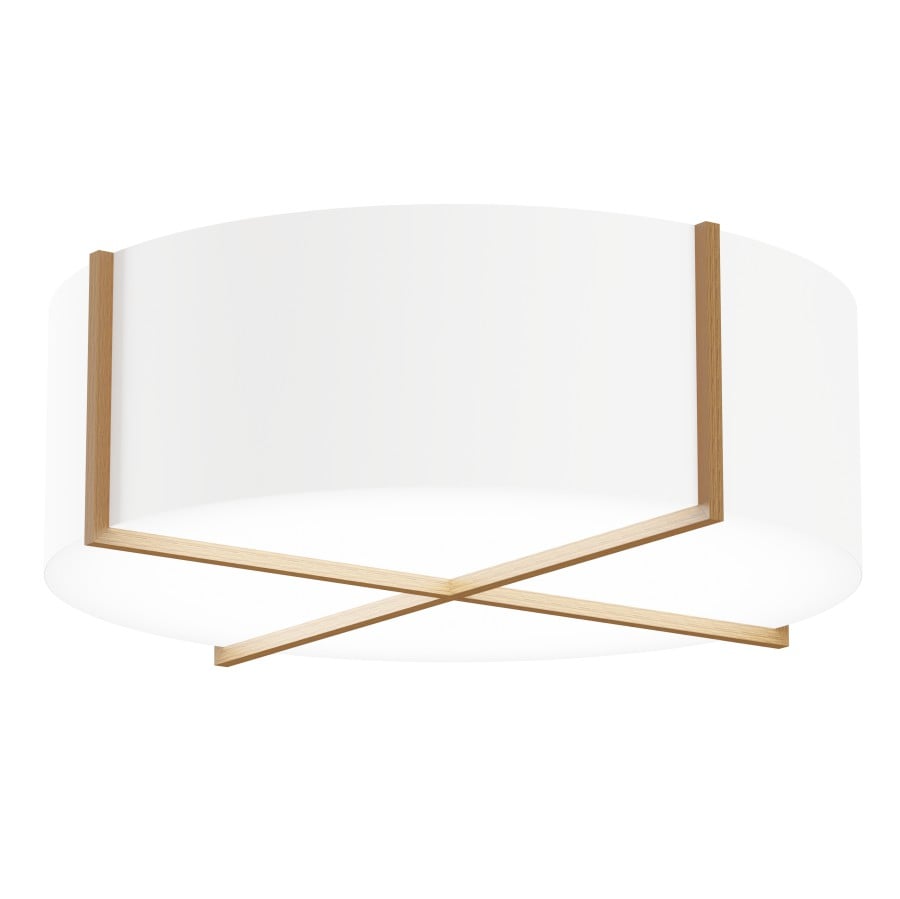

The CROSSBAR features a matte-white acrylic drum with a modern crossbar constructed of real maple wood. The crossbar is offered in your choice of a clear coated Natural finish and a variety of our standard painted finishes. Perfect for commercial and residential corridors, units, common areas and more. Refer to model 2601 for a suspended version of this product.
PAN
Cold rolled 22 GA steel, formed in a die, finished in a powder coat high reflectance white paint.
The pan features weld nuts for a “twist and hold” installation of the diffuser.
DIFFUSER
The drum features a high quality UV stabilized white acrylic outer shell. The base (bottom) of the drum is constructed with high transmission white acrylic. The trim is constructed from 5/8” square solid oak and is available in natural wood or select painted finishes. The fixture can be cleaned with a damp cloth and mild detergent if needed.
LED PERFORMANCE - 3500K STANDARD
120-277V - 3500K, 82 CRI - L80 rating - 60,000 hrs - L70 rating (projected) - 100,000 hrs
Amperage rated @ 110V input
Operating ambient temperature: -20°C / -4°F - 40°C / 104°F
Delivered 3500K lumens noted. Consult Brownlee.com for performance of all CCTs.
15 Size: R11 - 11W nominal, .09 A input - 1619 lm. Dimmable (0-10V).
15 Size: R18 - 18W nominal, .15 A input - 2588 lm. Dimmable (0-10V).
15 Size: R22 - 22W nominal, .19 A input - 3050 lm. Dimmable (0-10V).
20 Size: R23 - 23W nominal, .19 A input - 2977 lm. Dimmable (0-10V).
20 Size: R34 - 34W nominal, .28 A input - 4387 lm. Dimmable (0-10V).
20 Size: R49 - 49W nominal, .41 A input - 5828 lm. Dimmable (0-10V).
24 Size: R23 - 23W nominal, .19 A input - 3102 lm. Dimmable (0-10V).
24 Size: R34 - 34W nominal, .28 A input - 4569 lm. Dimmable (0-10V).
24 Size: R49 - 49W nominal, .41 A input - 6071 lm. Dimmable (0-10V).
30 Size: R23 - 23W nominal, .19 A input - 2954 lm. Dimmable (0-10V).
30 Size: R34 - 34W nominal, .28 A input - 4352 lm. Dimmable (0-10V).
30 Size: R49 - 49W nominal, .41 A input - 5782 lm. Dimmable (0-10V).
MOUNTING
Directly to j-box (by others). Sizes 24”+ are further anchored to ceiling at three points for additional support (anchoring hardware by others).
WARRANTY
5 year limited warranty on this LED product. Consult factory for details.
