Description

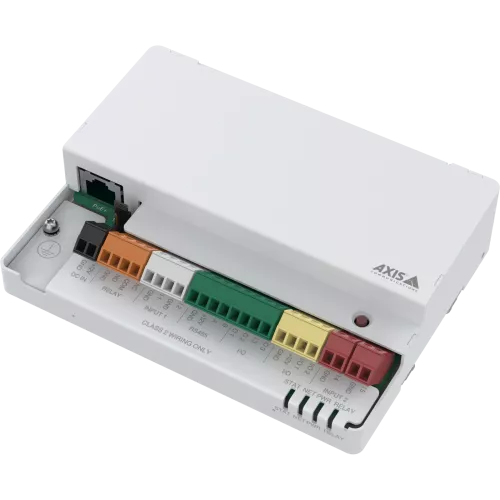

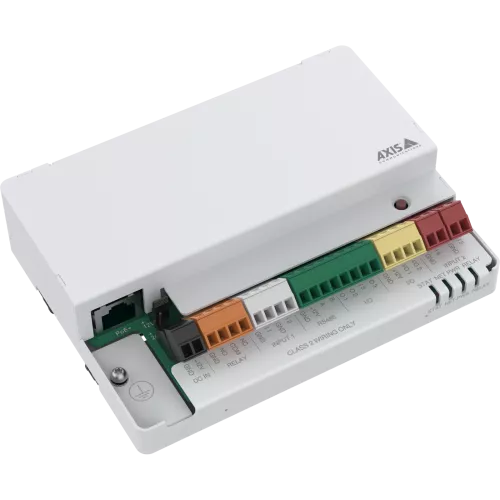

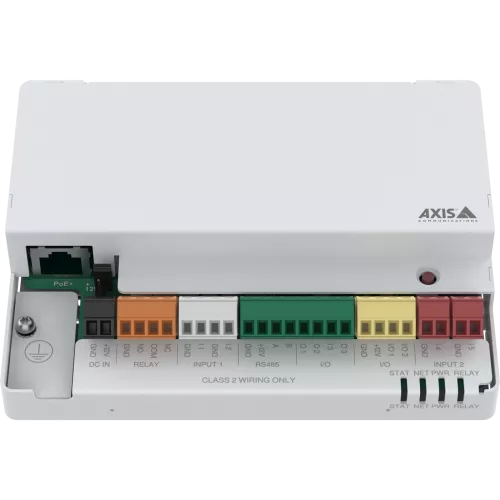

AXIS A9210 Network I/O Relay Module
Features
- I/O module for extended functionality
-
1 form C relay, wet or dry
-
10 I/O ports, included inputs are supervised
-
Supports up to 128 I/Os and 64 relays with one IP connection
-
Based on Axis open platforms—VAPIX® and ACAP
-
Axis Edge Vault safeguards the device
Specifications
| Power & Electrical | DC input voltage | 12 - 12 V |
| Power over Ethernet (PoE) | Yes | |
| PoE Class | Class 4 | |
| Inputs & Outputs | Digital I/O | Yes |
| Alarm inputs/outputs | 2 / 5 / 3 | |
| Relays | 1 | |
| Environmental & Support | Operating temperature | -40 to 55 °C |
| Eligible for five-year warranty | Yes | |
| Compliance & Standards | Access control standards | UL294 |
