Description
VERTILINE63DV 16 PTC Out, 24VDC@8A, 220V IN
Product Details

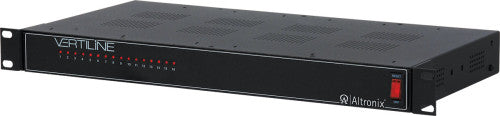

Vertiline63DV Rack Mount DC Power Supply provides sixteen (16) filtered and electronically regulated power outputs in a space saving 1U EIA 19" rack mount chassis. Vertiline Rack Mount Power Supplies are also available in 12VDC and eight (8) outputs configurations.
Features
- Sixteen (16) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- IEC 320 - 3-wire grounded line cord (detachable).
- Removable terminal blocks with locking screw flange.
Specifications
Input
220VAC 60 Hz, 1.5A input.
Output
24VDC outputs rated @ 8A total current max. (0.5A per device, 2.5A max.).
Sixteen (16) PTC protected power outputs.
Filtered and electronically regulated.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 98 BTU/Hr.
System AC input VA requirement: 330VA.
