Description

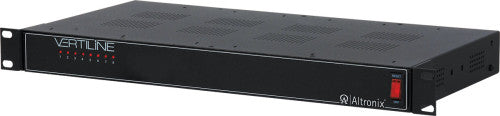

VERTILINE3DV 8 Out @ 8A, 12VDC, 1U 220V
Product Details
Vertiline3DV Rack Mount DC Power Supply provides eight (8) filtered and electronically regulated power outputs in a space saving 1U EIA 19" rack mount chassis. Vertiline Rack Mount Power Supplies are also available in 24VDC and sixteen (16) outputs configurations.
Features
- Eight (8) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- IEC 320 - 3-wire grounded line cord (detachable).
- Removable terminal blocks with locking screw flange.
Specifications
Input
220VAC (working range 190VAC - 256VAC), 50/60 Hz, 0.75A input.
Output
12VDC outputs rated @ 8A total current max. (1.0A per device, 2.5A max.).
Eight (8) PTC protected power outputs.
Filtered and electronically regulated.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 49 BTU/Hr.
System AC input VA requirement: 165VA.
