Description

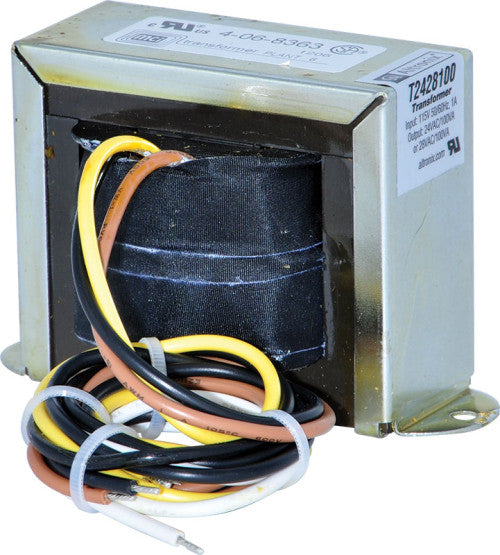

T2428100 24VAC or 28VAC 100Va Xfmr
Altronix T2428100 open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.
Input
115VAC 50/60 Hz, 1A.
Output
24VAC/100VA (4A) or 28VAC/100VA (3.5A) supply current.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 52 BTU/Hr.
System AC input VA requirement: 115VA.
