Description
T24130D 24VAC/100VA 110/220V IN XFM
Product Details

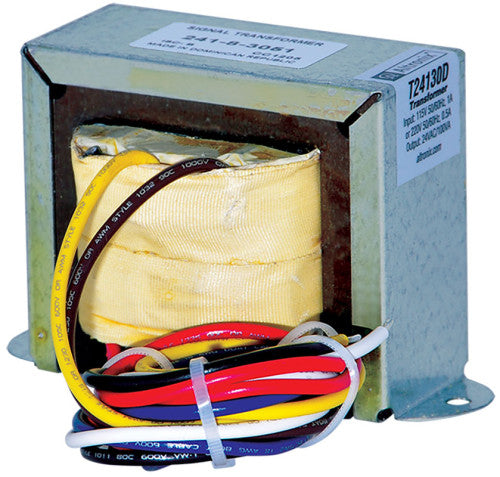

Altronix T24130D dual voltage open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.
Specifications
Input
115VAC 50/60 Hz @ 1A or 220VAC 50/60 Hz, 0.5A.
Output
24VAC/100VA (4A) supply current.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 49 BTU/Hr.
System AC input VA requirement:
115VAC: 115VA.
220VAC: 110VA.
