Description

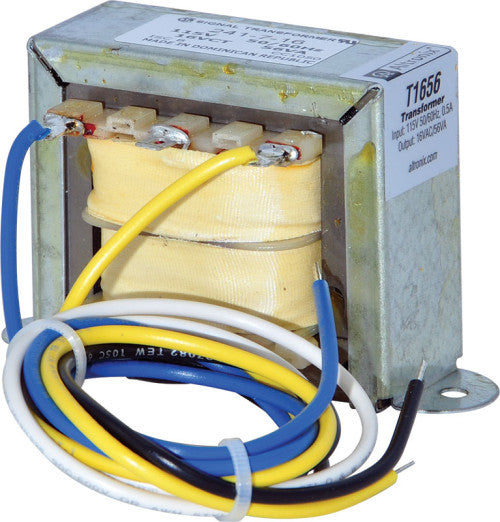

T1656220 16VAC 56VA XFMR 220VAC PRIMARY
Altronix T1656220 open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.
Input
220VAC 50/60 Hz, 0.25A.
Output
16VAC/56VA (3.5A) supply current.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 29 BTU/Hr.
System AC input VA requirement: 55VA.
