Description

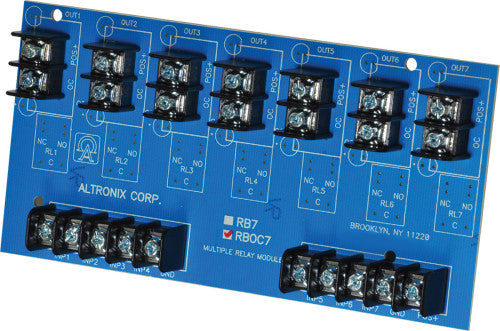

Altronix RBOC7 SEVEN OUTPUT INTERFACE MODULE
The RBOC7 Open Collector Module incorporates seven (7) open collector outputs capable of sinking 100mA which can be activated via positive (+) low current trigger inputs.
Input
Voltage:
12VDC or 24VDC operation
Seven (7) independent (3VDC to 24VDC @ 2mA minimum) positive inputs
Outputs
Seven (7) open collector outputs capable of sinking 100mA each.
Temperature
Operating: -25ºC to 55ºC ( -13ºF to 131ºF).
Storage: -25ºC to 70ºC ( -13ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
